Shenzhen Senstech CWF S29 Threaded Type Stainless Steel Probe PT100 Temperature Sensor
- Category: >>>
- Supplier: Senstech Ltd.
Share on (1898858069):
Product Overview
Description

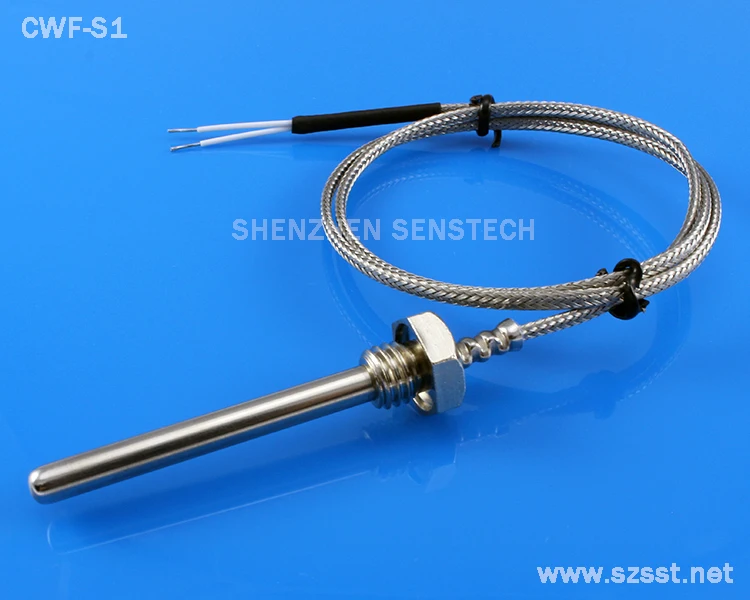

CWF-S1 Threaded Type Stainless Steel Probe PT100 Temperature Sensor
The Product Sells Point :
Very precise measuring: measuring temperature ±0.5℃;
Precise linear temperature-resistance characteristic;
Low weight;
Short response time
Key Specifications/Special Features :
Nominal resistance: 100Ωat 0℃(Pt100)
Basic thermistor values: for platinum measuring resistors as in chart
Measuring range: -40℃ to 350℃, other ranges on request
Measuring current: max.1mA(no self-heating!)
Circuit: 2-wire 3-wire or customized
Features:
- Straight Probe Assembly, Cable Runs Directly to the Sensing Element
- Contains a Precision 100 Ohm Class B DIN Platinum Element
- Compact Design for OEM RTD Sensor Probe Applications
- Available in 1/4", 3/16", 1/8" 3mm, 4.5mm and 6mmm Diameters, and Various Lengths.
- 2-, 3- or 4-Wire PFA Insulated, PFA Jacketed Cables
- Also Available With Fiberglass Insulated Cables, Fiberglass Cables With SST Overbraid or Fiberglass Cables With BX Amored Hose
We have various configurations and options:
Type | Measuring Range°C | Accuracy | Tolerance | Temperature Coefficient | |
Pt100 | -50~+500 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 | |
Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | |||
Pt1000 | -50~+500 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 | |
Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | |||
Construction | Water Proof/Abrasion-proof/Anti-explosion | ||||
Cable | 2-wire, 3-wire, 4-wire | ||||
Cable Material | PVC cable, Silicone cable, TPE cable, PTFE cable, Fiberglass cable | ||||
Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread | ||||
Types of connections box | 1: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP55) 6: Round plug type 7: Flag plug type 8: Small Connection type 9: Compensation wire type | ||||
Diameter of thermowell | 0: Ø16 1: Ø12 3: Ø3 4: Ø4 5: Ø5 6: Ø6 8: Ø8 | ||||
Measuring range | -200~+450 degree Celsius | ||||
Other | Accept customized | ||||

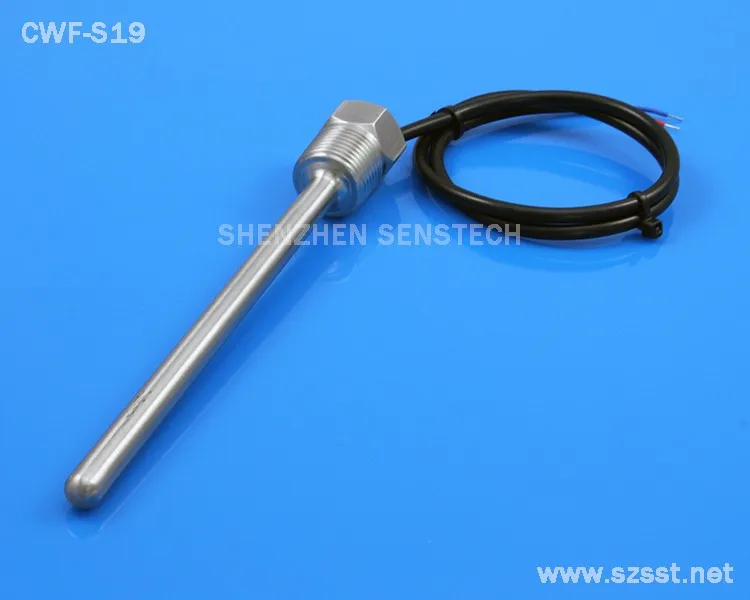

Stainless Steel Threaded Probe PT100

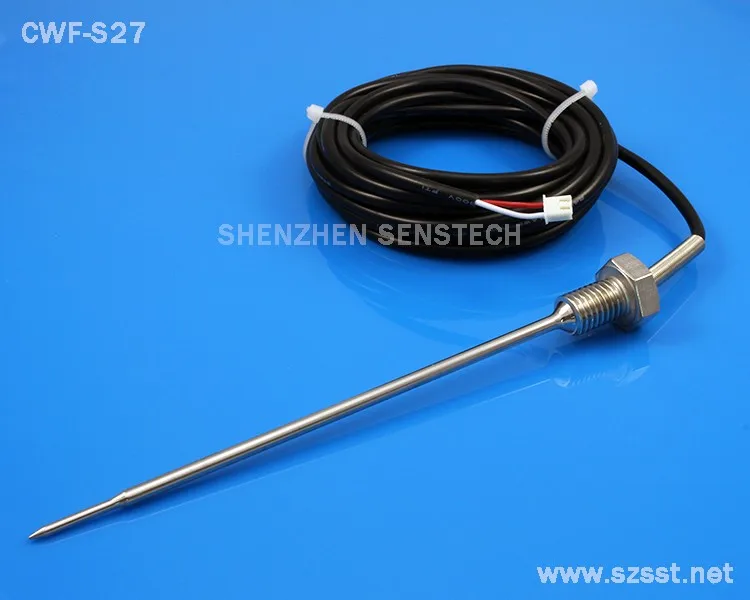

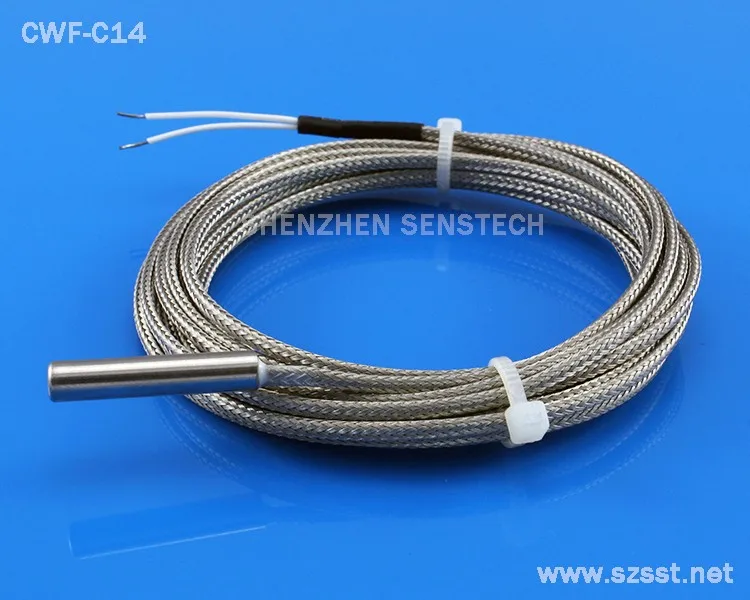

More RTD Options
Type | Measuring Range°C | Accuracy | Tolerance | Temperature Coefficient | |
Pt100 | -50~+300 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 | |
-70~+500 | Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | ||
Pt100 | -50~+300 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 | |
-70~+500 | Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | ||
Pt1000 | -50~+300 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 | |
-70~+500 | Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | ||
Construction | Water Proof/Abrasion-proof/Anti-explosion | ||||
Cable | 2-wire, 3-wire, 4-wire | ||||
Cable Material | PVC cable, Silicone cable, TPE cable, PTFE cable, Fiberglass cable | ||||
Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread | ||||
Diameter of thermowell | 1: Ø16 2: Ø12 3: Ø3 4: Ø4 5: Ø5 6: Ø6 7: Ø8 | ||||
