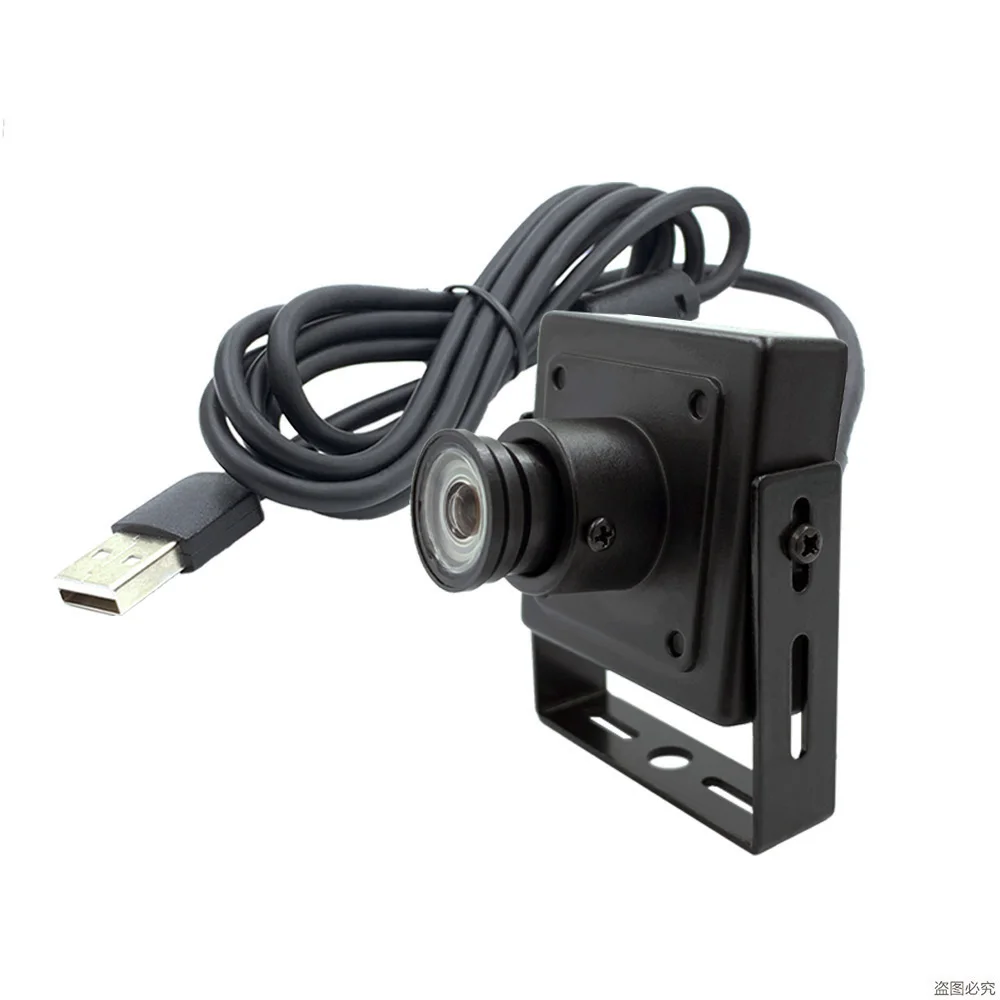

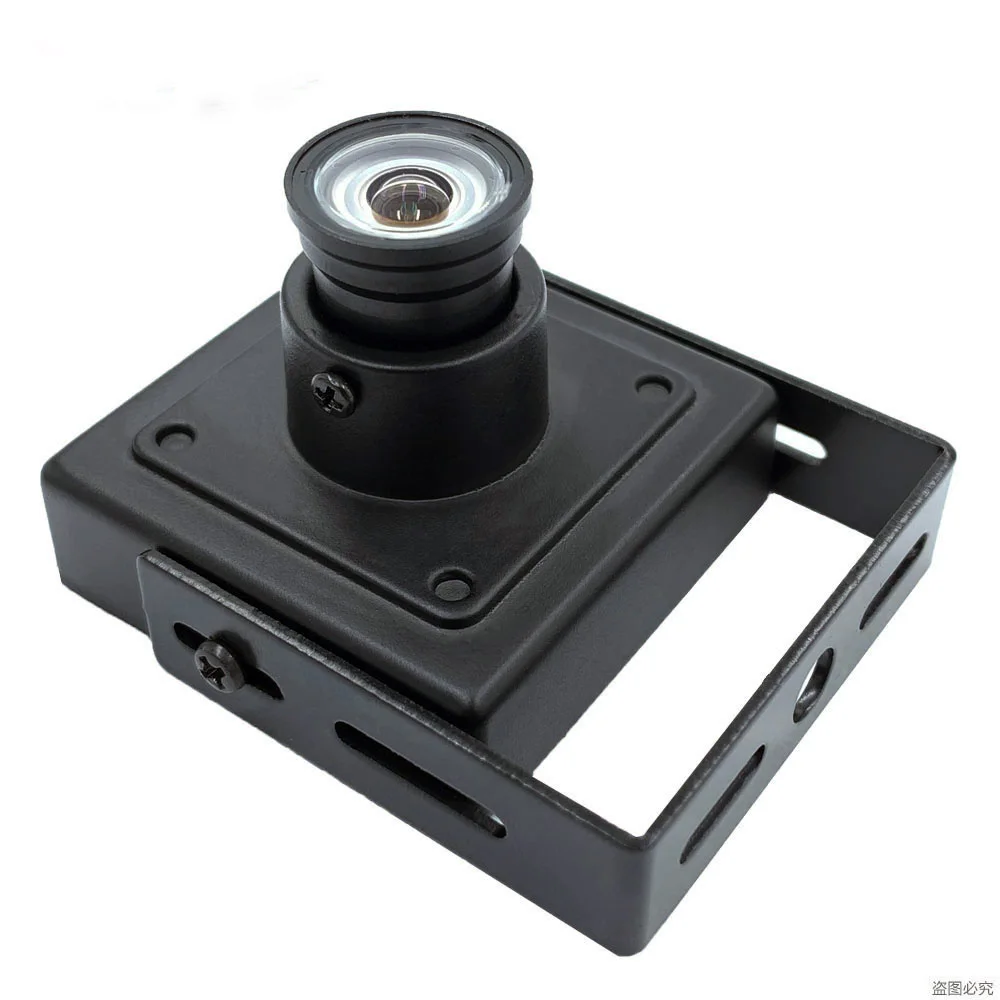

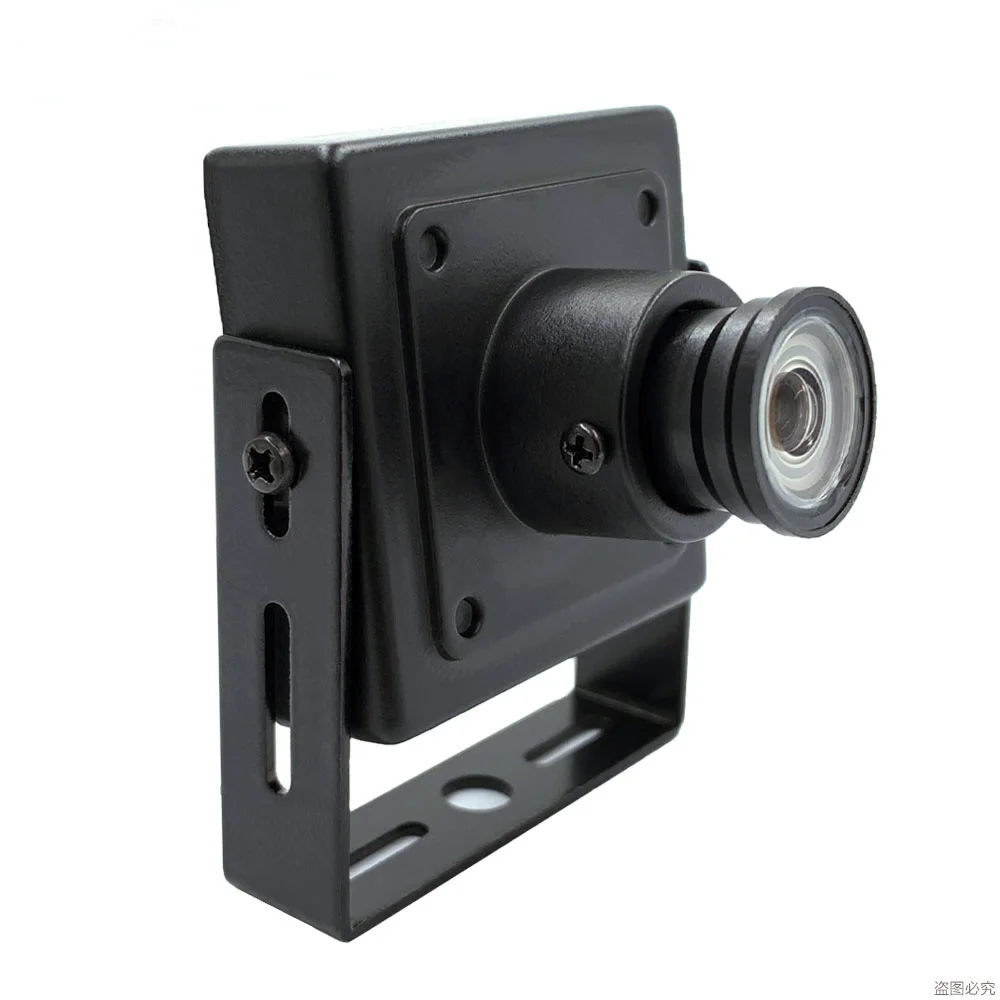

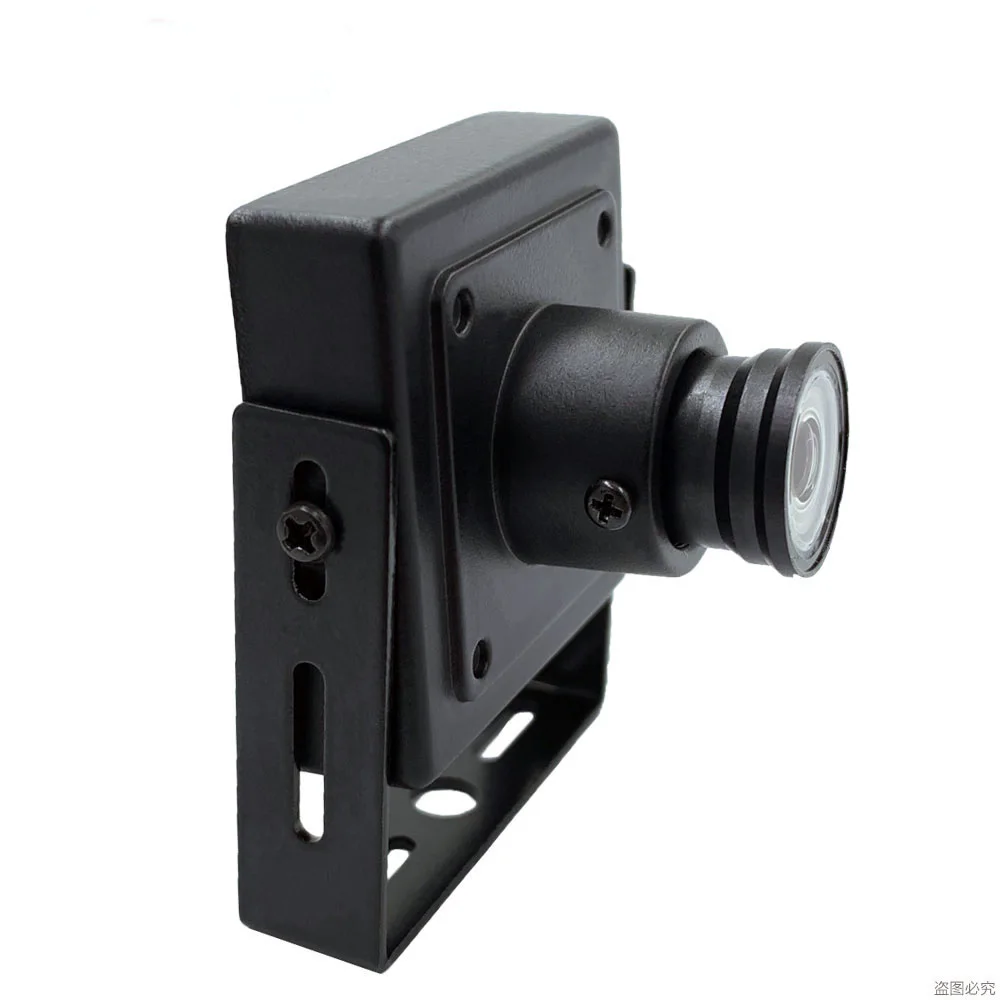

34*34mm 1.0MP 3.6mm Board Lens 0.1Lux 30fps UVC USB Camera for ATM Kiosk manufacturer industrial equipment Security camara
- Category: >>>
- Supplier: Shenzhen Hdv Electronics Co. Ltd.
Share on (1899119735):
Product Overview
Description
34*34mm 1.0MP 3.6mm Board Lens 0.1Lux 30fps UVC MINI USB Camera for ATM and Kiosk
This USB camera design for Intelligent machines,special Kiosk, VTM, CRS, ATM machine, mini shell, easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.
Order Symbol:
- HDV-USB100MP-L3.6 1.0MP USB Camera with 3.6mm Board lens
- HDV-USB100MP-F1.78 1.0MP USB Camera with 1.78mm Board lens
- HDV-USB100MP-L2.1 1.0MP USB Camera with 2.1mm Board lens
- HDV-USB100MP-L2.8 1.0MP USB Camera with 2.8mm Board lens
- HDV-USB100MP-L4.2 1.0MP USB Camera with 4.2mm Board lens
- HDV-USB100MP-L6 1.0MP USB Camera with 6mm Board lens
- HDV-USB100MP-L8 1.0MP USB Camera with 8mm Board lens
- HDV-USB100MP-L12 1.0MP USB Camera with 12mm Board lens
- HDV-USB100MP-L16 1.0MP USB Camera with 16mm Board lens
Main Features:
- Image sensor 1/4" CMOS, 0.5Lux, 1.0MP image
- Audio Optional
- Free Driver USB 2.0 (UVC)
- USB2.0 HIGH SPEED, compression USB 1.1
- Default setting (30fps@1280*720)
- Manual focus
- Angle of view : 15-170 degree optional depends on different lens.
- Compression YUY2 & MJPEG
- Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
- Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
- Standard with 1.8m cable, can be connected through 10 meters USB cable
- Dimension:34*34mm
- USB Power: 5V±10%DC,50mA
- Used:intelligent machine,especially Banks'ATM
- Can be customized by your requirements
Support System:
Dimension:
Product Description
<
| Pixels | Resolution | MJPEG(Optional) | YUY2 | |
| 1.0MP | 1280(H) x 720 (V) | 30fps | 9fps | |
| 1.0MP | SVGA | 800(H) x 600 (V) | 30fps | 20fps |
| 1.0MP | VGA | 640(H) x 480 (V) | 30fps | 30fps |
| 1.0MP | 352(H) x 288 (V) | 30fps | 30fps | |
| 1.0MP | 320(H) x 240 (V) | 30fps | 30fps | |
| USB Series | Model | HDV-USB100MP-L3.6 1.0MP USB Camera with 3.6mm Board lens HDV-USB100MP-F1.78 1.0MP USB Camera with 1.78mm Board lens HDV-USB100MP-L2.1 1.0MP USB Camera with 2.1mm Board lens HDV-USB100MP-L2.8 1.0MP USB Camera with 2.8mm Board lens HDV-USB100MP-L4.2 1.0MP USB Camera with 4.2mm Board lens HDV-USB100MP-L6 1.0MP USB Camera with 6mm Board lens HDV-USB100MP-L8 1.0MP USB Camera with 8mm Board lens HDV-USB100MP-L12 1.0MP USB Camera with 12mm Board lens HDV-USB100MP-L16 1.0MP USB Camera with 16mm Board lens |
| Name | USB Mini Camera | |
| Camera | Image sensor | 1/4" Sony Sensor |
| Resolution | 1.0 million pixels , 30fps no smear | |
| Min.Illumination | 0.1Lux | |
| Lens Standard | 3.6mm Board lens F1.2/90° | |
| Effective Pixels | 640×480 pixels(VGA); 320×240 pixels(QVGA); | |
| Syetem | Windows 2000; Windows XP; Windows VISTA; Windows 7; Linux(In 2.6.18 above the kernel version);Mac ps3; Android System | |
| S/N ratio | More then 48 dB (AGC Off) | |
| Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
| White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
| Gamma Characteristic | Auto r>=0.45 | |
| Manual Function | White Balance, Brightness,Contrast,Hue,Saturation,Gain | |
| Miscellaneous | Mirror / Flip / Back Light / Flickerless | |
| Cable Length: | 1.8m ; 2-10m for optional purchase-USD0.5/m | |
| Industrial Standard | Power source | DC 5V (3.6-5V) / 80mA (USB Power) |
| Operating current | 85mA | |
| Operating Temperature | -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing) | |
| Interface Type | USB format(Complies with USB 2.0) | |
| Measurement (mm) | 34*34*26mm | |
| Weight (Approx.g) | 110g | |
| Accessories | Free | Brackets *1,Screw *2,Cable *1,Manul book *1 |

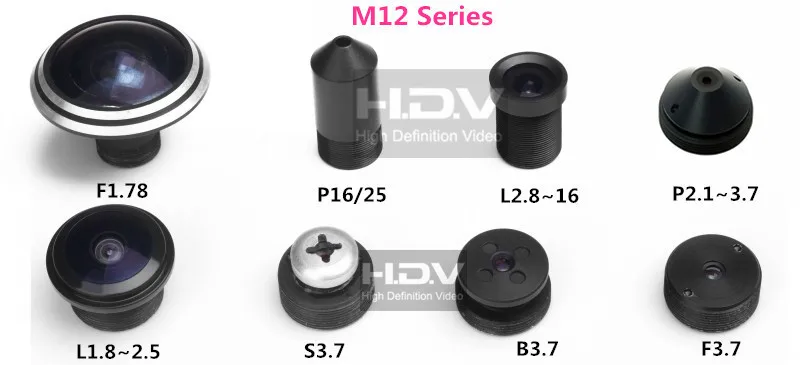

Lenses Optional
Packaging & Shipping
Packing List:
1pc cctv camera
1pc manual
1pc color box
Single Size: mm(LXWXH)
