Industrial Aluminum Alloyed Materials Fencing and Gates

Product Overview

Description

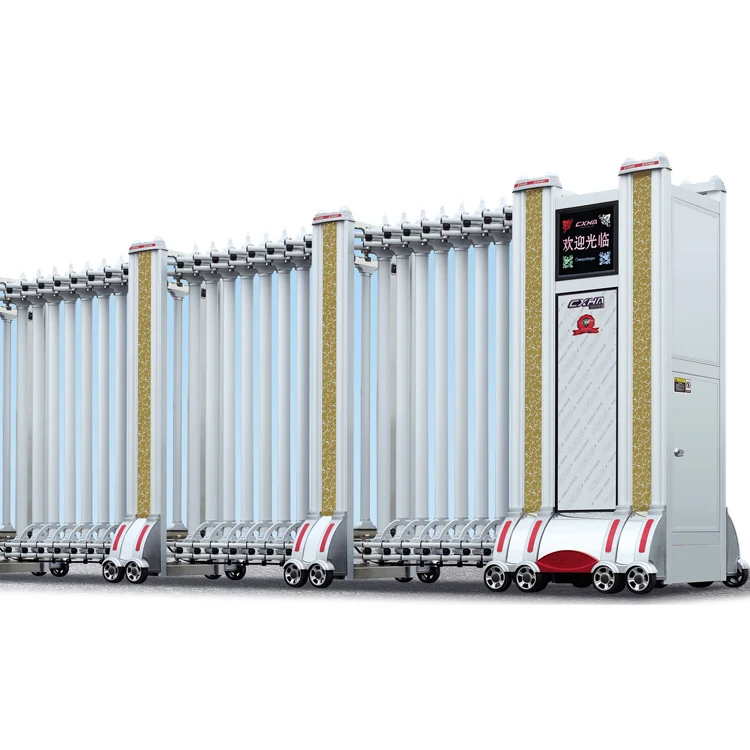

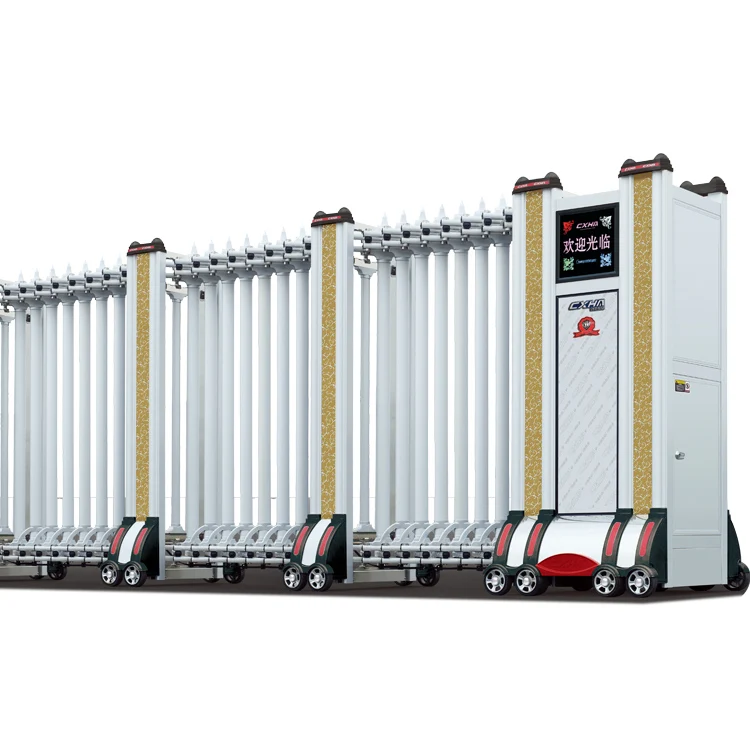

Product	Electric Retractable Gate

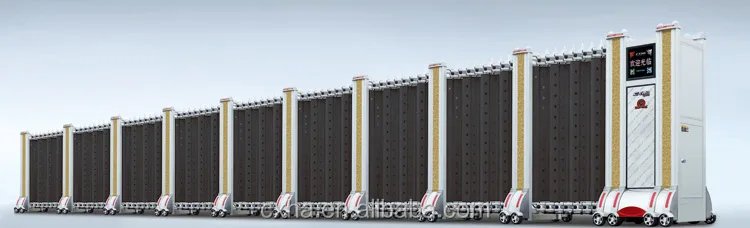

Model Number	CD-06BL
Materials	Aluminum-alloyed materials
Standard Height	1600mm (customized height available)
Gate Width	870mm
Wheel Base	780mm (center-center)
Gate Color	Black
Power Voltage	AC220V±20% 50Hz; AC110V±10% 60Hz
Power Consumption	250W - 370W
Working Temperature	-30°c - +50°c
Working Humidity	≤90%
Moving Speed	≈15m/min
Remote Control Distance	≤50m
Max. Length	≤30m
Main Parts Material	68×55x1.0 mm
Auxiliary Parts Material	1085×362×1.2 mm
Widly Applied to	Enterprise, Factory, Park, School, University, Stadium...







1, Gate Motor Overheating Protection: The motor will automatically power off and enter into protection status when the temperature reach some degree, and it will work normally again after the temperature turn low.



2, Speed Clutch: When the power cut off, only use the clutch key rotating 180 degree then the clutch will keep apart, and now the Electric Retractable Gate can be manually controlled.



3, Infrared Anti-Collision Device: If there is pedestrian or vehicle passing during working process, the Electric Retractable Gate will automatically stop 30cm or 40cm away to avoid collision.



4, Anti-Climb Alarm: If there is anyone climbing over the Electric Retractable Gate, it will alarm automatically (Optional).



5, Remote Control: It's very easy to control the gate for opening / closing / stopping if control distance is less than 50m.



6, Drive and Driven Wheels: With die-casting Al-alloy material for drive and driven wheels and imported rubber to make the system with wearing resistance, noise free and long service life.



7, Machine Head: The professional motor of Electric Retractable gate and thickening base board increase its weight and traction. The four wheel drive and chain driven make the system buffering and smooth start and stop. The head is also double sealed in whole to prevent dust and humidity to prolong its life.



8, Gate materials: The Electric Retractable gate is with high strength electrophoresis Al-alloy to assure of strong quality in hardness, anti-corossion and anti-collision, also to maintain its charm color without fading away.



9, Electric Retractable Gate vice part material is with high strength Al-alloy and the hole is punching pressed by professional ironware mould with PA wear sets, everyone of which also includes stainless steel pad to avoid friction or noise. Door-Axis core material is φ16*1.0mm pure stainless steel with black plastic tube outside to make it beautiful but practical



10, All plastic spare parts of the Electric Retractable gate are imported materials to ensure its long durability (used life upon 10 years)



11, Display Screen: There are fixed 8 digits display LED screen or rolling digital screen with 500 digits available for choice ( standard for 8 digits LED screen)













































If you are interested in our Electric Retractable Gate or have any doubt, please don't hesitate to contact us at any time, and you will get our best attention.
