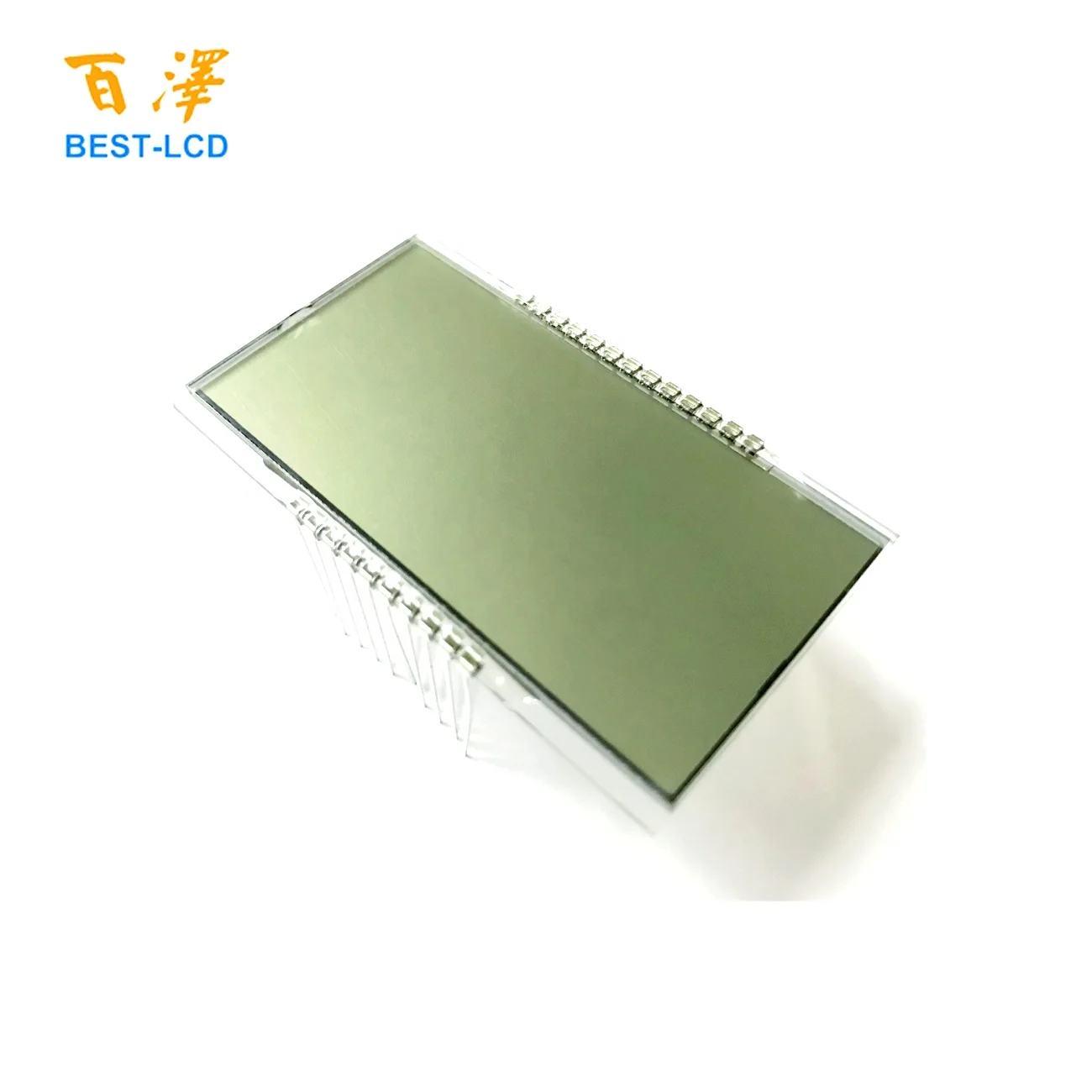

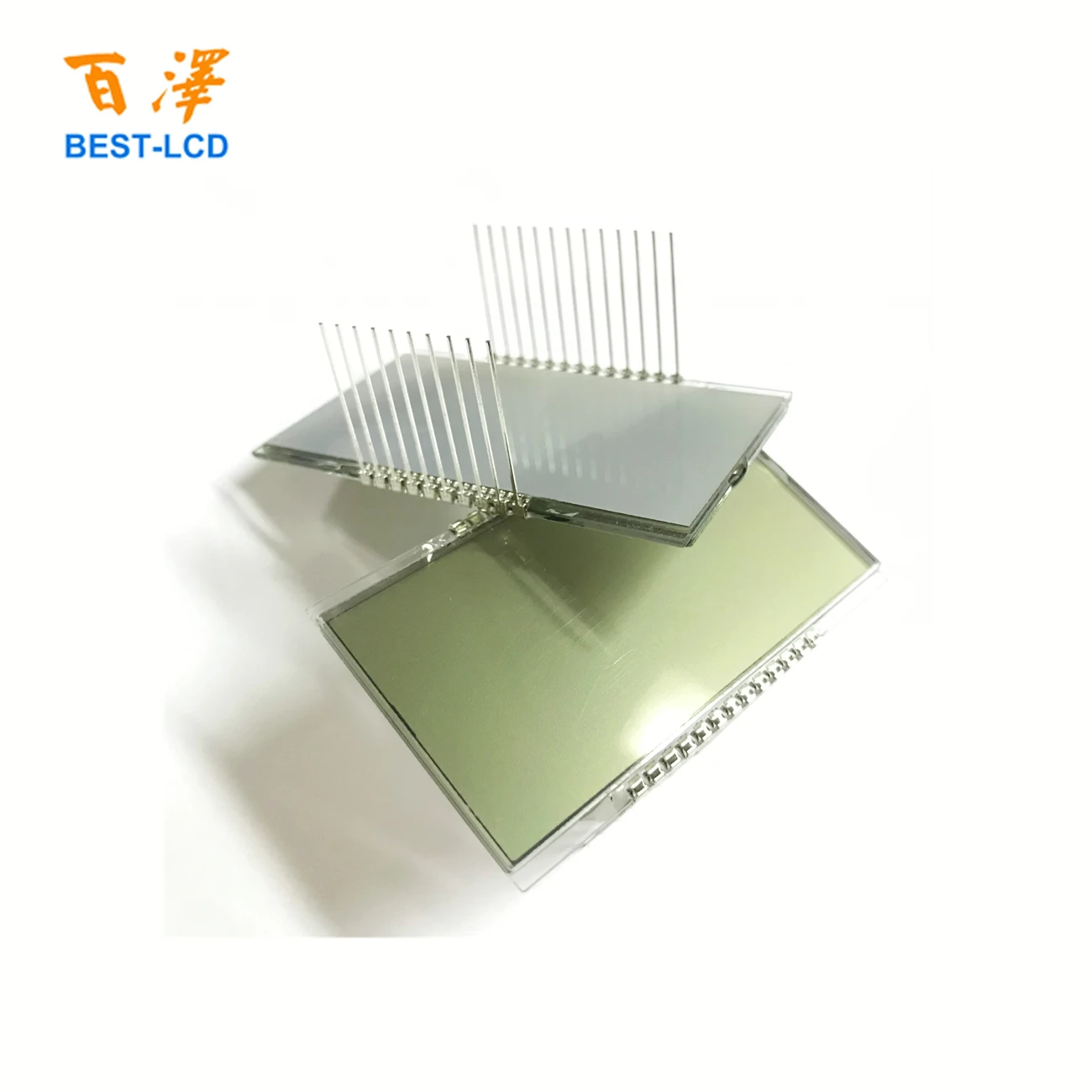

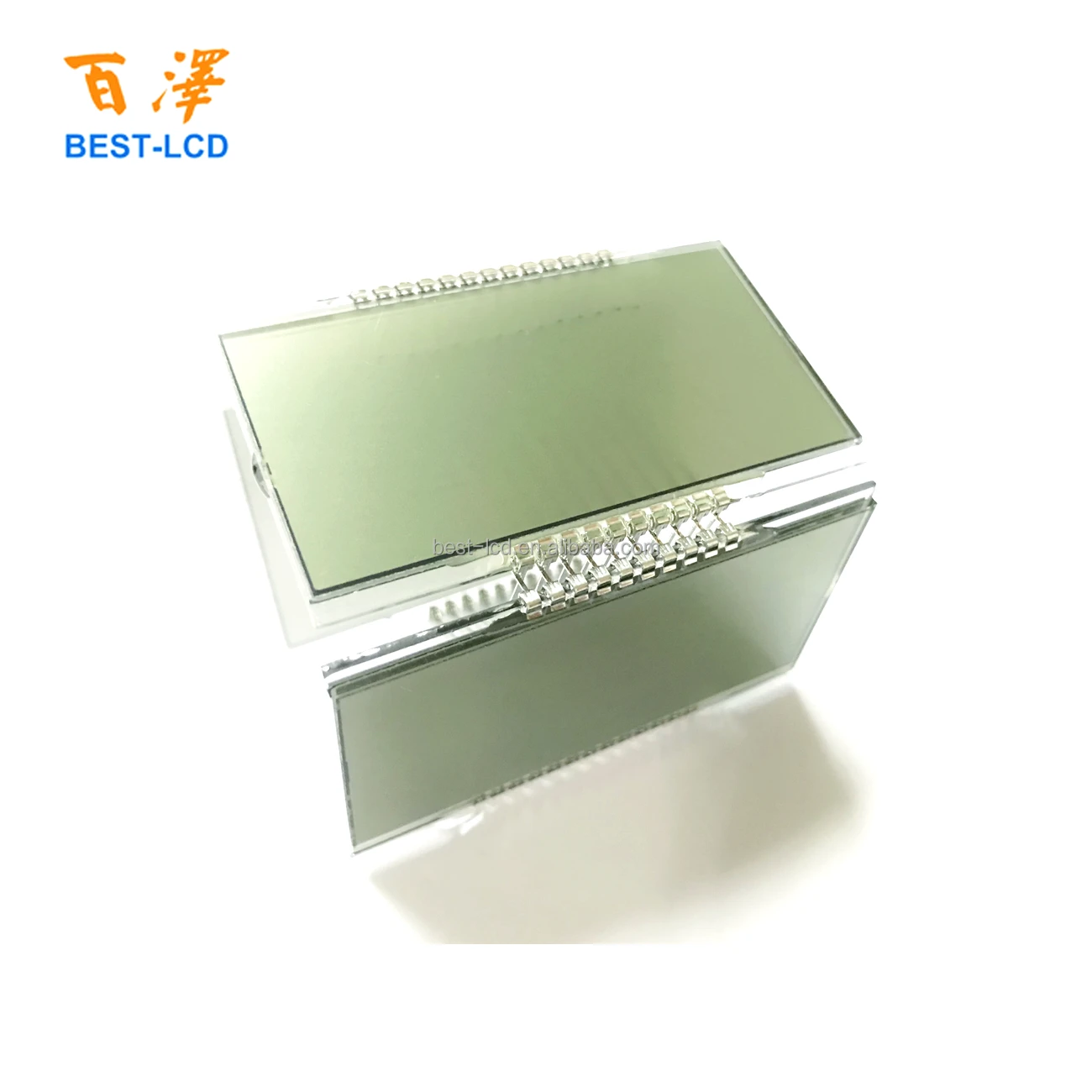

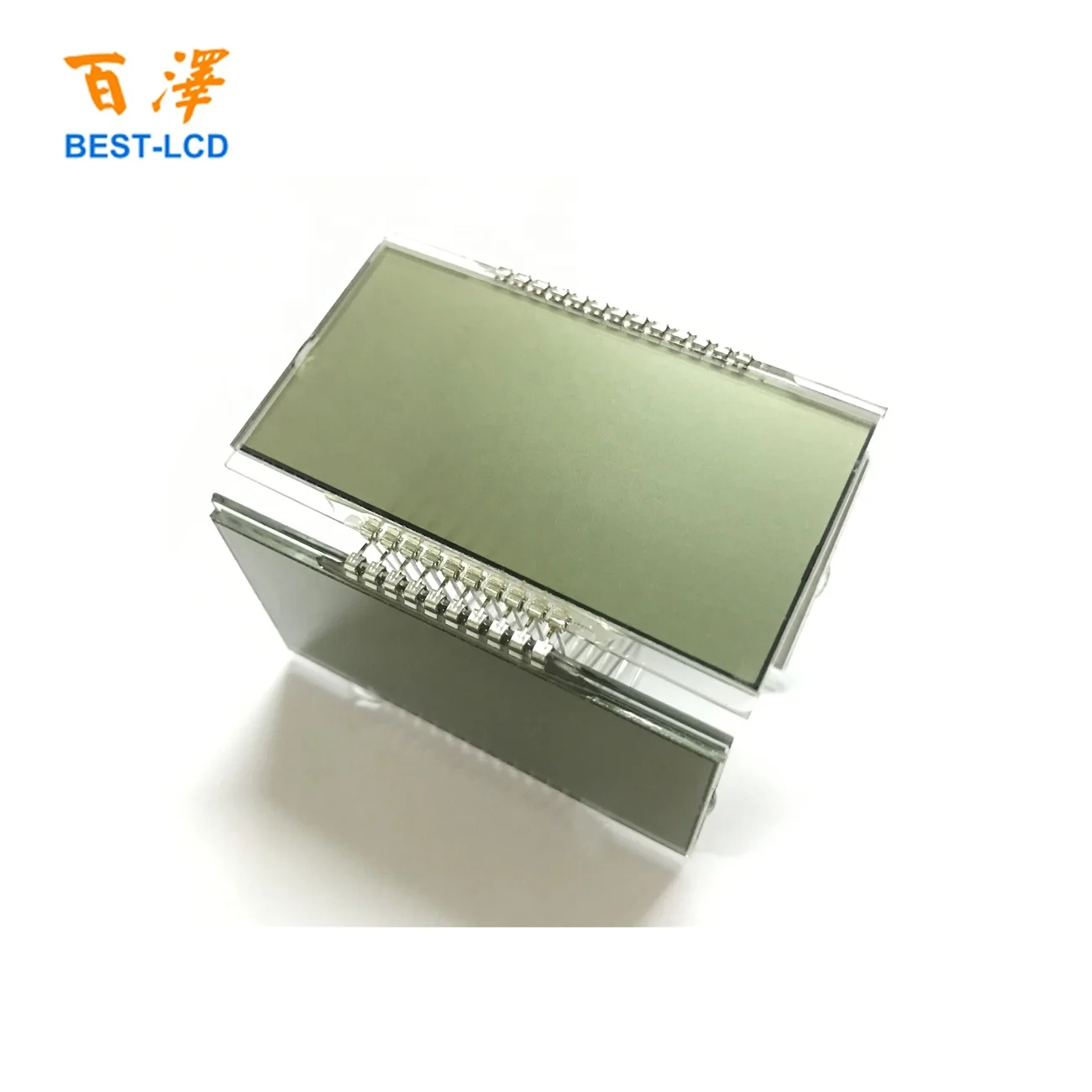

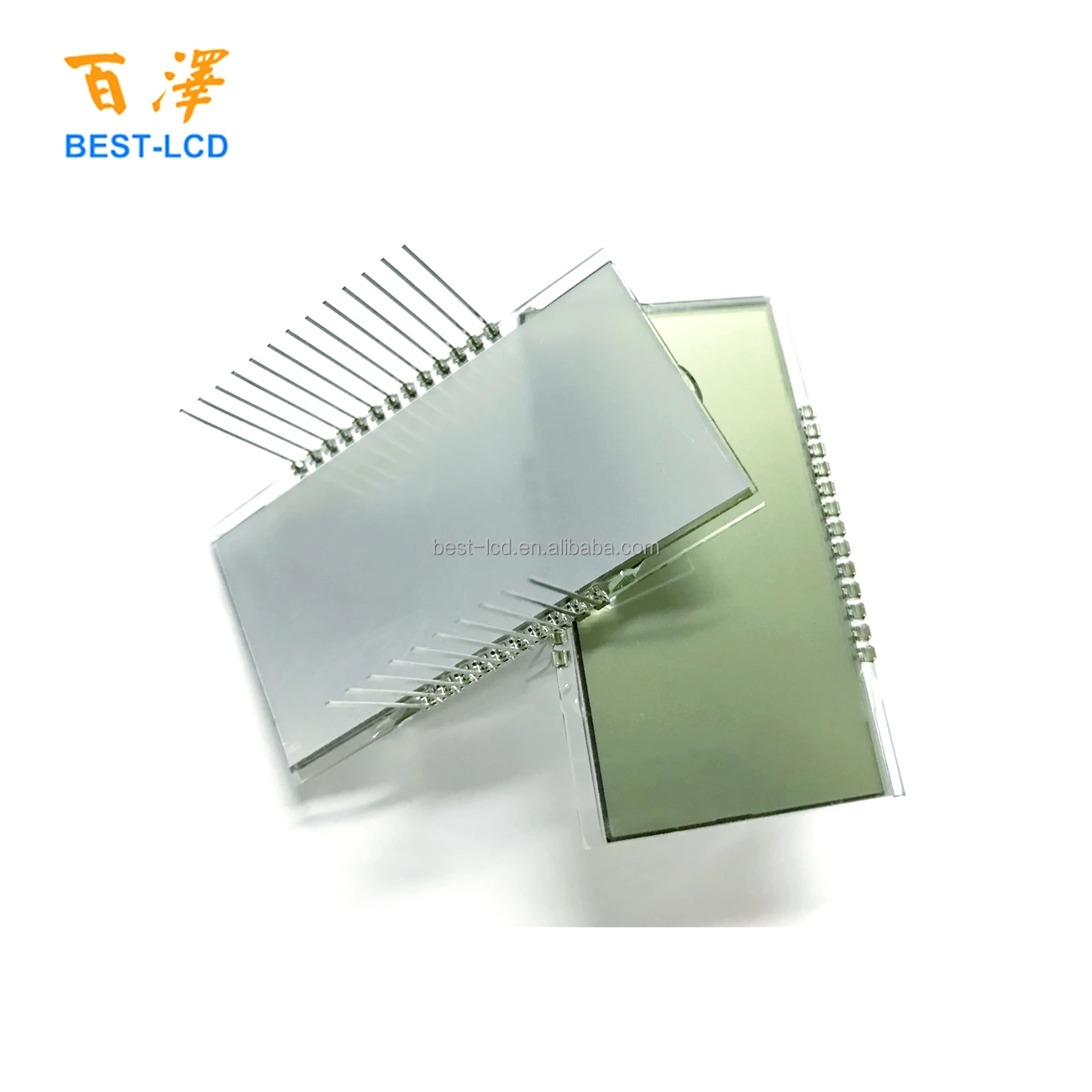

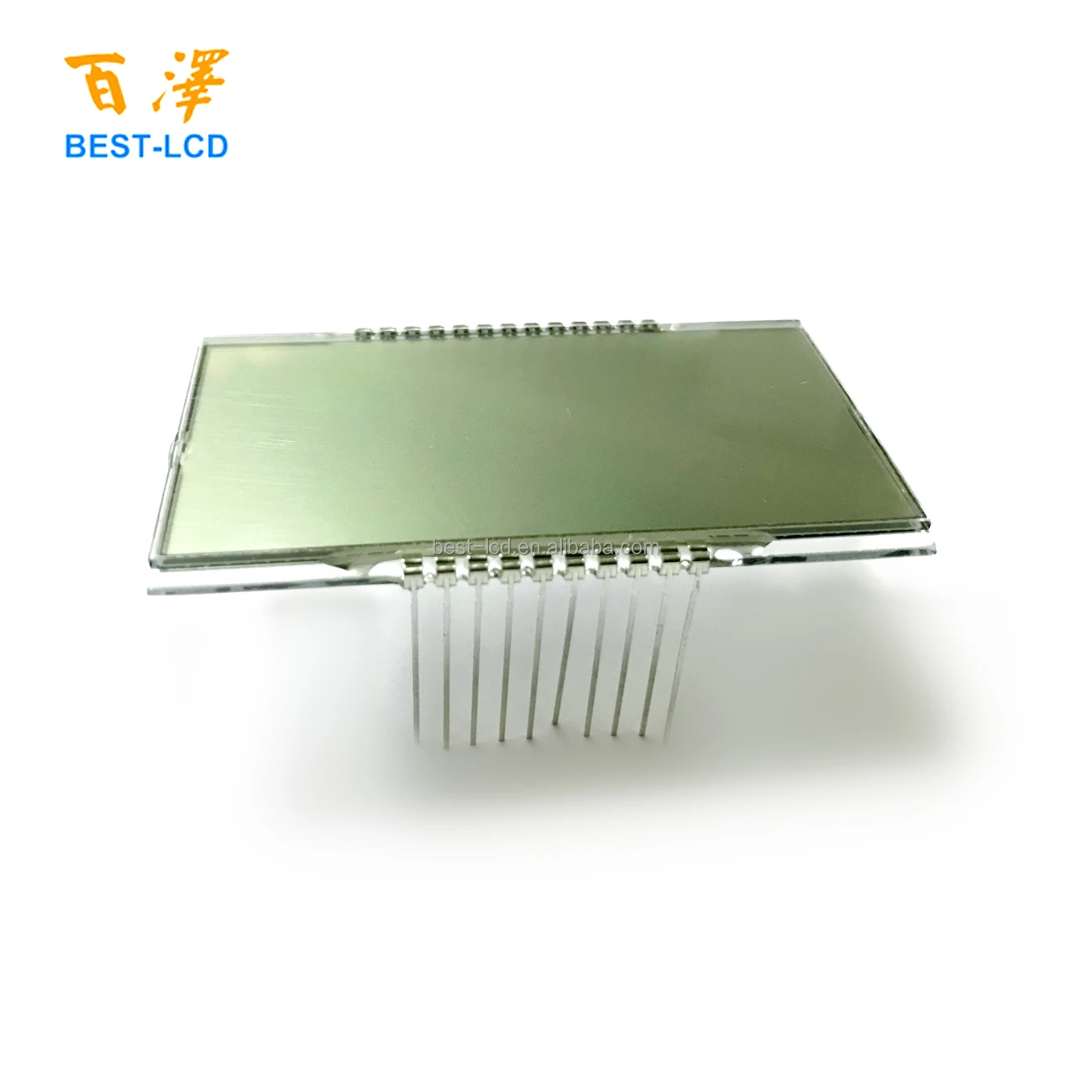

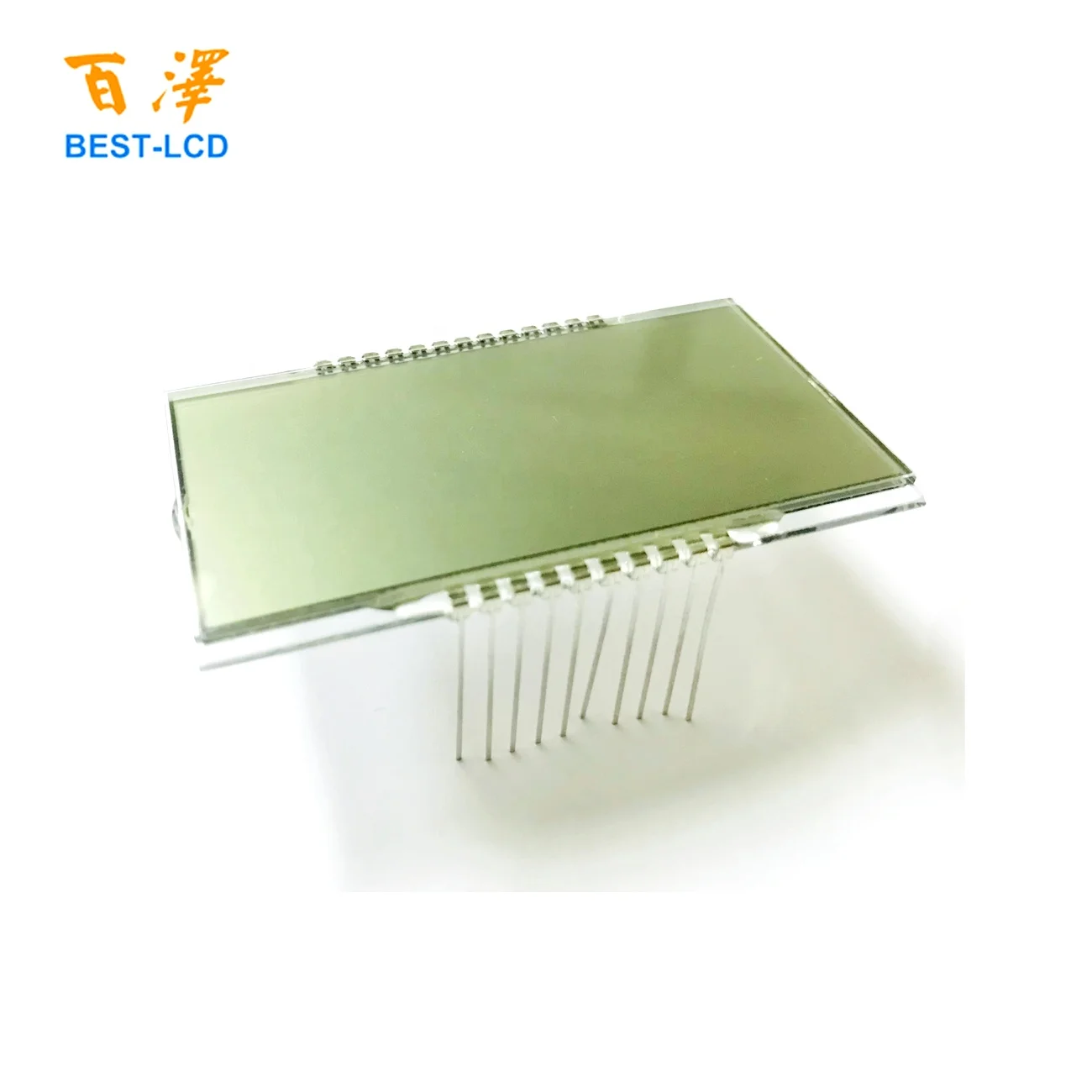

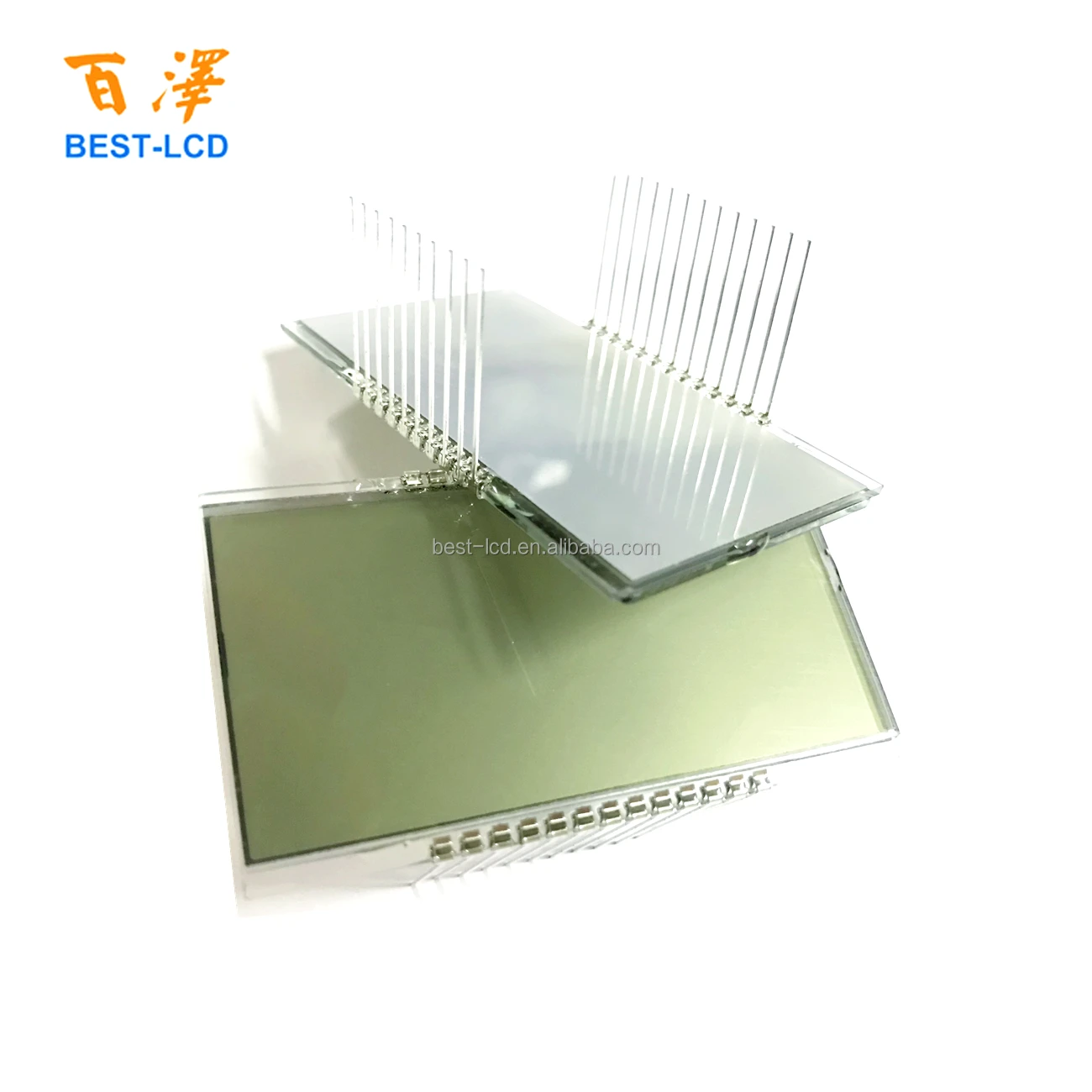

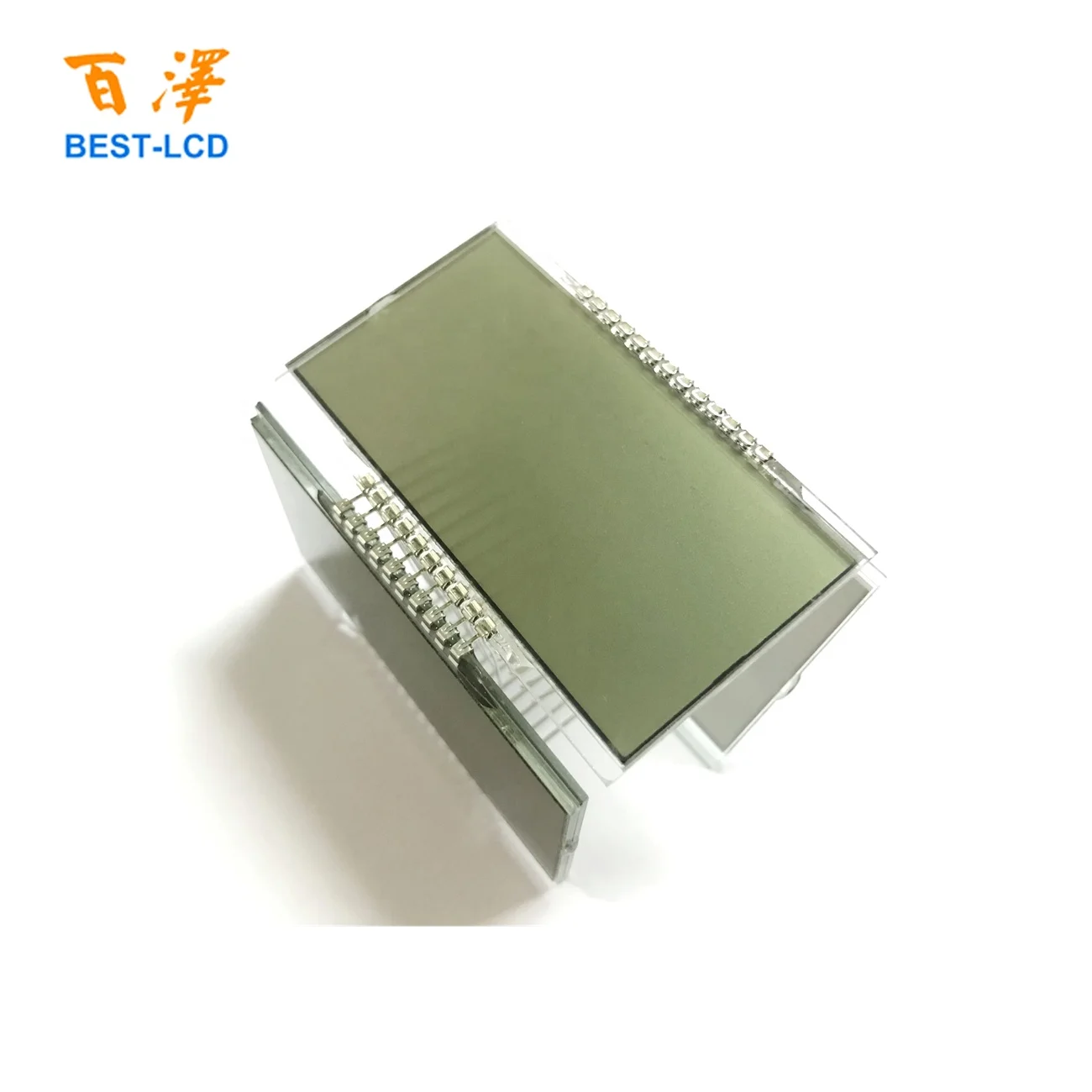

Custom 7 Segment Monochrome TN LCD Display With Backlight For Multimeter /Hybrid Meter /Universal Meter

Product Overview

Description

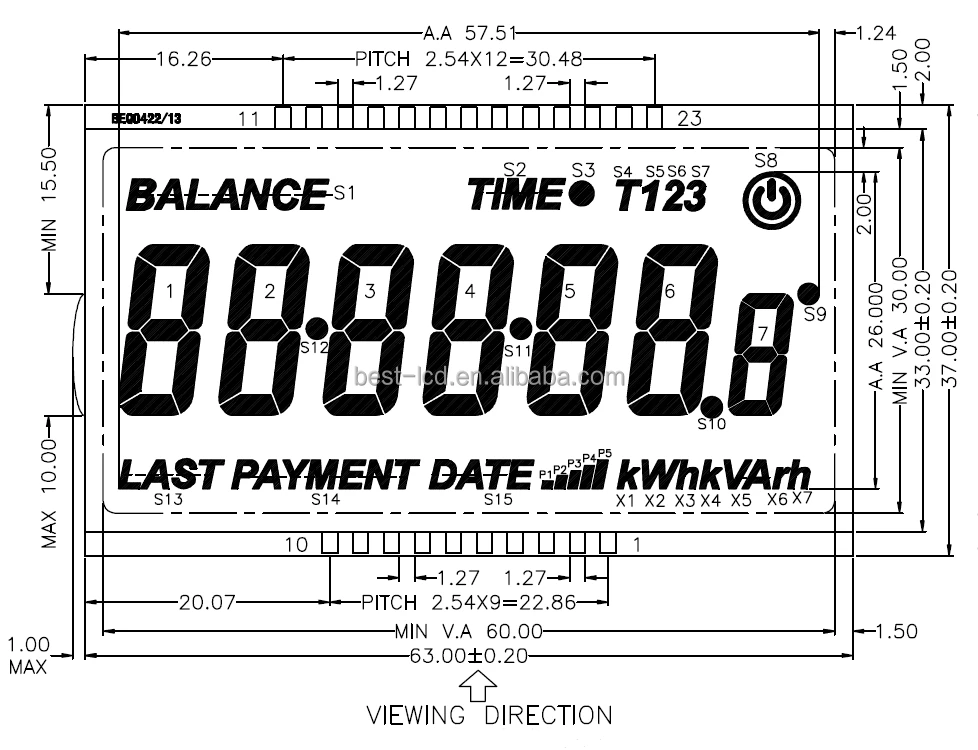

1. Precisely Technical&Mechanical Parameters FYI:









Application	For Electricity/Power/Multimeter etc.
Display Type	TN/Positive
Polarizer Type	Transflective
Outline Dimension	63.0*33.0/37.0*1.1mm
Viewing Angle	6 O'clock
connector type	Metal Pin
Driver method	1/4duty,1/3bias
Pitch	2.54mm
Operate temp.	-30~80degree
Storage temp.	-40~90degree
Power supply Vol.	3.3V









2. Qualified Packaging:













3. Trusted Shipping:











4. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..









7. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!



Trademanager: cnbestlcd

Skype: helenwang7708

QQ: 627807171





 8. FAQ

 Q1. Are you manufactory or trade company?



A:We are both professional, who specialize in TN, HTN, FSTN, STN, VA monochrome LCD displays, LED backlights and other eletronic products, more than 10 years! Our advanced full set equipments, skilled workers, strong R&D teams and professional expertise make sure good quality and competitive price!





Q2. How can I get the samples?



A: Send inquiry(You) → Offer quotation(We) →Confirm quotation & pay tooling charge(You) → Provide drawing(We) → confirm drawing(You) → make tooling & samples(We) → Samples finished → Delivery via Air or Sea or Express for collect





Q3. How long can I expect to get the sample?



A: Counter drawing: 2-3 days        Sample Lead Time: 10-15 business days





Q4. Will you offer free sample?



A: Yes, we usually provide 5-8pcs free samples and you just need to pay the tooling charge.





Q5. Can you design the lcd display in acccordance with our demands?



A: Pretty sure. We will guide and advise accordingly basing on your concepts and necessary info provided.





Q6. How to place orders ?



A: If you approve the samples ok, just send your formal purchase order to us via Email.  Then we will issue an Proforma Invoice to you for deposit payment and we shall need to know the following information about your order.



1) Product information: Quantity, both of your and our part/model number;



2) Delivery time required;



3) Shipping information: your company name, address, phone&Fax number, contact person, destination and shipping way etc...



4) Forwarder's contact details if you have any.





Q7. How long of mass production ?



A: 25-35 business days. It depends on different order quantities and part/model number.
