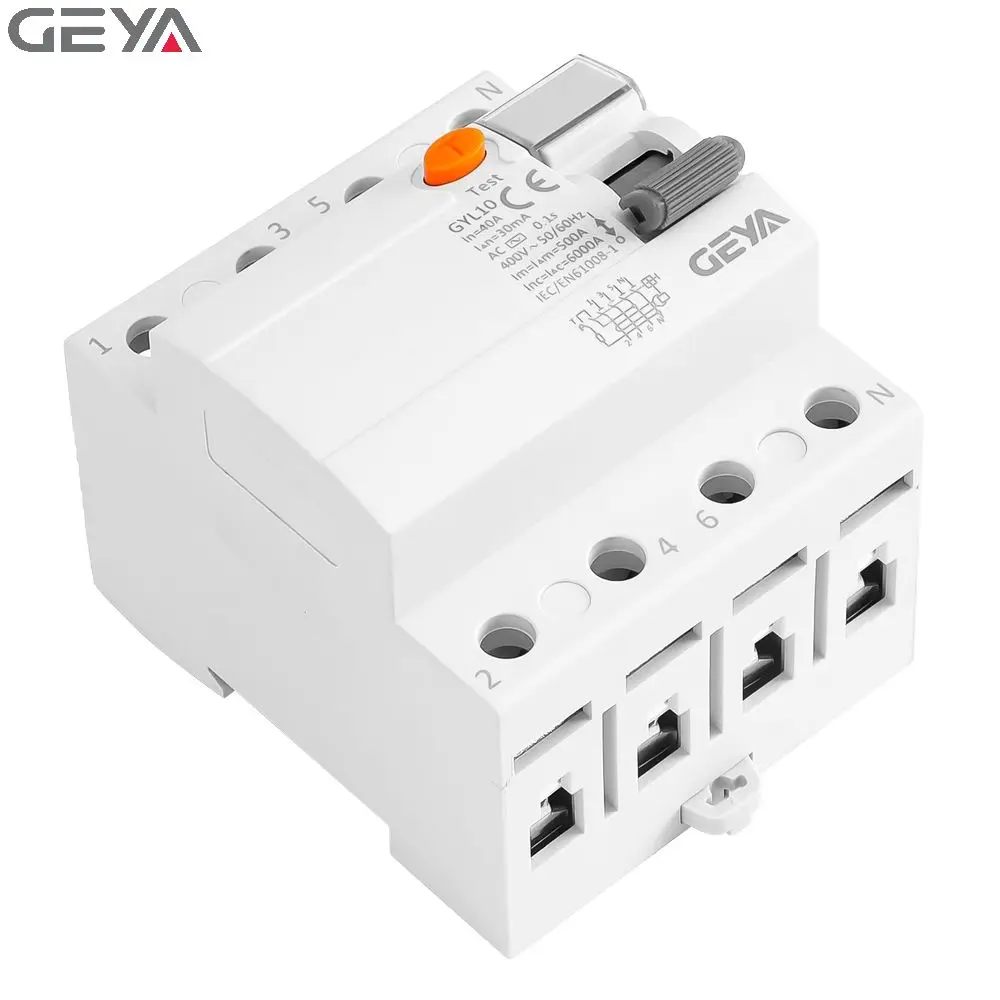

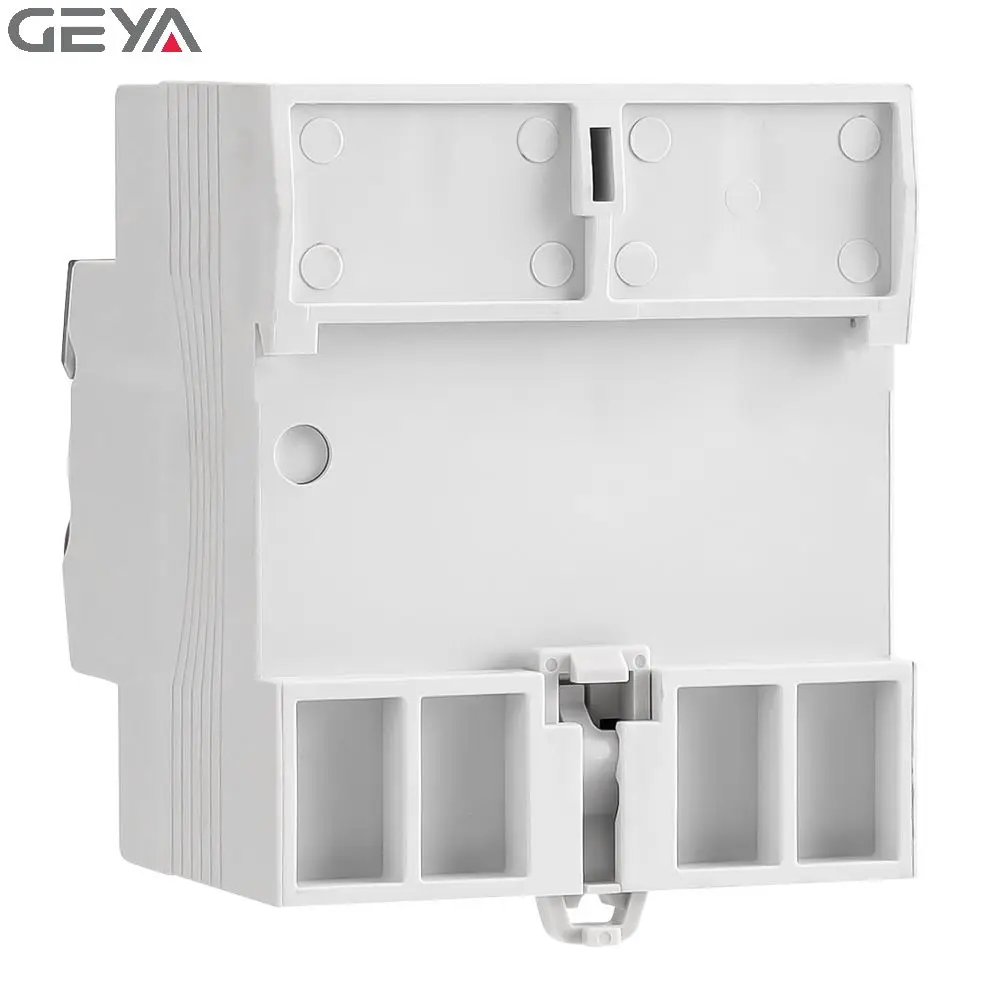

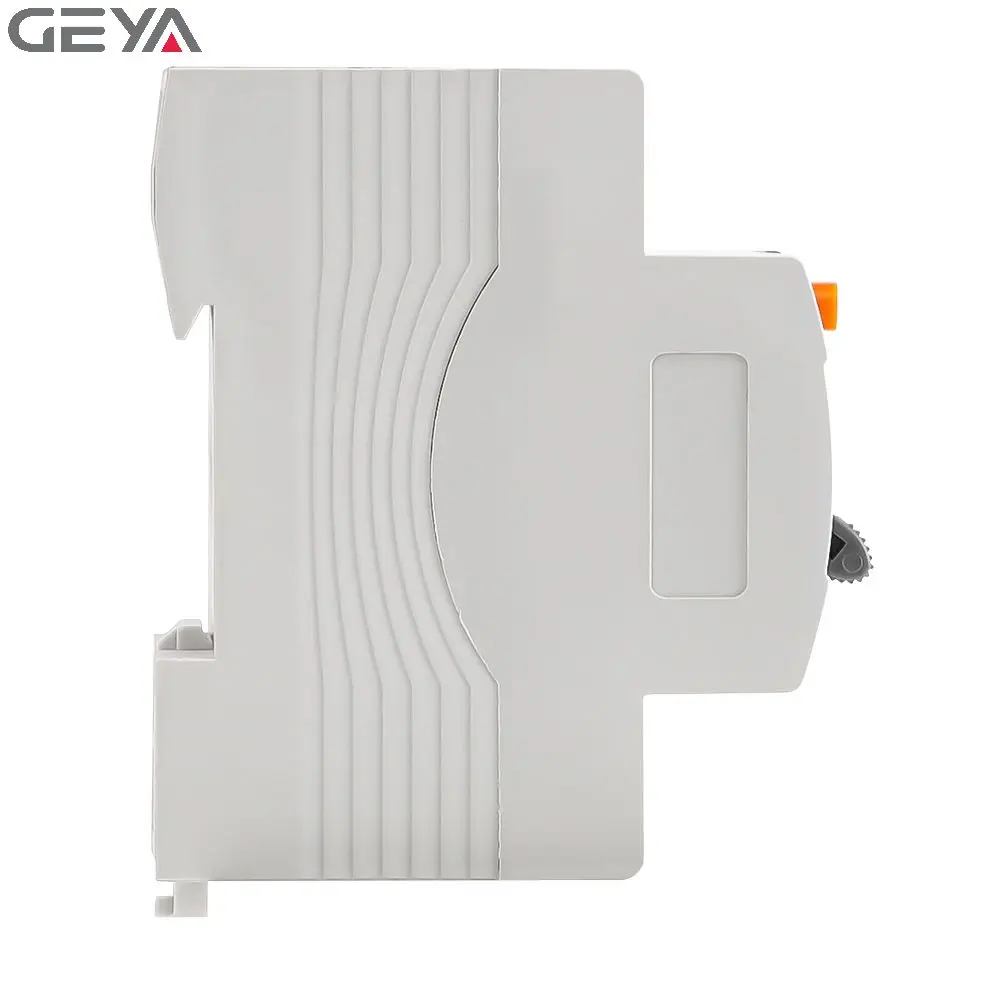

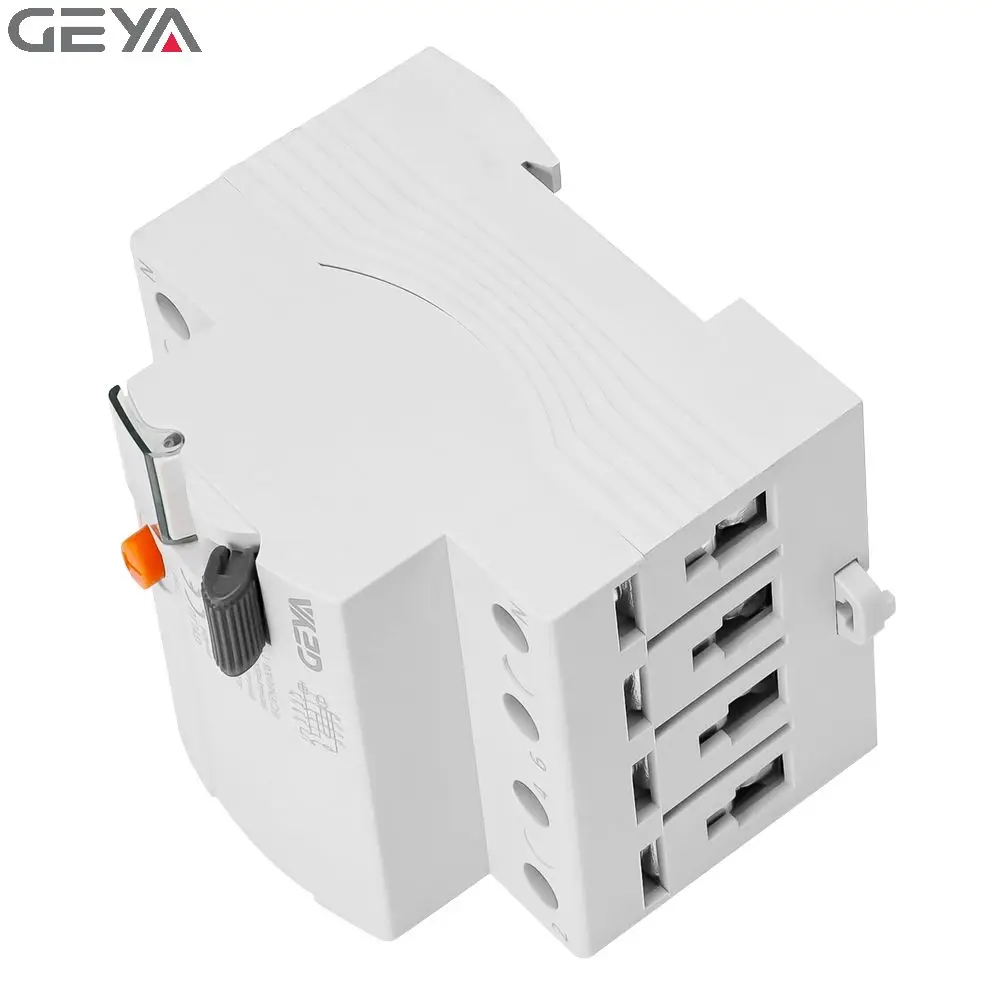

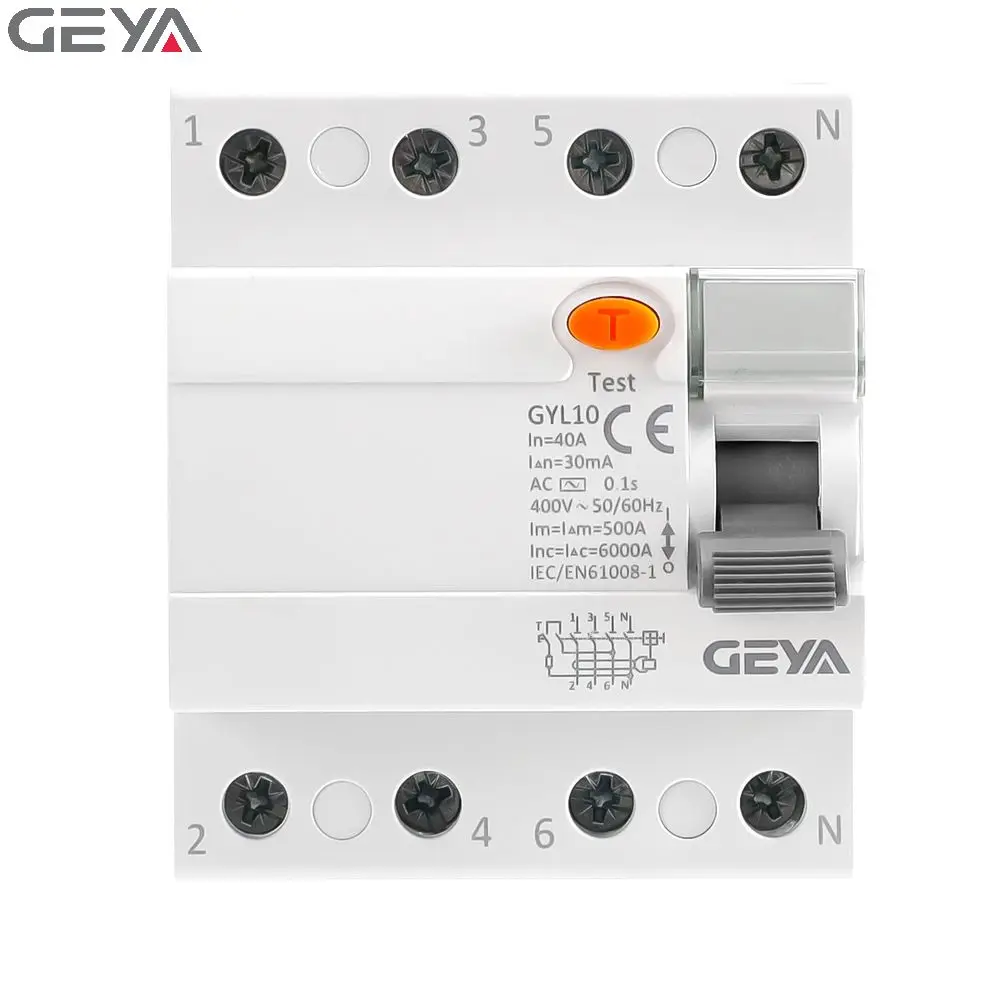

GEYA Wholesale GYL10 3 Phase N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA
GEYA Wholesale GYL10 3 Phase + N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA

GEYA Wholesale GYL10 3 Phase N Earth Leakage Residual Current Circuit Breaker Good Price ELCB 10mA 30mA 100mA 300mA 500mA

Share on (1900581145):


Price:$7.08 - $10.62

Quantity:


Product Overview

Description



·············This link price is only for GYL10 4P 30mA AC 16A···········


Product Description


GYL10 residual current circuit breaker (without overcurrent protection) is suitable for AC 50Hz, rated voltage 240V for two poles, 415V for four poles, and rated current up to 63A. It can quickly cut off the fault power in a very short time, To protect the safety of people and electrical equipment, it can also be used for infrequent switching of lines. Compliant with : GB/T 16916.1, IEC 61008-1, CE, CB.




Specification


Technical Parameter
Classification
AC、A
Protection type
ELE、 ELM
Poles
1P+N,3P+N
Rated current (In)
25/40/63A
Rated sensitivity（I△n）
10/30/100/300mA
Rated voltage (Ue)
1P+N:240V
3P+N:415V
Rated insulation voltage (Ui)
500V
Rated frequency
50/60Hz
Rated impluse withstand voltage (Uimp)
4kV
Rated residual making and breaking capacity I△m
500A
Short-circuit current Inc=I△c
6kA
Rated residual non-operating current
0.5 I△n
Break time
≤0.1s
Mechanical life/Electric life
4000
Protection class
Direct install:IP20
In distribution box:IP40
Ambient temperature
-25℃+40℃
Storage temperature
-25℃+60℃
Wiring size
Copper/Hard Wire:25mm2
Connection
Top and bottom(ELM) Top line(ELE)


Packing List


Specification
Description
PCS/CTN
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
16-25A
GYL10M 2P 30mA AC
100
49*40*17.5
20
19
32-40A
100
49*40*17.5
20
19
50-63A
100
49*40*17.5
20
19
16-25A
GYL10M 2P 100/300mA AC
100
49*40*17.5
20
19
32-40A
100
49*40*17.5
20
19
50-63A
100
49*40*17.5
20
19
16-25A
GYL10M 4P 30mA AC
50
49*40*17.5
20
19
32-40A
50
49*40*17.5
20
19
50-63A
50
49*40*17.5
20
19
16-25A
GYL10M 4P 100/300mA AC
50
49*40*17.5
20
19
32-40A
50
49*40*17.5
20
19
50-63A
50
49*40*17.5
20
19
