cca copper winding wire and price

Product Overview

Description

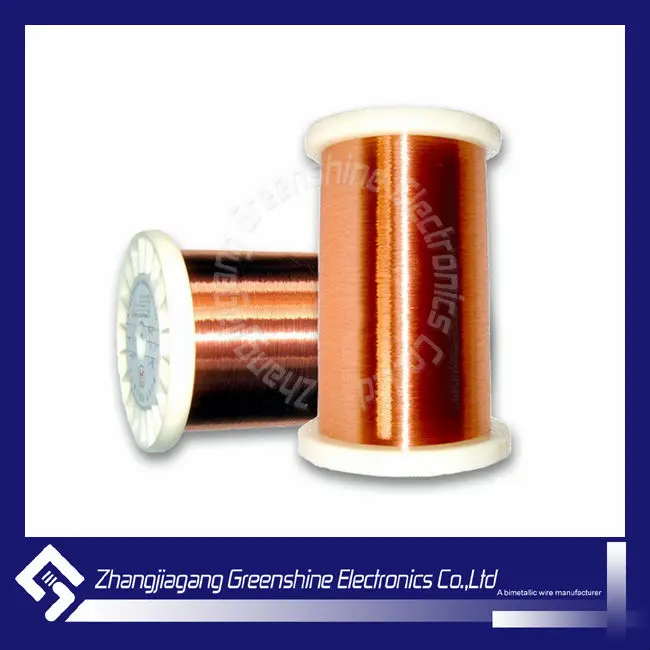

  CCA copper winding wire and price



Enameled CCA wire is a new electromagnetic wire taking copper clad aluminum as inner conductor material, with characteristics between copper and aluminum. It combines excellent conductivity of copper and light weight of aluminum.

Standard:



Reference to SJ/T11223-2000 Copper Clad Aluminum Wire and GB/T6109.1 ~ 11-2008 Enameled Round Winding Wire

Advantages of Enameled CCA Wire

1. DC resistivity: The DC resistivity of CCA wire is approximately 1.45 times that of copper wire;


2. With the same resistance, CCA wire is about 1/2 heavy of copper wire.


3. Good solderability: CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;


4. Light weight: The density of CCA wire is 1/3 of copper wire of the same diameter, very effective to reduce the weight of cables and coils.

Scope of Supply of CCA Wire: 0.15-4.60 mm



Models of supplies of enameled CCA wires: QA (N), QZ (N), QZY, and Q (ZY / XY)



Product Types

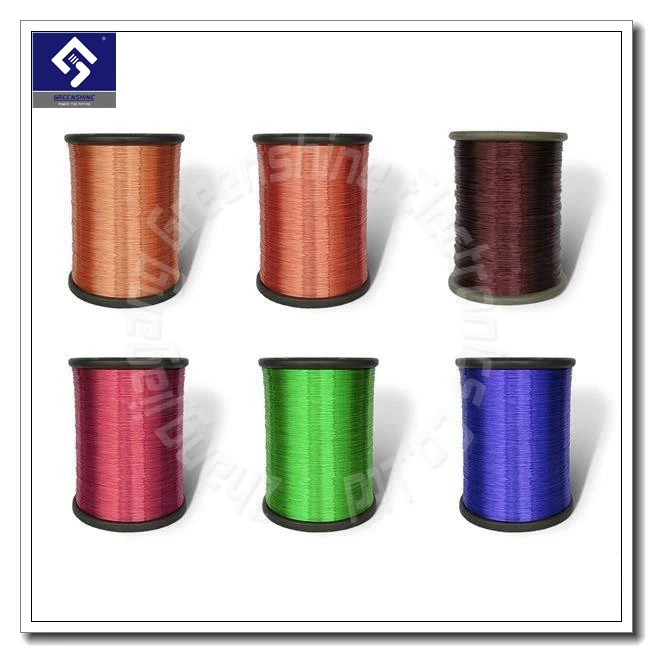

1. Polyester Enameled CCA round wire(PEW);


2. Polyurethane Enameled CCA round wire(UEW);


3. Polyesterimide enameled CCA round wire(EIW);


4. Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).

Applications:

1. High-frequency transformers, general transformers;


2. Induction coils, magnetic coils;


3. Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements;


4. Special electromagnetic wire for audio coils and CD drivers;


5.  Electromagnetic wire for monitor deflection coils;


6.  Various types of magnetic coils and induction coils.

  Plastic bobbin+Carton+Pallet

 Qualified Products ; Competitive Price; Customized Products;Fast Delivery time; Quick Customer service
