China Competitive split pressurize 300L Solar Water Heater Price
- Category: >>>
- Supplier: Haining Ensun Solar Technology Co. Ltd.
Share on (1900739287):
Product Overview
Description
Product Description
| China Competitive Compact Split 300L Solar Water Heater Price |
Split pressurized solar water heater features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one .
3. The pressurized solar water heater collector and the split solar water heater tank is separated,
that makes the system combine with the building perfectly, which will reduce the sightseeing for the
building and environment around .
4. Back up with electric heater so that in the day without sunshine hot water can also be used.
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

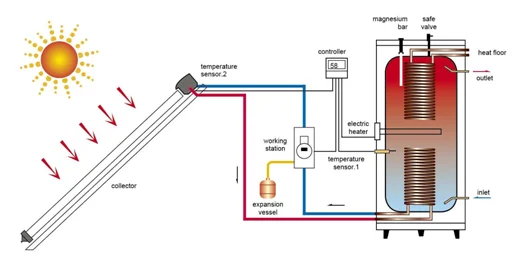

Split presssurized solar water heater working principle
1. The collector absorbs solar energy and transmits it to the water tank through circulation .
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump
automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value,
the circulation pump will be shut automatically .
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element
will start to work automatically.
Split pressurized solar water heater pump station component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel: 8L
12. Pressure resistance: 10 bar pressure for expansion vessel
Descripition | Split pressurized solar water heating system |
Material of out manifold | 0.55mm thickness color steel/ fluorine carbon steel |
0.55mm thickness color steel/ fluorine carbon steel | Food grade 1.5mm thickness SUS304 stainless steel |
Tank insulating layer | 50mm 45kg/m³ high-density polyurethane foamed |
Inlet and outlet hole | Male G3/4 |
Max pressure | 0.6 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96 (AM1.5) |
Emission ratio | εh=0.04-0.06 (80C±5C) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | 2.0mm thickness aluminum alloy |
Welding: | Argon arc welding |
Fastening pieces: | Made of stainless steel screw |
Tank capacity | 300L |
Solar collector | 1pcs 58x1800x20tube solar collector |
Absorber area | 1.875m² |
Working station | Normal pump station |
Heat exchanger length | 18m |
Heat pipe technical data
Item | Measured value |
Heat conduction coefficient | >99% |
Axial heat transition auantity | 0.93-2.49kw/cm² |
Heat conduction speed | >200mm/s |
Axial temperature difference | 1-2centi-degree/m |
Starting temperature | 20centi-degree |
Starting speed | 2min |
Working temperature range | 30centi-degree~300centi-degree |
Resistance to low temperature | -35C |
Life | >10years |
How to choose:
Choose the item according to the capacity, and choose the capacity according to the people quantity
in your family, one adult shower need about 50 L water. Normally,50 liters is only used for one person's shower.
Solar collector applications:
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
