Высокоскоростная машина для плетения шнурка Henghui
- Category: Braiding Machines >>>
- Supplier: Xuzhou Henghui Braiding Machine Co. Ltd.
Share on (1900956573):
Product Overview
Description
Product Description
drawstring making machine , high speed, big bobbin, yarn broken sensor,oil bath, manufacturer.

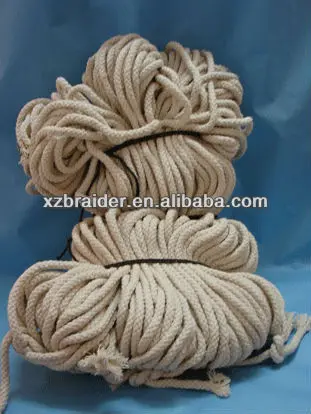

90series Rope braiding machine is for production kinds of ropes, such as: shoelace, elastic cord, clothes line , dia 1-10MM
Rope braiding machine
Function:
it is applied to producing all kinds of rope , shoelaces, elastic cord, and decorative ribbons and elastic bands, clothes ropes, security lines and pet neck line, Sports &Leisure accessory , fish thread etc
Feature:
- it is east to make different size of products by changing the pitch gears.
- adopting frequency control motor which is easy to control the speed
- well designed auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is also safe. This device lower the labor cost and increase the production.
- We have 800kinds braiding machine for chosen
- All spare parts are made by ourselves, and every parts have to pass strict inspection before they are installed on the machine.
- We R&D braiding machine for more than 30 years, and have gain dozens of patents
| Model No. | carries per head | Heads | horngear size in mm | Motor Power KW | Max. RPM Horngear | Bobbin type |
| KBL-12-4 | 12 | 4 | 90 | 0.55 | 360 | A B C |
| KBL-16-2 | 16 | 2 | 90 | 0.37 | 360 | A B C |
| KBL-16-4 | 16 | 4 | 90 | 0.55 | 360 | A B C |
| KBL-20-2 | 20 | 2 | 90 | 0.55 | 360 | A B C |
| KBL-20-4 | 20 | 4 | 90 | 0.75 | 360 | A B C |
| KBL-24-2 | 24 | 2 | 90 | 0.55 | 360 | A B C |
| KBL-32-2 | 32 | 2 | 90 | 0.55 | 360 | A B C |
| KBL-36-2 | 36 | 2 | 90 | 0.75 | 360 | A B C |
| KBL-40-2 | 40 | 2 | 90 | 0.75 | 360 | A B C |
| KBL-44-1 | 44 | 1 | 90 | 0.55 | 360 | A B C |
| KBL-48-1 | 48 | 1 | 90 | 0.55 | 360 | A B C |
Packaging & Shipping
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample analysis support.
* Sample testing support.
* Machine model recommend and select.
* View our Factory.
* provide the best braiding solution according to sample or customers' requirements.
After-Sales Service
* Training how to instal the machine, training how to use the machine.,training to how to maintain the machine.
* Engineers available to service machiner overseas.
* Supply every spare parts of the machines.
* Provide professional engineer to door to door service if clients need.
* One year guarantee for whole machine except wearing part
* Calling or door or door service
* User manual and detailed videos/CD
Company Information
1.Introduction Of Company (Since 1986)
A. HENGHUI IS CONSISTED OF
XUZHOU HENGHUI BRAIDING MACHINE CO.,LTD,
SHANGHAI HENGHUI INTERNATIONAL CO.,LTD,
YIWU SHENGBO FISHING LINE AND ROPES CO., LTD,
GUANGZHOU SHENGHUI SHOE MATERIAL CO., LTD.
B. Products: more than 1000models. : cord braiding machine, shoelace braiding machine, fishing line braiding machine, shipping rope braiding machine, belt braiding machine, lace braiding machine,Marine rope braiding machine, specifical braiding machine, wire cable braiding machine, hose braiding machine, cord knitting machine, multicolor cord knitting machine, automatic and semiautomatic winding machine, automatic and semiautomatic tipping machine.
C. We're 30 years' manufacturer of BRAIDING MACHINERY
D. Specialized in manufacturing and R&D braiding machines.
Henghui Braiding machine Co is the largest braiding mahcine R&D base in China, Jiangsu Famous Brand and national new high-tech enterprise. It hase 4 factories, 700 employee,300 sets CNC machines, annual output 50,000 sets ,
2.Factory View
Clients Factory
Auxiliary equipment
Sholace tipping machine
Automatic tipping machine Semiautomatic tipping machine
------------------------------------------------------------------------------------------------------------------------------------------------
Winding machine
Automatic winding machine Semiautomatic winding machine
- -----------------------------------------------------------------------------------------------------------------------------------------------
