Isolator lightning arrester disconnector

Product Overview

Description





1. lightning arrester disconnector

Parameter Table
No	Items		Technical parameter
1	Rated Voltage                       kV			40.5	72.5
2	Nominal system voltage         kV			35	66
3	Rated current           A		630;1250;1600;2000;2500;3150;4000
4	Rated Short Time withstand current and Time            kA/s		25~50/4
5	Rated Peak withstand current              kA		63~125
6	1min power frequency  withstand voltage (effective value)    kV		To earth	95/85	140
			To phase	95/85	140
			Across Isolating DS	118	180
7	Lightning Impulse wishstand voltage(peak value) KV		To earth	185	325
			To phase	185	325
			Across Isolating DS	210	385
8	Rated mechanical terminal load            N		Level of lateral load	500	750
			Level of vertical load	250	500
			Vertical	500	750
9	The min distance of insulation against ground      mm		300	500
10	Max Man Operative Moment          N. m		200
11	Motor Drive operating mechanism control voltage                   V		AC220,380; DC110,220
12	Motor Drive operating mechanism motor  voltage                    V		AC220,380; DC110,220

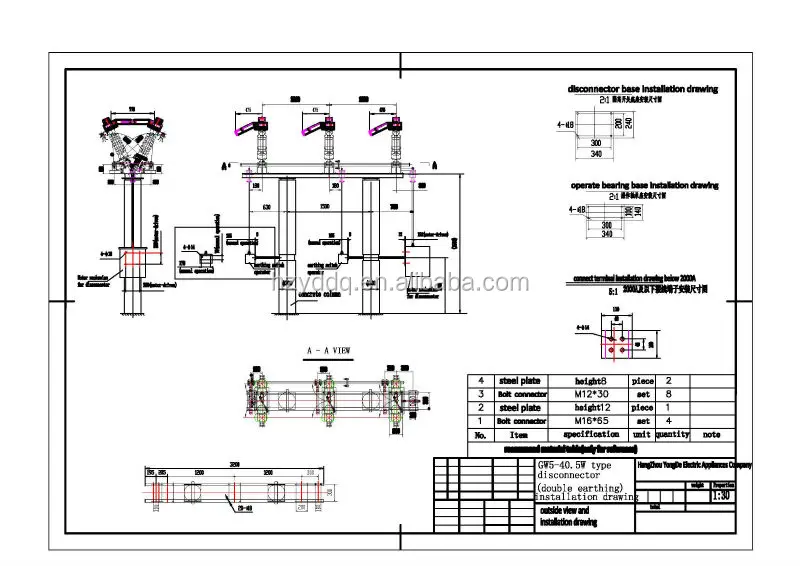

2.Detail Drawing





3.Other information
