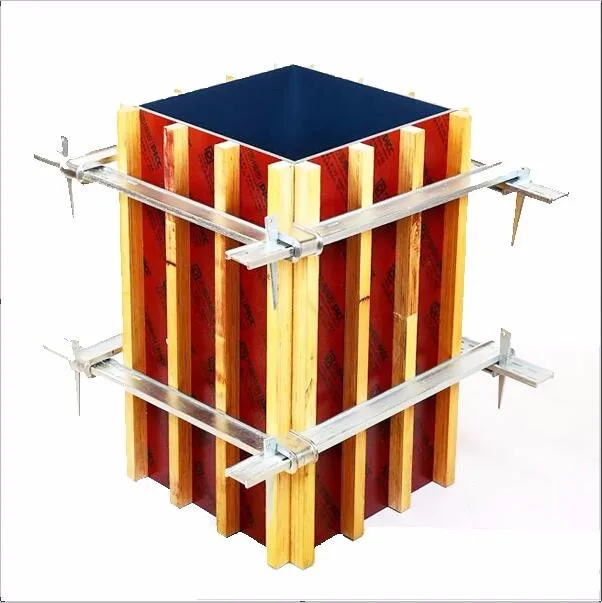

wooden&plastic square column formwork for shuttering with great quality much cheaper than aluminum formwork
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd.
Share on (1902587195):
Product Overview
Description

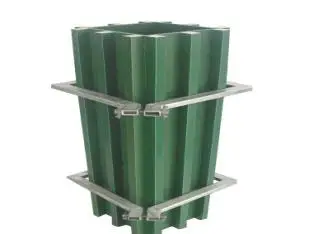

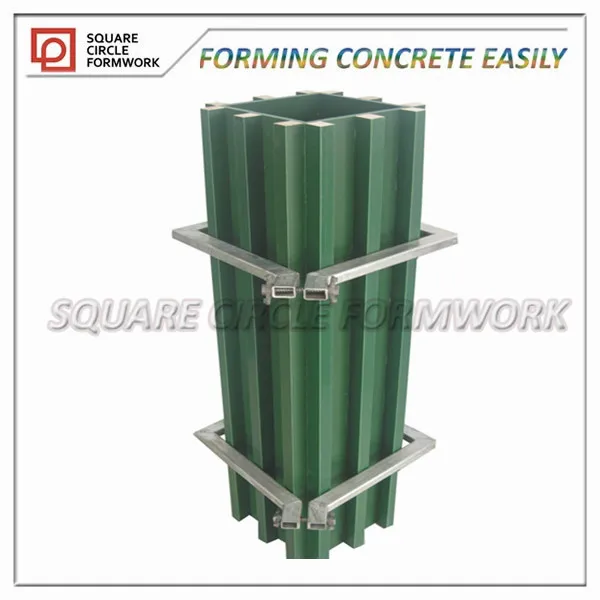

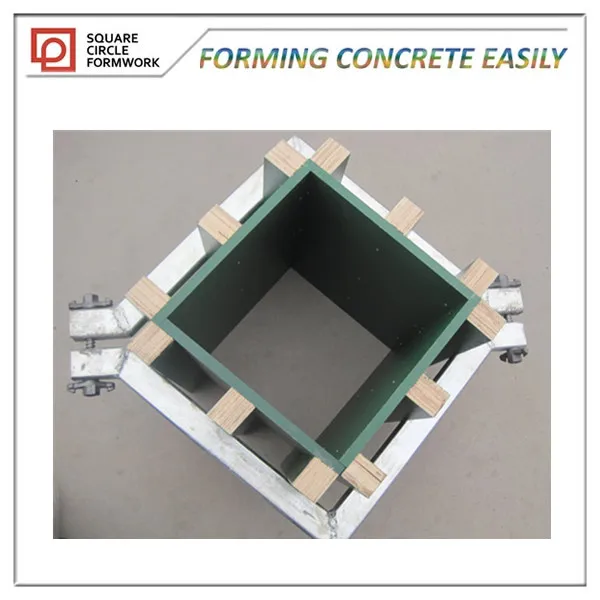

Formwork wooden&plastic formwork for concrete column easy installation and dismantling

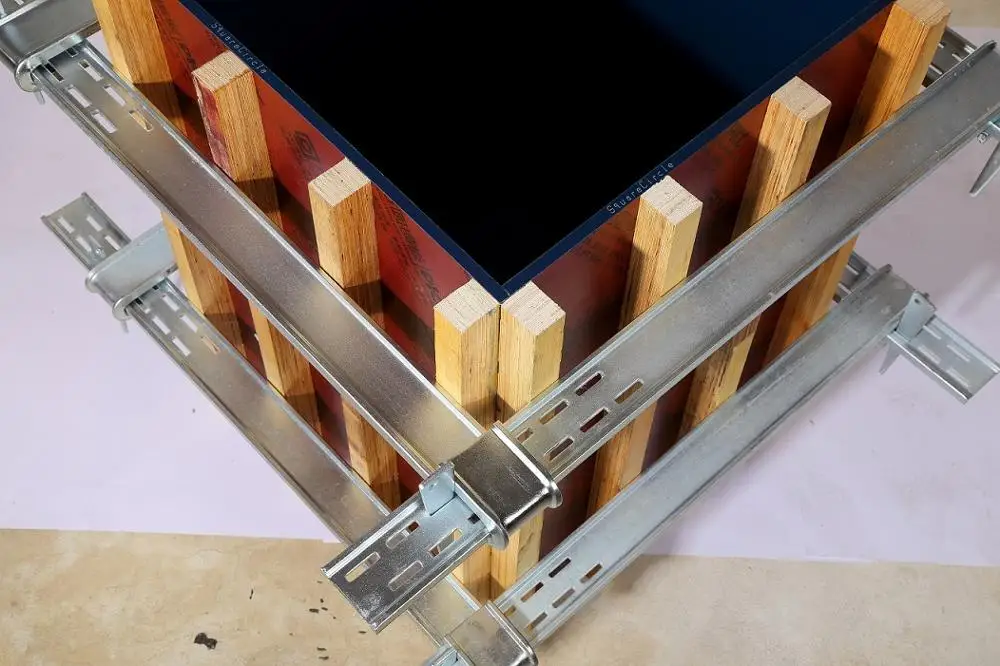

PRODUCTS COMPOSITION

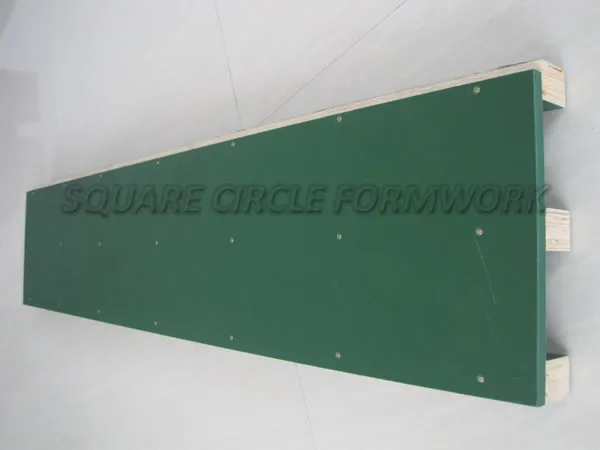

Panel | 15mm PP plastic poplar plywood |
Glue of panel | WBP phenolic, 72h water boiling without delamiantion |

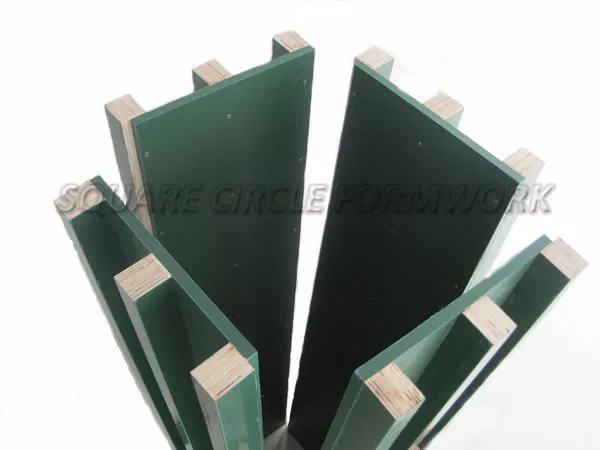

Plank | LVL beam with PP plastic coating, 40x50mm |

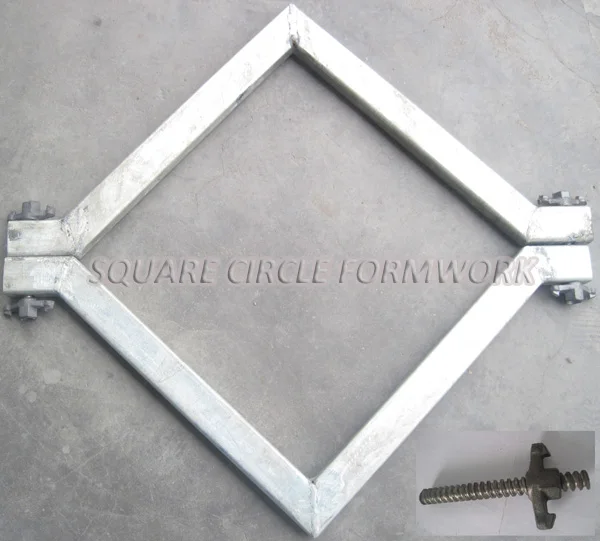

Accessory | painted steel frame and fastener |
Color | green, etc |
Size of columns | Interval of fasteners |
300x300mm | 500mm |
400x400mm | 500mm |
500x500mm | 500mm |
550x550mm | 450mm |
600x600mm | 450mm |
700x700mm | 450mm |
800x800mm | 400mm |
900x900mm | 400mm |
heights and other sizes are customized according to requirements | |
COMPARISON WITH STEEL FORMWORK
Column formwork | Steel column formwork | |
Picture | |
|
Weight | Light Less likely to need a crane | Heavy Need a crane and more workers |
Cutting | Easy cutting | Difficult cutting |

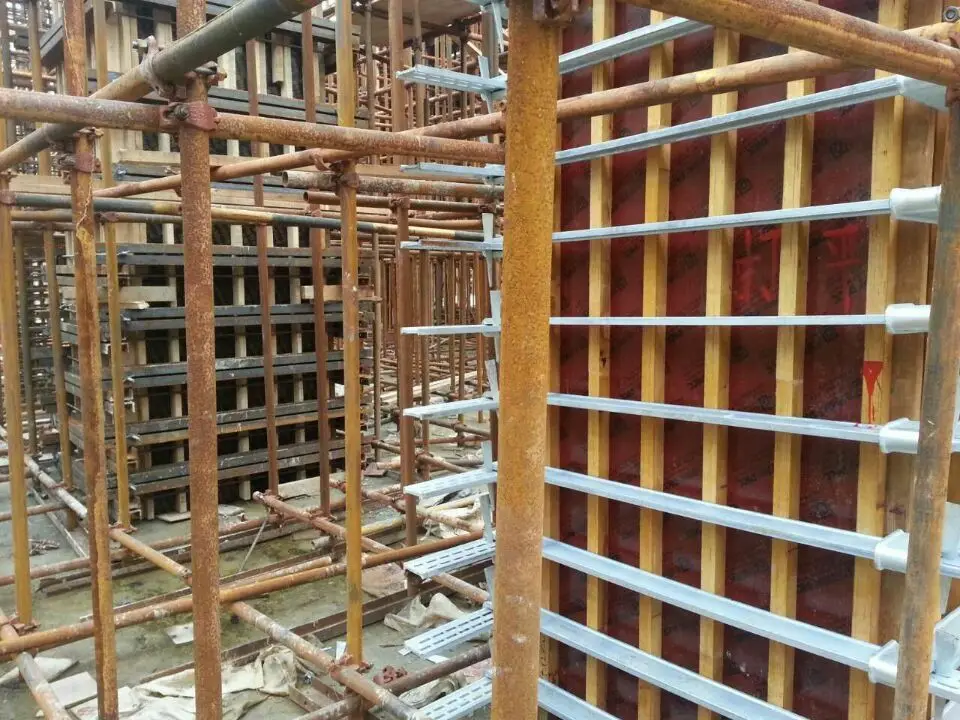

Installation & Dismantling | Two workers can install 15 columns in 8 hours. The ply panel will separate easily | More workers and cranes |

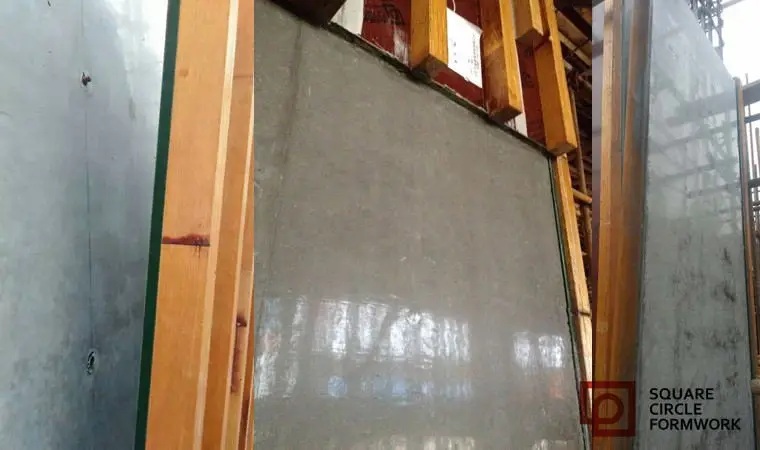

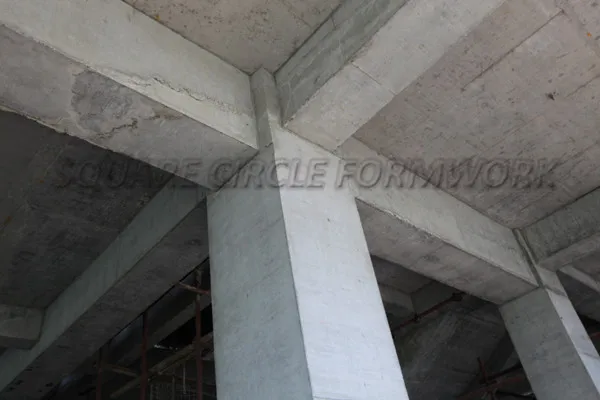

Concrete finish | Nice concrete finish without re-work | Obvious bubbles |
Technical data
Testing items | Unit | Standard used | Tested value | |
Bonding quality | N/mm² | EN314 | 0.72 | |
Bending strength | Longitudinal grain | N/mm² | EN310 | 50.0 |
Cross grain | N/mm² | 40.2 | ||
Elasticity in bending | Longitudinal grain | N/mm² | EN310 | 5137 |
Cross grain | N/mm² | 3519 | ||
Bearing concrete pressure | KN | EN310 | 70 | |
Advantages
1. reusable 50 times at least
2. quick installation & seamless joining to prevent the leakage of concrete
3. painted accessories, high resistance to rust
4. quick dismantling without concrete release agent

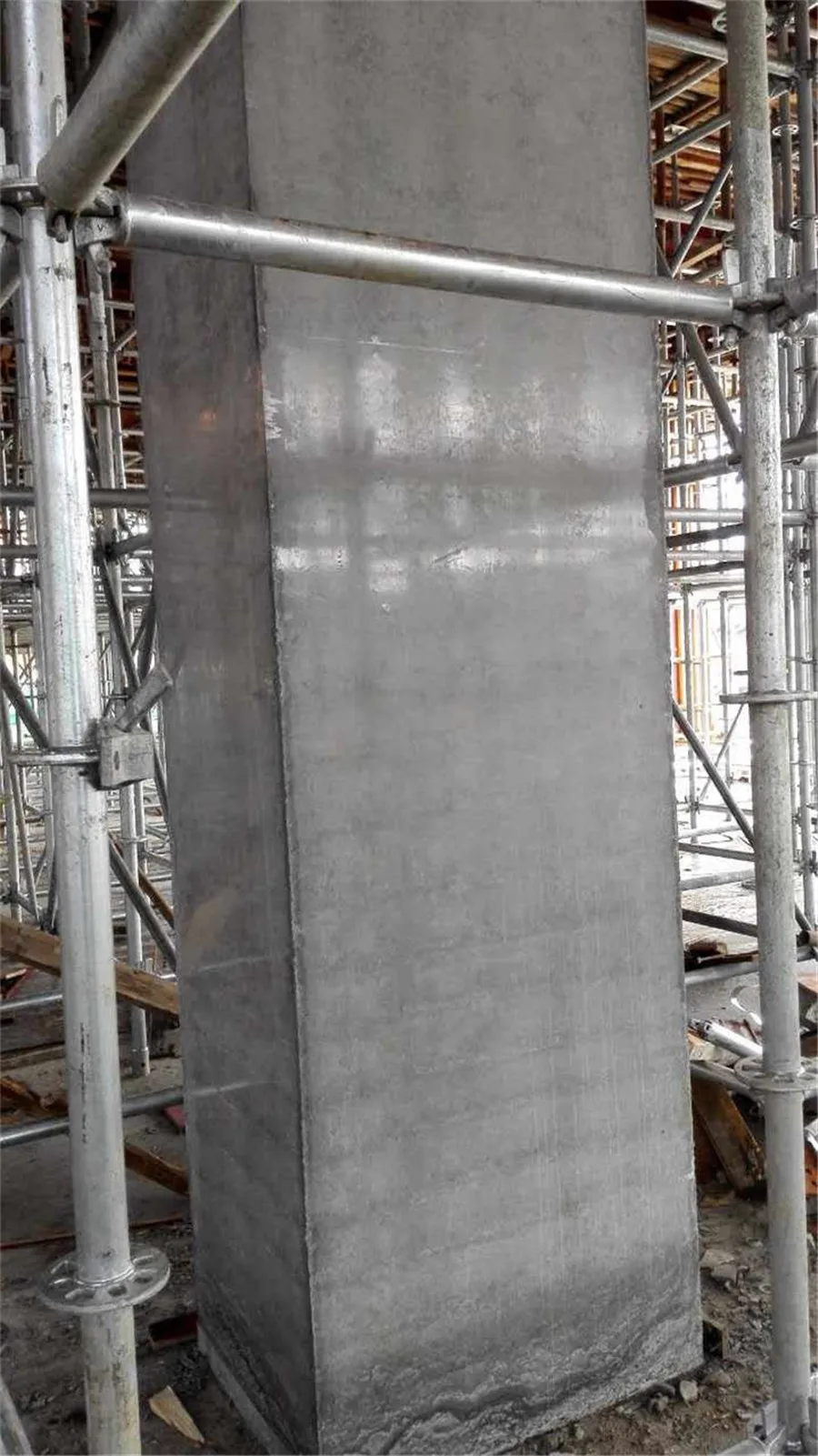

5. nice concrete finish without rework
Packing:
standard export pallet packing or specific requirements from customers

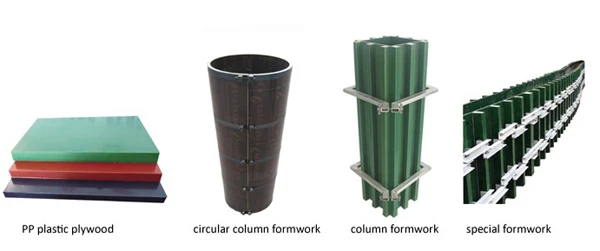

Other products on sales
