weighing scale PCB making machine with customized OEM design

Product Overview

Description

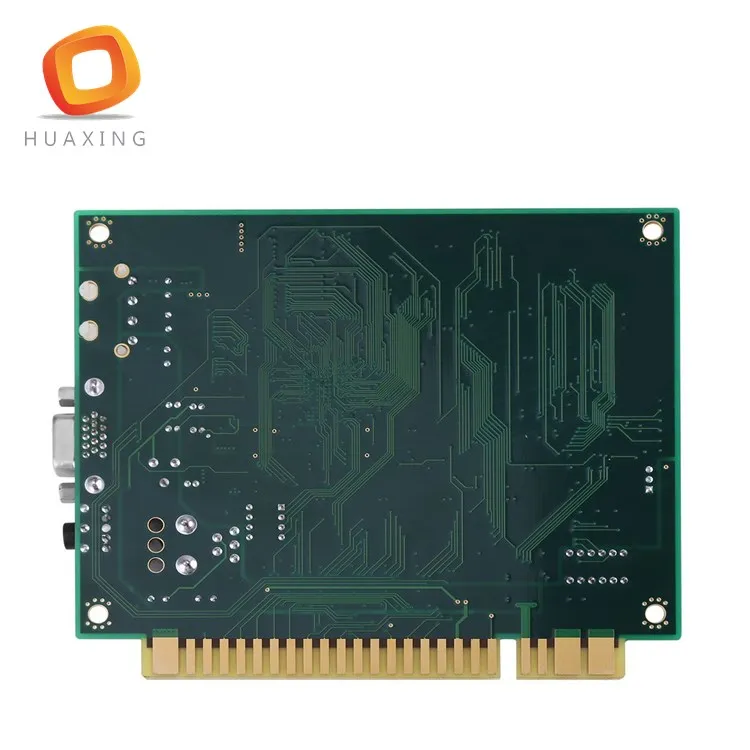

weighing scale PCB with customized OEM design





1.Fast and one-stop service
2.PCBA/PCB  Design,Clone,OEM -PCB&PCBA Service
3.UL,SGS,Rohs Certificated
4.Competitive Price,High Quality
5.OEM PCBA are welcome
6.PCBA Leadtime: decided by the QTY. Normally 15-20 days.











Our technology and process capabilities:







Item	Mass Production	Pilot Run Production
	Capacity	Capacity
Layer Counts	1L—18L, HDI	20-28 , HDI
Material	CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina)
	Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880) Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc.
Material Mixed Laminate	4 layers -- 10 layers	12 layers
	FR4+Ro4350 , FR4+Aluminium , FR4+ FPC
Maximum Size	610mm X 1200mm	1200 - 2000MM
Board Outline Tolerance	±0.15mm	±0.10mm
Board Thickness	0.125mm--6.00mm	0.1mm--8.00mm
Thickness Tolerance ( t≥0.8mm)	± 8%	±5%
Thickness Tolerance( t<0.8mm)	±10%	±8%
Minimum Line / Space	0.10mm	0.075mm
Trace width Tolerance	15%-20%	10%
Minimum Drilling Hole (Mechanical)	0.2mm	0.15mm
Minimum laser hole	0.1mm	0.075mm
Hole Position/hole Tolerance	±0.05mm           PTH:±0.076MM     NPTH:±0.05mm
Mini hole ring (single	0.075MM	0.05MM
OutLayer Copper Thickness	17um--175um	175um--210um
InnerLayer Copper Thickness	17um--175um	175um--210um
Mini Solder Mask Bridge	0.05mm	0.025mm
Impedance Control Tolerance	±10%	±5%
Surface Finishing	HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver.
	Plated gold , OSP, Carbon ink,
1-2L Lead-time	3-7 days	1-2 days
4- 8L Lead-time	7-10 days	2-7 days
10-18L Lead-time	10-15 days	4-9 days
20-28L Lead-time	15-20 days
Acceptable File Format	ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc.
Quality Standards	IPC-A-600F and MIL-STD-105D CHINA GB<4588>







Products lead time:





PCB         PCBA	Sample	Mass order	Urgent
1-2L	3-5 days  14-18days	5-7days   13-20days	12-24hours
4- 8L	5-7days  18-25days	7-10days  18-27days	48-96hours
10-18L	7-10 days 22-30days	10-12days  20-32days	120hours
20-28L	15-20 days  20-35days
Packaging Detail:	Vacuum package , ESD package











• What service can you provide?

We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products

• Are my design files secure when I send them to you?



Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.



• For small quantity orders, can you produce prototype PCBs?

Yes. Hua Xing PCBA Limited has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.



• Do you have an order minimum?

We accept order with as low as a quantity of 1 (piece or panel).



• What is the standard thickness of laminate that Hua Xing PCBA Limited uses?

1.6 mm (0.063″)



• What are all your options for laminate thickness?

We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).



• Do you have the capability of manufacturing high frequency materials? Rogers?

While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.



• What options exist for the thickness of copper?

0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.



• What are the color options for PCB solder masks?



Green, black, blue, red green, yellow and white



• What are the options for surface finishes?



The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.



• What file formats do you accept for PCB assembly?

Gerber and CAM Auto CAD DXF, DWG formats.

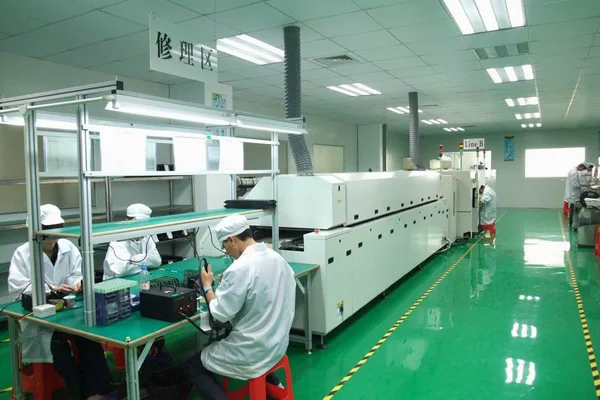

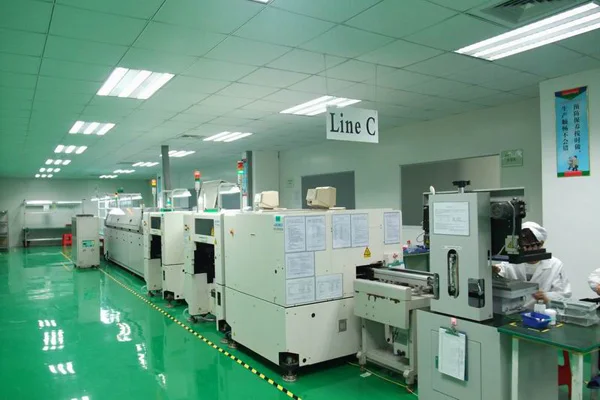

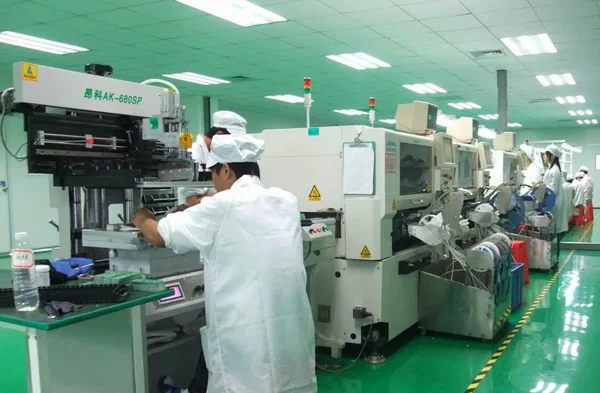

Production lines & machines:
