(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

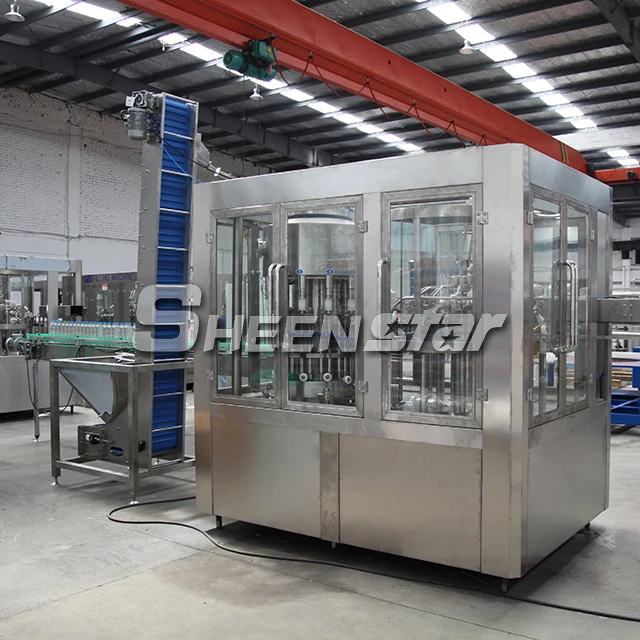

The whole machine image

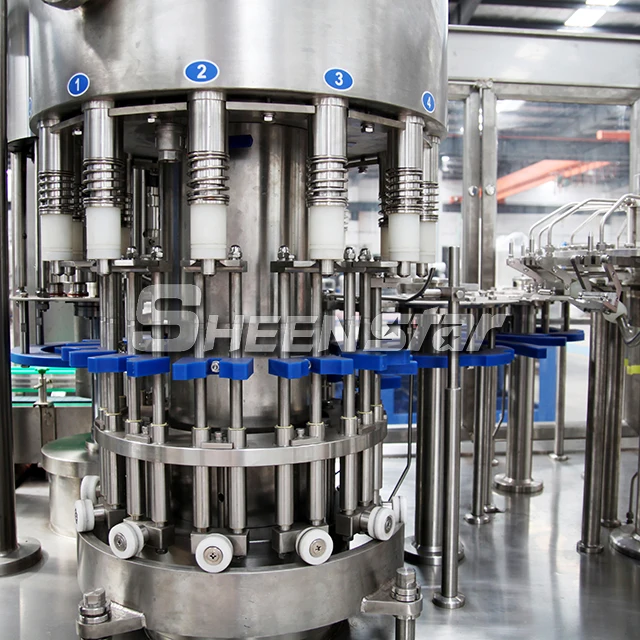

Washing the bottle before filling

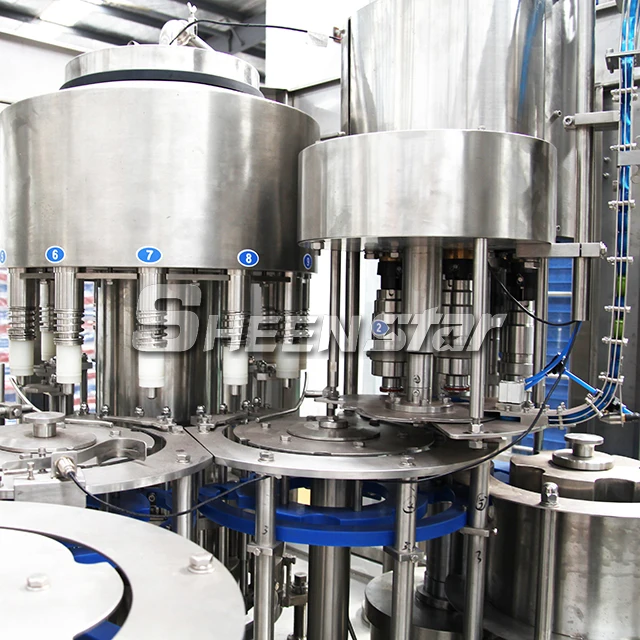

Filling the water into the bottle

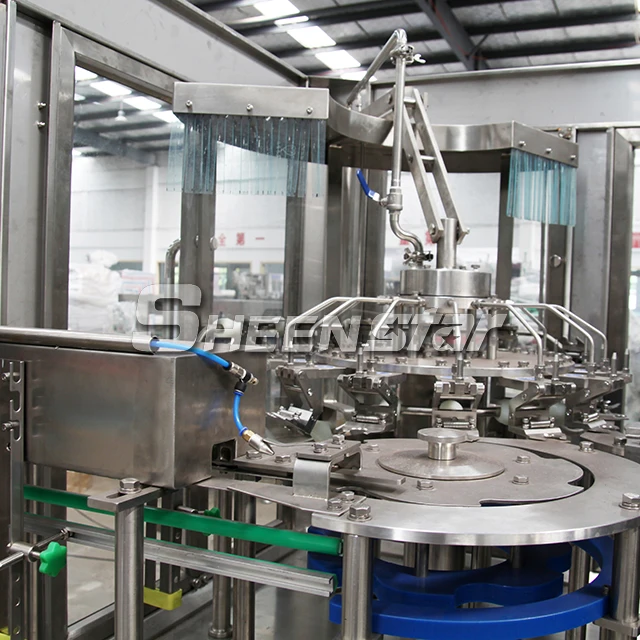

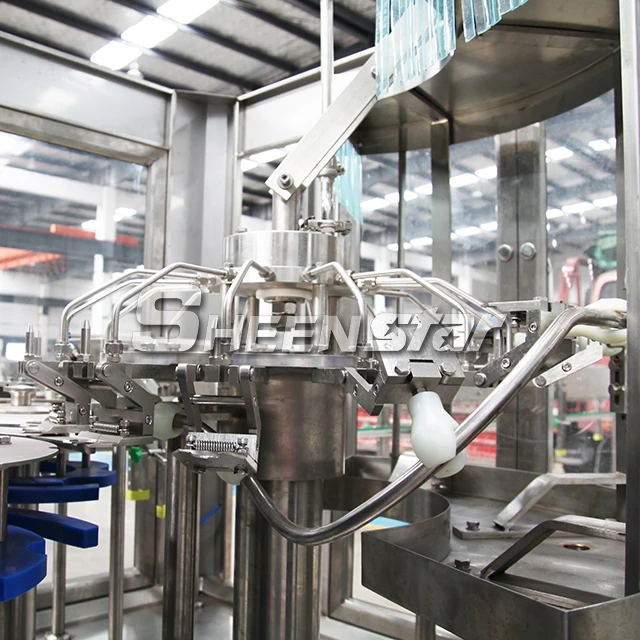

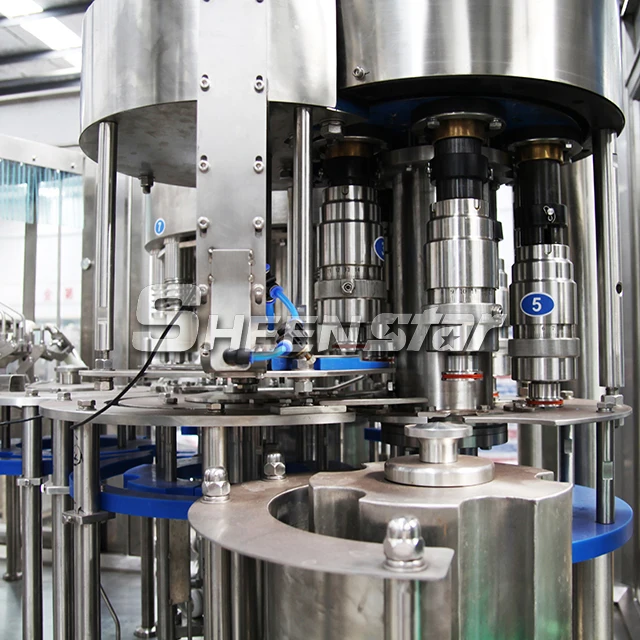

Capping part
Automatic mineral water production line Technical data
Model
XGF14125
Number of washing, filling and capping heads
12-12-5
Production capacity(600ml)(B/H)
2000-4000
suitable bottle specification(mm)
φ=50-110 H=170 volume=330-2250ml
Motor power(kw)
2.2kw
Overall dimensions (mm)
2400×1650 ×2500
Weight (kg)
2500
Company Information
Zhangjiagang sheenstar Technology Co., Ltd. has been in beverage packing machinery industry for many years.The company has got the ISO9001,CE,SGS certification.
sheenstar provides complete beverage production solutions, such as bottled drinking water,5 gallon barreled water, fruit juice, gas drinks, soy milk, wine and other complete production lines, including of water treatment, beverage pre-treatment system, injection molding machine, Filling machine, labeling machine, shrink packing machine, and other machines which are suitable for plastic bottles, glass bottles,cans etc.
sheenstar provides suitable machine according to customer's requirement.And has rich experience in Southeast Asia, the Middle East, Africa, Europe, America and Oceania.
Welcome to SHEENSTAR,Leyu town,Zhangjiagang City, China
Let us share development and success.
working
Packaging & Shipping
Certifications
Related Products
FAQ
Q:Are you a factory or a trading company?
A: We are a manufacture,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.
Q:Does your company and products Through the authentication?
A: Yes,we have through famouse certification,ISO,CE,SGS,BV
Q: How long I can get the machine?
A: Accoring to the machine,usually less than 40 days
Q: How can i give you the money?
A: Up to you,T/T,L/C,western union and others will be ok
Q: How can i use the machine
A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide
