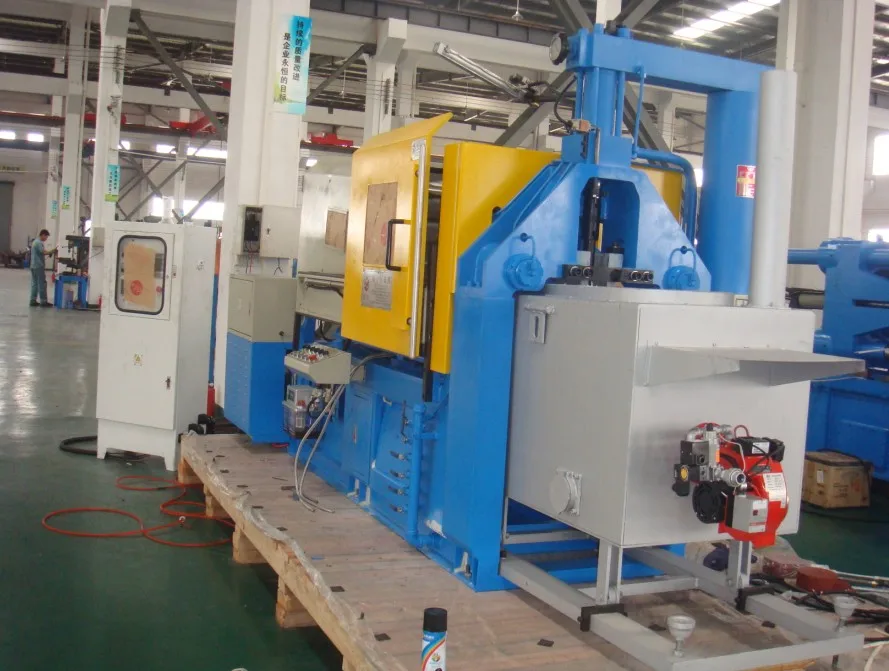

hot chamber die casting machine zamak moulding injection machine
US $23850-$29270
zinc alloy hot chamber die casting machine making metal badge
- Category: Die Casting Machine >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (1904031392):
Product Overview
Description
machine making zinc alloy molds, machine making metal molds, machine casting metal molds. die casting machine, zinc die casting machine, hot chamber die casting machine, zinc alloy hot chamber die casting machine.
Product Description

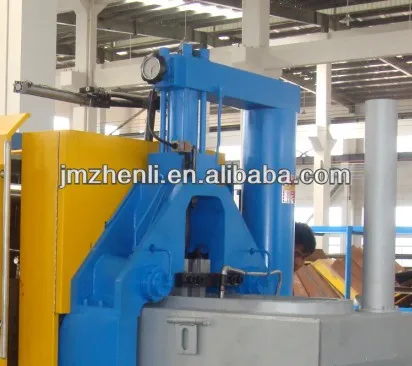

1.Nozzle,gooseneck and melting pot are specially durable since they are made of hot-work iron or steel .
2.Nozzle and gooseneck are heated by electric heater ,safety and durable.It keep temperature steady and avoid jamming of nozzle resulting defective products .
3.Specially double proportional control system.Using special 2 sets proportional control of flux and pressure rsulting open and local clamping speed,also adjust arbitrarily .
Made in Japan fully automatic pressure jet oil burner for light oil pressurized and low pressure firing with automatic safety device.

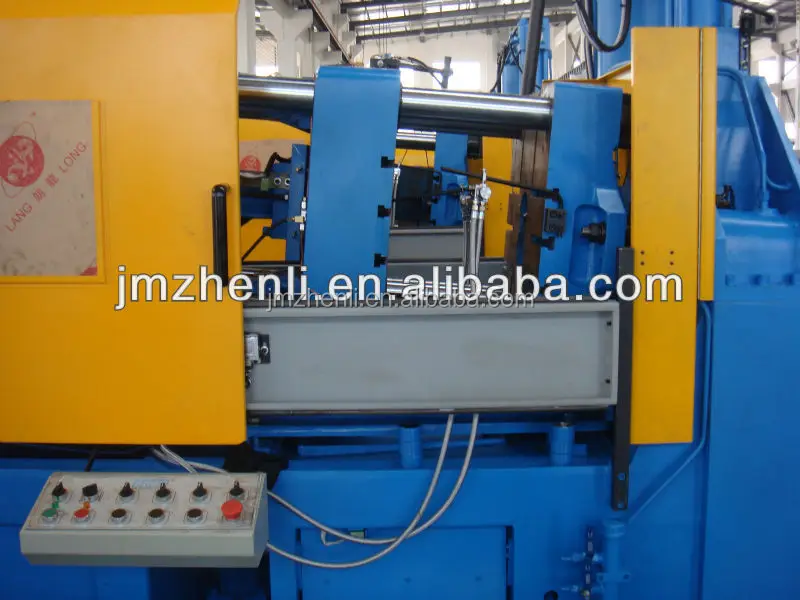

LOCK CLAMPING UNIT
INJECTION UNIT
1.Piston type accumulator with a horizontal connection unit ensures lower pressure wastage and fast reaction.It realize fill speed and long life time,using steadily and convenient amendment.

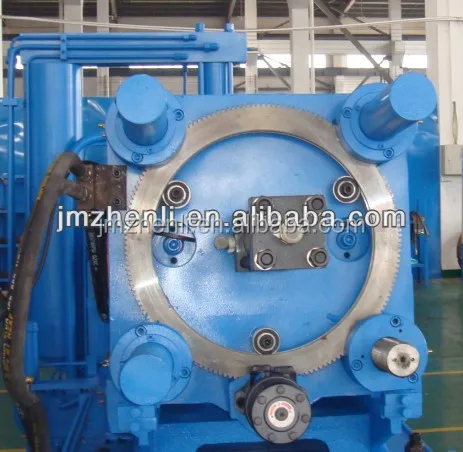

MOULD ADJUSTING DEVICE
1.The two way mould adjusting devices are machine control link and hydraulic control gear .

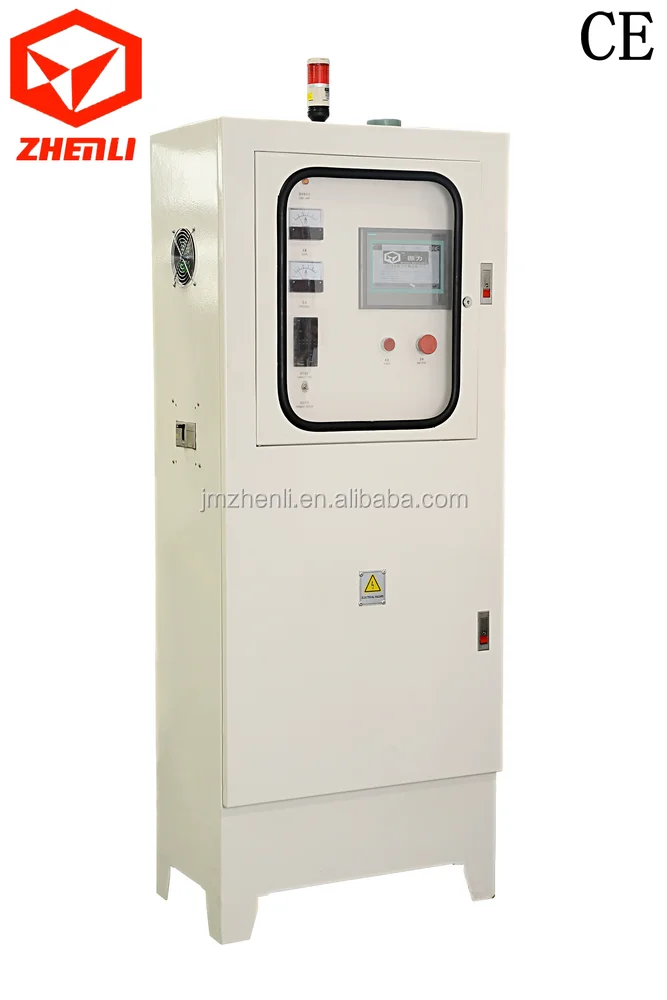

ELECTRONIC CONTROL PARTS
1.Independent electric box and holistic electric box for choosing and ensure easy arrangement from customers .
2.False intelligentized computer control to remember all the act data for convenient operationg and checking .
3.Using high resolution and clear LCD screen which can show Chinese and English,also the display language can convert freely between English and Chinese as to the user requirements .
4.Enlarged memory can store 120 sets mould information ,like time ,counting number ,speed ,pressure,travel stroke,mould thickness and choice conditon .
5.With the function of computer hardware checking itself to ring if it's fault.It's convenient for checking the machines's problem.
6.Imput and output checking function,also with LCD indicator.
7.Uses high precision electronic memasure checking clamping,the position control catually to 0.1mm.
8.Record production time,prodcution quantity and finished quantity automatically,also stop automatically.
ITEM | Unit | ZL-60 | ||
Locking Fore | KN | 600 | ||
Die Stroke | mm | 225 | ||
Ejection Force | KN | 50 | ||
Ejection Stroke(Max) | mm | 65 | ||
Die Thickness(Min-Max | mm | 120-325 | ||
Tie Bar Diameter | mm | 50 | ||
Space Between Tie Bars(W×H) | mm | 309×309 | ||
Shot Position | mm | 0,-50 | ||
Plunger Stoke | mm | 130 | ||
Traverse Stoke | mm | 200 | ||
Injection Force(Max) | KN | 65 | ||
Diameter Of Plunger | mm | 45 | 50 | |
Max. .Shot Weight(Zn) | Kg | 0.9 | 1.0 | |
Hydraulic Pressure | Mpa | 13.0 | ||
Motor Power | KW | 7.5 | ||
Crucible Capacity(Zn) | Kg | 320 | ||
Melting furnace | Oil | Kg/h | 4.8 | |
Capacity of Accumulator | L | 16 | ||
Capacity of Oil Tank | L | 210 | ||
Machine Size(L×W×H) | mm | 3570×1450×1880 | ||
Weight of Machine | Kg | 3100 | ||

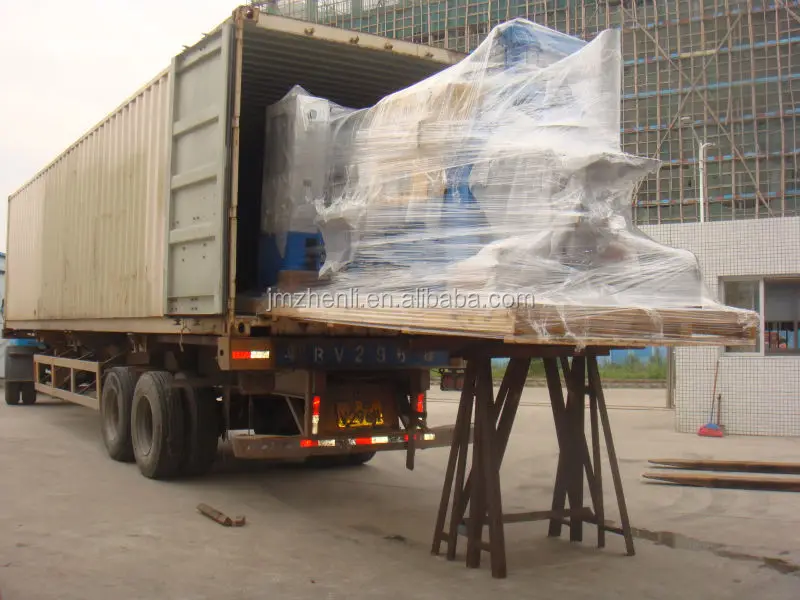

Packaging & Shipping
Our Services
when shipping arrival destination port,we will appoint one technician go to your factory,debugging and commissioning the machine for you,and training your wroker for free.
Company Information
Established in 2002 and with more than ten years of development,Zhongshan Zhenli Machinery CO.,LTD has owned two production bases of 20000 square meters in total,which are located in xiaolan town of zhongshan City where is famous as "capital of China's hardware products" and jiangmen City---the advanced manufacturering industry demonstration park respectively.Zhenli is a high-tech company specializing in the R&D,production,sales and services. The main products of the company include "ZL"hot chamber die casting machines,"ZLC"cold chamber die casting machines and the peripheral devices.
Based on our technical strength,professional equipment and R&D and design teams as well as advanced technologies ,we are able to manufacture series of cold/hot chamber die casting machines with stable performance,smooth system operation,fast injection speed and short pessutization time,with our advanced technologies,reliable product quality,excellent presales and aftersales services.Zhenli machines have won reliance from customers both at home and abroad and Zhenli has become a best-selling brand in the market,Zhenli machines have been sold to more than 30 provinces in China and 30 countries and regions including Europe,South America,Southeast Asia and Middle East, and Zhenli has become one of the biggest die casting machine exporters.
