damp proof membrane/artificial lakes reinforced membrane lake liner

Share on (1904146287):


Price:

Quantity:


Product Overview

Description


damp proof membrane/artificial lakes reinforced membrane lake liner







Product Description

Product description



Type: HDPE geomembrane
Material: High-density polyethyle

Thickness: 0.1mm-3.0mm

Width:1m-8m

Roll length: 50m or at your request

Color: Black or at your request.

Density: 0.94g/cm3

Temperature range:-60oC -- +60oC

Lifetime: more than 50 years

Executive standard:GB/T 17643-2011



 -1







Specification



NOItem                                    Value
0.75mm1.00mm1.25mm1.50mm2.00mm2.50mm3.00mm
1Density (g/cm2)0.939
2Tensile propeties
 Yield strength (N/mm)    11    151822293744
 Break strength (N/mm)20273340536780
 Yield elongation (%)12
 Break elongation (%)≥450
3Tear resistance (N)93125156187249311374
4Puncture resistance (N)240320400480640800960
5Stree crack tensistance (h)≥1500
6Carbon black
 Carbon black content (%)2.0-3.0
 Carbon black dispersionCarbon black dispersion   (only near spherical agglomerates)fo r10 different
 views 9 in categories 1   or 2 and 1 in category3
7Oxidative induction time(OIT)
 Standard OIT(min)100
 High pressure OIT(min)400
8Oven aging at 85°C
 Standard OIT-% retained after 90 days (%)55
 High pressure OIT-% retained after 90 days (%)80
9UV Resistance
 Standard OIT retained after 1600 hrs (%)50
 High pressure OITretained after 1600 hrs (%)50
10Low tempreture impact brittle property at -70°CPass
11Premeability ( g.cm/(cm2).Pa)1.0×10-13
12Dimensional stability (%)±2





 Introduction



    HDPE geomembrane is  high density polyethylene resin as raw material to produce a waterproof barrier type materials.

  HDPE geomembrane full name "high-density polyethylene film", have good environmental stress cracking resistance, low temperature resistance, anti-aging, corrosion resistance.





Property





  1.High tensile strength, good elasticity



  2, impervious performance



  3the construction is simple and convenient, lightweight, easy to transport



  4, physical, chemical property



  5, low cost, high overall efficiency



  6, health, environmental protection










Application



1, Environmental protection, sanitation, such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes, etc.;

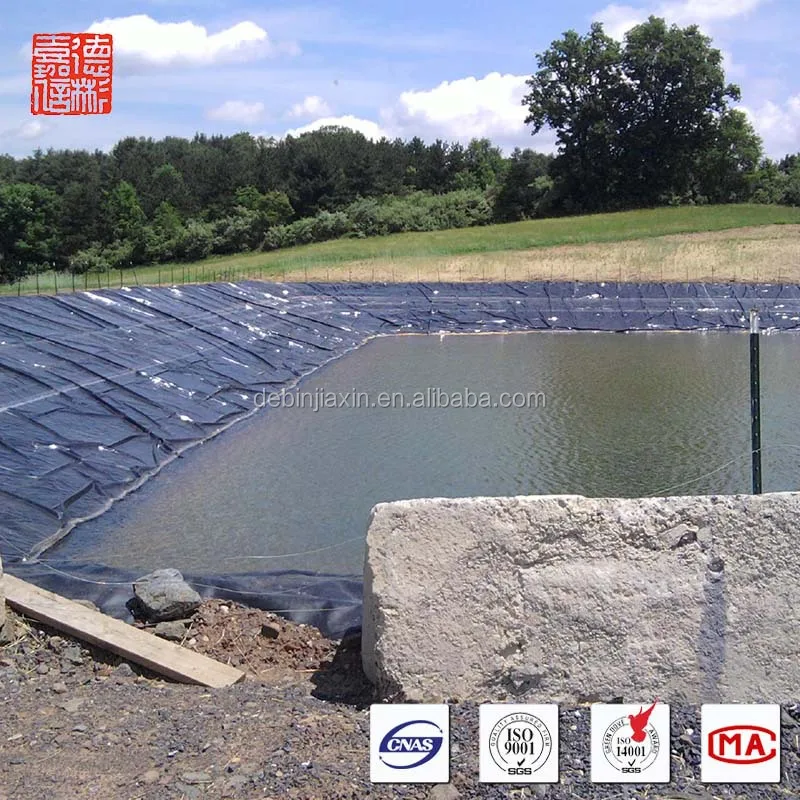

2, Water conservancy projects, such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection, etc.;
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control;
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof, etc;
5, Petrochemical, chemical plants, refineries, storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining, etc.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, XuShuiTang, waste treatment, seepage of irrigation system;

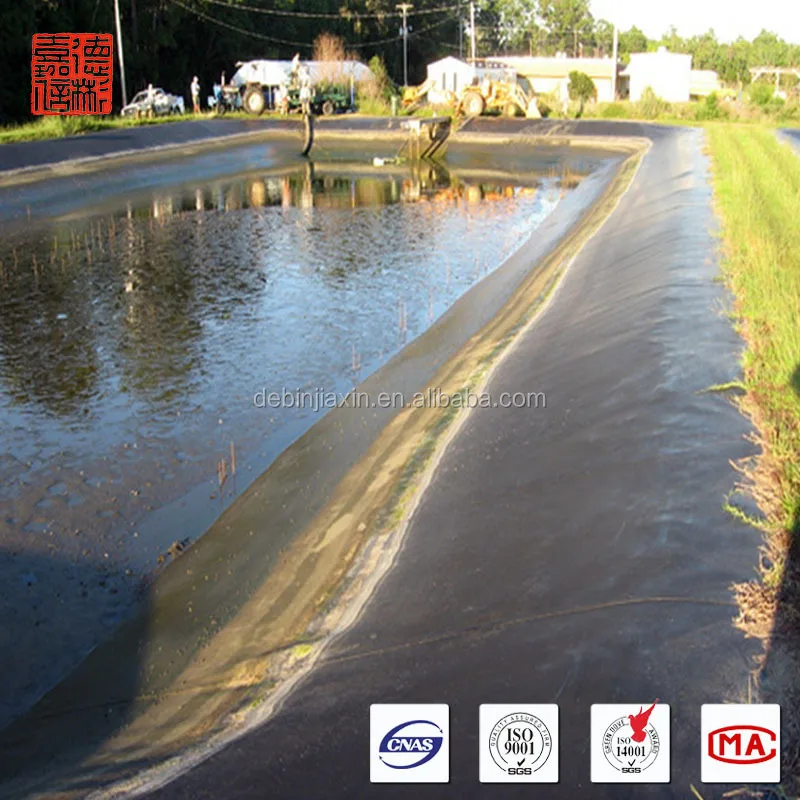

8, Aquaculture: intensive, factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond Shan membrane.





+





Packaging&shipping









Our factory



 .jpg







Certificate



3









Customer

.jpg







Sales network

.jpg





Our service



    1.   The sample is free.



    2.   The quality of our products are qualified.



    3.   Our delivery speed will be the fastest



    4.   We can provide the most professinal technical guidance and service











FAQ



1. How about the delivery time?

Lead time since receipt of 30% T/T deposit payment: 3 weeks.



2. What kind of payments does we support?

T/T, L/C, Cash are accepted.



3. What's are the MOQ?

We can according to your condition to set the MOQ.

And we can provide you samples for quality inspection.



4.  How to deal with the sample charge?

Accordeing to our company policy, the samples are free, we only charge the freight fee.

And we will return the freight fee If you set the order .



5. Can you produce the product according to customers' requirements ?

Sure, we are professional manufacturer, OEM and ODM are both welcome.



6. Can you tell me your main customers?

That's our customers' privacy, we should protect their information.

At the same time, please rest assured that your information is also safe here.
