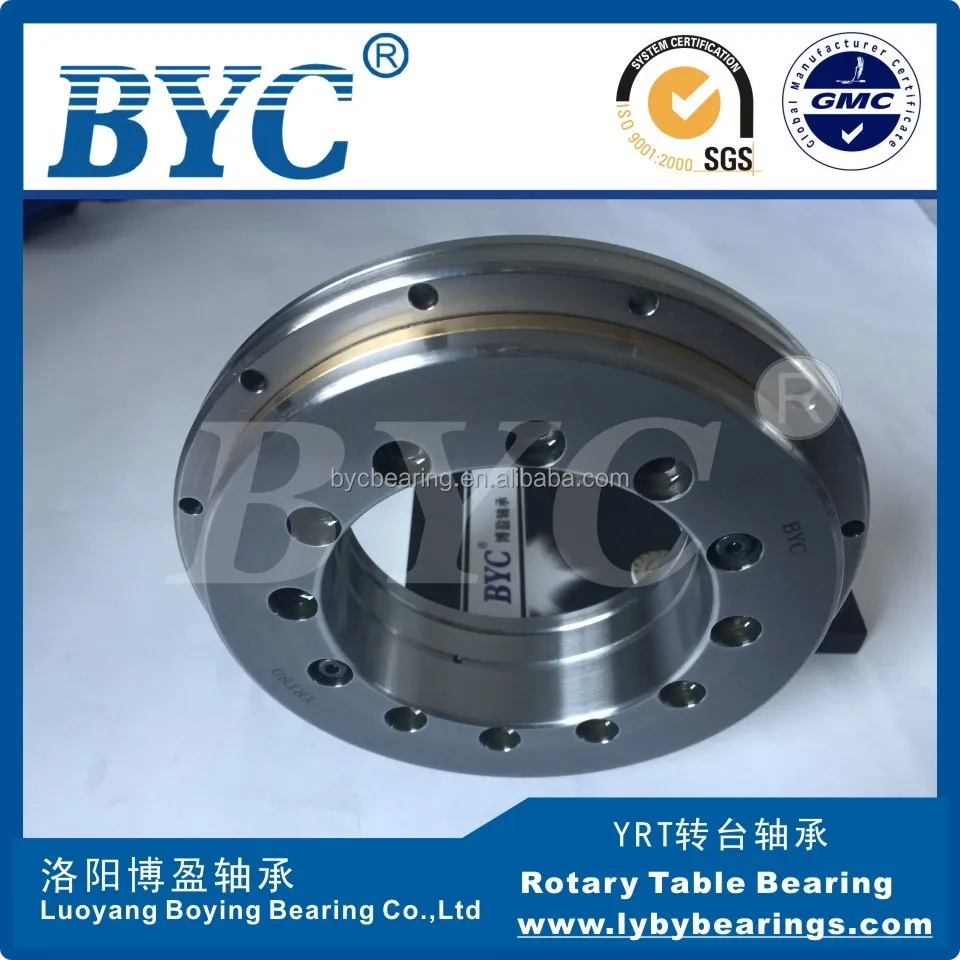

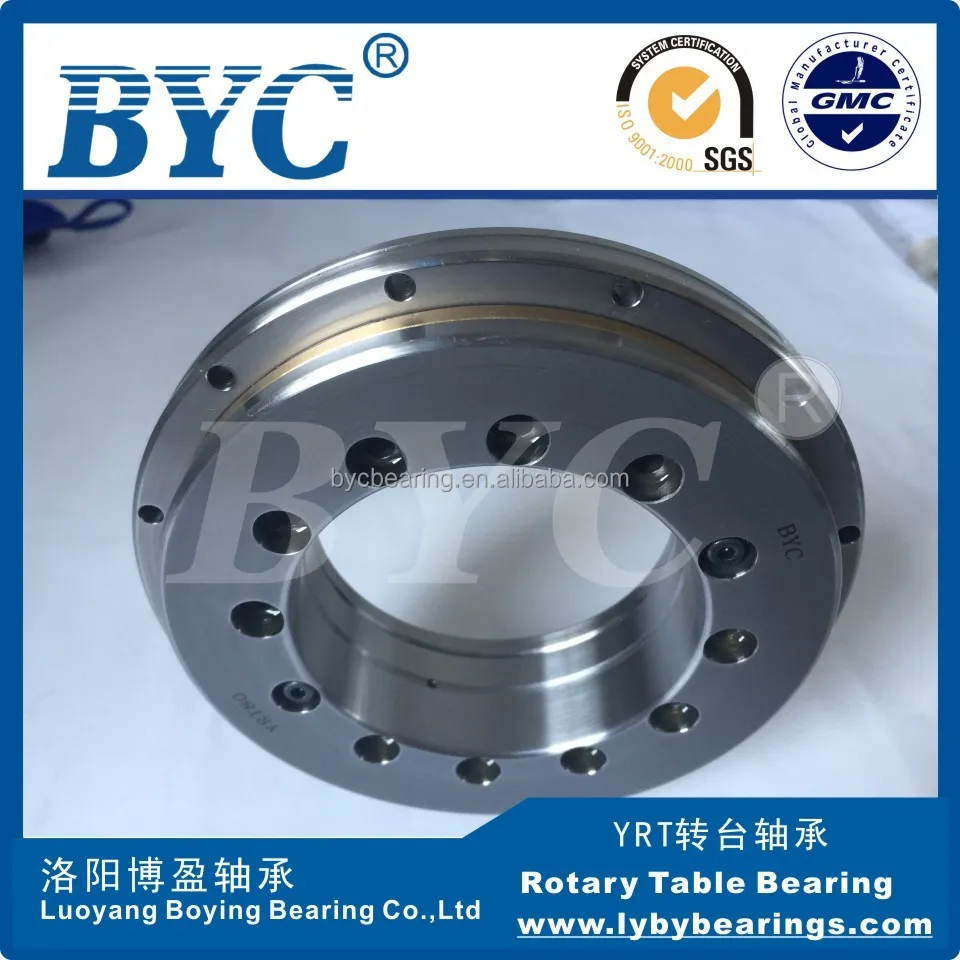

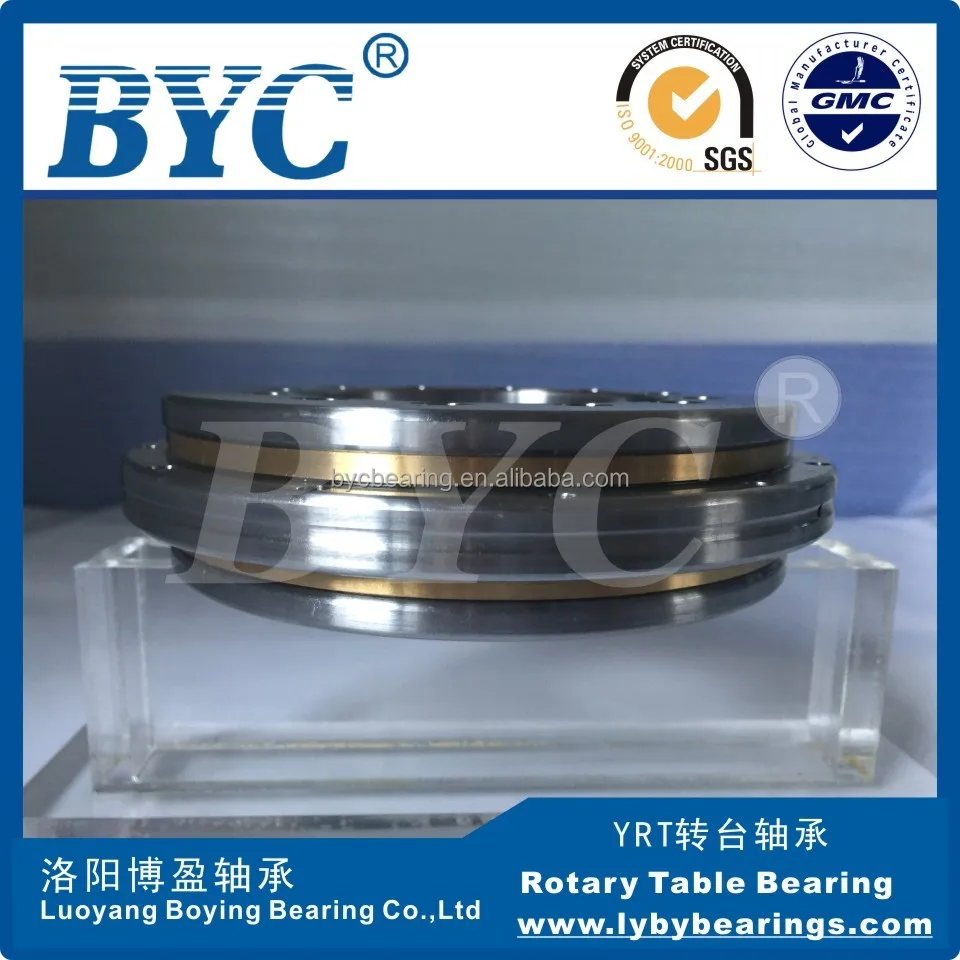

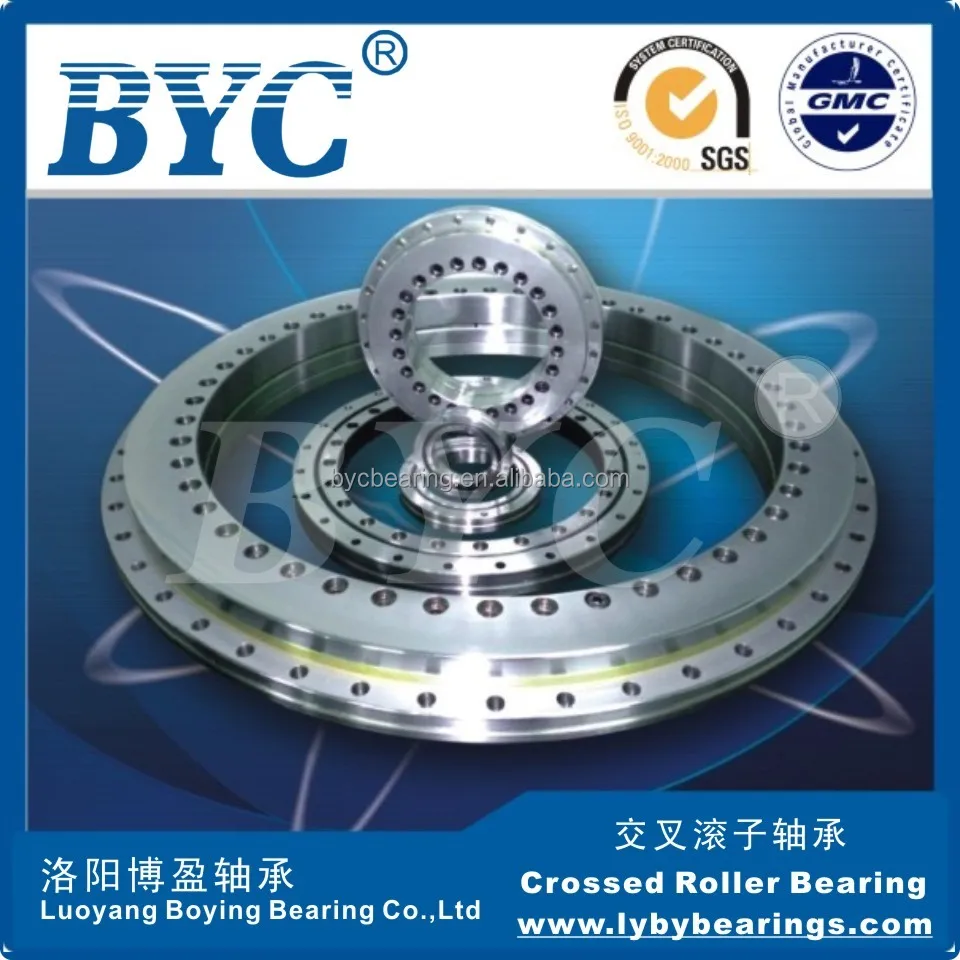

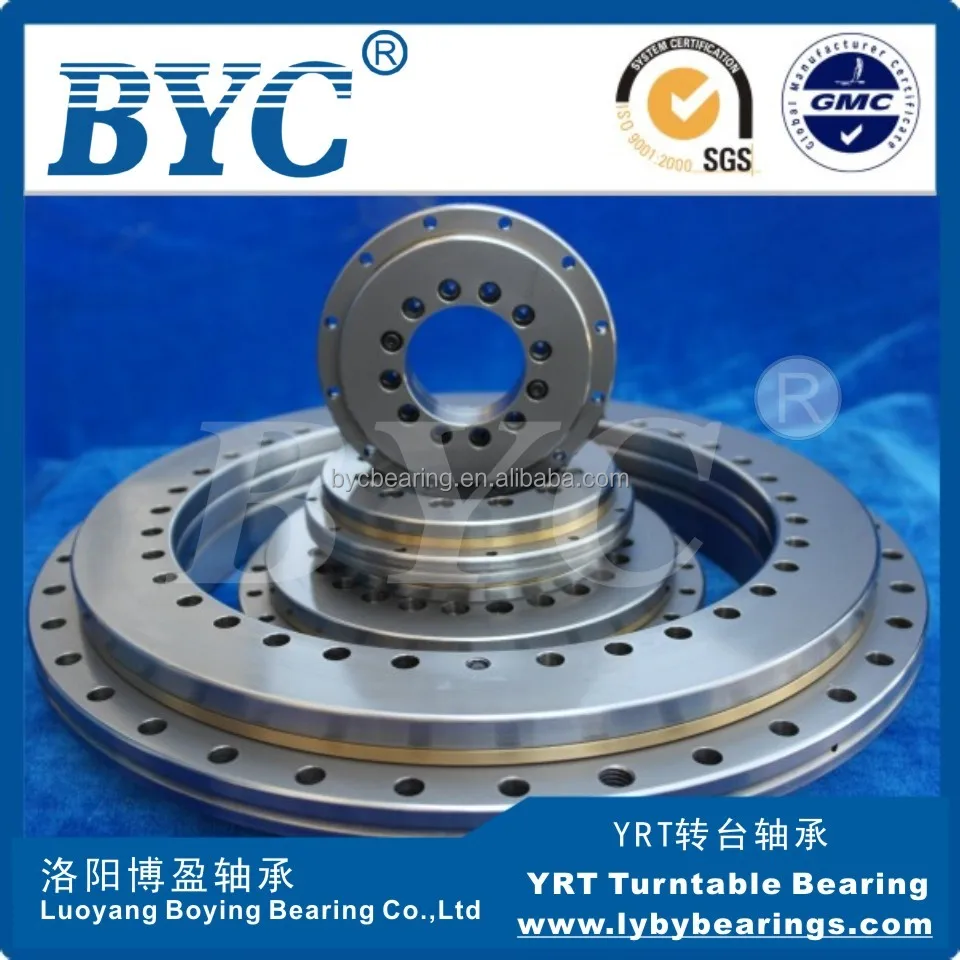

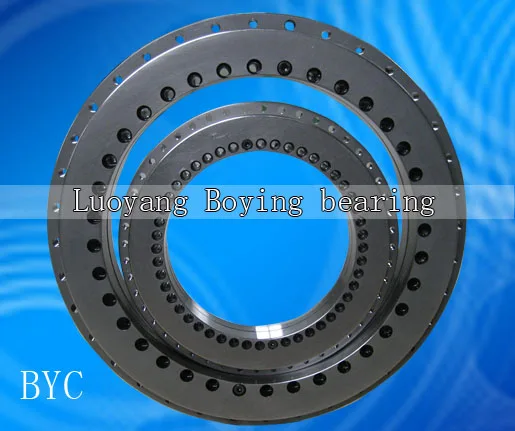

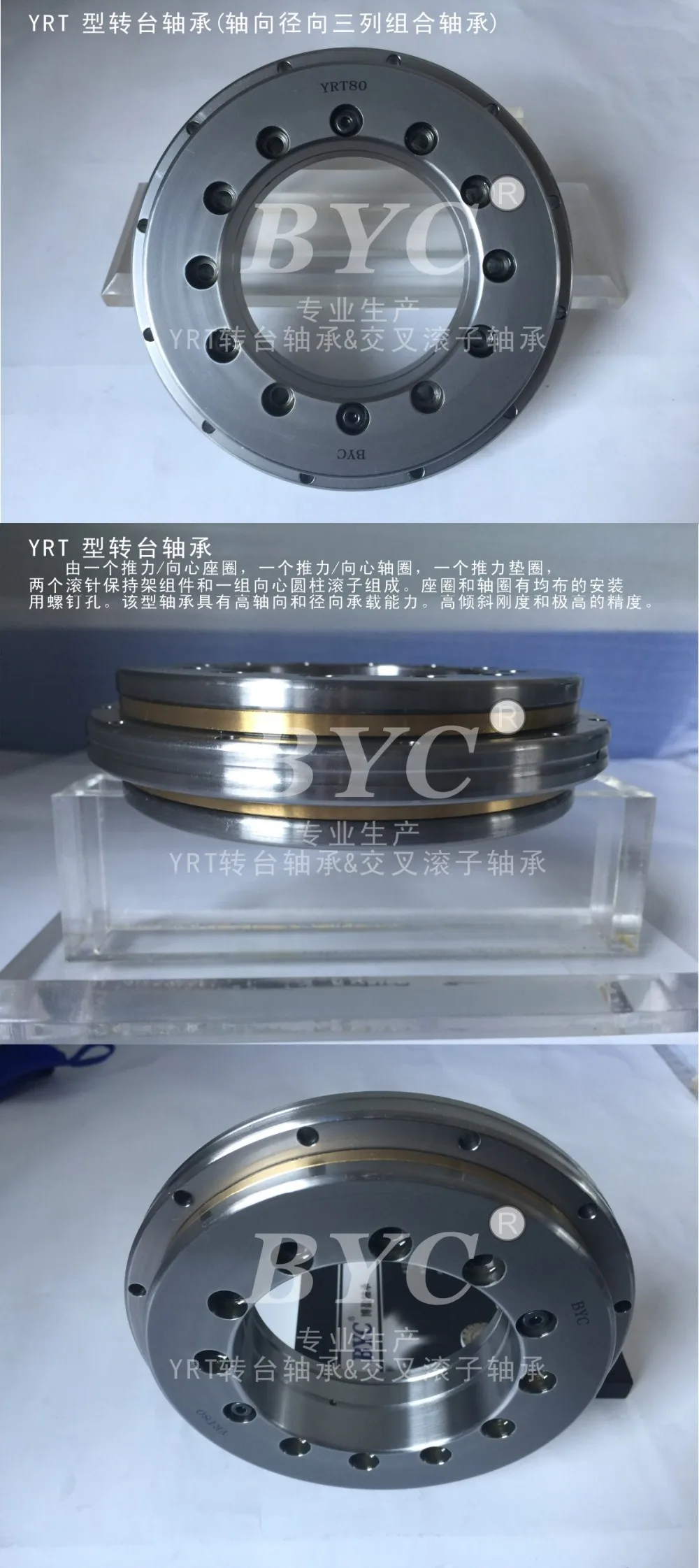

YRT rotary table bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two Axial needle roller and cage assemblies and a group of radial cylindrical roller . Housing washer and shaft washer have equally spaced fitting bolt. This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision. YRT can be used to the machine tool and other high precision machinery of the rotary table or sub-set, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration.
bearing type

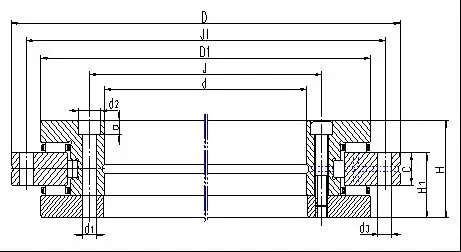

boundary dimensions
fixing holes
d
D
H
H1
C
D1
J
J1
inner ring
outer ring
unit: mm
d1
d2
a
quantity
d3
quantity
mm
mm
YRT50
50
126
30
20
10
105
63
116
5.6
—
—
10
5.6
12
YRT80
80
146
35
23.35
12
130
92
138
5.6
10
4
10
4.6
12
YRT100
100
185
38
25
12
160
112
170
5.6
10
5.4
16
5.6
15
YRT120
120
210
40
26
12
184
135
195
7
11
6.2
22
7
21
YRT150
150
240
40
26
12
214
165
225
7
11
6.2
34
7
33
YRT180
180
280
43
29
15
244
194
260
7
11
6.2
46
7
45
YRT200
200
300
45
30
15
274
215
285
7
11
6.2
46
7
45
YRT260
260
385
55
36.5
18
345
280
365
9.3
15
8.2
34
9.3
33
YRT325
325
450
60
40
20
415
342
430
9.3
15
8.2
34
9.3
33
YRT395
395
525
65
42.5
20
486
415
505
9.3
15
8.2
46
9.3
45
YRT460
460
600
70
46
22
560
482
580
9.3
15
8.2
46
9.3
45
YRT580
580
750
90
60
30
700
610
720
11.4
18
11
46
11.4
42
YRT650
650
870
122
78
34
800
680
830
14
20
13
46
14
42
YRT850
850
1095
124
80.5
37
1018
890
1055
18
26
17
58
18
54
YRT950
950
1200
132
86
40
1130
990
1160
18
26
17
58
18
54
YRT1030
1030
1300
145
92.5
40
1215
1075
1255
18
26
17
60
18
66
High precision YRT rotary table bearings:YRT50,YRT80YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT460, YRT580,YRT650, YRT850 ,YRT950,YRT1030
Design & Installation for YRT:

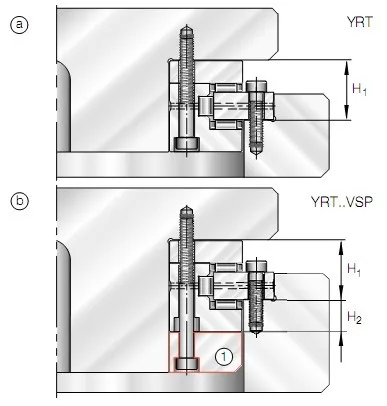

Structure with the requirements shown in Figure 1
Retaining screws secure the bearing components during transport. For installing the bearing easier, the screws should be loosened before fitting, and secured again or replaced by positioning screws after fitting.
The L-section ring can be fitted with unsupported or supported ring.
a) Without supported ring, the bearing type is YRT.
b) With supported ring, the bearing type is YRT-VSP.And the whole surface of L-section should be supported.
Mounting forces must only be applied to the YRT rotary table bearing ring to be fitted, never through the rolling elements.
Tighten the fixing screws in crosswise using a torque wrench (shown in figure 2).
Don’t separate or interchanged bearing components during fitting and dismantling.
Starting friction torque can be 3 to 3.5 times as high as the value of friction torque in the dimension tables.
