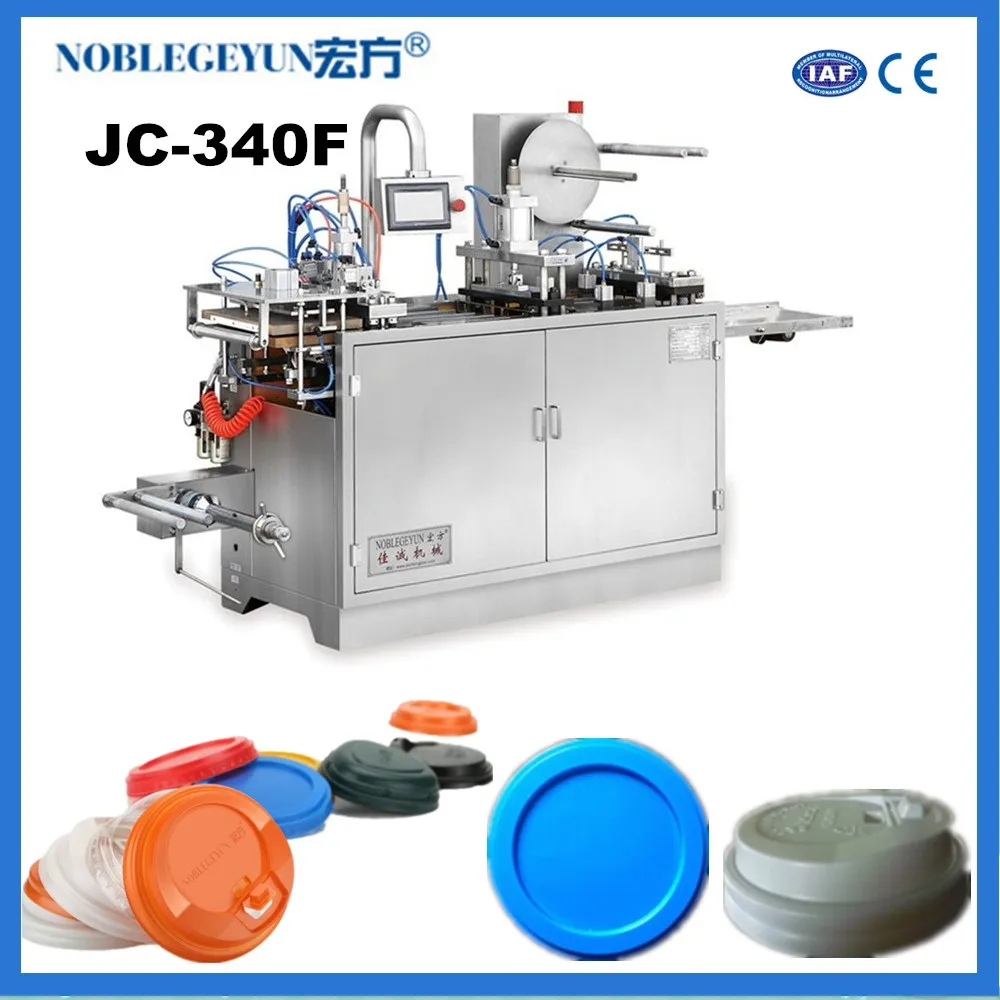

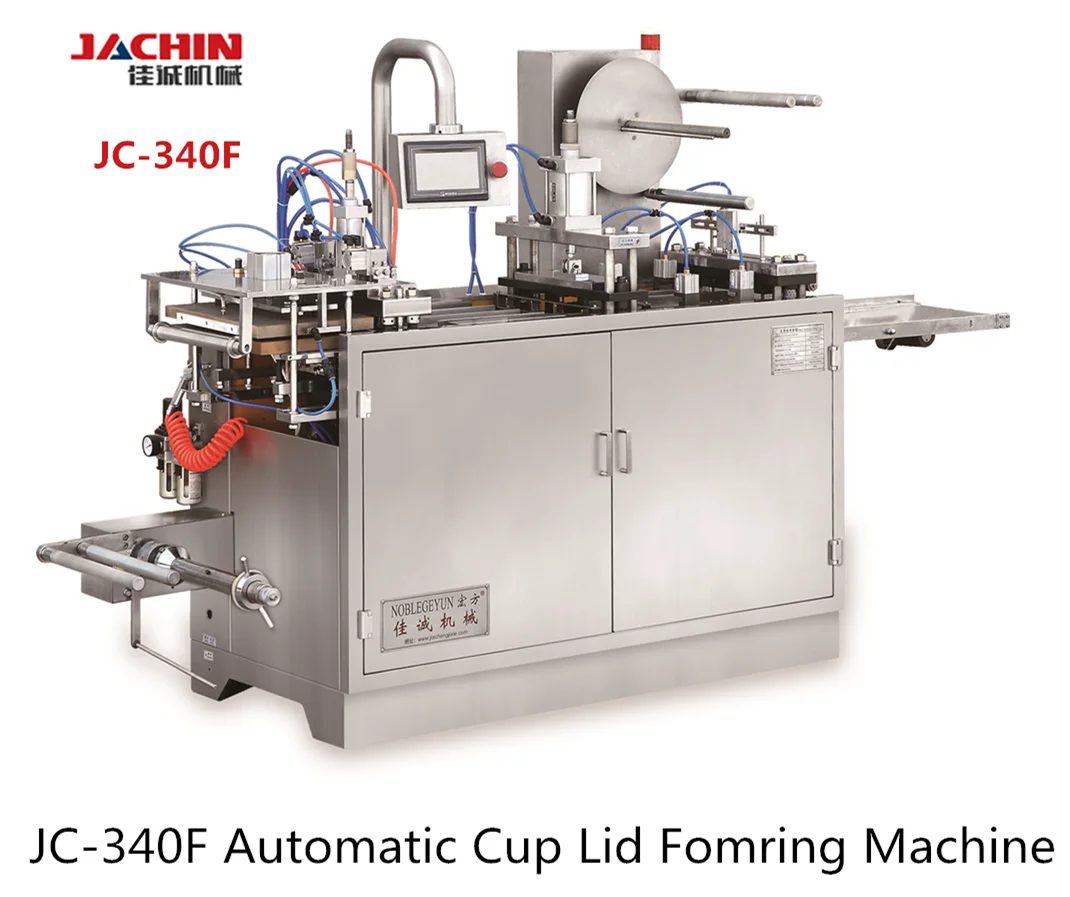

JC-340F Automatic Plastic Thermoforming Machine is developed by our research and development department, according to the demand of packing market. Absorbing the advantages of aluminum-plastic blister packaging machine and plastic molding machine , the new machine develoed according to the requirements of medical " GMP" and food " QS" standards. Machine adopts automatic forming, punching and cutting as the special properties of product requires of the users. With advanced technology, safe and simple operation, avoiding the consumption of labor labor caused by manual punching and the pollution caused by the emplyees during work, guarantee the quality of products. The machine equipped with panels heating, low power consumption, small external footprint, economical and practical. So the machine is widely used in manufacturing lids, covers, trays, plates, boxes.
Main Technical Parameters
Model
JC-340F
Punch speed
15-40 times/min
Max. Forming area
330*160mm
Max. Forming depth
47mm
Stroke
65-160mm
Raw material
PVC/PET/PS Roll: 75mm
Material sheet: 0.15-0.6*350mm
Total power
4.5kw
Compressed air
0.6-0.8 Mpa
Mold cooling
20℃ tap water/recycle water ,60 L/H
Dimension
1900*790*1700mm
Weight
1100kg
Performance Features
1. Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission.
2. Sensor controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long-distance.
3. Main motor variable frequently speed regulating, the travel adjustable at will, simple and convenient to change the mould, cam traction, stable running.
4. Positive pressure formation in the equipment (Puffing formig).
Application

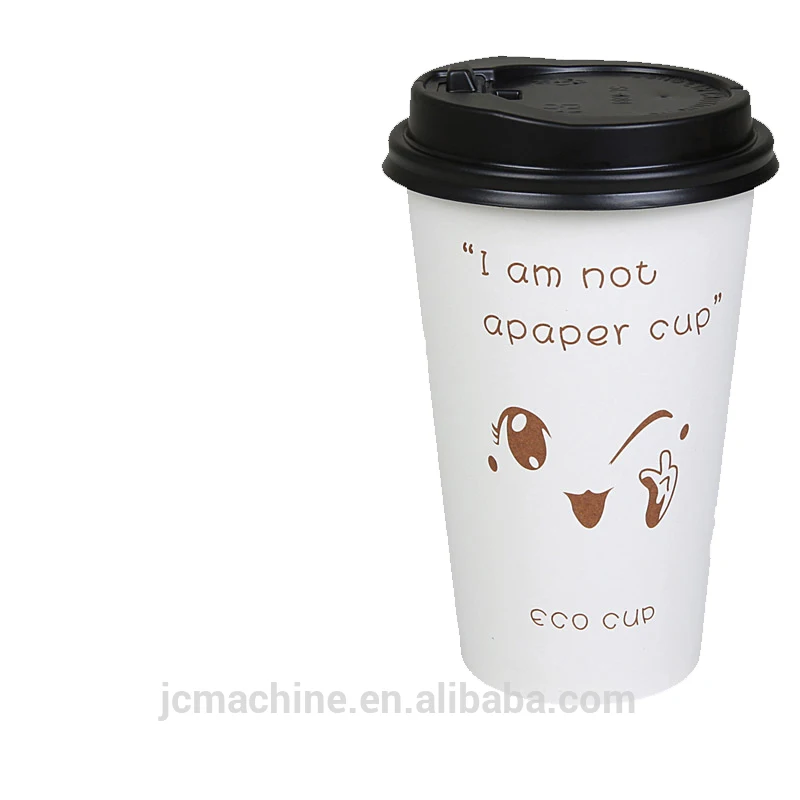

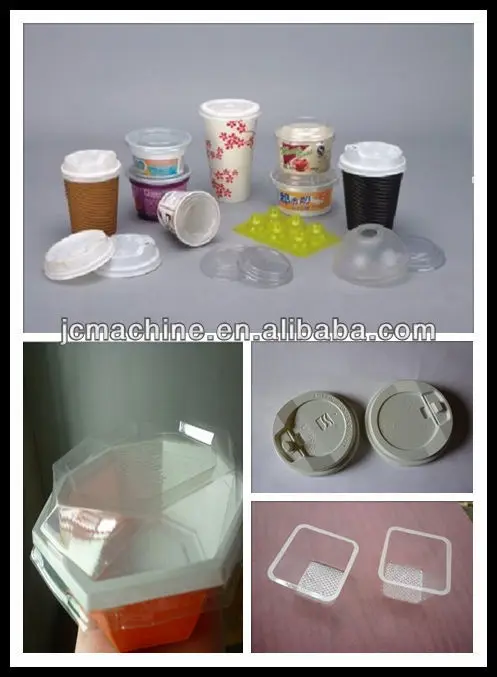

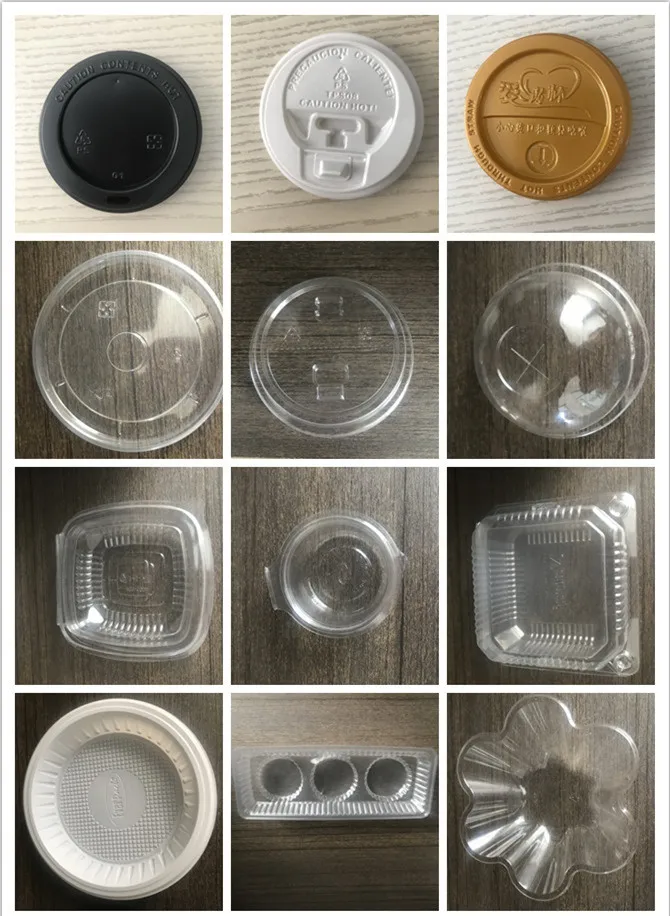

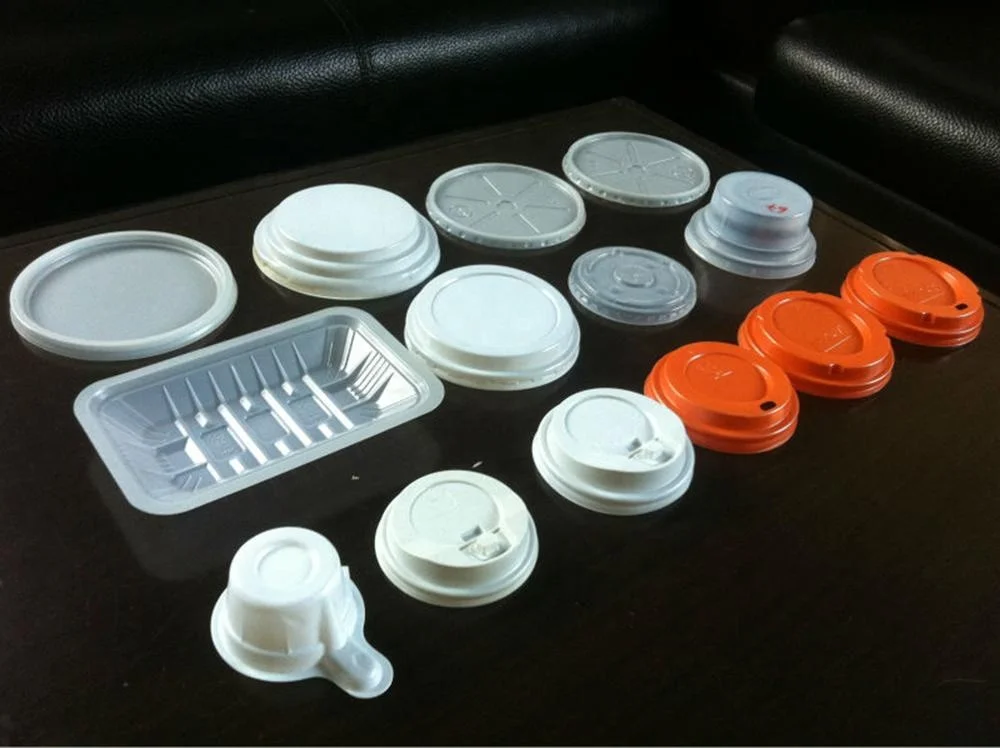

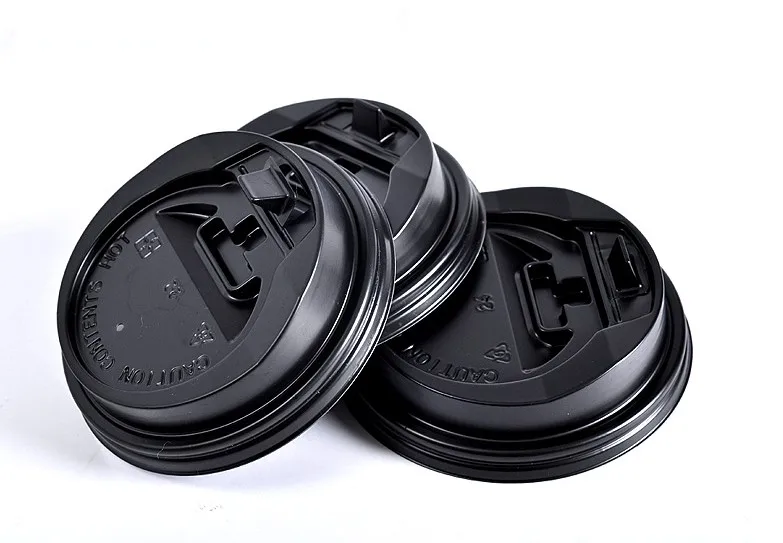

PVC,PET,PS , as raw material, manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc. Welcomed by our customers.
