| Model | XGH-1 |

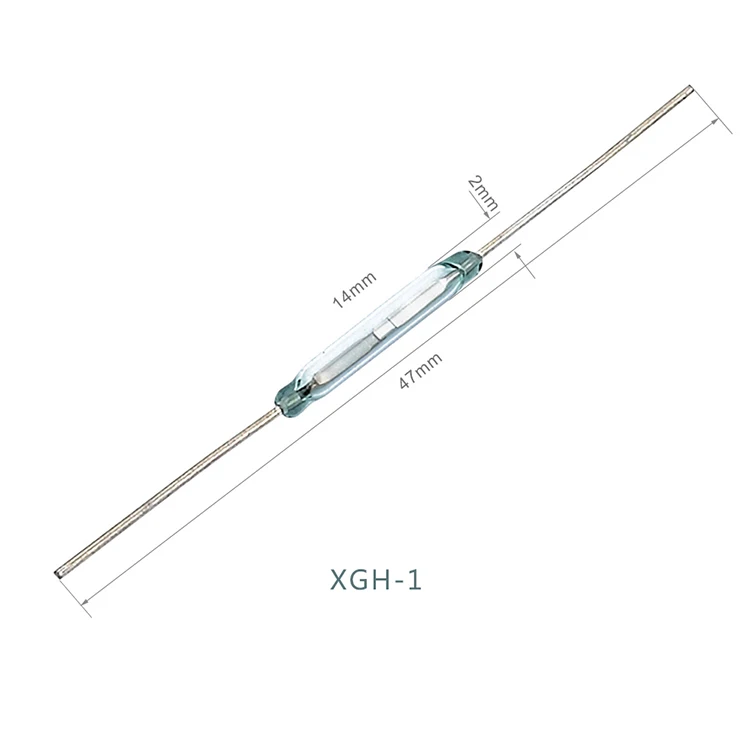

| Dimension | Ø2 × 14mm |
| Contact Type | 1A |
| Contact Rating | 1.0VA |
| Pull in Value(PI) | 10-25AT |
| Drop out Value(DO) | ≥8AT |
| Contact Resistance | ≤200mΩ |
| Breakover Voltage | ≥100V DC |
| Insulation Resistance | ≥100mΩ |
| Electrostatic Capacitance | 0.5pF |
| Maximum Switching Voltage | 24V DC |
| Maximum Switching Current | 0.05A |
| Maximum Carry Current | 0.1A |
| Operate Time | ≤0.6mS |
| Bounce Time | ≤0.4mS |
| Release Time | ≤0.1mS |
| Maximum Operating Frequency | 100Hz |
| Operating Temperature | -10~+60℃ |


Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Main markets: Europe, America, Australia, Asia, Middle East and so on.


Q: How do you control the products' quality?
A: 100% auto inspection machine and manual test together before packing.
Q: Would you accept to use our logo?
A: If you have good quantity, we would like to do OEM and ODM, customized specification.
Q: Can I get a sample for reference?
A: We are glad to send the samples for testing. Samples are free, but you may need to pay the express cost.
Q: What's your delivery time?
A: Normally it takes 15-20 working days for production. If we get stock, it only takes two days.
