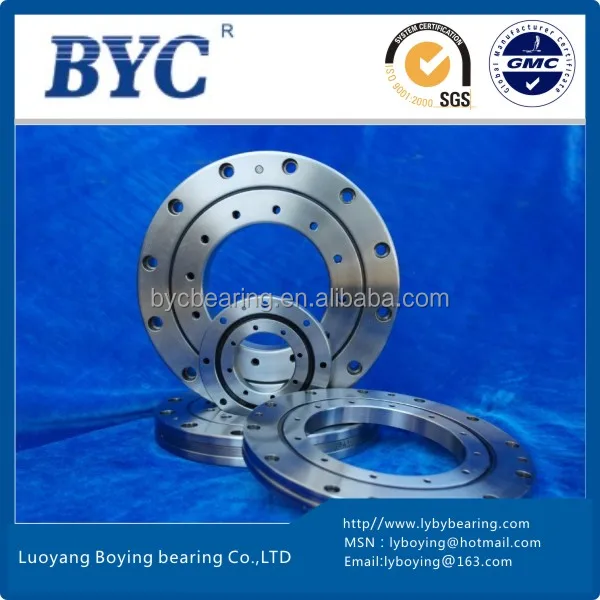

XU080430 Crossed roller bearing|price list bearings |bearing matching size for Machine tool
(Integrated Inner/Outer Ring Type)
XU SERIES:Since the mounting holes are provided,cross roller bearing does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.
B . XU080430 Crossed Roller Bearings Specification Sheet
Model Number
Main dimensions
Fixing Hole
(Outer ing)
Fixing Hole
(Inner ing)
Basic load
rating (Axial)
Basic load
rating (Radial)
Weight Kg
Inner ring d(mm)
Outer ring D(mm)
Roller pitch circle dp(mm)
Width B(mm)
Pitch of
holes φLa
Number na
Pitch of
holes φLi
Number ni
Ca KN
Coa KN
Cr KN
Cor KN
XU080430
380
480
430
26
462
20-φ9
398
20-M10
110
280
70
138
12
Our Services
Example of installation:
1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.
2.Since the Crossed Roller bearing is a tiny section bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.
3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.
4.Insert the presser bolts into the holes. Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.
5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.
As a professional percision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
Packaging & Shipping
1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
