Automatic Flatbed Paper Die Cutter Creasing Die Cutting Machine

Share on (1904733948):


Price:RUB 7,202,710.00

Quantity:


Product Overview

Description



Product Description

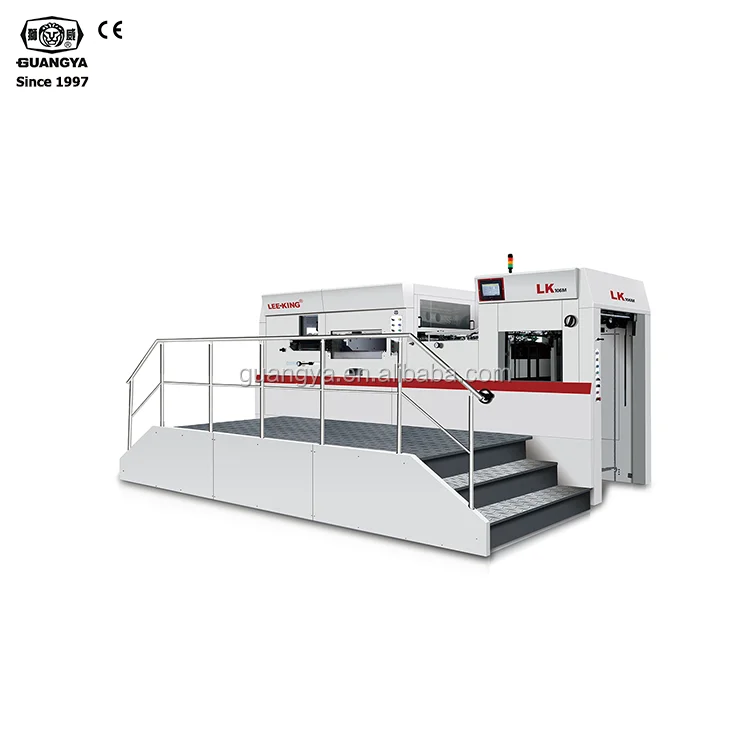

LK106M

Automatic Flatbed Creasing Die Cutting Machine



Our  Full Automatic Die Cutting Machine is commonly used for the die cutting and creasing work. It is widely used on paper-made packaging materials such as paper boxes, paper cartons, trademarks, and invitation cards.



In order to meet various request of printing and packaging market, we designed LK106M Full Automatic Die Cutter, which is the latest research and development and manufacturing of new equipment with a higher degree of intelligence.



This machine adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.



It could Creasing and Die Cutting on different after printing packaging products, such as higher than 90gsm paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper, plastic card, PVC and so on.



Superior ability to adapt and convenient operation which make machine work stable and safety when machine speed reach 7500 sheets per hour. This machine will provide you to enjoy the comfortable operation and faster return on investment.



Specifications

Model

LK106M

Max. sheet size(mm)

1060×770

Min. sheet size(mm)

400×370

Max. die cutting size(mm)

1050×750

Max. feeding pile height (mm)

1350

Max. delivering pile height (mm)

1200

Max. working pressure(T)

300

Power rating(KW)

17.6

Paper range

90 -2000(gsm) (cardboard)

0.1-2mm(cardboard)

≤4mm(corrugated)

Max. working speed(s/h)

7500

Main motor power(KW)

11

Machine weight(kg)

16000

Gripper Margin(mm)

8-17

Air requirements

0.6Mpa, >0.37m³/min

Overall machine dimensions(mm)

6050×4200×2260

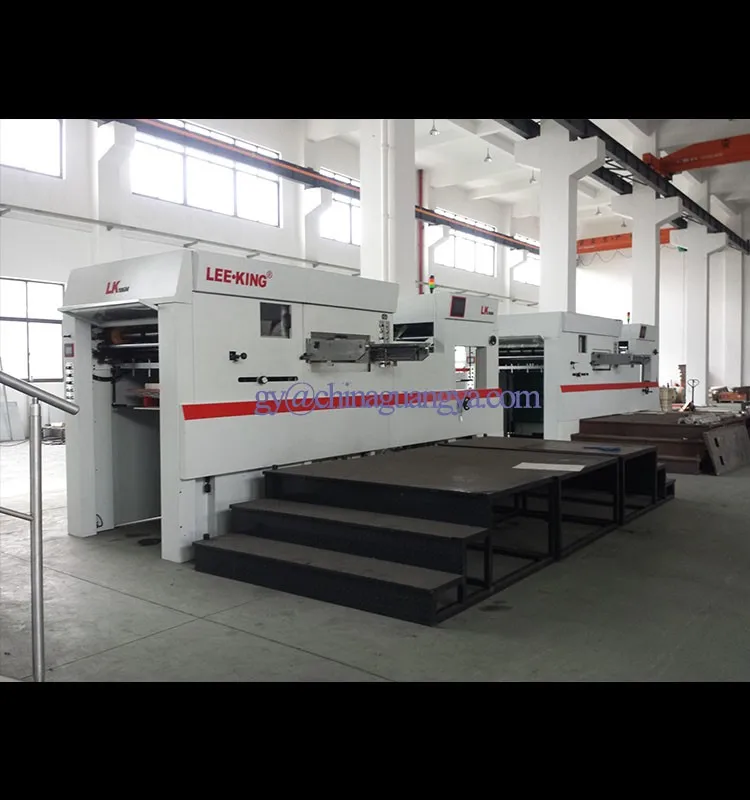

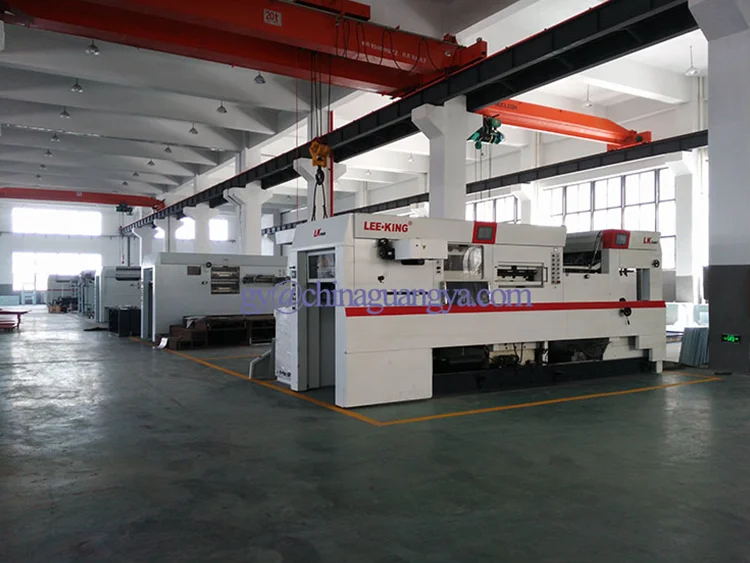

Mac under production

lk 3

Die cut sample

Sample of die cutting & creasing,

cut sample

Related Products
LK2 106MT LK106MT5 LK106MF LK1450
Foil stamp -> die cut -> stripping in one processing Foil stamp & die cut 106x77cm Stripping die cut 106x77cm Automatic/Semi-auto die cut 145x106cm
TYM1400JT TYM1050 TL780 NEW TYMC 1100 HOLOGRAM
Roll to roll foil stamp emobss Roll to die cut Small Foil stamp & die cut 78x56cm Hologram foil stamp 110x80cm
Our Services

The Unique Human Care And Profession Passionate Sales Service System

We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.


Company Information

Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).

At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.

Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in China.

Guangya hope to be your deal business partner to develop the prosperous future together.

fac18 750

FAQ

1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machine for over 22 years.


2. Where is your company located? How can I visit there?
Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.

The nearest transportation center is Wenzhou airport or Ruian train station.

3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.



4. What’s your advantages ?

--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply: Our team will reply you soon.

--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
