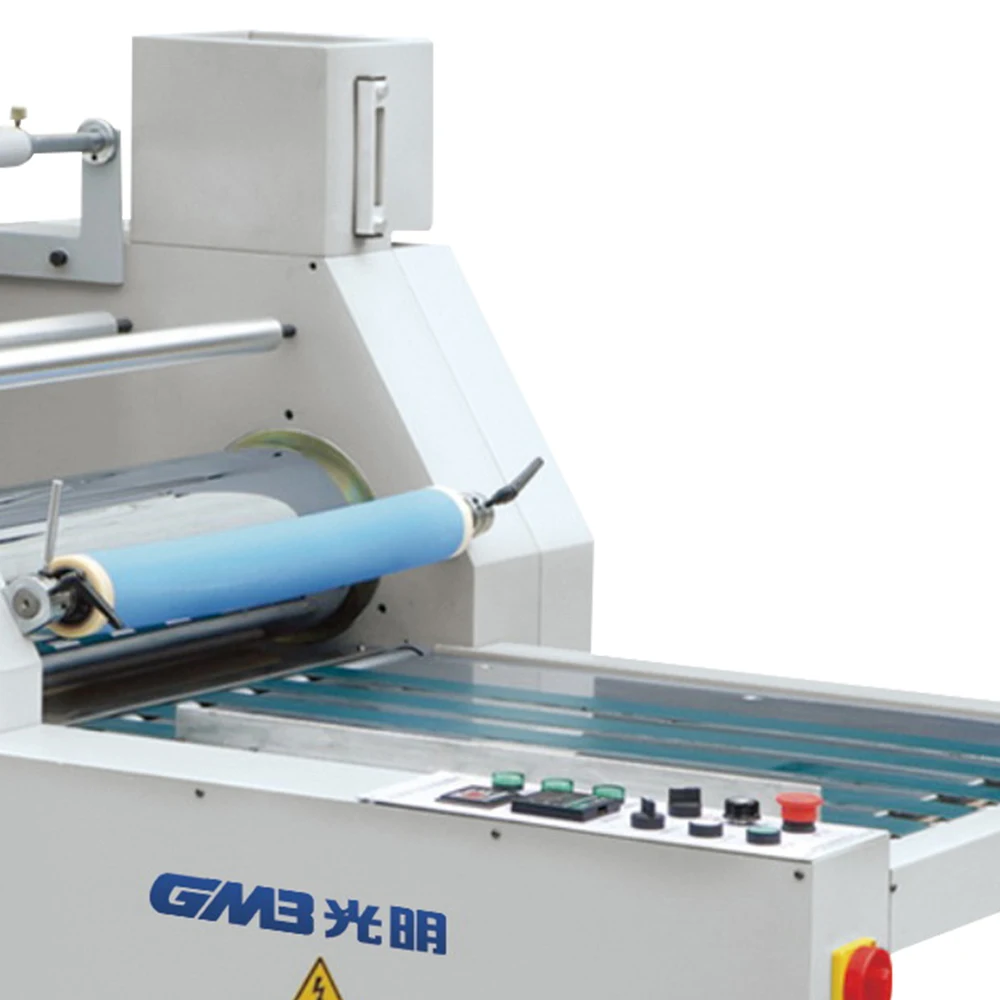

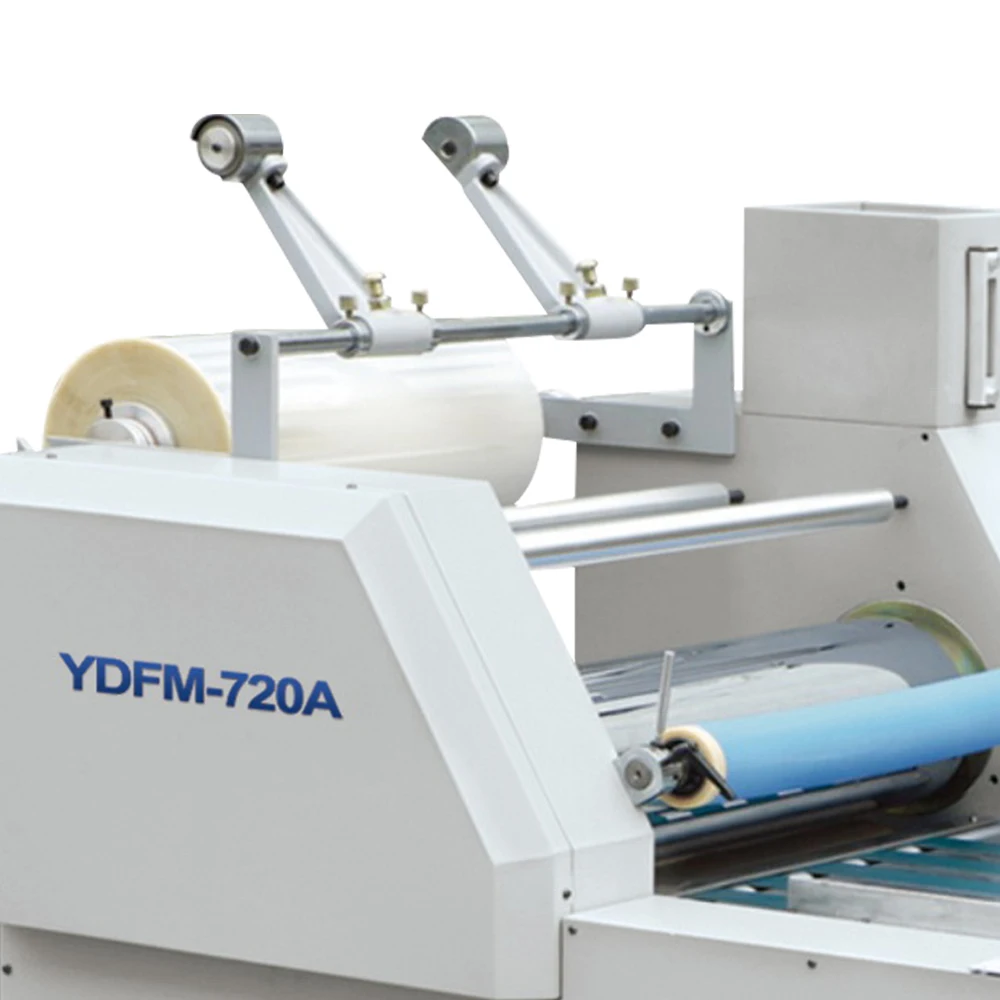

Thermal laminating Machine YDFM 720A/920A

Product Overview

Description



YDFM-720A/920A/1050A Manual Laminator







Applications

It is used for the lamination of pre-glued film (also named thermal film) and glueless film.



Features

YDFM-A series manual laminating machine is a kind of multi-functional laminator which is newly developed upon long time of users’ feedback and market needs. It suits the lamination of pre-glued film and glueless film. Gluless film lamination means the machine laminates the glueless film without any glue on paper directly in a certain temperature and pressure. This technology is a new green lamination. The whole process has no any glue thereof, and reduces energy-loss and saves production costs, and also avoids environmental pollution and toxic residuum from traditional laminating technology.



The laminated products will be water-proof, durable, of clear picture and good spatial effect. And the machine is widely used for the lamination of packing materials, labels, books, drawings and maps etc.





















Configuration

1. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
2. One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
3. Manual paper feeding.
4. Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6. Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge to make the separation of laminated paper easy.
9. Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon requests. Winded paper will be cut by manual work.



Technical Parameters:



Model	YDFM-720A	YDFM-920A	YDFM-1050A
Max Laminating Width	680mm	880mm	1040mm
Laminating Speed	0-30 m/min	0-30 m/min	0-30 m/min
Laminating Temperature	≤130°C	≤130°C	≤130°C
Paper Thickness	125-500g/	125-500g/	125-500g/
Gross Power	13kw	15kw	16kw
Total Weight	600kg	700kg	900kg
Overall Dimensions	1900*1500*1550mm	1900*1700*1550mm	1900*1900*1550m
