10inch PES pleated filter cartridge

Product Overview

Description

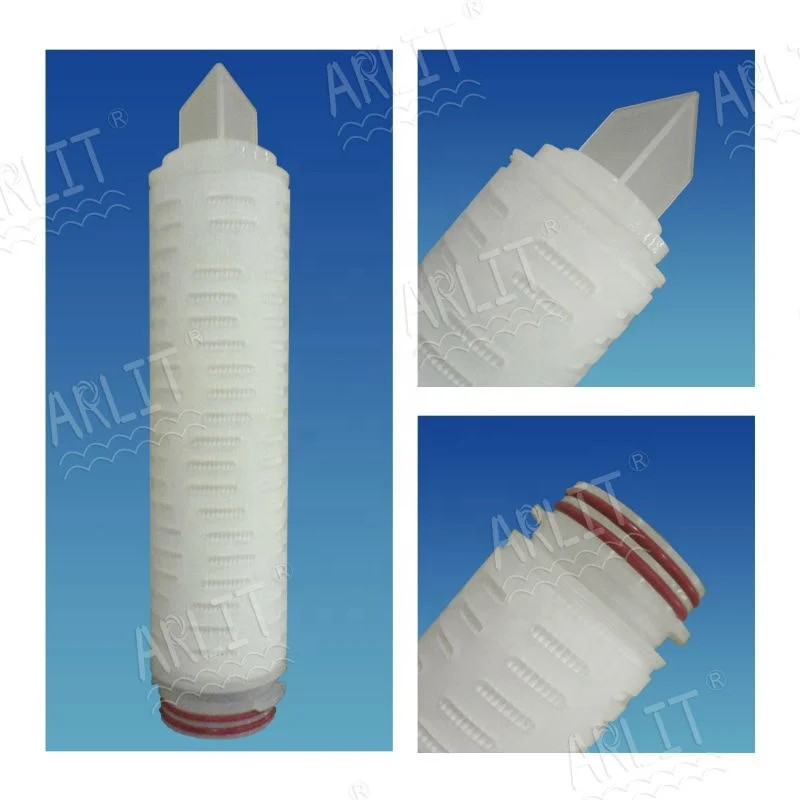

10inch PES pleated filter cartridge



pleated filter cartridge

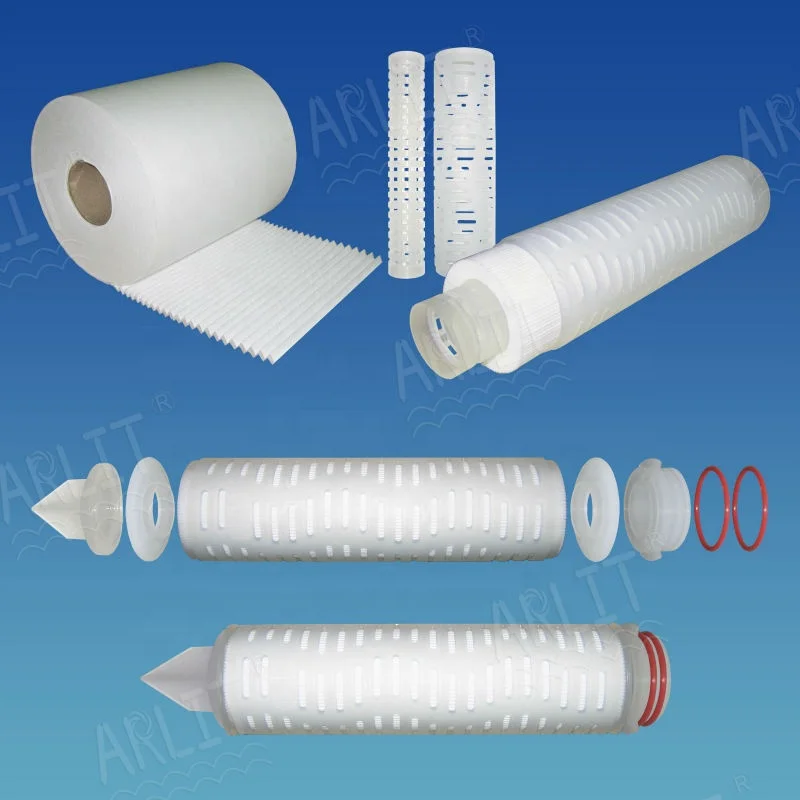

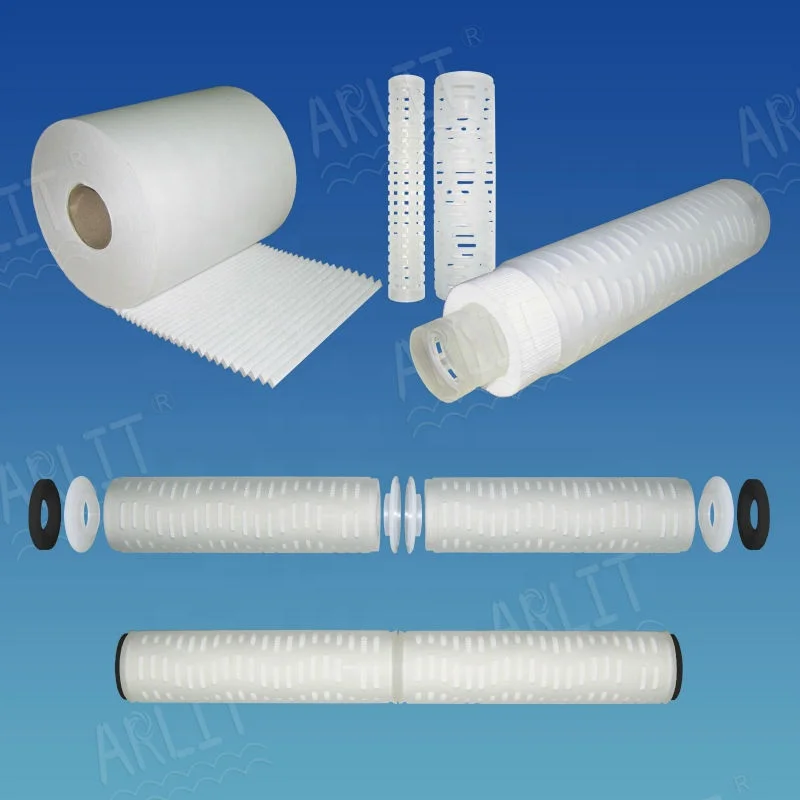

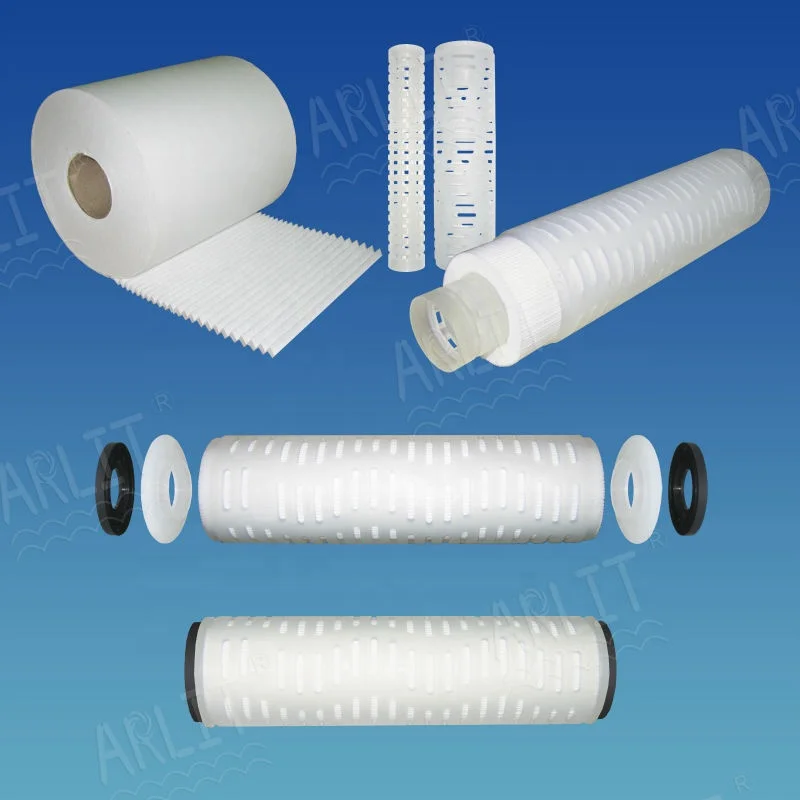

Polypropylene pleated filter cartridge is constructed of fine polypropylene media and nonwoven support materials. Adaptors are thermally welded with media without using any glue, so there will be no any possibilities to cause pollution.







Pharmaceutics
Food and beverage
Oil industry
Semiconductor
Chemical industry





Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
Pleated design increased the filtration area.
low pressure drop, long service life
Full range of removal ratings





pleated polyester filter cartridge Performance Specificaton (10")



Micron(um)	0.1,0.22,0.45,1,2,3,5,10,20,30
Filter Area	0.4-0.7m²
OD	69mm
Differential Pressure	ΔP≤0.35MPa at25°C
Reverse Differential Pressure	ΔP≤0.28MPa at60°C
Working Temperature	≤80°C
Sterilization Temperature	5times, 30min @121°C





Removal ratings: 0.1um, 0.2um, 0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um
Length: 5’’, 10’’, 20’’, 30’’, 40’’
Outside diameter: 69mm, 83mm, 131mm
Maximum operating temperature: 80°C, @1 bar
Maximum operating differential pressure: 4.0bar
Maximum operating differential pressure (reverse direction): 2.0bar normal temperature
Sterilization temperature time: 5times, 20 Minute cycles at 120°C
