Tempered/Toughened Glass Making Machine Glass Machinery
- Category: Glass Processing Machinery >>>
- Supplier: Luoyang Landglass Technology Co. Ltd.
Share on (1906406934):
Product Overview
Description
Tempered/Toughened Glass Making Machine Glass Machinery
It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Forced convection heating on the top and bottom.Airstream and Superair are also optional.
Model | A2023B10/2J+ | A2436B15/2J+ | A2442B18/2J+ | A2460B25J+ | A2850B25J+ |
Flat Max Dimension | 2000x3000 | 2440x3600 | 2440x4200 | 2440x6000 | 2800x5000 |
Singel Curvature Max Dimension | 2000xARC1000 | 2440xARC1500 | 2000xARC1800 | 2440xARC2500 | 2800xARC2500 |
Flat Min Dimension | 150x350 | 150x350 | 150x350 | 150x350 | 200x400 |
Single Curvature Min Dimension | 200xARC350 | 300xARC400 | 300xARC400 | 300xARC500 | 500xARC600 |
Thickness | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 |
Productivity | 27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass) | 27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass) | 27-32(5mm clear glass) 24-29(5mm 0.08Low-e glass) | 14-16(5mm clear glass) 12-14(5mm 0.08Low-e glass) | 14-16(5mm clear glass) 12-14(5mm 0.08Low-e glass) |
Installed Capacity | 800kVA | 800kVA | 1000kVA | 1250kVA | 1250kVA |
Detailed Images
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

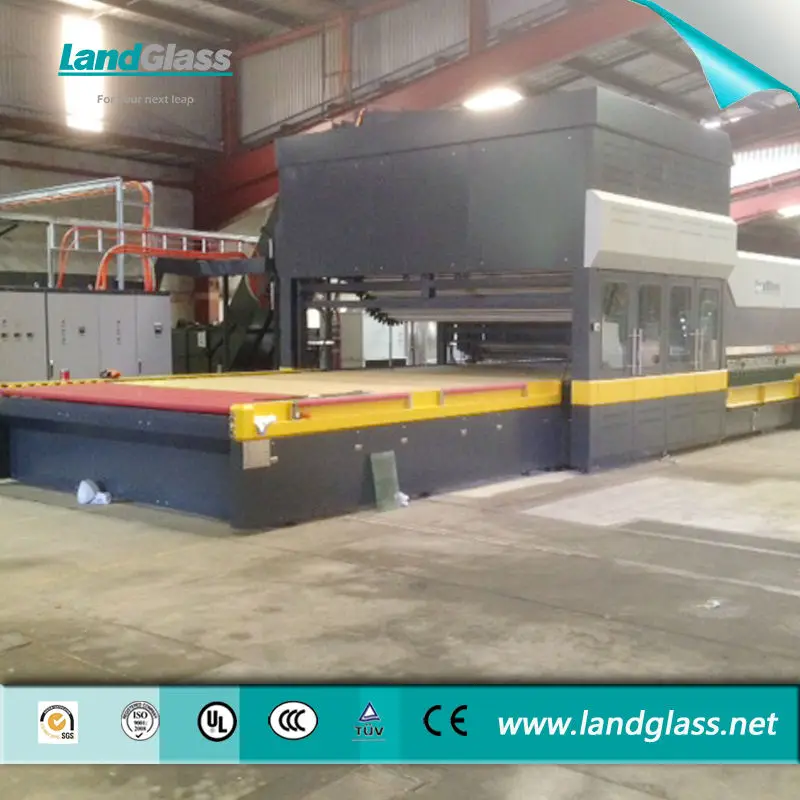

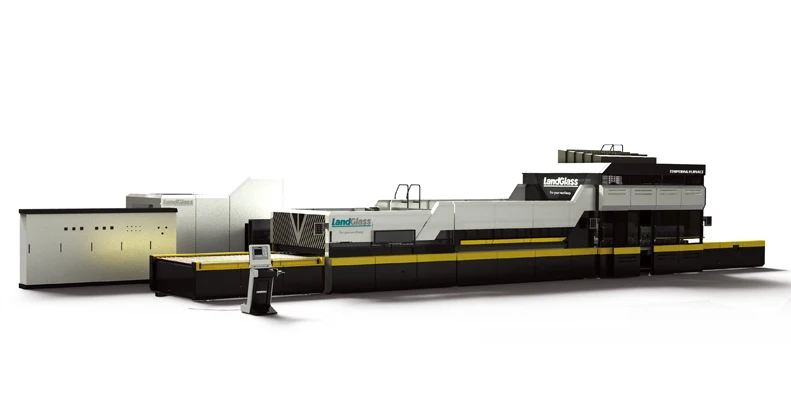

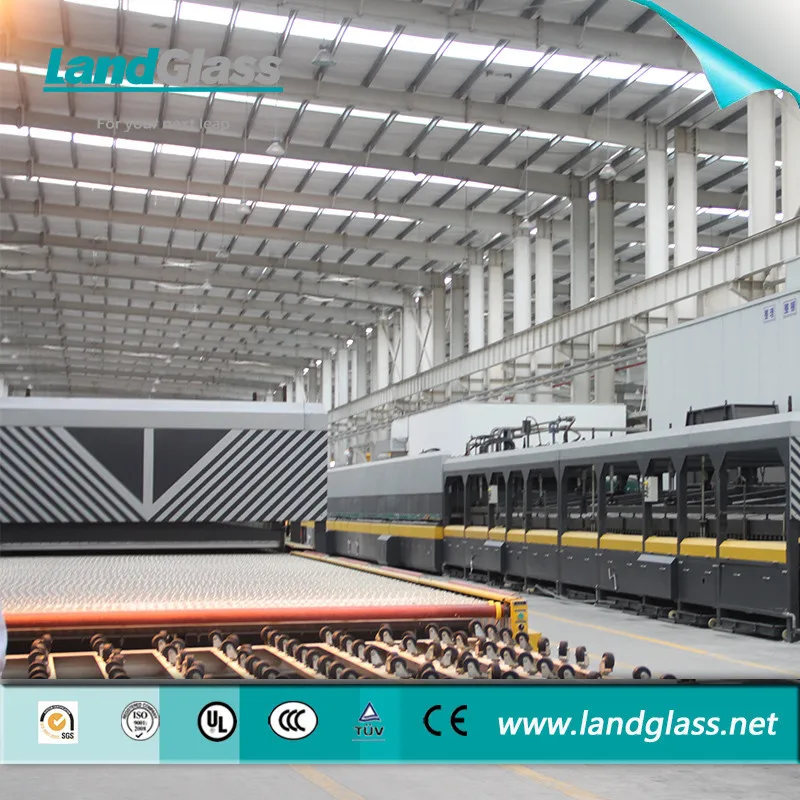

LD-AB JetConvection PlusTM Flat & Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

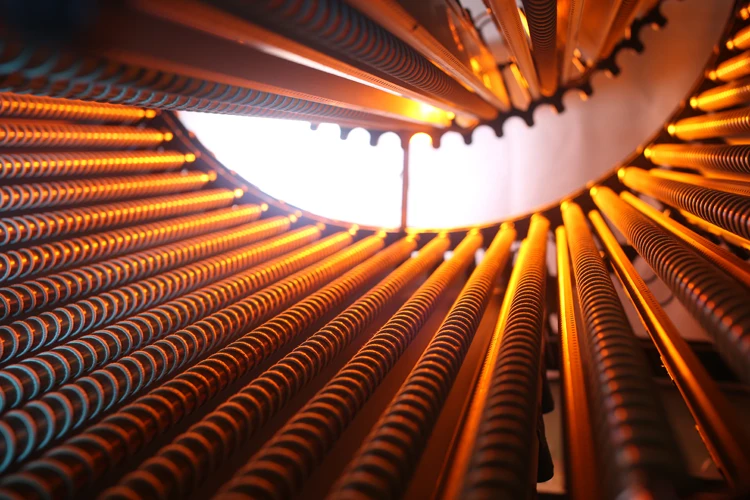

2. Hard-shaft bending roller technology bends glass lengthwise.

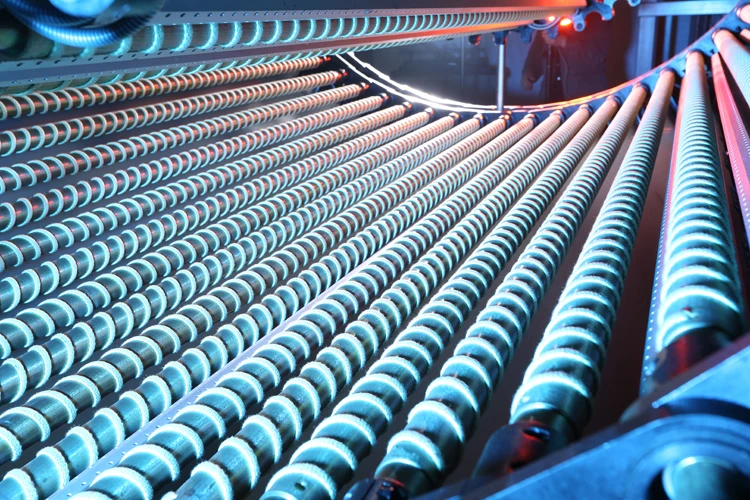

3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.
4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
Company Profile

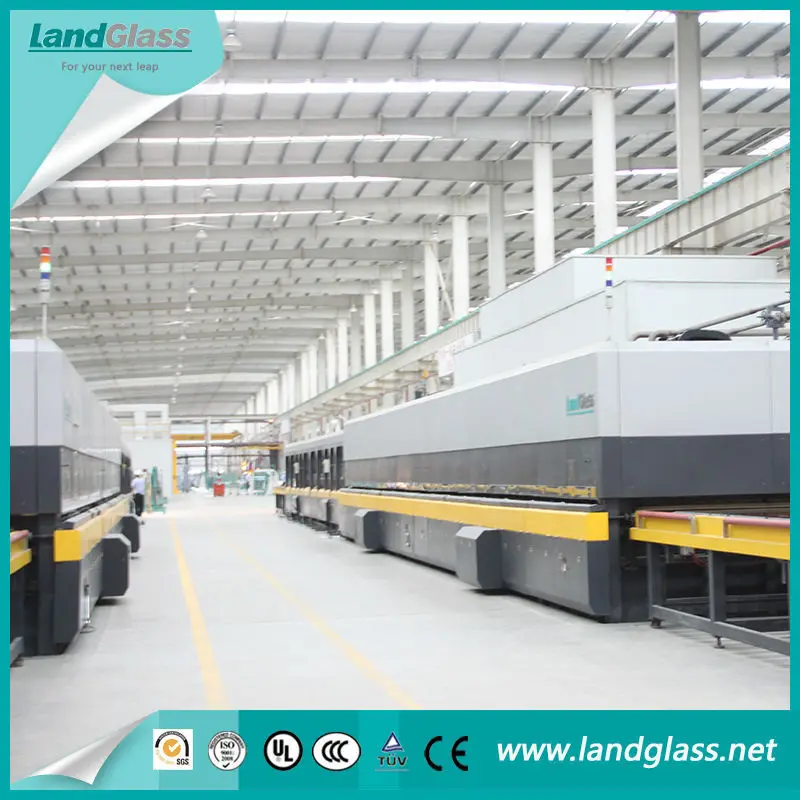

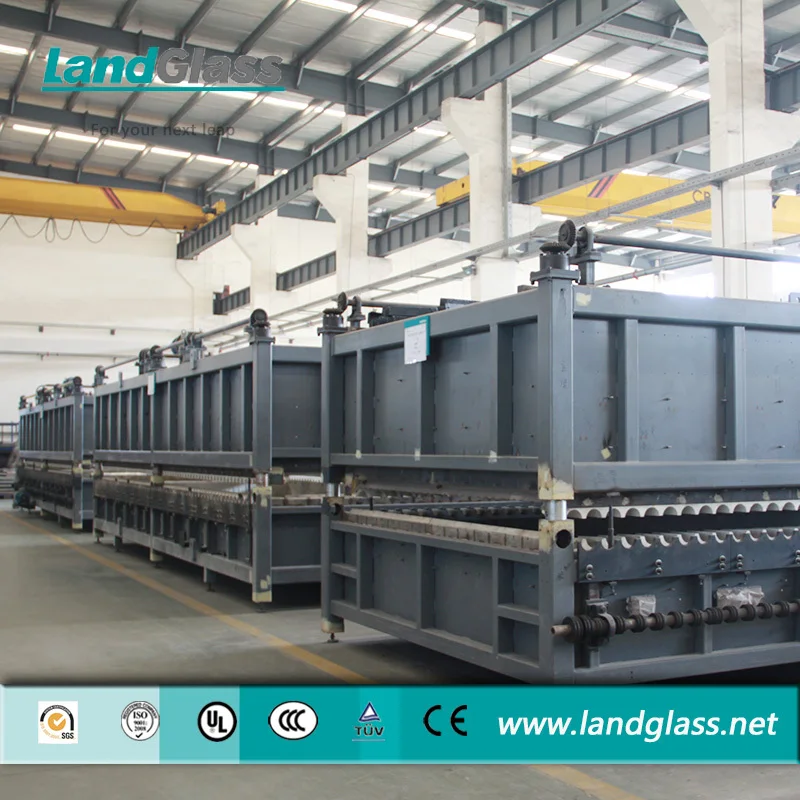

LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications
Product Certification
Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
