Steam/Oil Heating Best Price Multilayer Type silicone bracelet making machine

Product Overview

Description

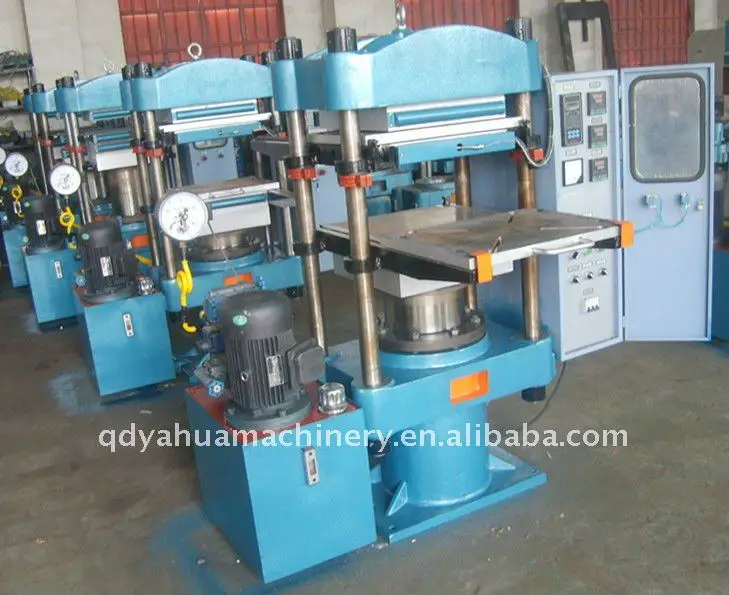

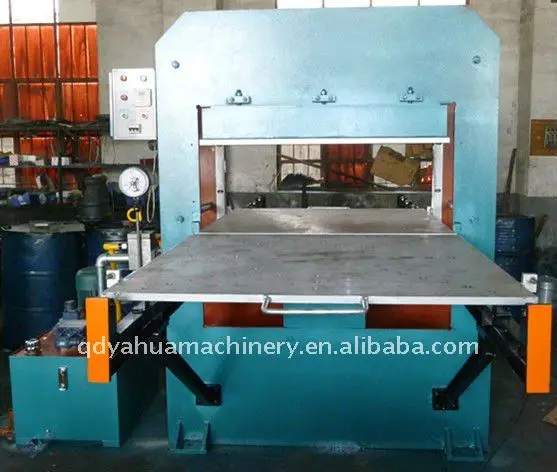

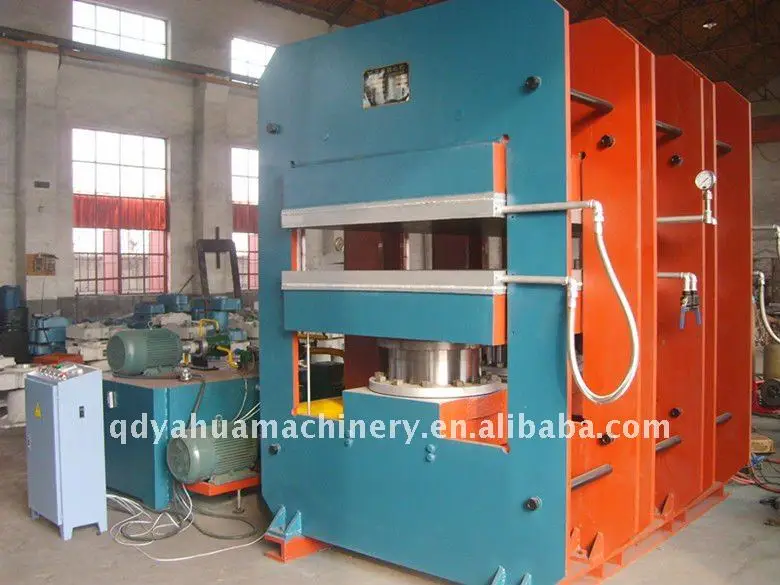

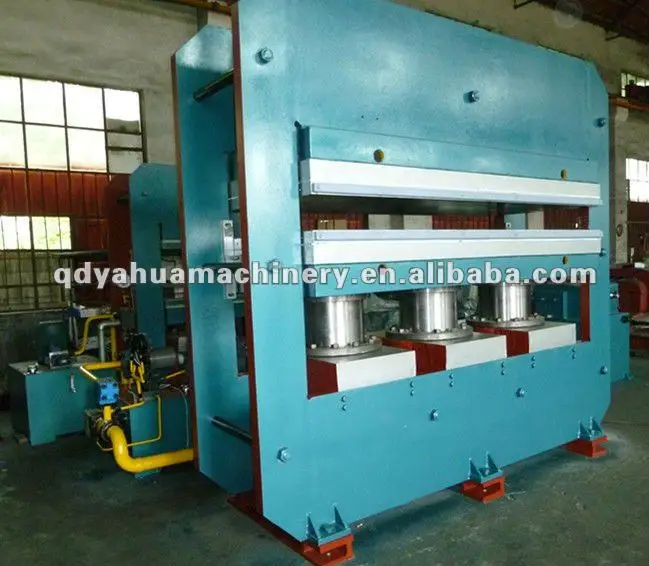

Excellent vulcanizing press machine

Plate vulcanizing press is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. This kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency.Operation is safe and reliable. Also we can provide all kinds of sizes, types, and operation ways according to the customer's request.







Features:



1. High speed open/close molds, high production efficiency, low locking speed, protect mold.



2. Automatic in/out mold and ejector device, low labor strength.

3. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.



4.The electric system adopt PLC programming control, which is easy to be operated.















Model		XLB-D1000*1000*1	XLB-D/Q1200*1200	XLB-D600*600	XLB-D400*400*2
1	Norminal mouldning power(MN)	2.50	3.15	1.60	0.5
2	Plate size (mm)	1000*1000	1200*1200	600*600	400*400
3	Plate pressure (Mpa)	2.5	2.19	4.4	3.1
4	Piston diameter(mm)	450	600	360	200
5	Number of hydraulic cylinder (pcs)	1	1	1	1
6	Piston stroke(mm)	300	800	300	250
7	Distance between hot plate(mm)	150	800	300	125
8	Working layer number	1	1	1	2
9	Pressure of working fluid  (Mpa)	15.7	17.7	15.7	16.0
10	Total heat power(KW)	24	36		9.0
11	Heat type	electricity	vapor/electricity	electricity	electricity
12	Maximum working temperature	200°C	200/170  °C	200  °C	200  °C
13	Configuration type	Frame	Frame	pillar	pillar























































































































The main service item on our machine

1. installation and debugging: Our engineers will teach you about the installation and debugging for free.
2. Technology training :Our company will offer technology training for your operation.
3. After-sales service:  We will supply the free repairment on this machine for one year,but will supply the maintenance lifetime. (the service is only for natural damage)
