1325A Woodworking Cnc Router Machine DSP Water Cooling cnc router machine for sale
- Category: >>>
- Supplier: Qingdao Hongqiang Weiye Machinery Co. Ltd.
Share on (1907890951):
Product Overview
Description
Product Overview

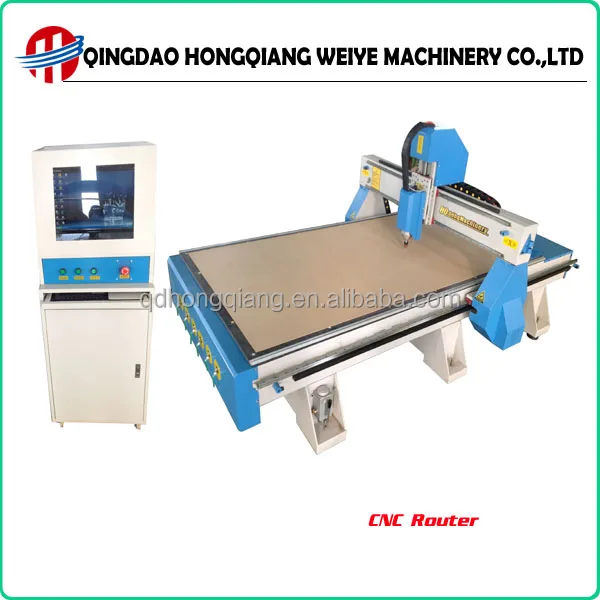

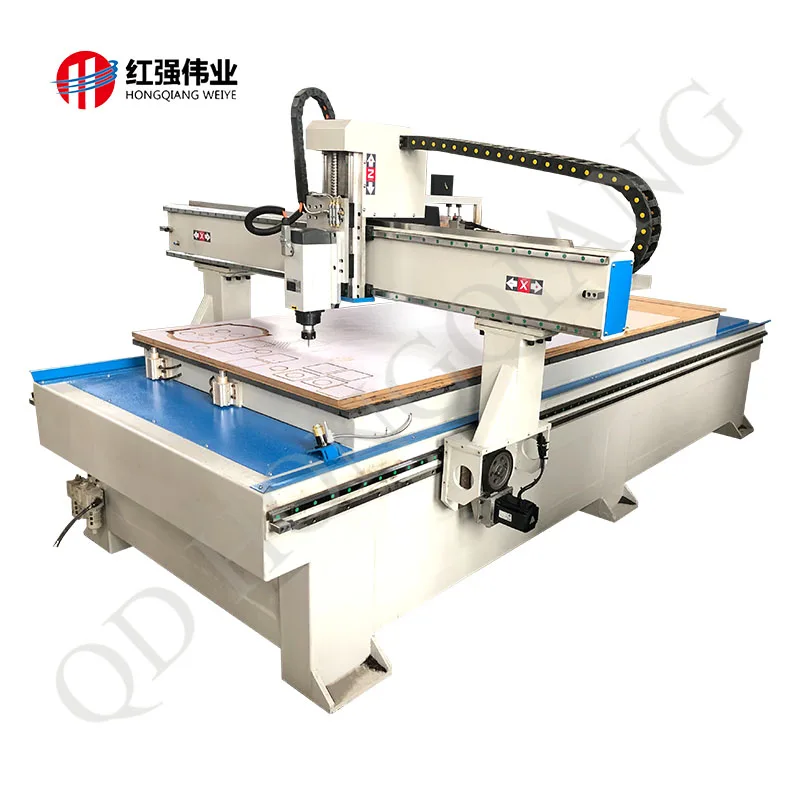

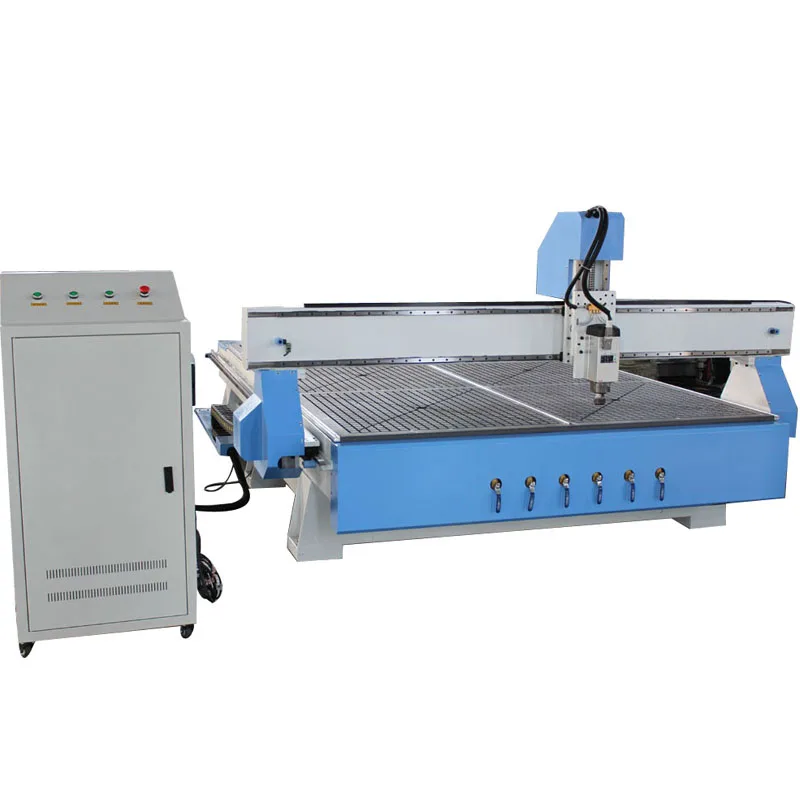

1325-KMA1 Cnc Router Machine
Cnc Router Machine
1325-KMA1 is a CNC router tool that creates objects from wood. CNC stands for computer numerical control. The CNC works on
the Cartesian coordinate system (X, Y, Z) for 3D motion control. Parts of a project can be designed in the computer with a Type3 / Artcam / Ucancam / Caxa / Mastercam / UG
program, and then cut automatically using a router or other cutters to produce a finished part. The CNC router is ideal for
hobbies, engineering prototyping, product development, art, and production work.
the Cartesian coordinate system (X, Y, Z) for 3D motion control. Parts of a project can be designed in the computer with a Type3 / Artcam / Ucancam / Caxa / Mastercam / UG
program, and then cut automatically using a router or other cutters to produce a finished part. The CNC router is ideal for
hobbies, engineering prototyping, product development, art, and production work.
1. This engraving machine is suitable for processing stone, jade, glass, marble, granite and wood.
2. The water cooling system can cool cutting tool and lengthens service life.
3. Steel Baffle protect guide rail against water.
4. Optional equipments for engraving machine are servo drive system, DSP Control system, air-cooling spindle.
2. The water cooling system can cool cutting tool and lengthens service life.
3. Steel Baffle protect guide rail against water.
4. Optional equipments for engraving machine are servo drive system, DSP Control system, air-cooling spindle.
Details Images
Heavy vacuum table with chain
DELIXI electric and K&R inverter
6kw spindle with HIWIN guide
Difficult design drilling
Technical Parameter
Model number | 1325-KMA1 | ||
Table Size(mm) | 1300X2500 mm | ||
X Y Z Traveling Area | 1300X2500X200 mm | ||
X Y Transmission | Rack Gear Helical tooth | ||
Z Transmission | THK , HIWIN | ||
X Y Z Guide Rail | TAIWAN HIWIN Square Rail | ||
Spindle Power | 4.5kw / 6kw / 9kw | Water Cooling Spindle | |
Air cooling spindle | |||
Max. Spindle Speed | 18000 - 24000 r/min | ||
Max. Traveling Speed | 24000mm/min | ||
Engraving speed | 18000 mm/min | ||
Processing Accuracy | ±0.01mm | ||
Reposition Accuracy | ≤0.01mm | ||
Driving System | Stepper Motor/ hybrid motor / servo motor | ||
Command Language | HPGL, G Code | ||
Operation System | DSP / NCSTUDIO/SYNTEC | ||
Working Voltage | 380V/50Hz /3phase | ||
Net Weight/Gross Weight | 2000KGS | ||
Package Dimension | 3800X2350X1700mm | ||
Recommend Products
Exhibition
Customer Photos
Product packaging
Our Services
1. Provide the free consultation of the equipment
2. Provide the standard device and the flow chart
3. According to the clients’ special requirement, we offer the reasonable plan and free design helping to select the equipment.
4. Welcome to visit our factory
Services during the sales
1. Inspect the machine before leaving the factory.
2. Oversea install and debug the equipment.
3. Train the first-line operator.
After sale services
1. 24 hours online service
2. Provide the VIDEO with Install and debug the equipment
3. Provide technical exchanging
