hot sale complete automatic particle board production line/chipboard making machine with reliable quality in alibaba
- Category: >>>
- Supplier: Linyi Youming Wood Based Panel Machinery Co. Ltd.
Share on (1908235569):
Product Overview
Description
Product Description
1.wood shavings preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are transported
to the chip bin, and then feed to the knifering flaker by which the chips are turned to flakes, then
the flake stored in wet flake bin.
2. Drying and sifting section
The flakes are discharged from the wet flake bin which are conveyed to the rotary dryer.
Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing,
and transported to surface dry wood shavings bin to be stored.
3.Glue stage
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified
glue to achieve the uniform mixing and the sufficient sizing effect.

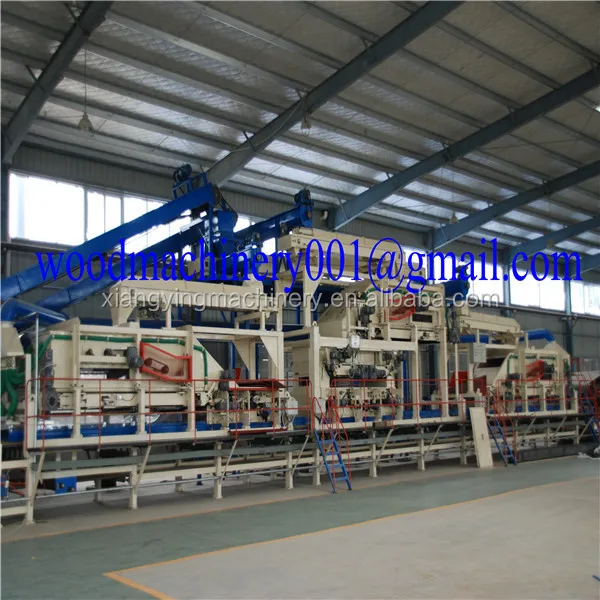

4.Paving and thermo forming section
The after sizing shavings are transported to the mechanical grading paving machines bythe belt
conveyor.and they are paved to the uniform flat slab. After pre-press, and loading conveyor,the rough
boards are sent to the installed hoistingcages,then the rough boards are pressed by the hot press
machine.
5. Post--processing section
The thermo foming boards are conveyed to the panel turnover machien to become cool,then the
boads are transported to the vertical and horizontal edge cutting machine by the cooling conveyor.
6.sanding section
No.1 Drum chipper (automatic particle board making machine)
Name | Drum chipper |
Knife-cylinder diameter(mm) | 650 |
Fly-cutter number (unit) | 2 |
Max. feed size(mm) | 240*540 |
Feed rate(m/min) | 49 |
Processing raw material max diameter size(mm) | 200*240 |
Wood chip length(mm) | 25-35 |
Production capacity(m³/h) | 8-12 |
Main motor power(kw) | 55 |
Feed roller motor power(kw) | 3*1 4*1 |
Knife-cylinder rotational speed(r) | 650 |
Dimension(L*W*H) (mm) | 2650*1950*1600 |
Quantity(t) | 4.3 |
No.2 Ring Flaker(automatic particle board making machine) Ring Flaker (automatic particle board making machine)
Name | Ring flaker |
Knife wheel nominal diameter | 600mm |
Blade number | 21unit |
Blade length | 225mm |
Knife wheel speed | 50r/m |
Vane wheel speed | 1960r/m |
Wood shavings thickness | 0.4-0.7mm |
Main motor power | 75kw |
Production capacity | 700-900kg/h |
quantity | 3500kg |
Dimension | 2800*2265*2110mm |

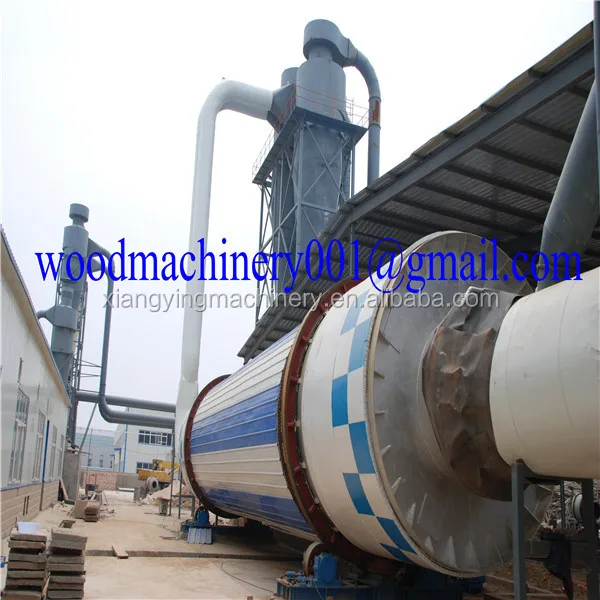

No.3 Tree-Passage Hot-air Dryer
No.4 Rectangle Screen
No.5 Sizing Process (Glue Blending)
No.6 Paving Process
No.7 Pre-press
No.8 Hot-press
No.9 Sanding Section
Company Information
Xiangying Machinery · Linyi Shandong
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, Linyi Xiangying Machinery Manufacturing Co., Ltd(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing, manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line, Plywood production line, MDF production line, Melamine veneer press,Mould door equipment etc. based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.
Choose Xiangying machinery, Create measureless value.
FAQ
1) All kinds of mold can be made by customer's drawings
2) All price are based on FOB, QINGDAO, China
3) Payment: by T/T 30% down payment, 70% upon machinery completion.
4) Delivery: After finishing all the payment
5) All the parameters above just for reference, for they are updating all the time
6) Package: Standard packing
7) Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it .
