Automatic thermoplastic roadmarking machine

Product Overview

Description

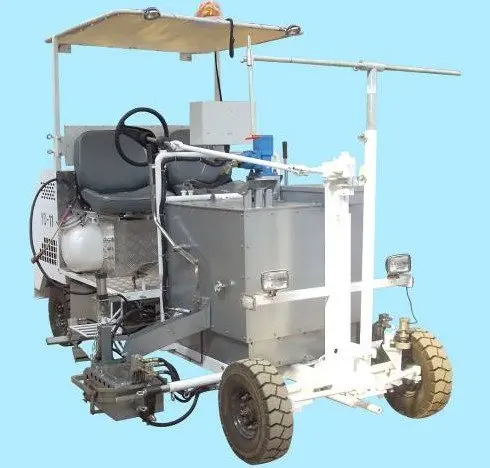

YD-11   Automatic thermoplastic roadmarking machine is a screeding type road marking machine, compact and small, flexible to operate.

Under the premise of sufficient melted material, it also has relatively high construction efficiency.

The type I is for flat line, and the type II is for flat line and convex line.



1. It is a perfect equipment for urban big or middle scale road line marking operation.

2. Its advanced hydraulic drive stepless variable speed control system can adjust and control speed accurately.

3. The optimal design of its drive can control the machine operation effectively to ensure safety under emergent circumstance.

4. Its screeding structure can make the marking line straight and beautiful

5. Its sensitive, accurate and stable computer control system can realize all operations conveniently.



Technical Data:



Model	YD-11 Automatic traffic line marking machine
Engine	22Hp Japan HONDA gasoline engine
Driving system	The original imported America SAUER variable speed transmission system with automatic brake device, which can be freely operated in forward, back off or stop
Driving speed	0-15km/h
Max climbing capability	15°
Heating mode	liquefied petroleum gas,Auto-Ignition Control System
Steering system	smooth and reliable mechanical control
Glass beads spray system	air jet
Control system	computer control system
Paint tank capacity	320kgs
Glass beads tank capacity	50kgs
Line width	100-500mm
Line thickness	1.5-2.5mm
Application	screed type
Alarming function:	equipped with alarming lamp and electro flicker warning light
Size	3100mm (length)*1250mm (width)*1650mm (height)
Weight	1100kgs (not including the gas tank, with a 150mm shoe)

Main Characteristics:



1. Engine: Japanese Honda 22HP air-cooled electrical starting single-cylinder gasoline engine.



2. Driving system: The original imported America SAUER variable speed transmission system with automatic brake device, which can be freely operated in forward, back off or stop



3. Marking mode: Equipped with hydraulic screeding marking shoe; structure board is made of imported special steel sheet with high temperature resistance (200°C), oxidation resistance and deformation resistance. It has much better stability after stamping. The plinth is the pneumatic screeding structure that is made of special alloy steel. Floor knife that contacts with the ground directly adopts imported hard tungsten steel knife-head. The precision technique ensures its better sensibility, abrasion proof and firmness. The marking has more regular raised shape, evener and straight bottom line edge, and perfect head. The standard configuration of the marking shoe is 150mm. (Option for other sizes according to the needs of customers).



4. Glass beads spraying system: 55kgs glass beads tank. Equipped with air jet single glass beads spraying gun, whose pressure, flow rate and spray width can be adjusted to ensure spraying glass beads much firmer, evener and more economical.



5. Electronic control: Set up various standard line-type control modes to realize micro-electronic intelligent control; the space between the gap lines can be adjusted freely.



6. Air compressor: 0.6 m3/min piston type air compressor. Air storage tank with adjustable pressure is equipped with automatic safety exhaust device.



7. Warning function: warning light whose flicker frequency (or burst flash) can be adjusted freely, it improves the safety of marking operation.

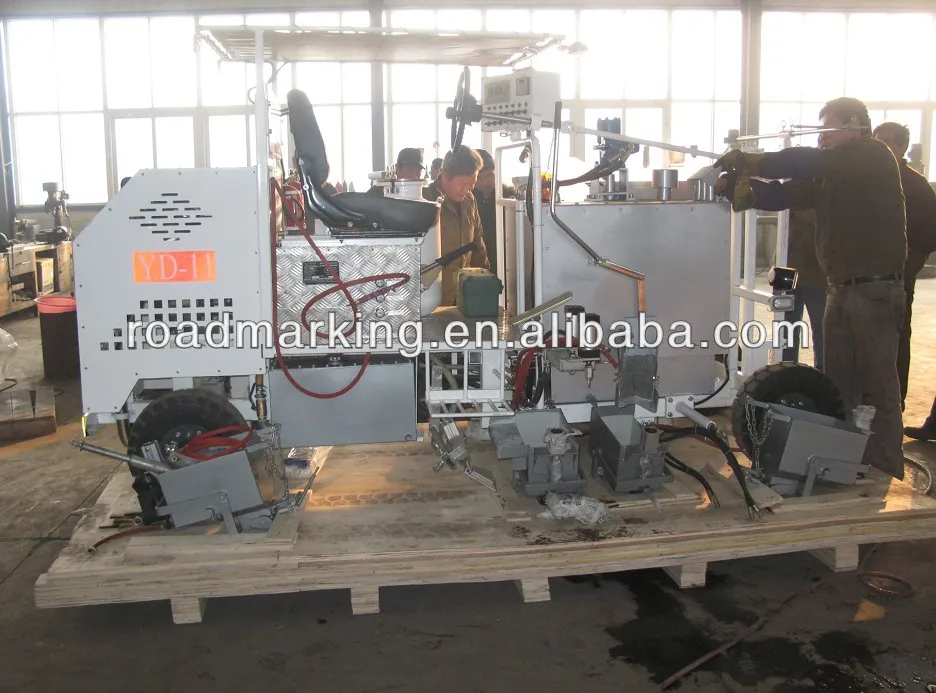

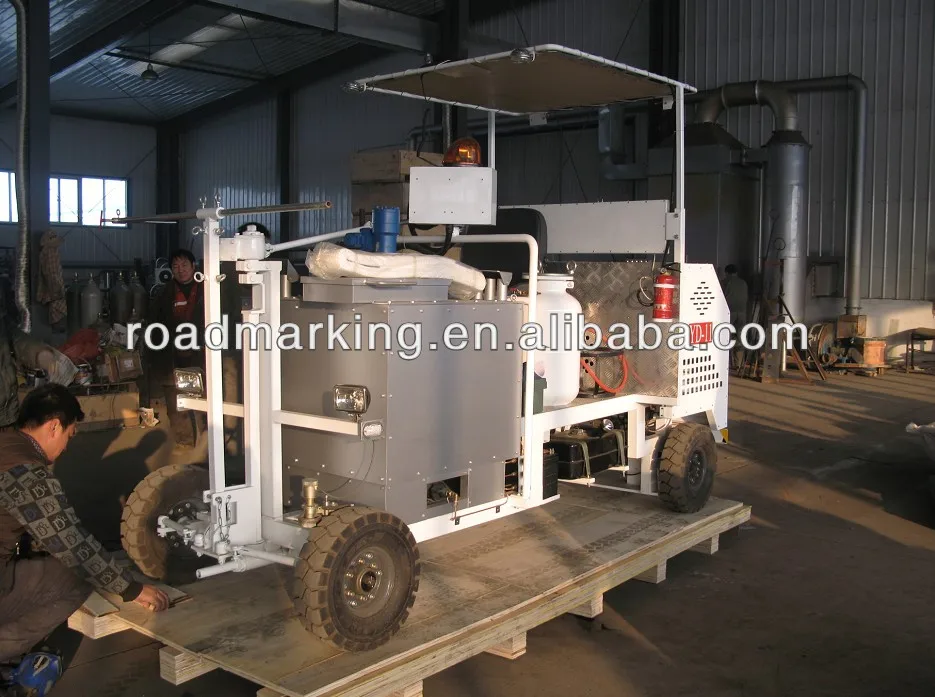

  packing in plywood case, which is free from fumigation. the package will protect the machine well in long time of sea shipment.
