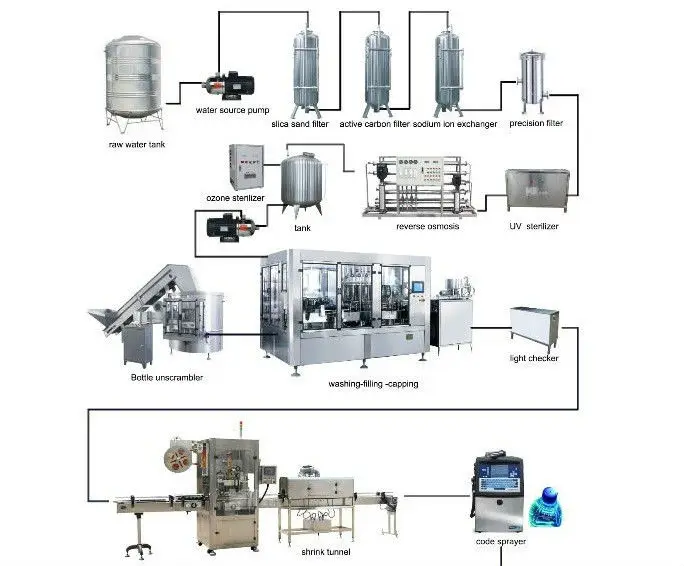

(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
(7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage maker.

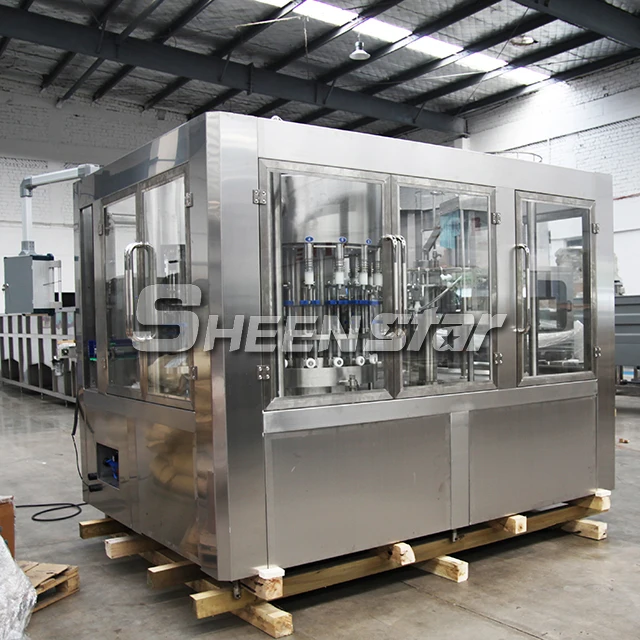

The whole

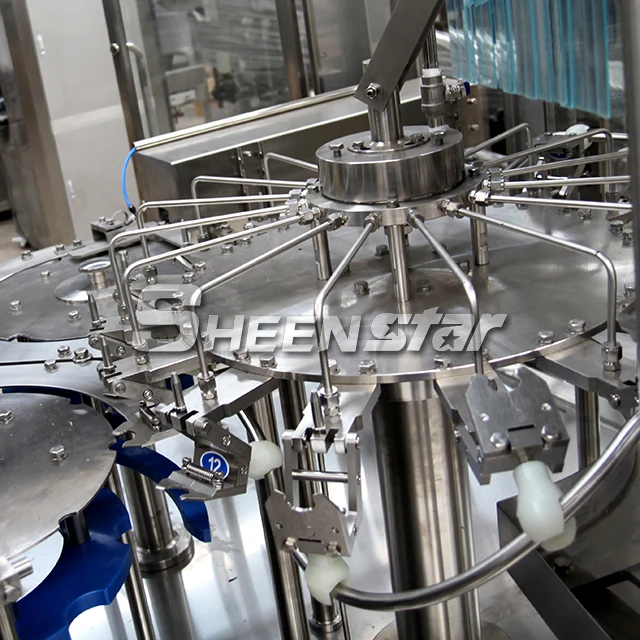

Washing part

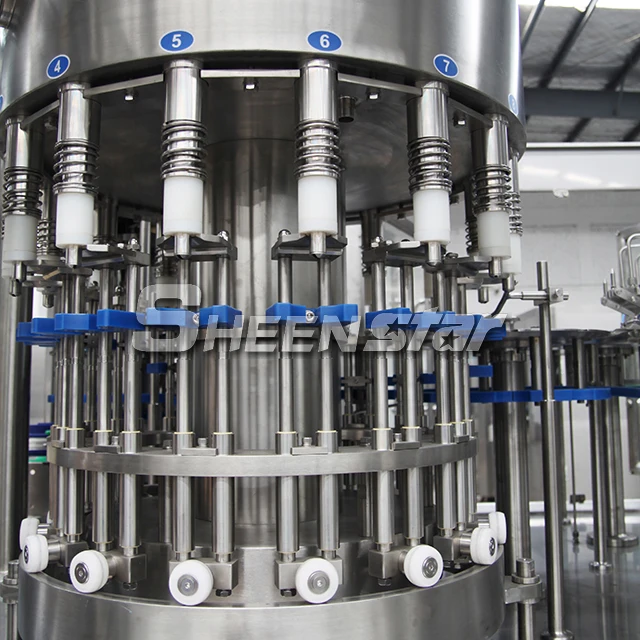

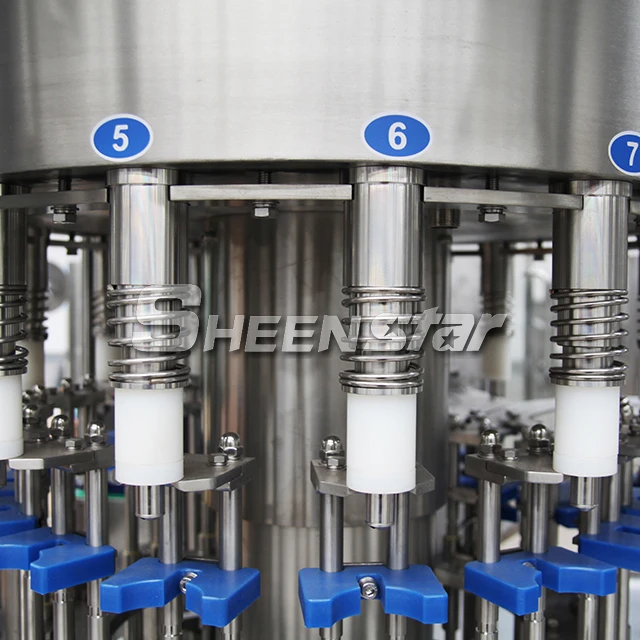

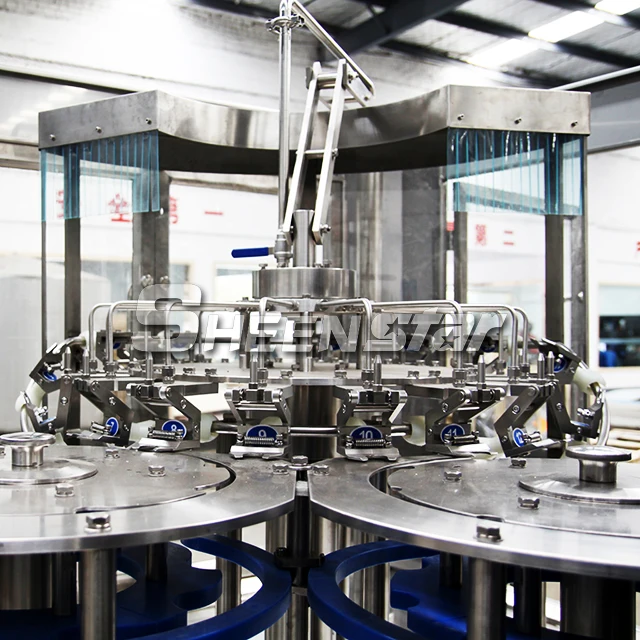

Filling part

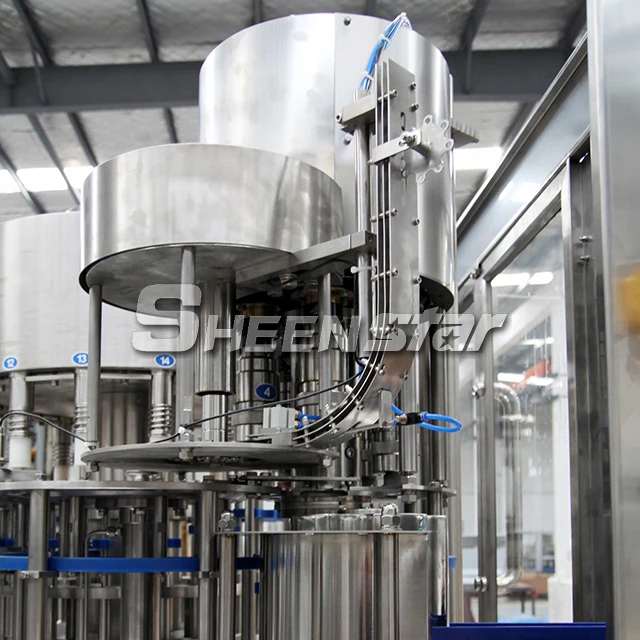

Capping part
Model
CGF12125
CGF18186
CGF24248
CGF323210
CGF404012
CGF505012
CGF606015
CGF808020
Number of washing, filling and capping heads
12-12-5
18-18-6
24-24-8
32-32-10
40-40-12
50-50-12
60-60-15
80-80-20
Production capacity(600ml) (B/H)
2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
25000-30000
35000-40000
suitable bottle specification(mm)
φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm 2 )
2-3
Motor power(kw)
Main motor 2.2kw
Main motor 2.2kw
Main motor 3kw
Main motor 5.5kw
Main motor 7.5kw
Main motor 11kw
Main motor 15kw
Main motor 19kw
Overall dimensions (mm)
2400×1650 ×2500
2600×1920 ×2550
3100×2300 ×2800
3800×2800 ×2900
4600×2800 ×2900
5450×3300 ×2900
6500×4500 ×2900
76800×66400 ×2850
Weight (kg)
2500
3500
4500
6500
8500
9800
12800
15000
Company Information
Zhangjiagang sheenstar Technology Co., Ltd. has been in beverage packing machinery industry for many years.The company has got the ISO9001,CE,SGS certification.
sheenstar provides complete beverage production solutions, such as bottled drinking water,5 gallon barreled water, fruit juice, gas drinks, soy milk, wine and other complete production lines, including of water treatment, beverage pre-treatment system, injection molding machine, Filling machine, labeling machine, shrink packing machine, and other machines which are suitable for plastic bottles, glass bottles,cans etc.
sheenstar provides suitable machine according to customer's requirement.And has rich experience in Southeast Asia, the Middle East, Africa, Europe, America and Oceania.
Welcome to SHEENSTAR,Leyu town,Zhangjiagang City, China
Let us share development and success.
working
Packaging & Shipping
Advantages
Certifications
FAQ
Q:Are you a factory or a trading company?
A: We are a manufacture,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.
Q:Does your company and products Through the authentication?
A: Yes,we have through famouse certification,ISO,CE,SGS,BV
Q: How long I can get the machine?
A: Accoring to the machine,usually less than 40 days
Q: How can i give you the money?
A: Up to you,T/T,L/C,western union and others will be ok
Q: How can i use the machine
A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide
