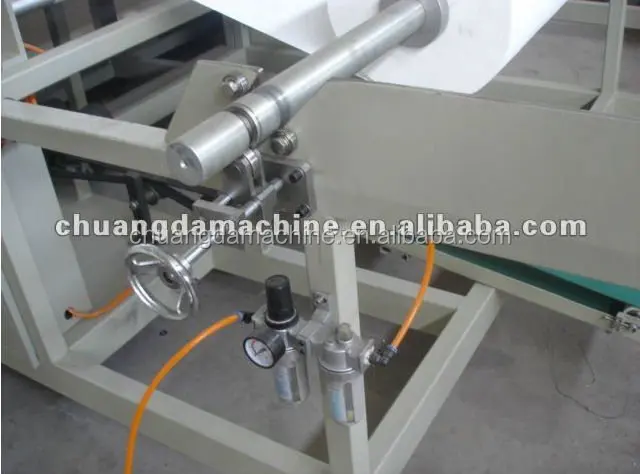

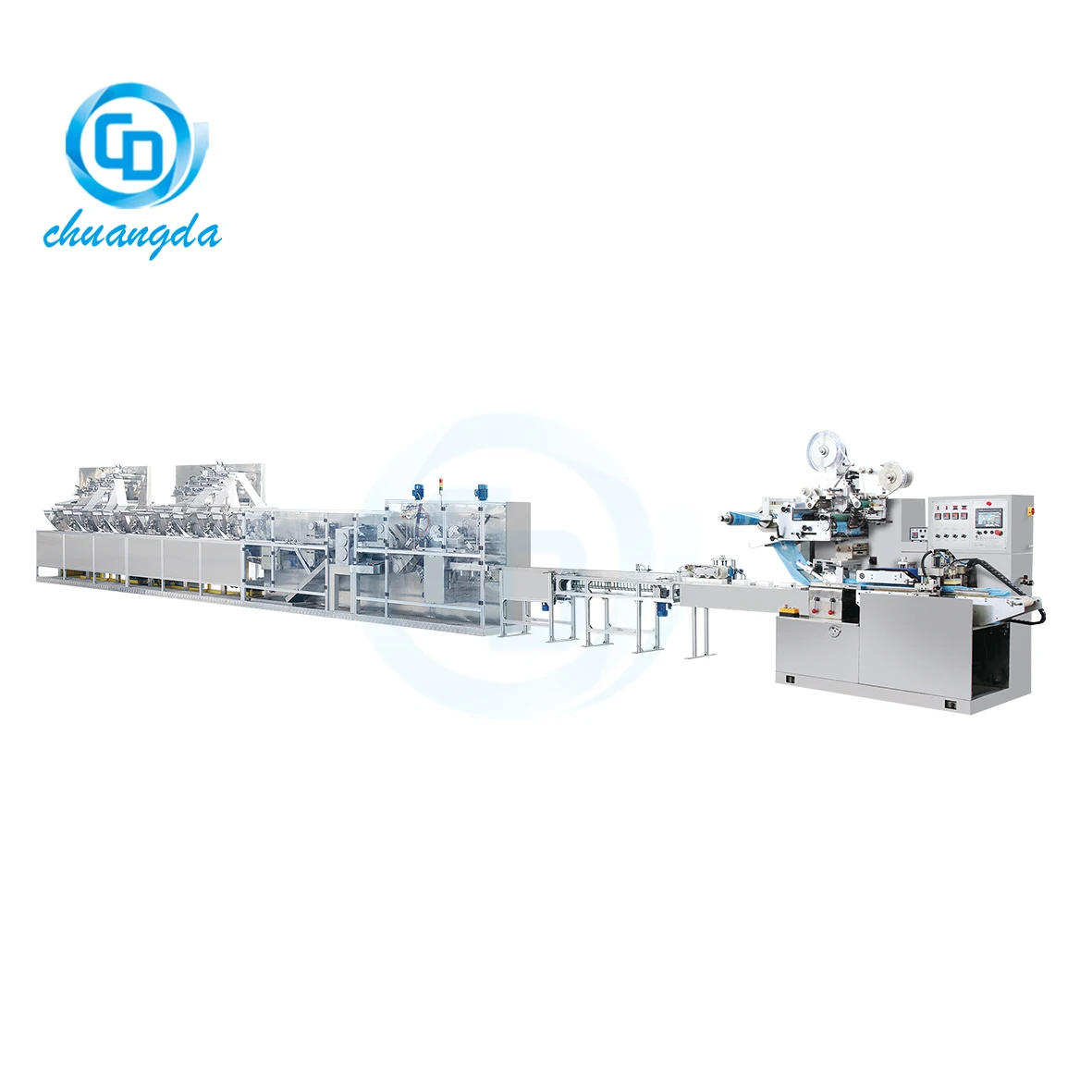

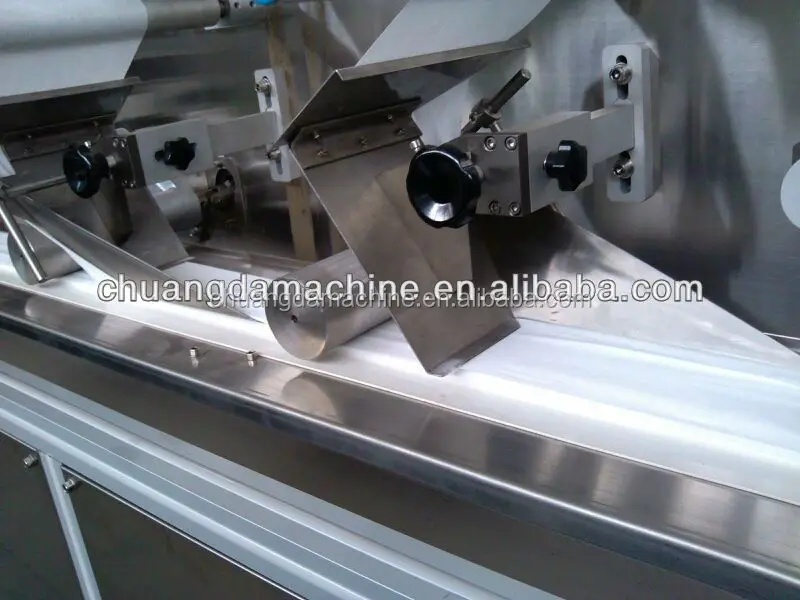

CD 2000 Full auto wet wipe machine, for 30 120pcs per bag ,baby wipes machine
- Category: >>>
- Supplier: Quanzhou Chuangda Machinery Manufacture Co. Ltd.
Share on (1909616939):
Product Overview
Description

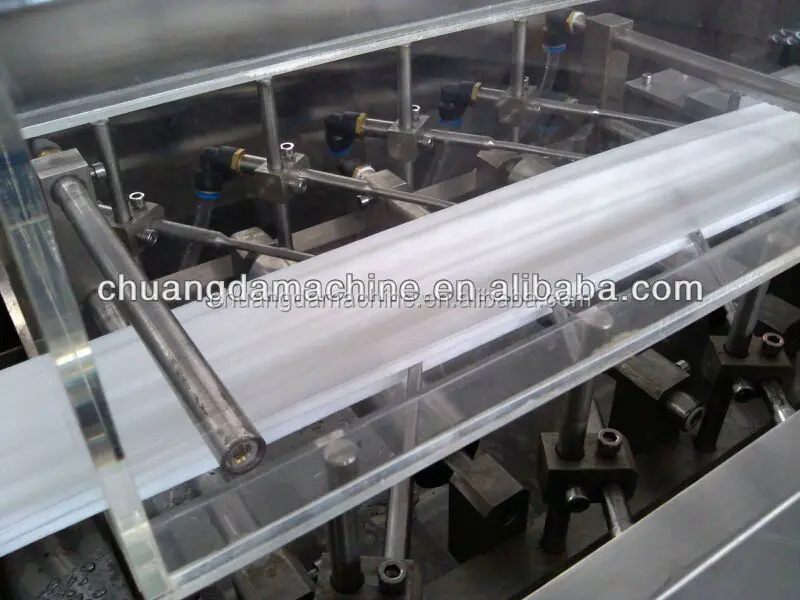

The Flowing chart of CD-2000H full-auto wet tissue machine is: Raw material—splitting —folding— moisture—cutting—pile counting— transport —packing - finished product. All processes (from raw material to finished production) are finished on the machine. It is sanitary during the producing processes, the speed is high and the function is very steady!
wet wipe machine Main technical parameter | |
Electrical source | 380V 60Hz / 3 phase |
Total Power | 25 KW |
Suitable material | Spunlace non-woven fabric |
Specification of material | 40-100g/m2 |
One Piece size(unfolded) | (150-220mm)×(180-220mm)(L×W) |
One Piece size(folded) | (150-220mm)×(90-110mm)(L×W) |
Final product size(mm) | (200-350)×(90-120)×(30-80)(L×W×H) |
Folding speed | 2600-2800pcs/min |
Packing speed | 40-50 packs/min |

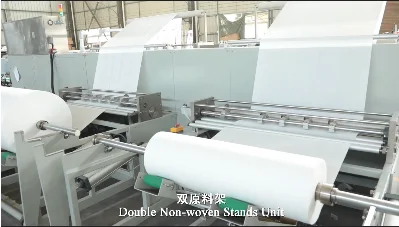

Parent roll sizewidth--- Diameter--- | 1000-1200mm 800-1200mm |

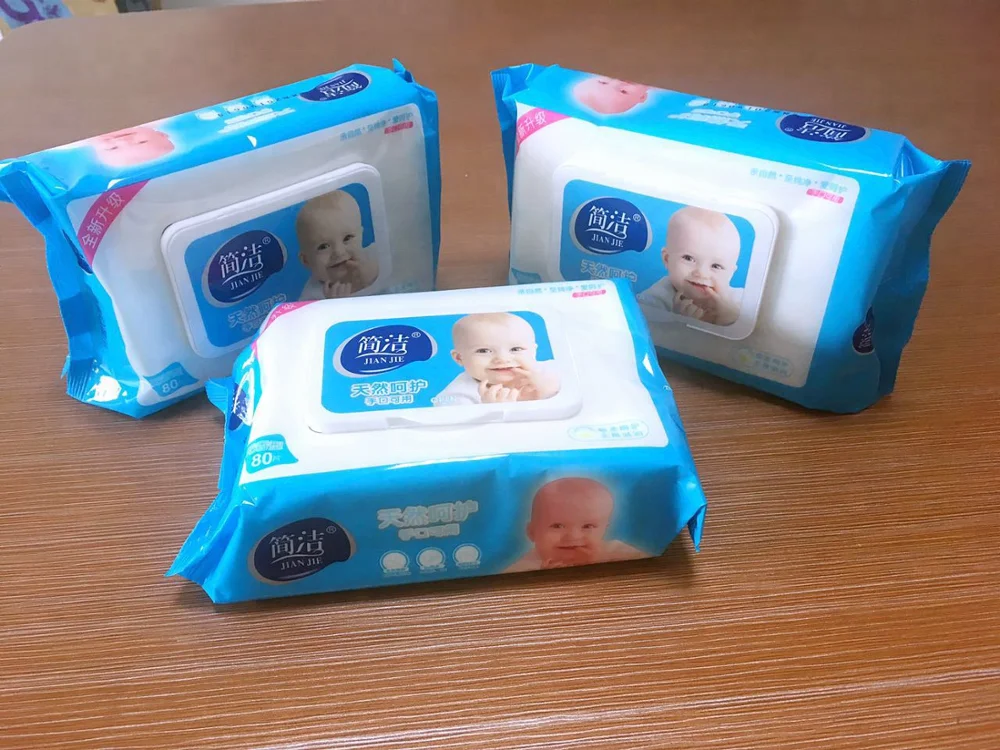

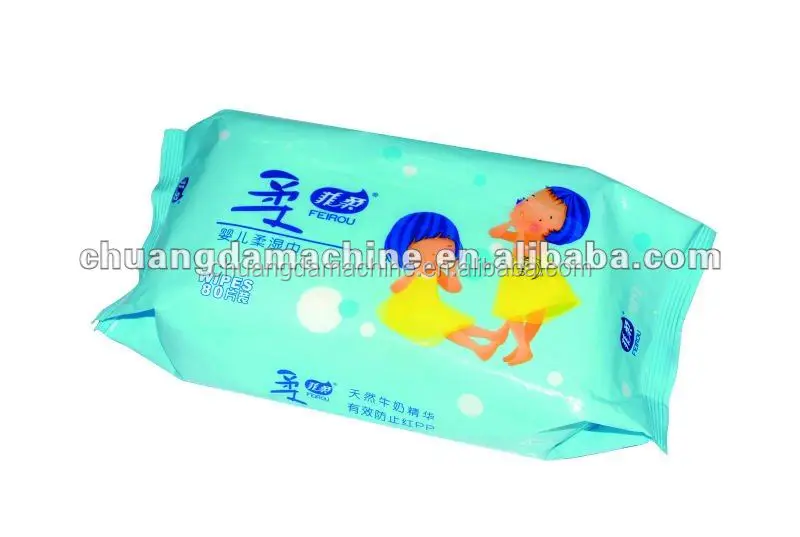

Packing specification | suitable for 40-100pcs per package packing. |

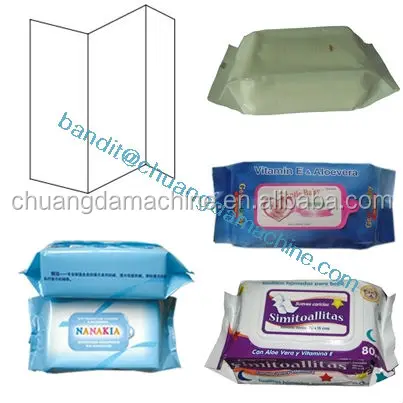

Folding way | "Z"/"W" /"C" type, ---pop up or non pop up |
Counting way | auto-counting,quantity changeable pile system |
Humidification agitating system | double agitating |
Control system | PLC control system ,color touching screen |
Machine size(mm) | 18600×3150×2100(L×W×H) |
Water tank size(mm) | 2000×1100×1900 |
Net weight of machine | 9700KG |
Option: 1. Full auto transportation part, according to customer's requirement can have 90 or 180 | |
Adjustable bag-making equipment,with inserting corner device.. electrical eye tracks automatically, date printing device.. | |
