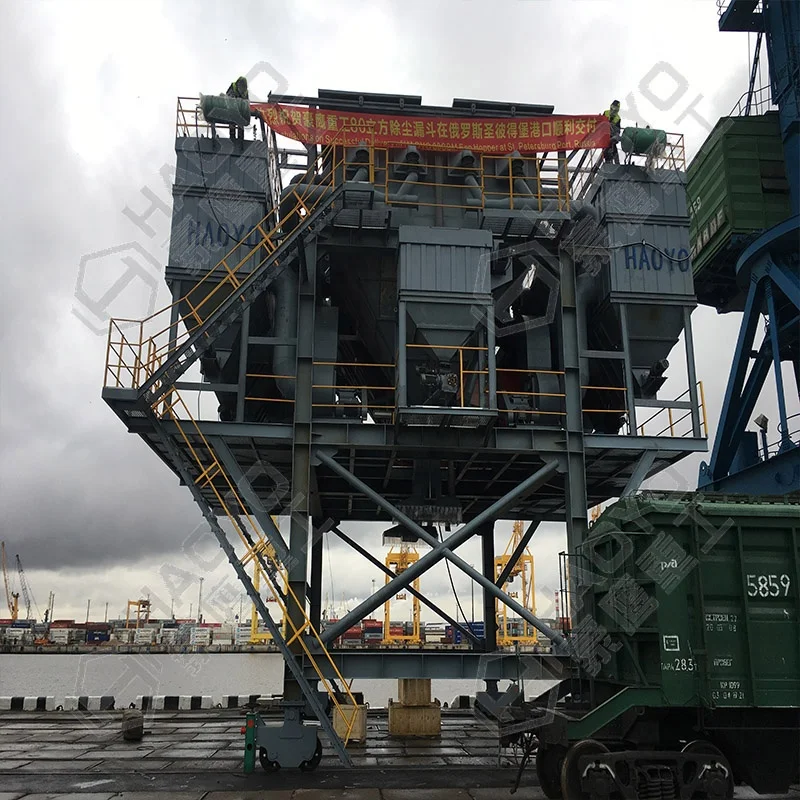

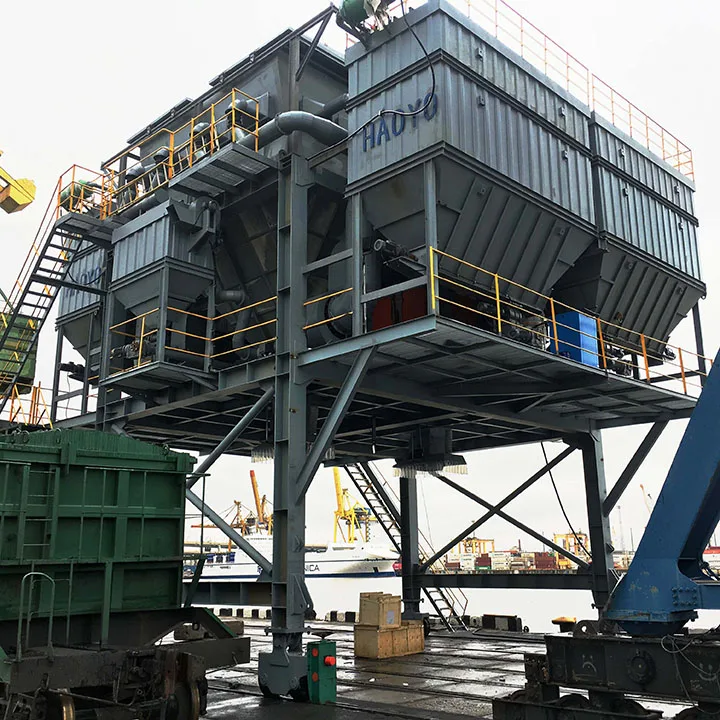

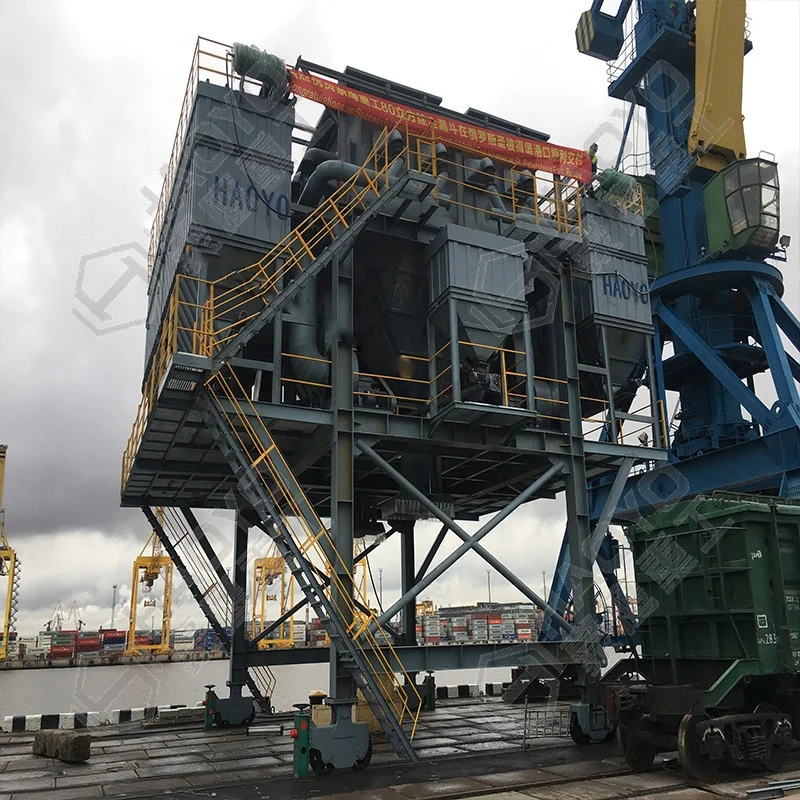

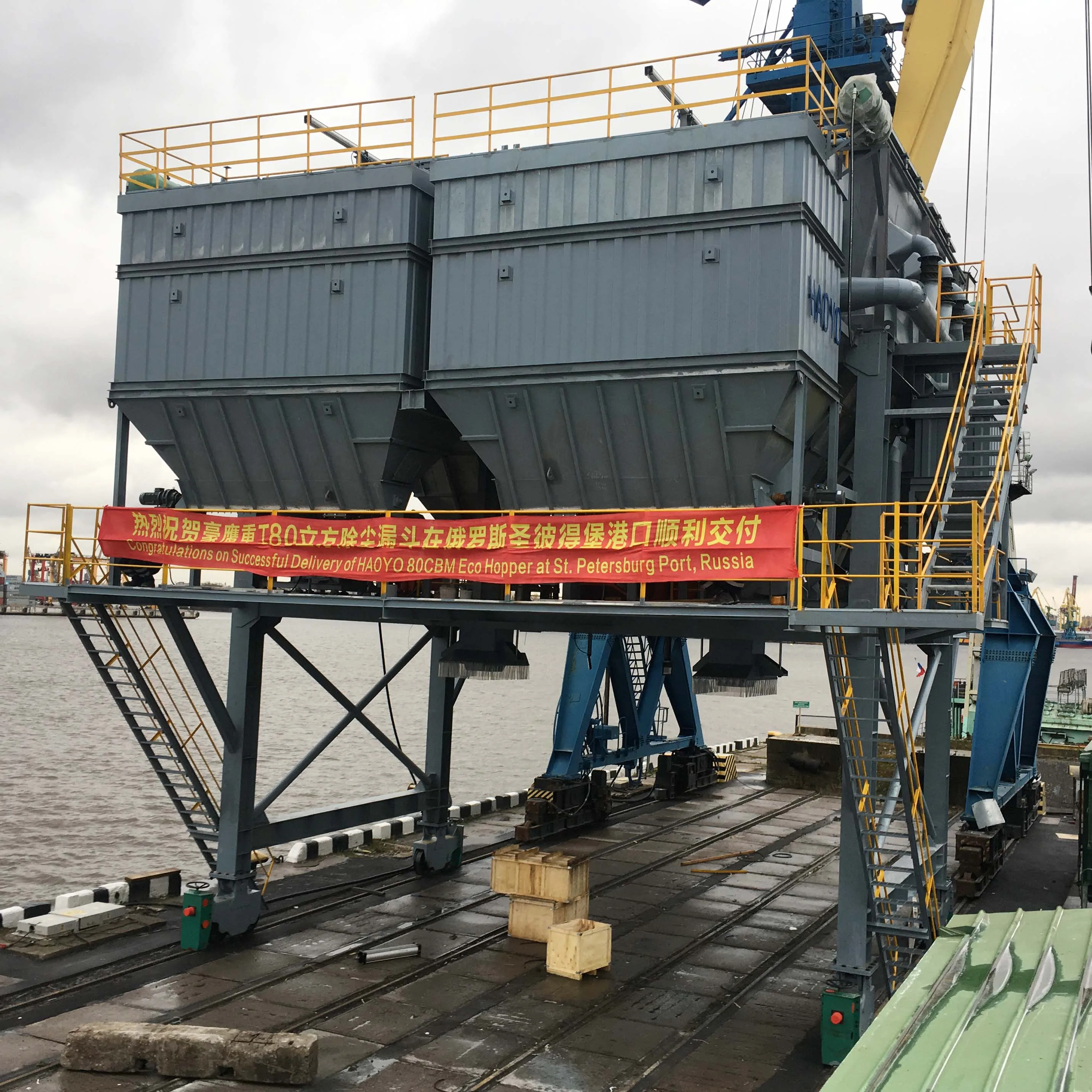

HAOYO Industrial Mobile Dustproof Port Hopper for bulk cargo
1.Extensive dust control features (Flex flaps, dust seals, dust control filters, air compressor)
2.Multiple discharge options: to conveyor, to truck, via telescopic chute, through ancillary Material Feeder 3.Multiple travel options: rail, static or pneumatic tyre mounted and powered and towable travel 4.Increased safety features (level detectors, strain gauges, structurally designed to withstand overload to top of skirt) 5.Robust design (top shroud, grab impact grill) 6.Minimise escape of fugitive dust 7.Fit to any onwards processing or logistics requirements 8.Can be used on non-dedicated quays and moved off the area when not in use 9.Flexible positioning to suit unloading vessel 10.Ability to work with a wide variety of materials with differing characteristics
HAOYO Eco-hoppers are designed to suit the characteristics and flow properties of virtually any bulk material, including coal,iron ore, gypsum, copper concentrates, soda ash and wood chips, etc.
It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which greatly improves work efficiency. The most prominent feature of the HAOYO Eco harbour hopper is environmental protection and safety. Besides that, saftey is also a very important factor. In addition to the environmental protection character, HAOYO dust proof hopper also considers more about the eco operation.
Detailed Images
No.
Model
Volume
(m3)
Loading Weight (t)
Hopper weight(t)
Max. Total Weight(t)
Unloading Capacity(t/h)
Note
001
HTMTD40
40
60
16
80
300-600
1 outlets
002
HTMTD50
50
80
19
100
400-800
003
HTMTD60
60
100
21
125
500-1000
004
HTMTD70
70
120
25
145
600-1250
005
HTMTD80
80
140
27
170
800-1600
006
HTMTD100
100
160
30
190
1000-2000
007
HTMTD60-2
60
200
33
235
1250-2500
008
HTMTD70-2
70
120
27
150
1250-2500
2 outlets
009
HTMTD80-2
80
140
30
170
1000-2000
010
HTMTD100-2
100
160
33
195
1600-3200

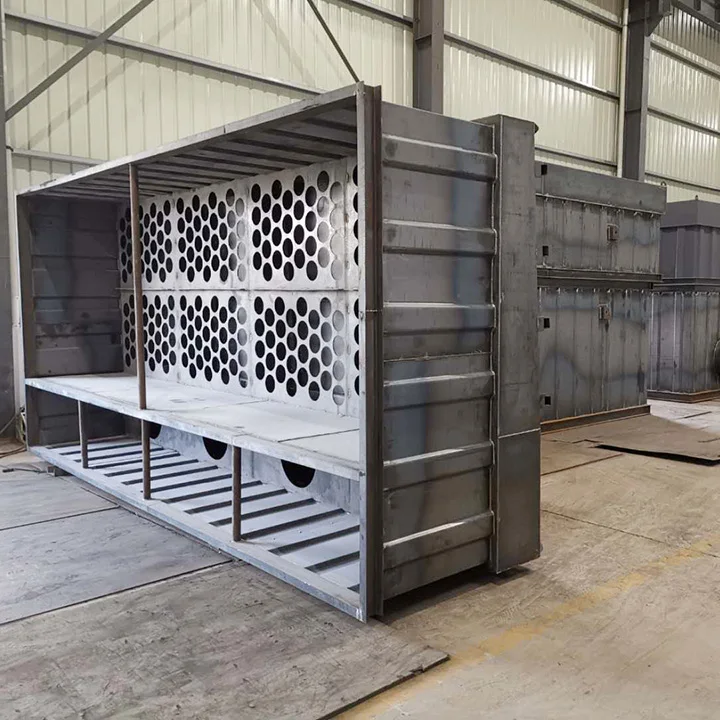

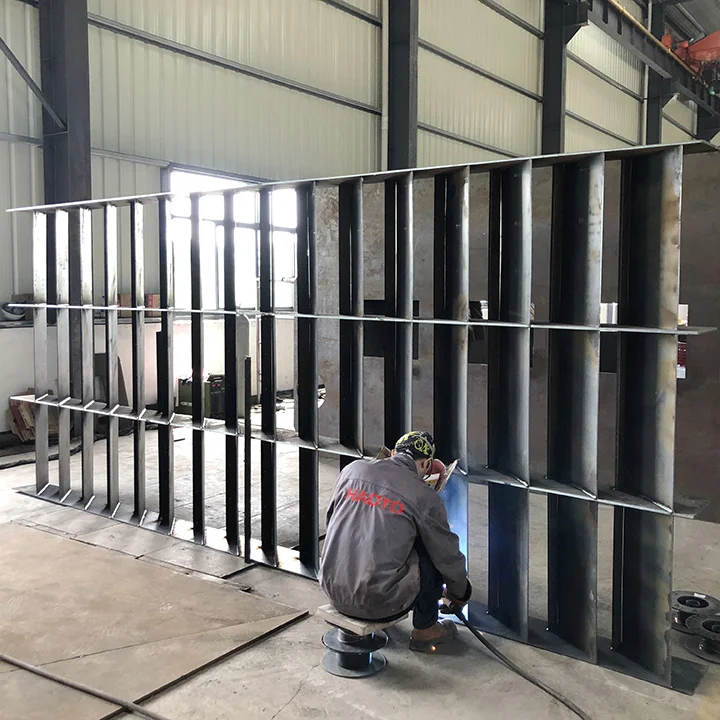

Manufacturing Technique
Load Cell

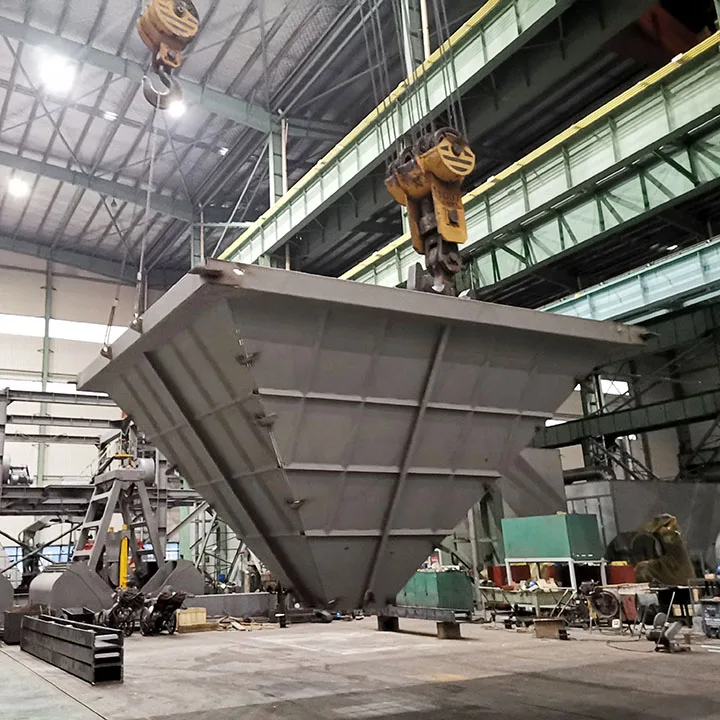

Hopper Body
Rain Cover
Fan
Steel wheel
Grille board
Ladder
Gas Tank
Telescopic Bucket
Dust Collection Pipe
Dust Collection System
Dust box

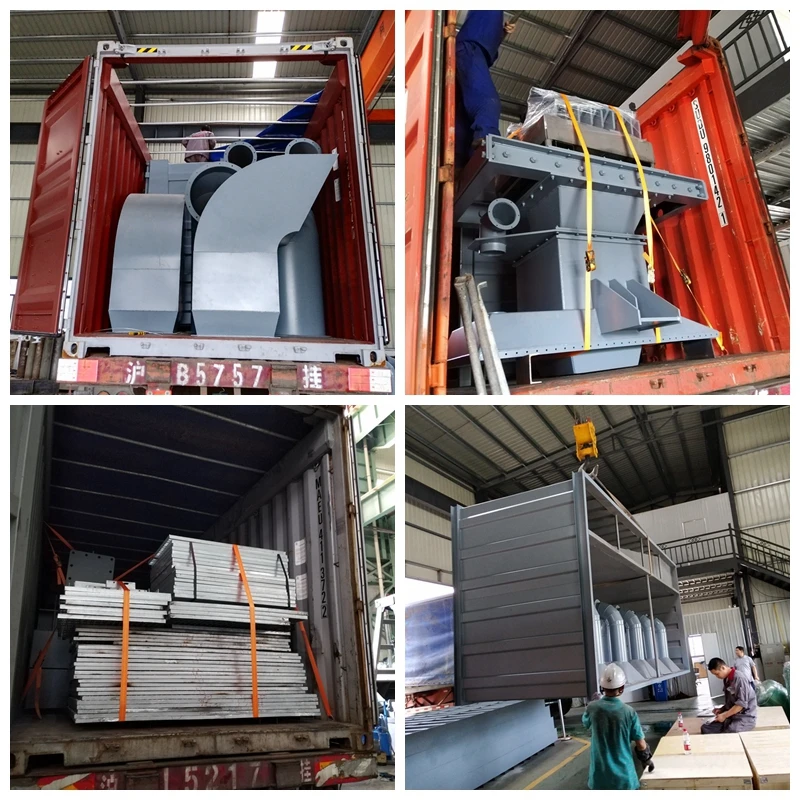

Packing & Delivery
Note: Whole eco hopper deliver or take parts deliver depends on customer
Our Company
Certifications
HAOYO are committed to offer the highest standard continuously improving equipment. We are particular in every details. All Products can be tested and certified by the classification societies when required. Every welder is with CCS, ABS and other main institutions’ certification.
FAQ
Please provide following necessary information, so we can quote right Model.
1.What kind of Bulk Hopper you need. Simple one or Dust proof one.
2. What's the material you usually handle and The material density, The fluidity of the material.
3. The hopper capacity you need, and the grab capacity, the grab open size.
4. You want fixed one or move one, if move, moved by hopper itself or by other machine
5. Load on truck or conveyor belt, and the height of truck or conveyor belt
6. What's the dust removal efficiency(%) and the handling efficiency(__T/__h) you want?
