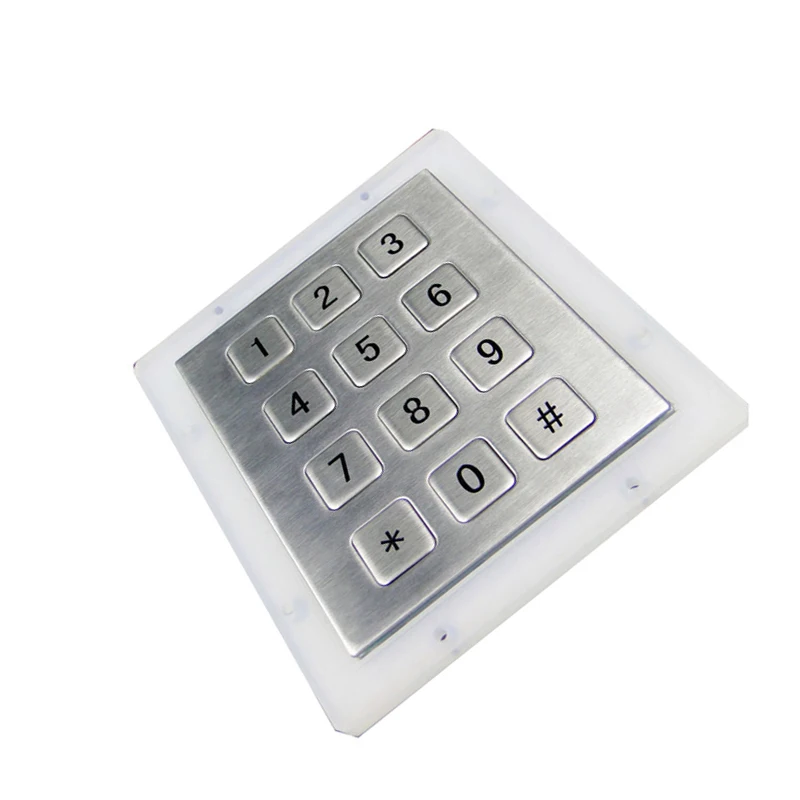

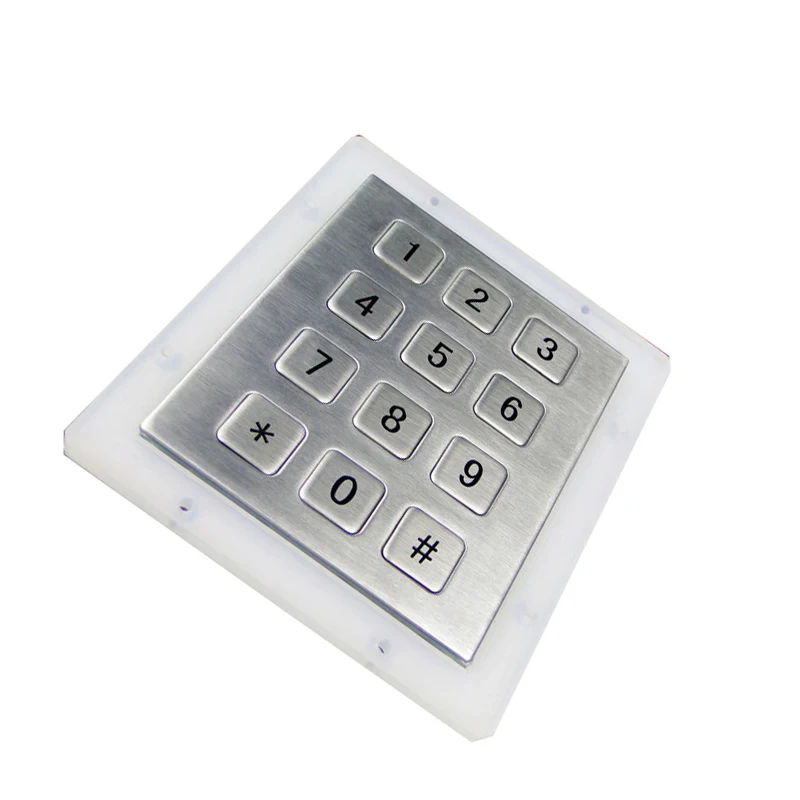

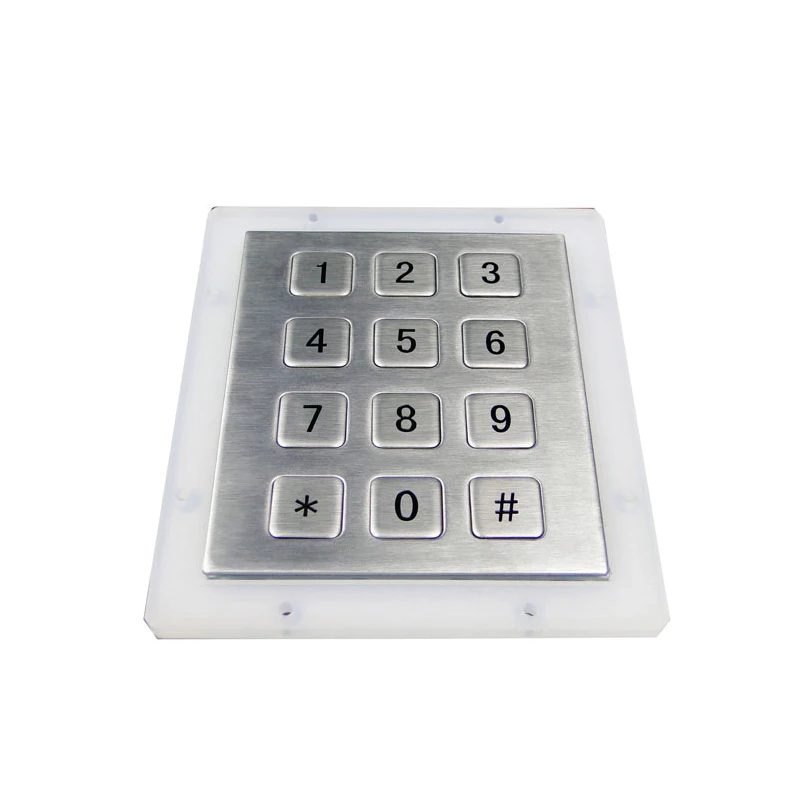

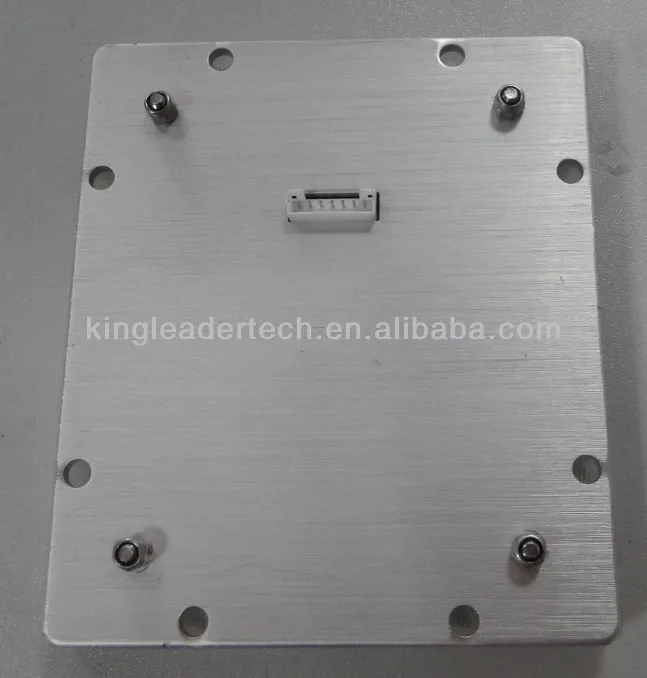

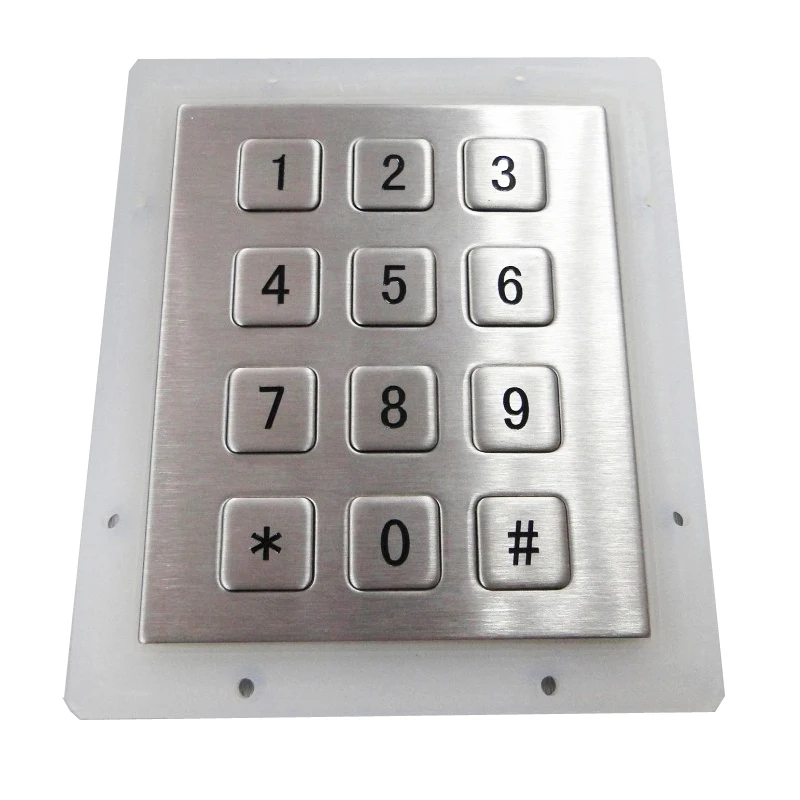

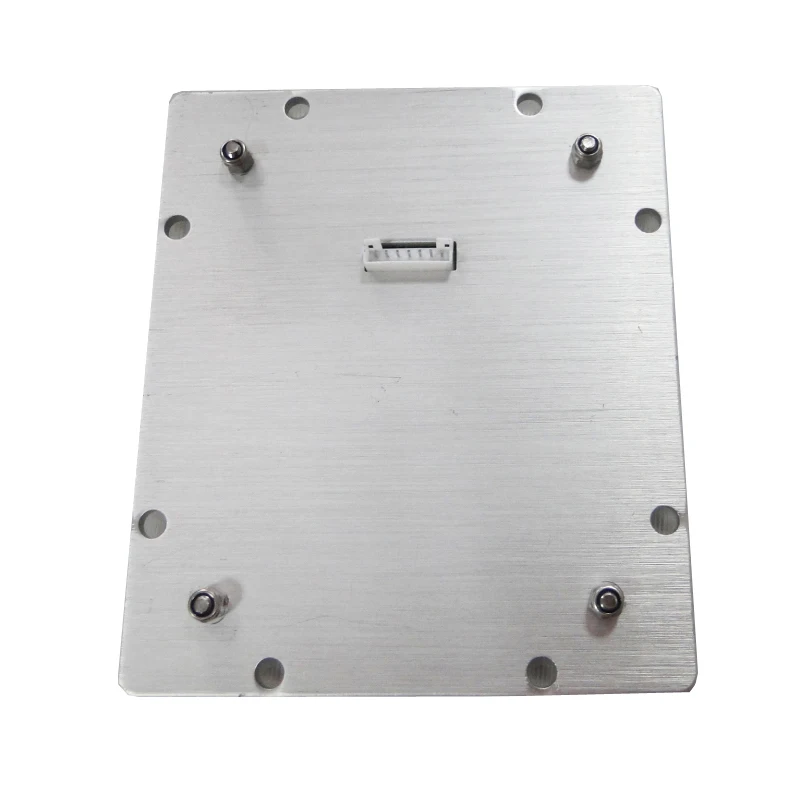

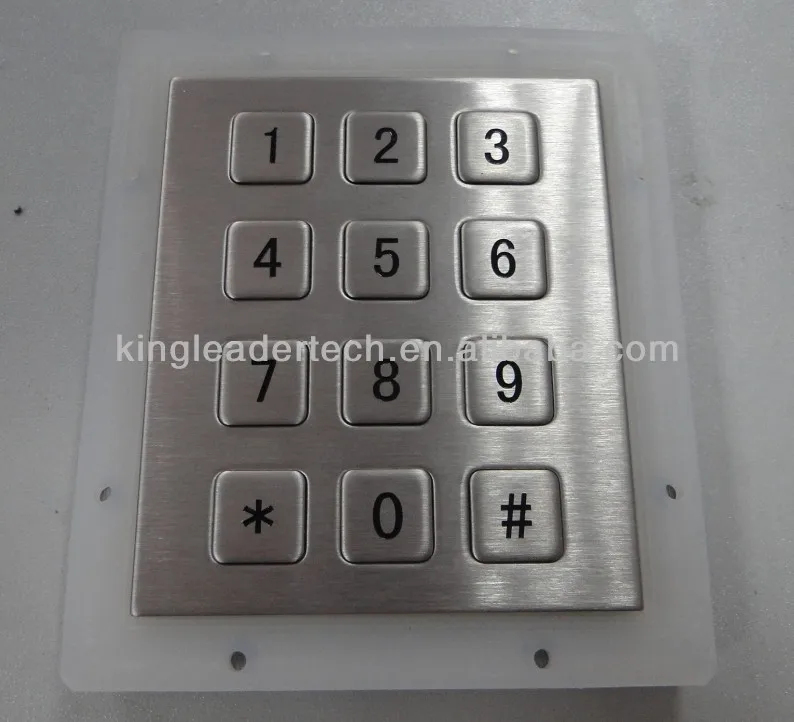

Panel mount numeric rugged 12 key keypad

Product Overview

Description

Panel mount numeric rugged 12 key keypad





PN: MKP92-12F







Technical Specification
Material
Front panel & Keys	304 stainless steel
Number of Keys	12
Matrix	3 x 4
Function	Non backlight
Electrical Data
Interface	USB or PS/2 or RS232(With electronic controller board) 7PIN connector (Without electronic controller board)
Certification	CE,FCC
Environmental Characteristics
Operating temperature	-20º C to + 60º C
Key travel	0.45mm
Lifetime (cycles)	Min 5, 000, 000 actuations
Sealing protection	IP65/NEMA4X from the front
Layout	Customizable available
Dimension	92.00 x 76.50 mm (W x D) (front panel)
Application	ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.







Company Information:







KINGLEADER is an ISO9001:2008 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.







Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.







Why us?







1,ISO9001:2008 certification



2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS



3,Reasonable price and fast response



4,Over 10 years of experience in rugged input device and touchscreen kiosk



5,OEM and ODM capability



6,Flexibility in customization and size of order



7,Trusted suppliers of many world-class famous brands in the industry







More Photos:
