Medical oxygen concentrator For Hospital filling oxygen cylinder

Product Overview

Description

Medical oxygen concentrator For  Hospital filling oxygen cylinder

Medical Oxygen is the most widely used medical gas in modern hospitals, it is necessary in medical servicing.

Traditionally, the Medical Oxygen is supplied by Oxygen Cylinders (Directly, or by Medical Oxygen Manifold Systems). Until now, Oxygen Cylinders are still the most widely used medical oxygen source equipments in hospitals.

However, for some big hospitals, they may need much Medical Oxygen everyday. In this situation, to adopt a set of Medical Oxygen Plant system is an economical project.



1, Project Brief

Medical Oxygen Plant System (PSA Oxygen Generator) is a special customized oxygen plant system for Medical Gas Pipeline System as Medical Oxygen Source equipments for hospitals;

According customer's requesting, the oxygen generating capacity of the system shall be 3~200m³/h, oxygen purity as 93~96%, for medical using, and a filling system to fill oxygen into oxygen cylinders is optional equipments;



2, Technical Index

Compressed Air Pressure	0.70MPa (7Bar)
Oxygen Yield	3~200m3/h
Oxygen Purity	93%~96%
Outlet Pressure	0.30MPa (Oxygen Generator) / 15MPa (Filling Manifold)
Dew Point	≤-40°C
Electrical Power	~380V/3Ph/50Hz or Customized



3, Working Principle

(1) Air Compressor: To supply air as the material for PSA. Also, it pressurizes the air to 7Bar pressure;

(2) Compressed Air Purification System;

(3) The processed compressed air comes in the absorbing tanks. In tanks, the nitrogen is absorpted by Molecular Sieve, and the oxygen is preserved. In this system, there are 2pcs of absorbing tanks. One is used for absorbing nitrogen, another is used for re-generating. These 2pcs of absorbing tanks are controlled by PLC automatically to make them work alternately.



Medical Oxygen Generator System

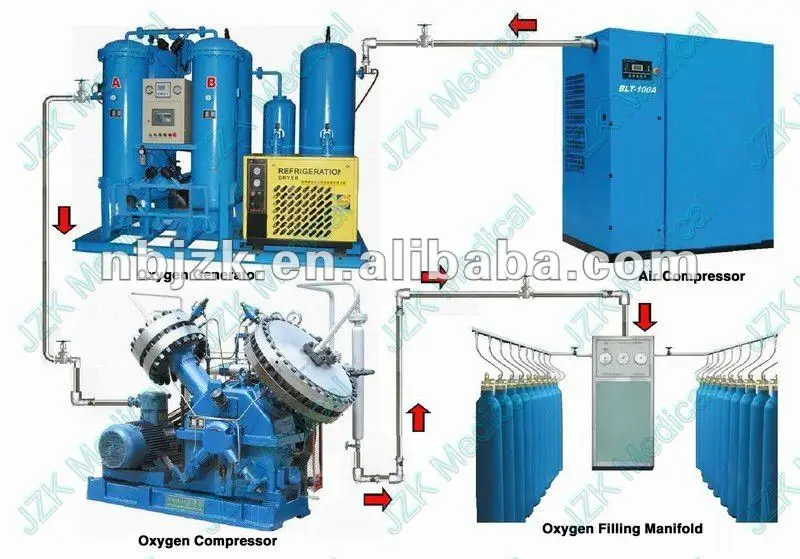

Medical Oxygen Generating and Filling System Working Principle

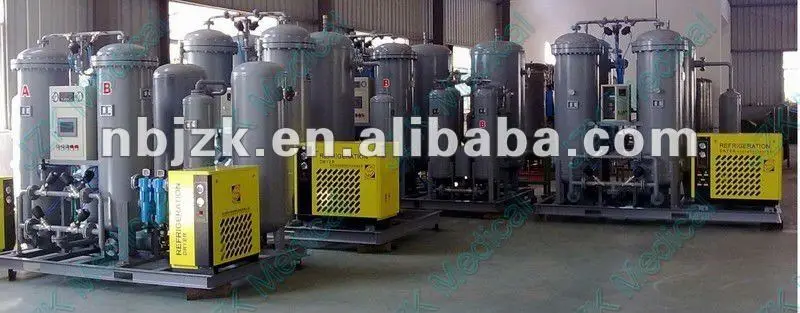

Finished Products in Warehouse

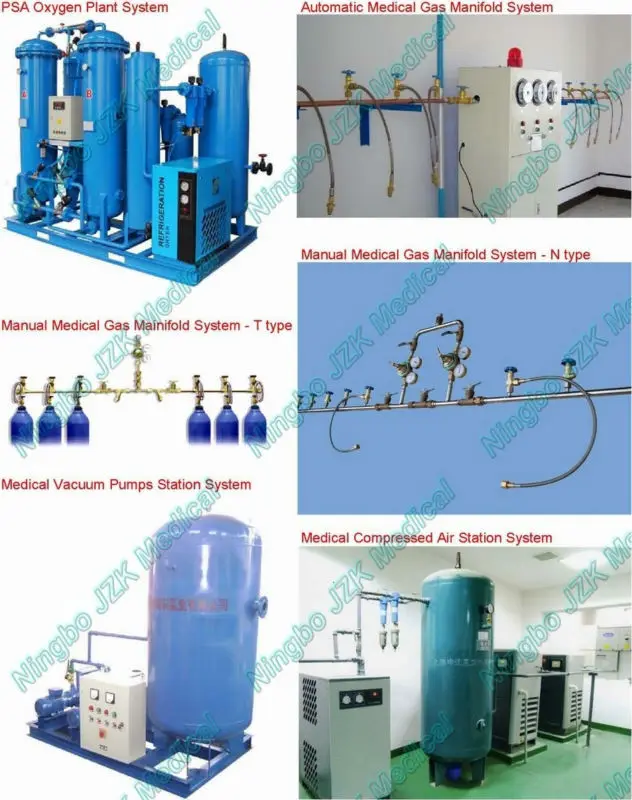

Medical Gases Source Equipment

1. PSA Oxygen Plant System

2. Automatic Oxygen Mainfold System

3. Manual Oxygen Mainfold System

4. Medical Vacuum Pupms Station System

5. Automatic Nitrous Oxide Manifold System

6. Manual Nitrous Oxide Manifold System

7, Medical Compressed Air Station System

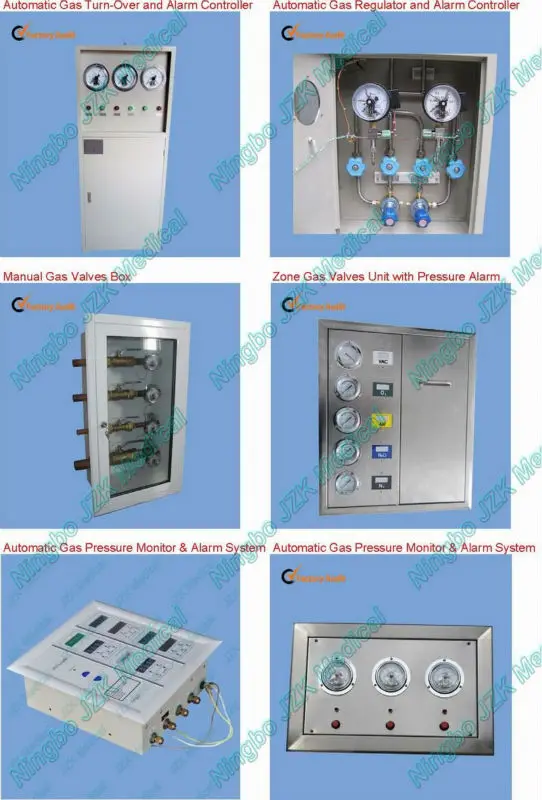

Medical Gases Controlling Equipment

1. Medical Gases Valves Box

2. Medical Gases Alarm System

3, Medical Gases Pressure Monitor System;

4, Medical Gases Pressure Regulator System;

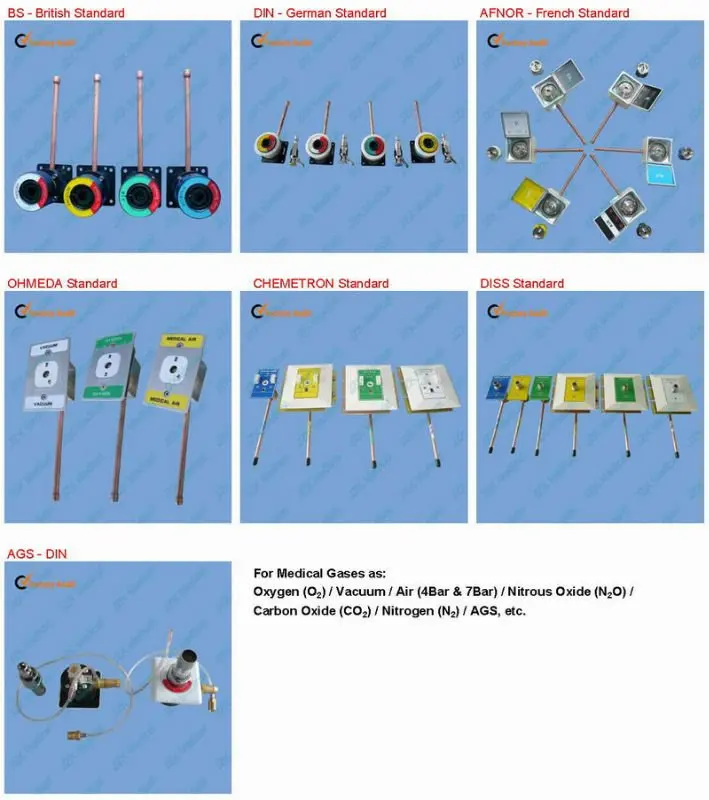

Medical Gases Terminal Eqipment

1, Medical Gas Outlets: BS, DIN, AFNOR, JIP, OHMEDA, CHEMETRON, DISS, etc.

2, Ceiling Medical Gas Pendant

3, Bed Head Unit

4, Oxygen Flowmeter with/without Humidifier

5, Vacuum Regulator with/without Suction Bottle

Why Choose Our Products?



 I. Original Manufacturer: Most products are manufactured by our own producing base. This makes us keep the offer price competitive, and control producing strictly;



  II. Design & Customization Capability: With the experience technology team, we give design and customization service for customers hospital Medical Gas Pipeline System and Medical Clean Rooms System;



  III. Total Solution: We supply whole series of medical equipment for Medical Gas Pipeline System and Medical Clean Rooms System, to help customers to reduce time and total cost; Also, to avoid the compatible mistakes from different suppliers;



 IV. Professional Hospital Solution: We focus on hospital solution for Medical Gas Pipeline System and Medical Clean Rooms System since 2004; This help us to follow the latest technology and to know users demanding well;



 V. Quality Management: The factory has founded strict quality management system, and has got ISO9001:2008, ISO13485:2003 certificates;



 VI. Exporting Service: Professional exporting team, with several years experience, our products have been exported to more than 40 countries. We know different country customers' special requests for products, package, document, payments, certificates etc. and we work with together with our partners well.
