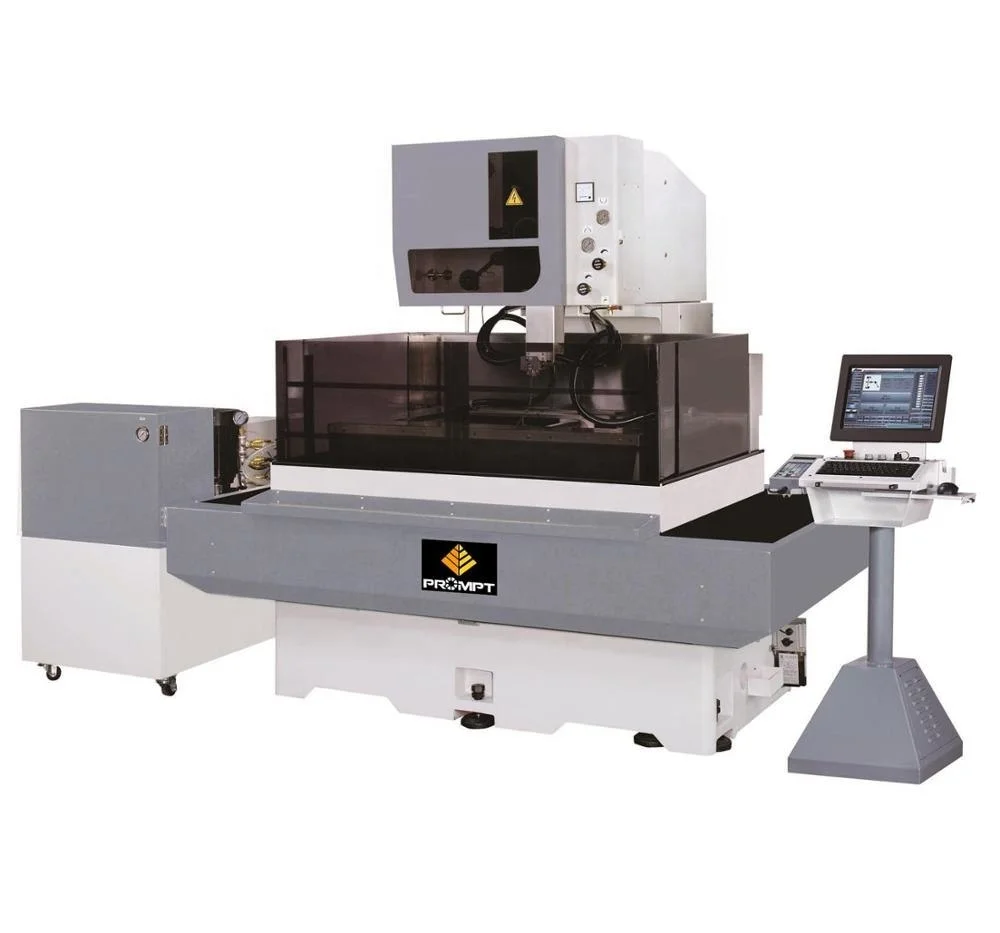

Taiwan CNC Brass Wire Metal Cutting EDM For Sale
- Category: >>>
- Supplier: PROMPT INTEGRATED TECHNOLOGY LTD.
Share on (1910362386):
Product Overview
Description
Product Description
Wire Cut EDM – Flushing Type
Features:
1. Compensation for circular, corner and consumption of wires
2. G code function
3. Five type corner auxiliary wire function
4. Self-developed PCD micro wire professional Electric Circuit
5. Functional U, V, Z axis & High rigidity spindle
6. Wire-receiving system
7. High accurate linear guide way, servo & transmission system
8. Auto. wire-threading system (A.W.T)
9. Use friendly interface
Specifications:
|
Model |
PW-900F |
|
Max. Workpiece Size |
1380*760*295 mm |
|
Work Table Size |
1120*730 mm |
|
Max. Workpiece Weight |
1300 kgs |
|
Drive & Servo |
5 axes AC Servo |
|
Simulations Axis |
X/Y/U/V (4 axes) |
|
X/Y Axis Travel |
900 / 500 mm |
|
Z Axis Travel |
300 mm |
|
U/V Axis Travel |
100 / 100 mm |
|
Wire Diameter Range |
Ø0.15 - 0.3 mm |
|
Max. Taper Angle (°) Workpiece Thickness (mm) |
±22.5 (100 mm) |
|
Max. Axes Load |
10 kgs |
|
Conductivity |
Automatic |
|
Water Tank Capacity |
360 L |
|
Net Weight |
5200 kgs |
|
Dimension (W*D*H) |
3600*2900*2300 mm |
Standard Accessories:
|
Automatic vertical alignment jig |
1 set |
|
Power feed contact |
2 pcs |
|
Filter |
2 pcs |
|
Clamping tool |
1 set |
|
Wire guide (Ø0.25mm) |
1 set |
|
Brass wire (Ø0.25mm) |
1 set |
|
Ion exchange resin (5L) |
1 pc |
|
Tool box |
1 set |
Optional Accessories:
|
Wire guide (Ø0.1 – 0.3mm) *1 set |
|
CAD/CAM software |
|
3R (EROWA) clamping tools |
|
22.5° degree of water nozzle set |
|
A.W.T. (Auto. Wire Threading) system |
|
Parallel bar (for setting work piece) |
|
Auto wire cutting system |
|
PCD professional electric circuit |
|
Water chiller |
|
Power regulator |
|
Wire tension meter |
|
Wire speed meter |
|
Water resistance meter |
|
X, Y axis linear scale (PW-600S&PW-1065S with X, Y liner scale standard) |
*If you have any further discussion or information, please feel free to contact us directly. Thank you.
