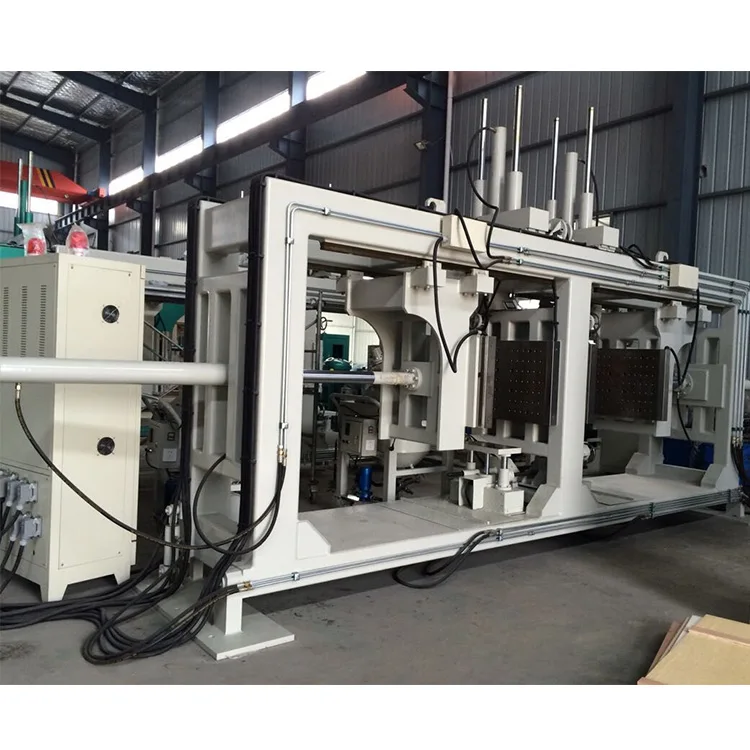

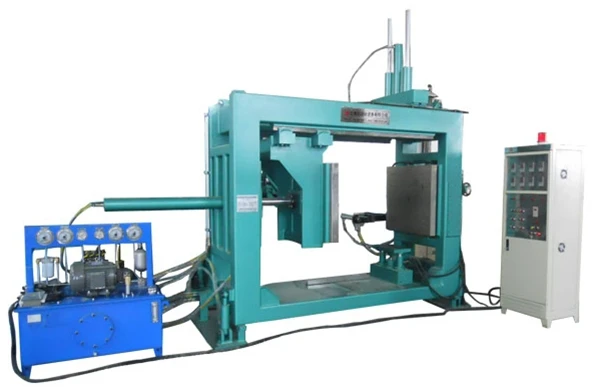

automatic pressure gelation process machine epoxy resin apg automatic clamping machine,supply APG mold
- Category: >>>
- Supplier: Yibo Automation Equipment Co. Ltd.
Share on (1910429624):
Product Overview
Description
automatic pressure gelation process machine epoxy resin apg automatic clamping machine,supply APG mold
Product Description
1.Application
1. Pole mounted distribution transformer pressure gelation molding machine is applicable for electric resin epoxy products such as transformer, 12KV-1250A, contact box, 40.5KV bushing, bending plate, upper and lower shell of SF6 insulating cover,etc.
2. Pole mounted distribution transformer pressure gelation molding machine is large and medium-sized equipment, mould plate is 800*600mm, length of upper and lower core-pulling stroke can be determined according to the product.
2.Main technical specification
| Technical specifications | ||||
| Model | APG-1210 | APG-898 | APG-888 | APG-865 |
| Clamping plate | 1000*1200mm | 1000*1000mm | 800*800mm | 800*600mm |
| Upper and lower core-pulling stroke | 900mm,800mm | 800mm,500mm | 800mm,500mm | 500mm,350mm |
| Mould clamping force | 220KN | 220KN | 200KN | 200KN |
| Power | 8KW | 8KW | 8KW | 8KW |
| Weight of complete machine | 7100KG | 6200KG | 4200KG | 3800KG |
| Outline dimension | 4780*1300*3800mm | 4700*1300*3800mm | 3900*1300*3140mm | 3900*1300*3140mm |
| Color(Customizable) | Blue | Blue | Blue | Blue |
transformatorer, APG maskin till salu, APG maskin lever antör / tillverkare / fabri china APG mesin cetak untuk e
Production Flow
4.The process of APG production
epoxy resin isolator / bushing / transformator, mesin APG untuk dijual, APG mesin pemasok / produsen / pabrik
Operation steps of producing
Main products
Company profile
Certifications
Packaging Shipping
Outline Demension: 3700x1200x3030mm for APG machine
Packaging Detail: packed by bubble film then into the exported standard wooden case
Shipping Detail: shenzhen or shanghai, or you designate if neseccary
FAQ
Q: What does “FOB”“CFR”and “CIF”Mean?
A: FOB=free on board with China loading port
CFR=CNF=cost and freight charge with destination port
CIF=CFR+Insurance with destination port
Q: What's consists of equipment for your APG whole production line?

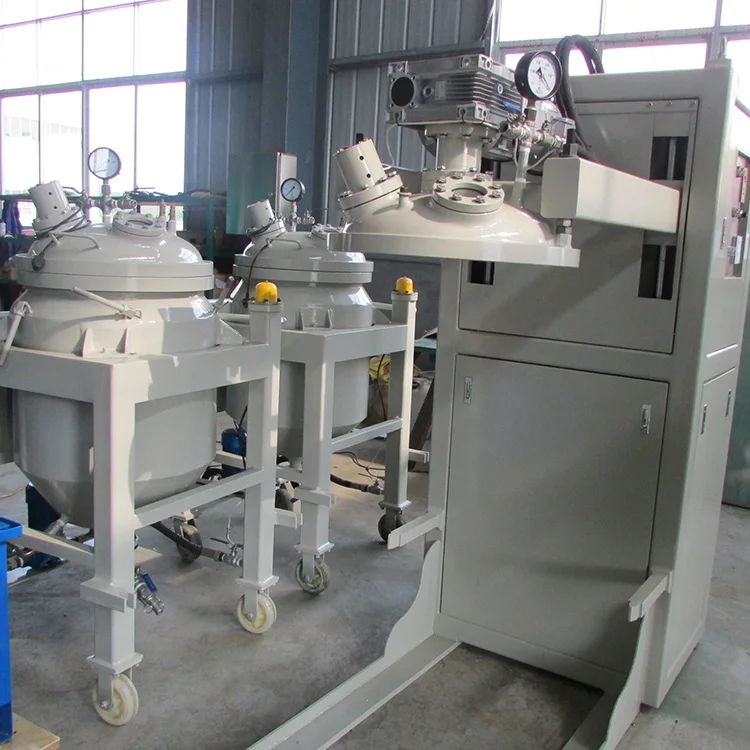

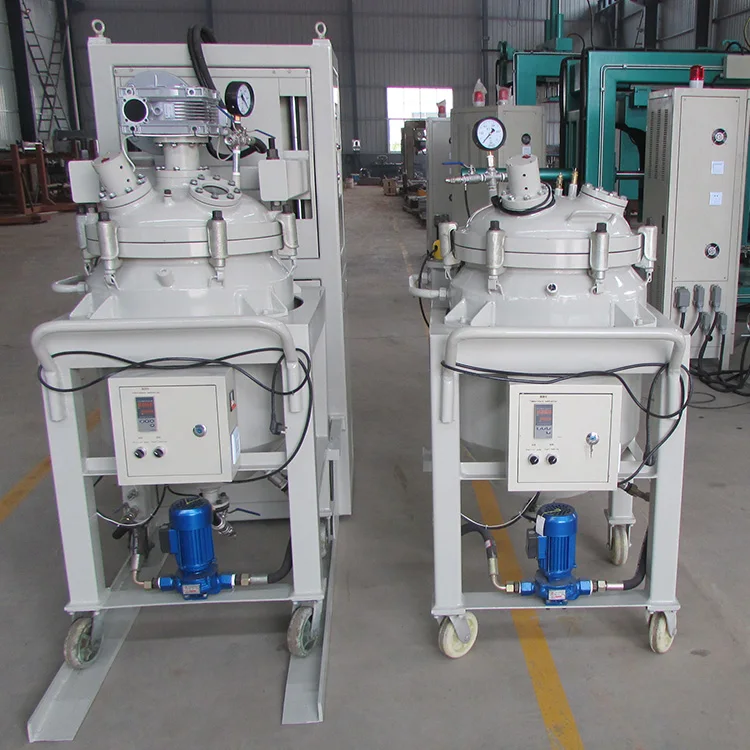

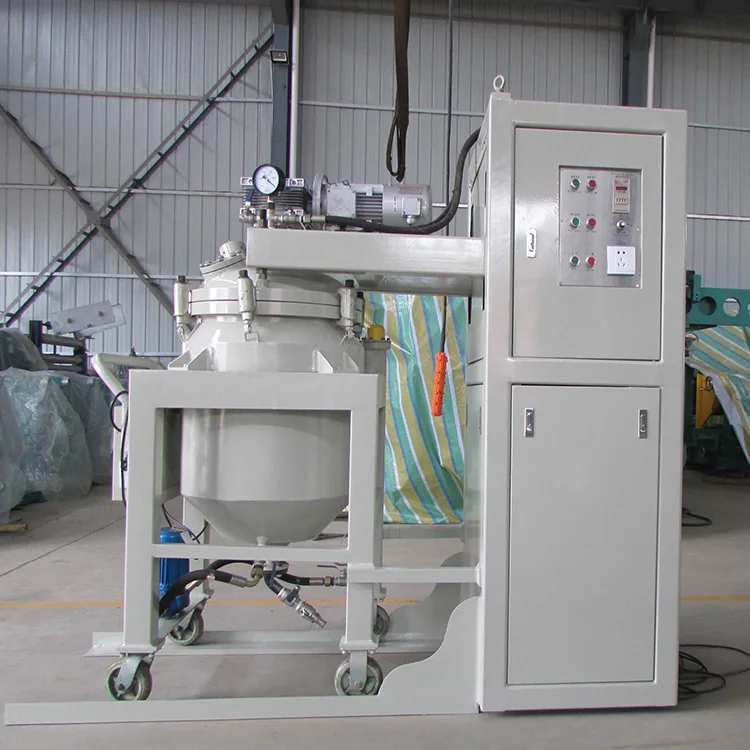

A: APG Machine-APG Mold-Curing Oven-Air compressor-Mixing Material-Release Mould Agent-
Xylene germicides.
Q:What information do we need before quote?
A: Your product's diameter and photo or drawing.
Q: How about your installation & debugging and after-sale service?
A: Our engineer go to the oversea for the installation and debugging availably,and we
provide one-stop sevice and machines lifelong maintenance.On site test and inspection
available.
Q: How about your experience in this field?
A: We have 24 years experience in this field.Until now,we have 19 items patents.
Q: Is it one-stop service company in electric power equipment industry?
A: Yes,Oyr products cover APG Clamping Machine,APG Molds & Injection Toroidal Winding
Machine (CT & PT),Transformer Foil Winding Mach Molds,Marking Machine.
Q: What is your delivery time?
A: It takes around 50 working days.
Q:How's the packing way?
A:The machine with plastic film and others parts use wooden case for safety.
Q: What's the shipping port?
A: Shanghai,Shenzhen,Ningbo,Qingdao etc.
Q: What's the payment terms?
A: Telegraphic transfer(TT),Letter of credit.
Q: What is your factory location?
A: Our factory locates in Pingxiang City,Jiangxi province.Nearest air port:Changsha
airport.High speed railway station:West Zhuzhou station.All above take 1.5 hours
driving.
