Stainless Steel Braided Metal flexible conduit/hose/pipe/tube with PVC sheath (NK706)

Product Overview

Description

Stainless Steel Braided Metal flexible conduit/hose/pipe/tube with PVC sheath (NK706)

1 Material:Galvanized steel Strip(Squarelocked)PVC coated

2. Temperature range: -40°C~+80°C max to 100°C

3.Color: Silver grey

4. Protection degree: IP68

5.Flame-retardant:V0



FEATURES:

1. High elxibility, excellent bend ability, smooth inside structure makes it easy to go thread.

2.Temperature-resistant, resistant to high temperature chips.

3. Turn-over locked structure to increase strength resistant, hard to break or distort.





APPLICATIONS:

Various machine tools and machines, elevators, chemical industry. Cable protection in brainpower building threading, security system, exterior illumination and  workshop building, etc.



MARKS:

Pipes only for wires and cables,no other usages such as for water,gas,food,etc.

More details pls contact us or visit our website



SEPCIFICATIONS:

Size: 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Item No.	SIZE	STRUCTURE	I.D	O.D	PACKING Meter/Roll	Weight	Volume
NK706	1/4"	interlocked	7.7-8	11-11.8	100	0.15	0.8
NK706	5/16"	interlocked	9.7-10	12.8-13.5	100	0.18	0.9
NK706	3/8"	interlocked	12.3-12.8	17.5-18	50	0.27	1.05
NK706	1/2"	interlocked	15.8-16.3	20.8-21.3	50	0.33	1.5
NK706	3/4"	interlocked	20.8-21.3	26.1-26.7	30	0.45	1.47
NK706	1"	interlocked	26.3-27	32.8-33.4	30	0.63	2.16
NK706	1-1/4"	interlocked	34.8-35.5	41.4-42.2	20	0.95	3.09
NK706	1-1/2"	interlocked	39.8-40.5	47.4-48.3	20	1.33	3.71
NK706	2"	interlocked	50.8-51.5	59.4-60.3	10	1.7	4.28
NK706	2-1/2"	interlocked	63.5-64.3	72.1-73	10	1.95	3.54
NK706	3"	interlocked	78.6-79.3	87.5-88.5	10	3.1	5.12
NK706	4"	interlocked	100.6-101.6	111.5-112.5	5	4.2	8.34

 *Page limited more size please contact us.*

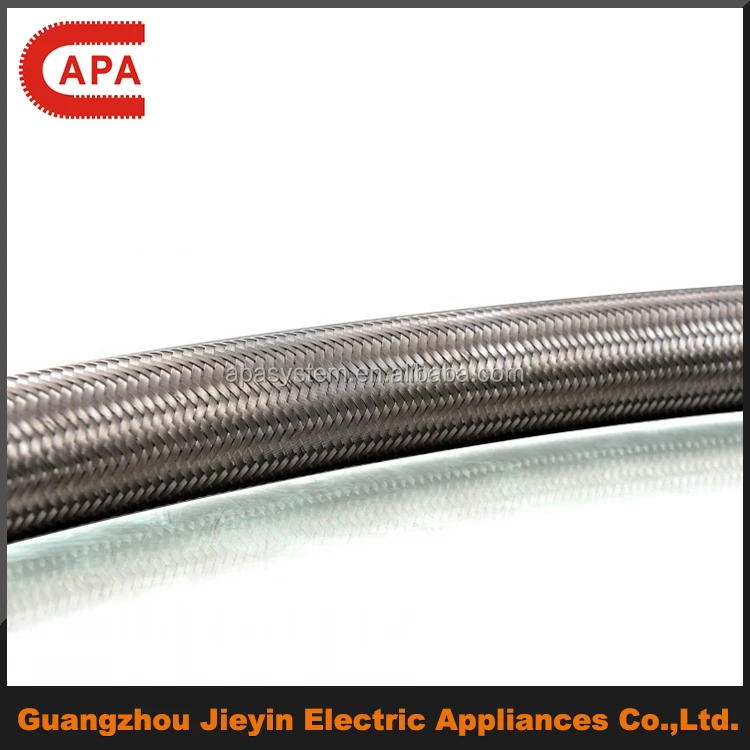

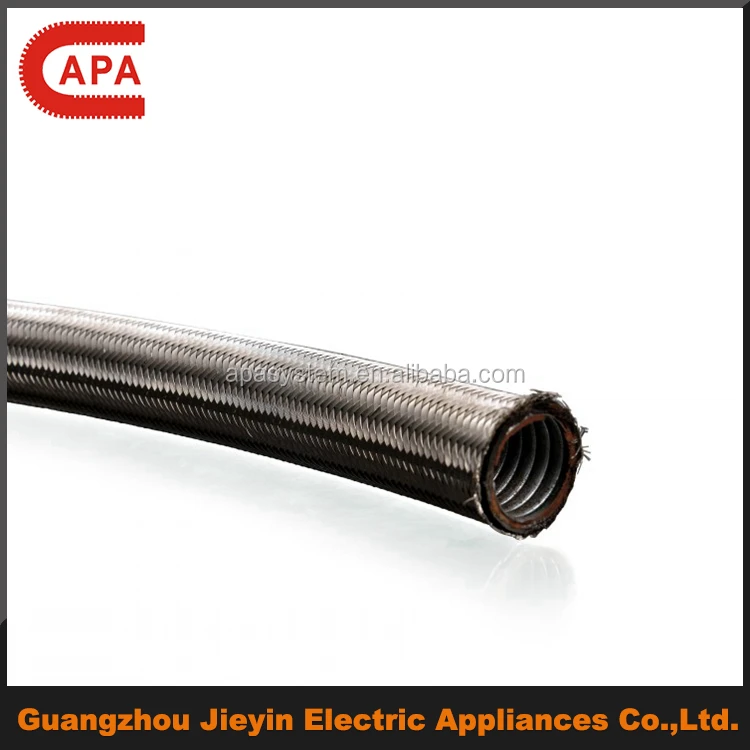

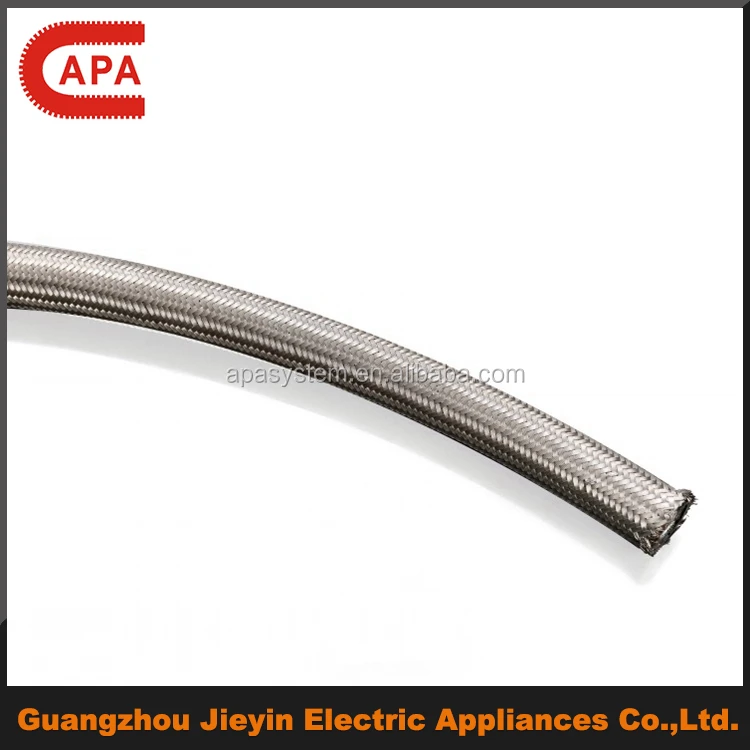

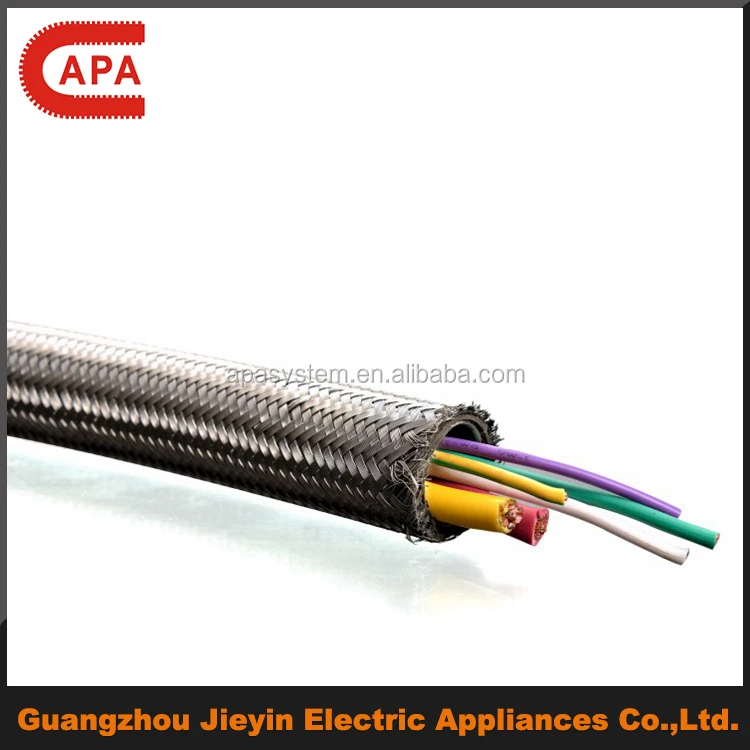

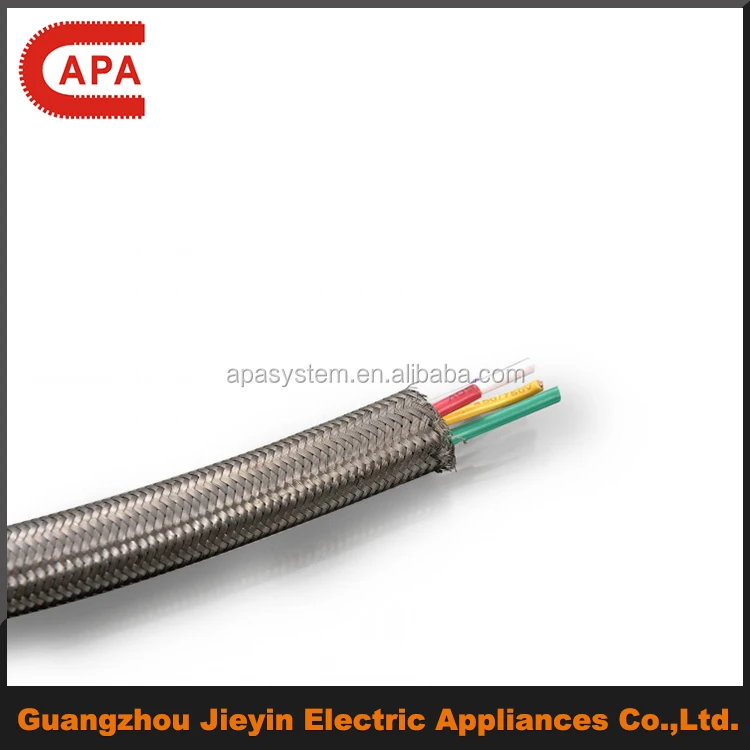

PRODUCT PICTURES:
