4x4 matrix keyboard backlit industrial keypad

Product Overview

Description

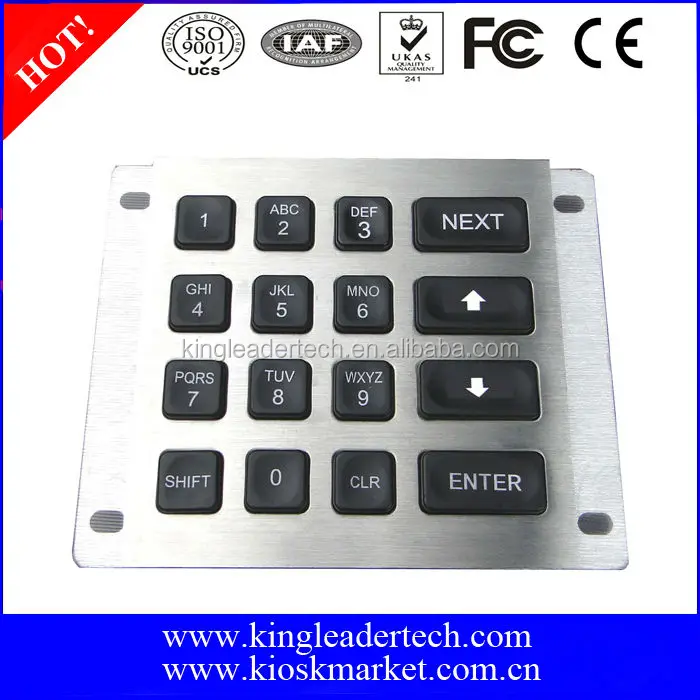

4x4 matrix keyboard backlit  industrial keypad



Part Number:MKP100-16BL

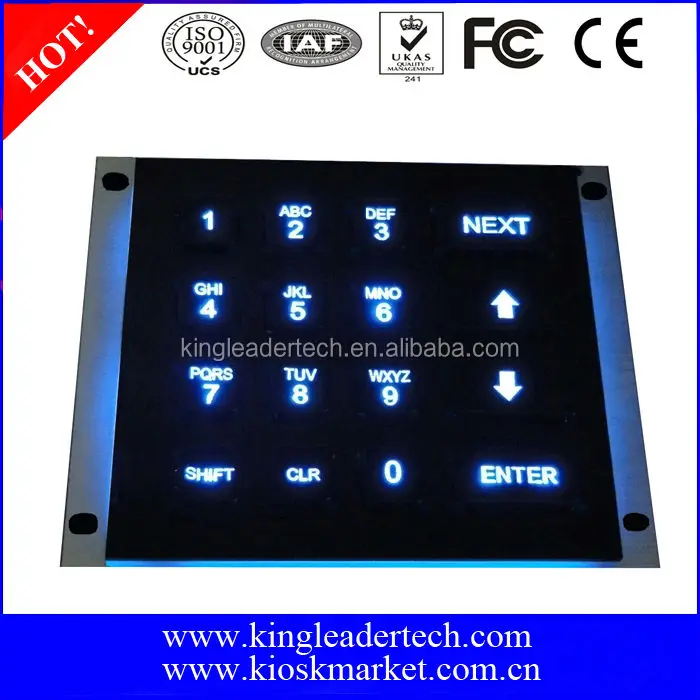

Rugged,water-proof,vandal-proof keypad with 16 back-lit keys,ideal for indoor or outdoor access control system or other low-lit or dark environments





Key Features:



- 16 back-lit keys,4 larger keys at the right column

-  Keys in 4 X 4 matrix

- Laser-etched characters

-  Panel mount from the rear side

- Concave on the key top to suit fingertip

-  Robust build against vandalism

- Dust-proof and liquid-proof, IP65 compliance after properly mounted

-  Layout customizable according to customer’s request

-  Application:access control system or other application in dark or low-lit environment





Specifications:



Material:front panel:304 stainless steel;

               keys:high temperature polycarbonate;

               back panel:aluminum
Life cycle of keys: >5 million operations

Key travel: 2.0mm

Actuation force: 80±15g

Interface: 11-PIN (or USB/PS2 with control board)

Working temperature: -20°C~60°C

Storage temperature: -40°C~80°C

Relative humility: 20~95%

Atmospheric pressure: 50-110 K Pa

Color of key: black

Color of front panel:silver or black

Color of backlight:green,blue or red

Dimension: 100.00 x 100.00 mm(W x D) (front panel)





More photos:
