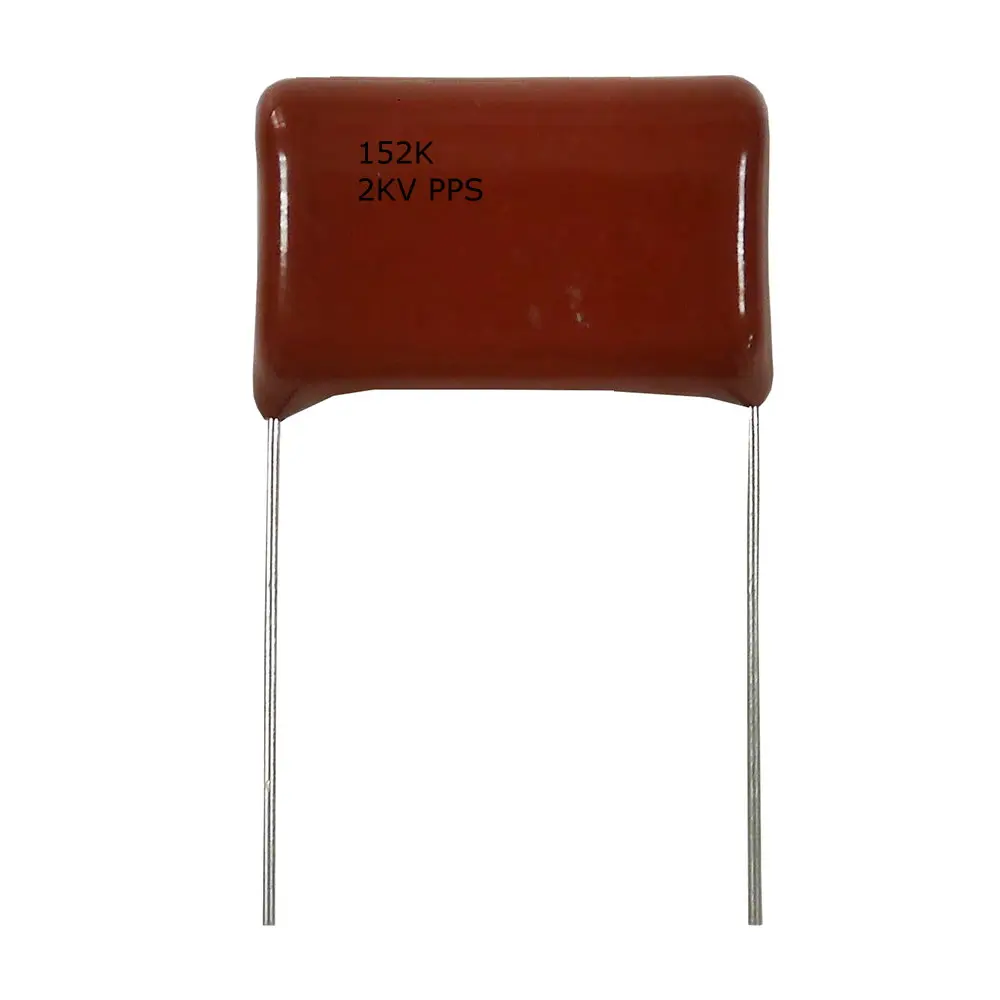

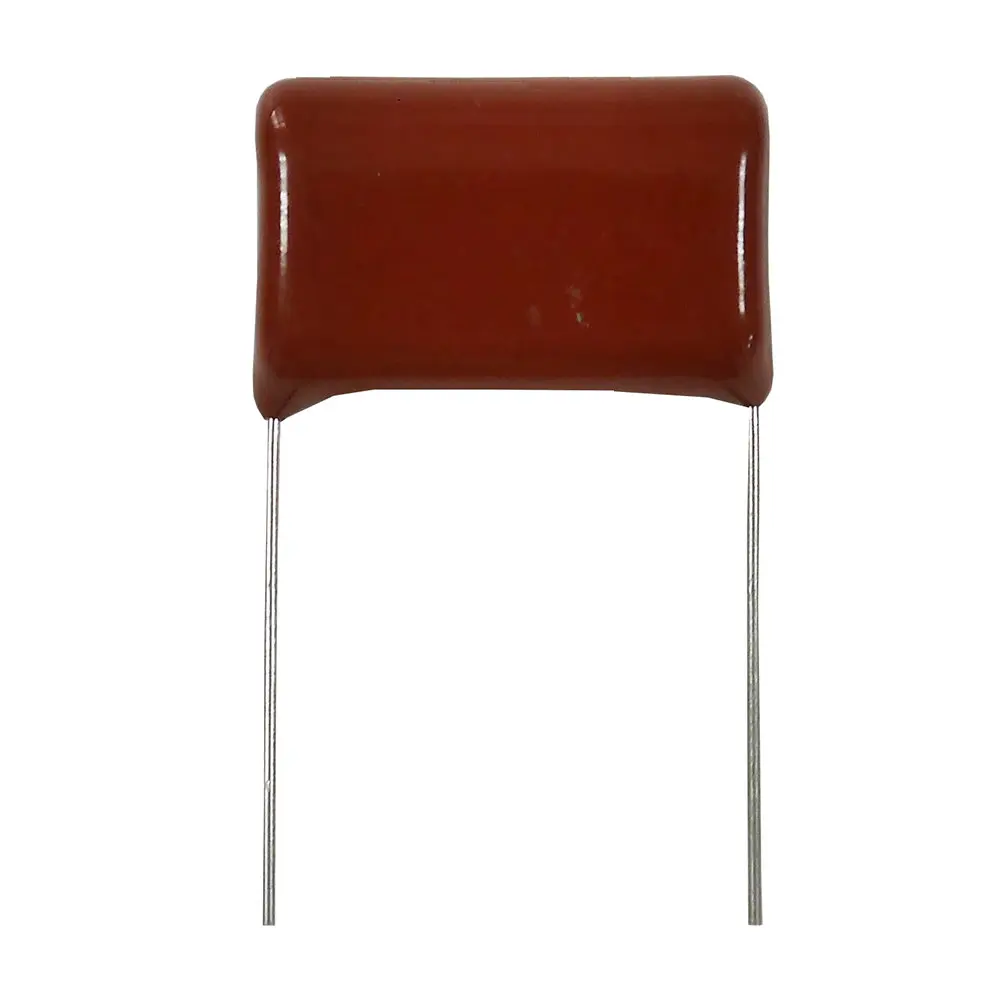

Taiwan Manufacturer of High voltage 1600V to 3000V of CBB81 PPS POLYPROPYLENE FILM CAPACITOR

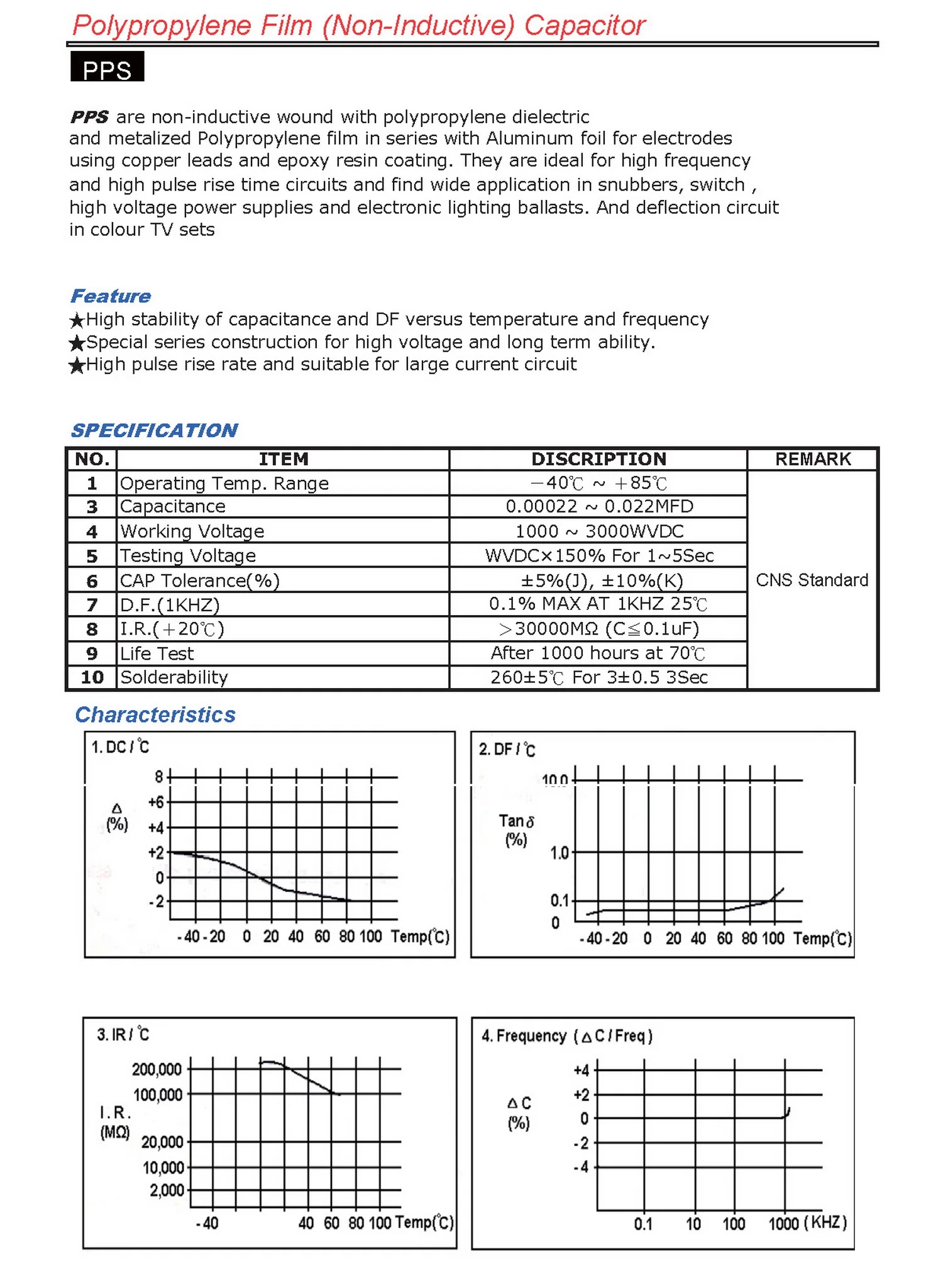

 SPECIFICATION :

1. OPERATING TEMPERATURE  : -40°C ~ + 85°C
2.DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25°C
3.DISSIPATION FACTOR : 0.1% MAX. at 1KHz, 25°C
4.INSULATION RESISTANCE : >=30,000 MΩ

5.Tolerance: 5% and 10%

PACKING INFORMATION:  BULK type into Plastic bagger

Our factory has more than 27 years of experience in power capacitors, film capacitors and
