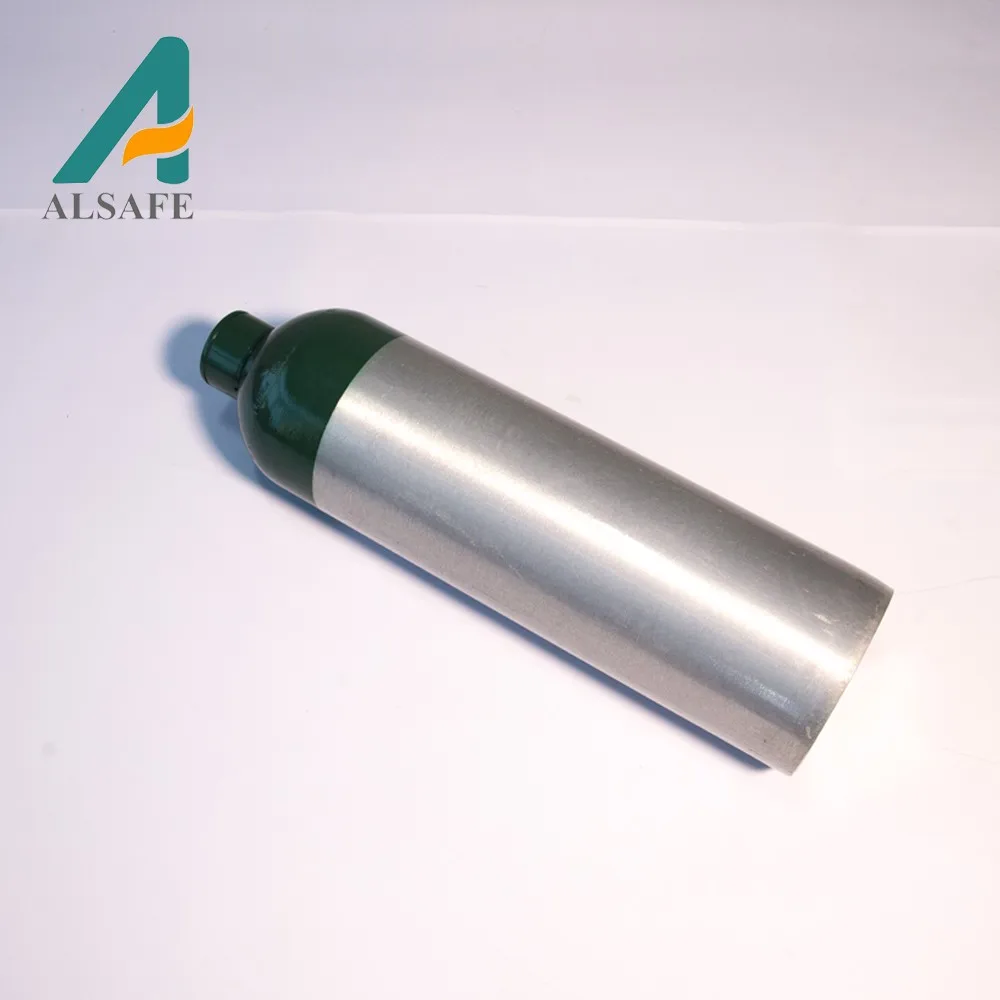

High pressure small oxygen cylinder aluminum cylinder

Product Overview

Description

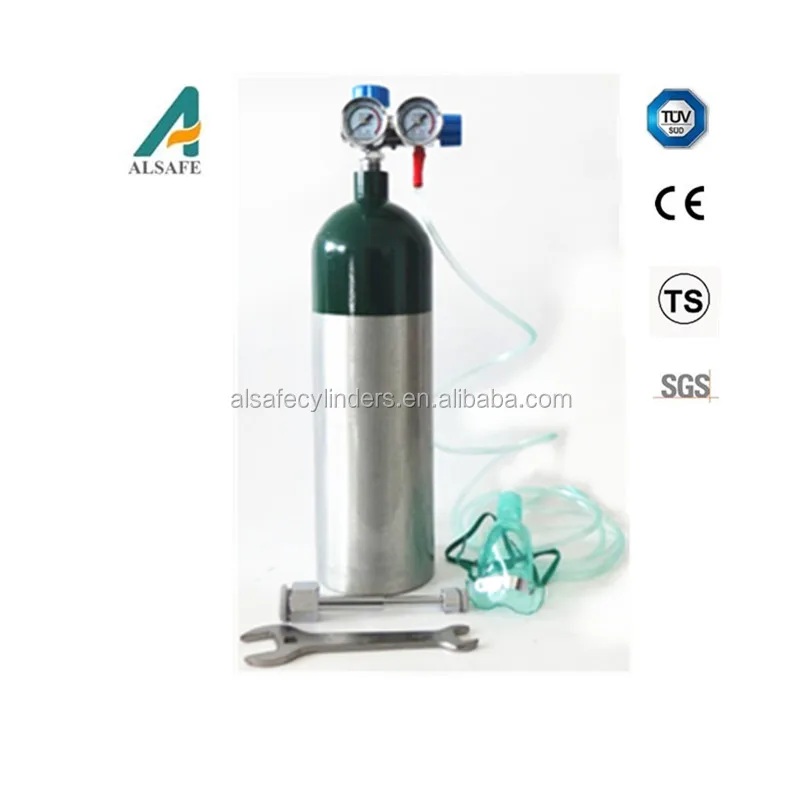

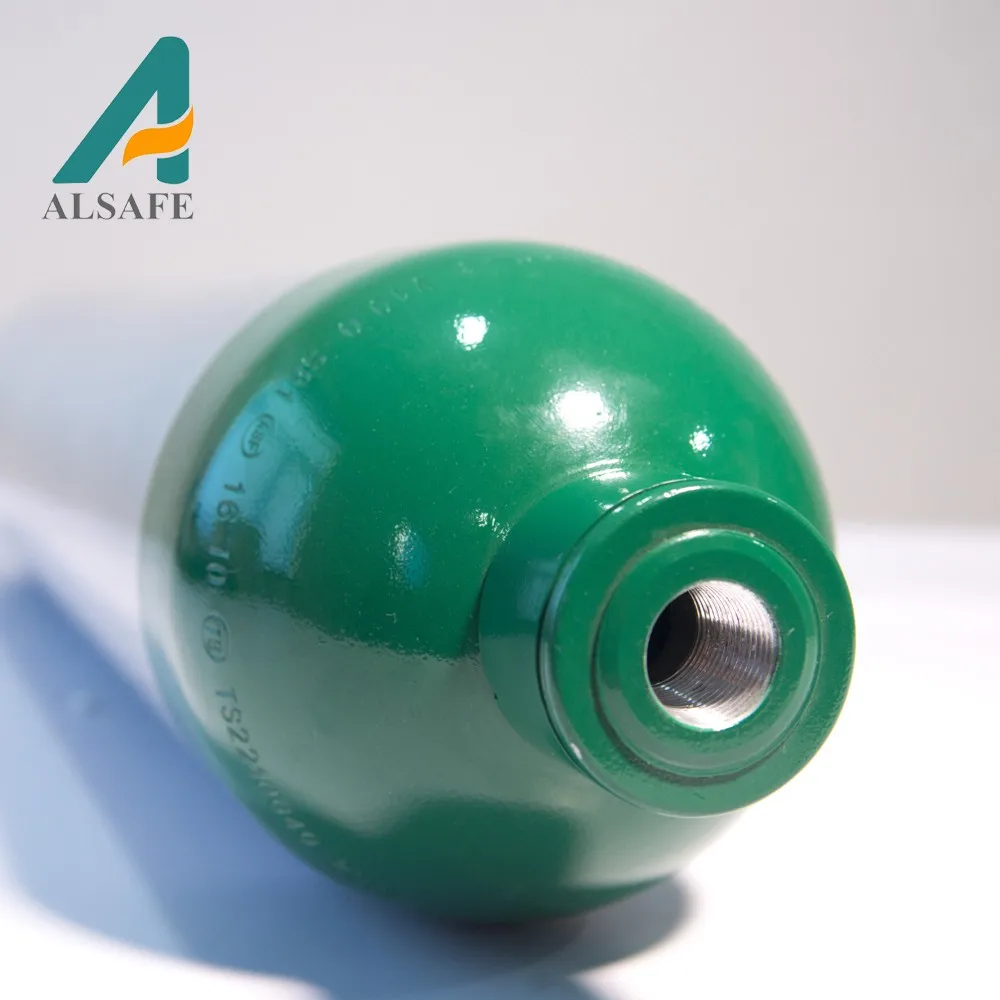

Product Name:  small oxygen cylinder aluminum cylinder Manufacturer: Liaoning Alsafe Technology Co., Ltd. Specification: M6 Standard: ISO7866 or DOT 3AL Certificate: CE, TS Third party Inspectors: TUV, CSEI, SGS Filling content: Medical oxygen Color: green head or customed Outside surface treatment:  Transparent painting Thread: 3/4-16UNF Valve: CGA870, CGA870-1, CGA870-2 Form A, Form E avaliable. Ideal choice of small oxygen cylinder aluminum cylinder Features: ·Made by aluminum 6061; ·40% lighter than steel cylinders; ·No magnetism; ·High corrosion resist and special inner surface treatment, ensure medical oxygen clean and smelless, ideal for medical oxygen storage; ·Stable performance; ·Widely used in hospitals, rescue stations, home oxygen therapy, etc.  ·Choice of worldwide top brands and enterprises.







      Cylinders waiting for leaking tested after valving         Cylinders waiting for leaking tested after valving

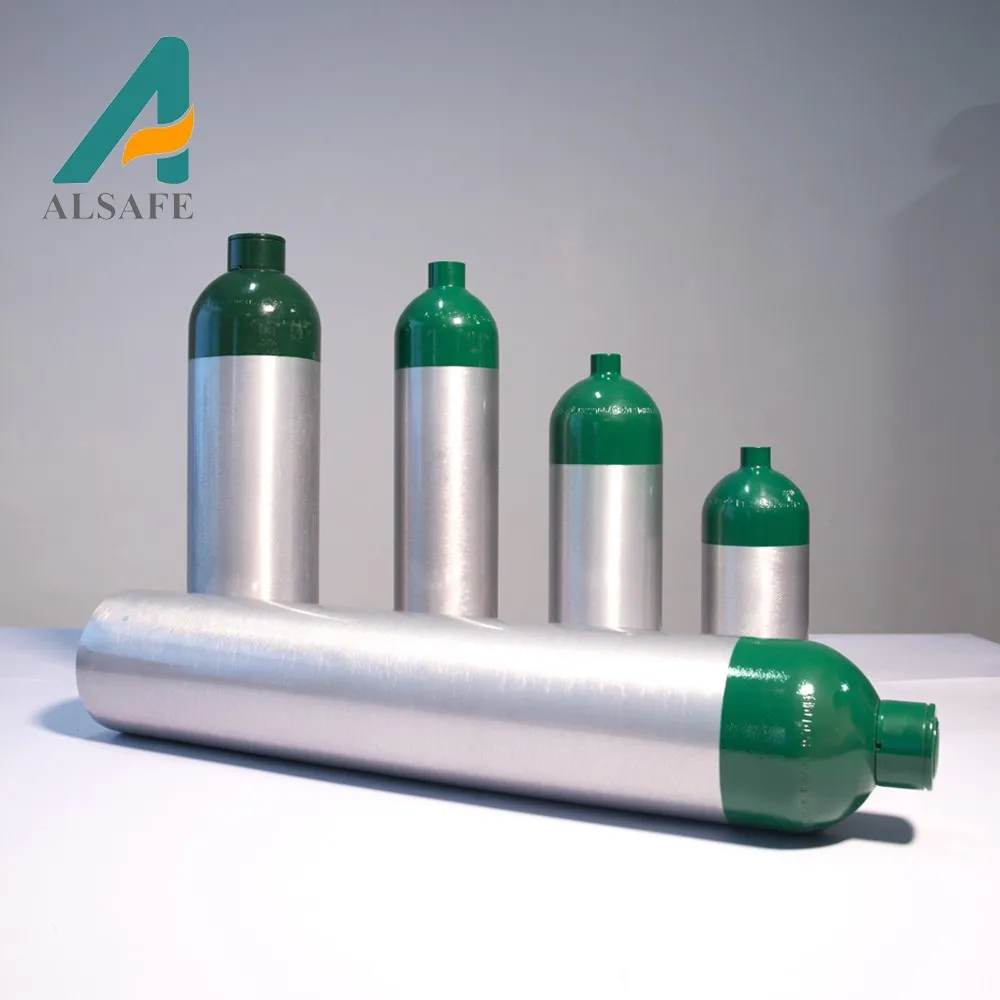

Model↓Item→			Water Capacity		Outside Diameter		Length		Weight		Working Pressure
			Lts / Cu in		mm / in		mm / in		kg / lbs		bar / psi
M2			0.3	0.6	63.5	2.5	145	5.7	0.3	0.6	153	2216
M4			0.7	1.5	81.5	3.2	221	8.7	0.7	1.5	153	2216
M6			1	2.3	81.5	3.2	300	11.8	1	2.3	153	2216
ML6			1.2	2.5	111	4.4	198	7.8	1.3	2.9	139	2015
ML7			1.4	3	111	4.4	231	9.1	1.5	3.2	139	2015
M9			1.7	3.8	111	4.4	277	10.9	1.7	3.7	139	2015
MD			2.9	6.4	111	4.4	424	16.7	2.4	5.4	139	2015
M22			3.9	8.5	133	5.2	414	16.3	3.7	8	153	2216
ME			4.6	10.2	111	4.4	645	25.4	3.6	7.8	139	2015
M60			10.5	23.2	184	7.25	582	22.9	10.1	22.3	153	2216
M90			15.7	34.7	184	7.25	828	32.6	13.7	30.3	153	2216
M122			21.4	47.1	203.2	8	919	36.2	17.9	39.5	153	2216
M150			28.9	63.7	203.2	8	1194	47	22.1	48.8	139	2015



Note: The specifications above are popularly used in medical oxygen storage as per DOT standard. However, if you need other size or specifications, please visit Alsafe aluminum cylinders overall collection (volume limitation from 0.5L~50L) or contact us directly. We always offer friendly service and knowledgeable advice.

 small oxygen cylinder aluminum cylinder | small oxygen cylinder aluminum cylinder | small oxygen cylinder aluminum cylinder | small oxygen cylinder aluminum cylinder | small oxygen cylinder aluminum cylinder | small oxygen cylinder aluminum cylinder











1. Liaoning Alsafe Technology Co., Ltd. has esteablished the quality guarantee system according to the Requirements for Boiler and Pressure Vessel Manufacturing Licencsing of China and abtained the certificate issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C (AQSIQ), qualified to manufacture B1 and B3 grade pressure vessels.



2. Each new type of cylinders before mass production has to pass type tests held in qualified laboratories approved by third party inspector (TUV, CSEI for example), including bend test, drop test, hydrostatic test, etc. according to relevant standards.



3. Every batch of cylinders (200 pieces as one batch normally) are manufactured and tested under supervision of local special equipment inspection and research institute and then issued batch test report.



4. Each finished cylinder before delivery to customers has to pass leakage test to ensure no leakage occurs.



5. Alsafe are honored to supply quality products to worldwide top brands and enterprises, and sets long term and stable cooperation due to quality products, friendly service and knowledgeable advice, which help us to gain good reputation among home and overseas customers.

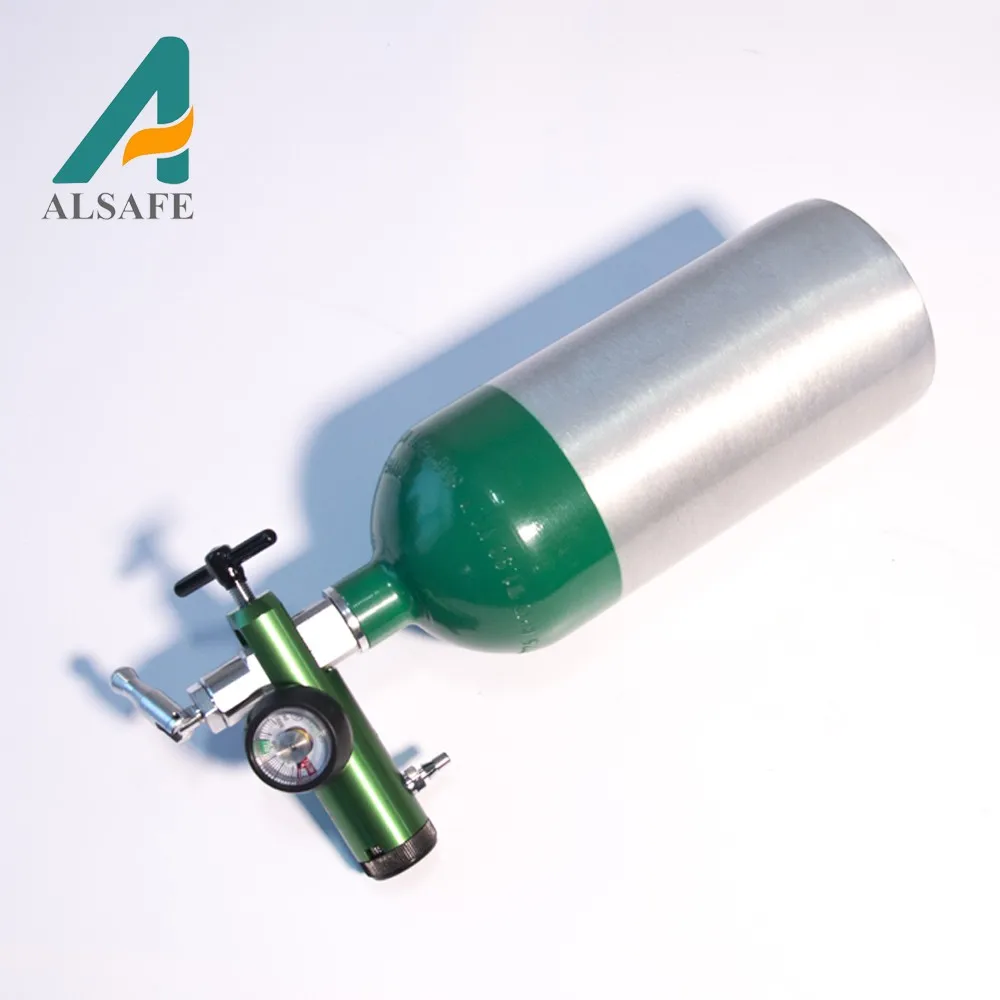

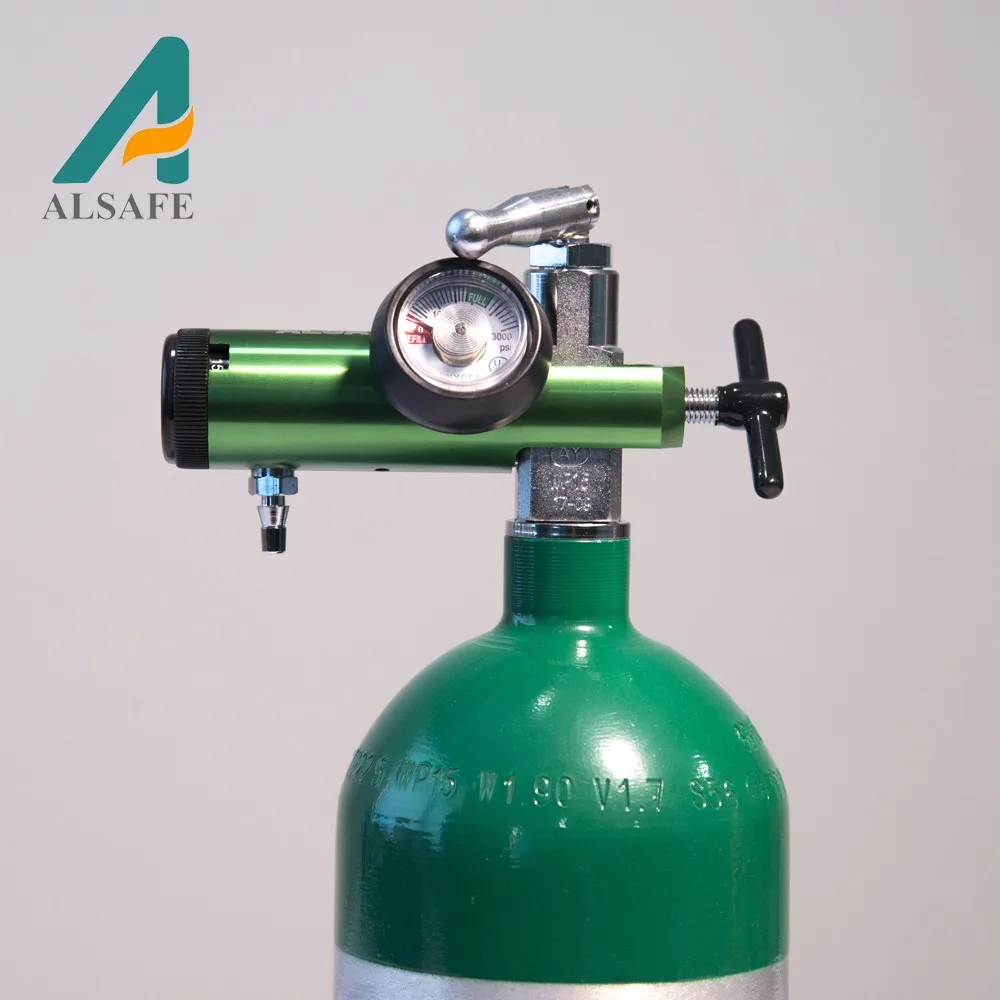

Valves and regulators are supplied together with cylinders if needed. We offer free assembling and free leakage testing to assure safety.   Product name: CGA standard cylinder valve Type: CGA870 Matrial: Brass Medium : O2 Certificate: CE,API Nominal working pressure: 2015psi DN mm: 1.6 Inlet thread:3/4-16UNF Outlet thread: Post type Safety device temperature or pressure: 3360psi & 165 °F Frame modality: Axial connection type
