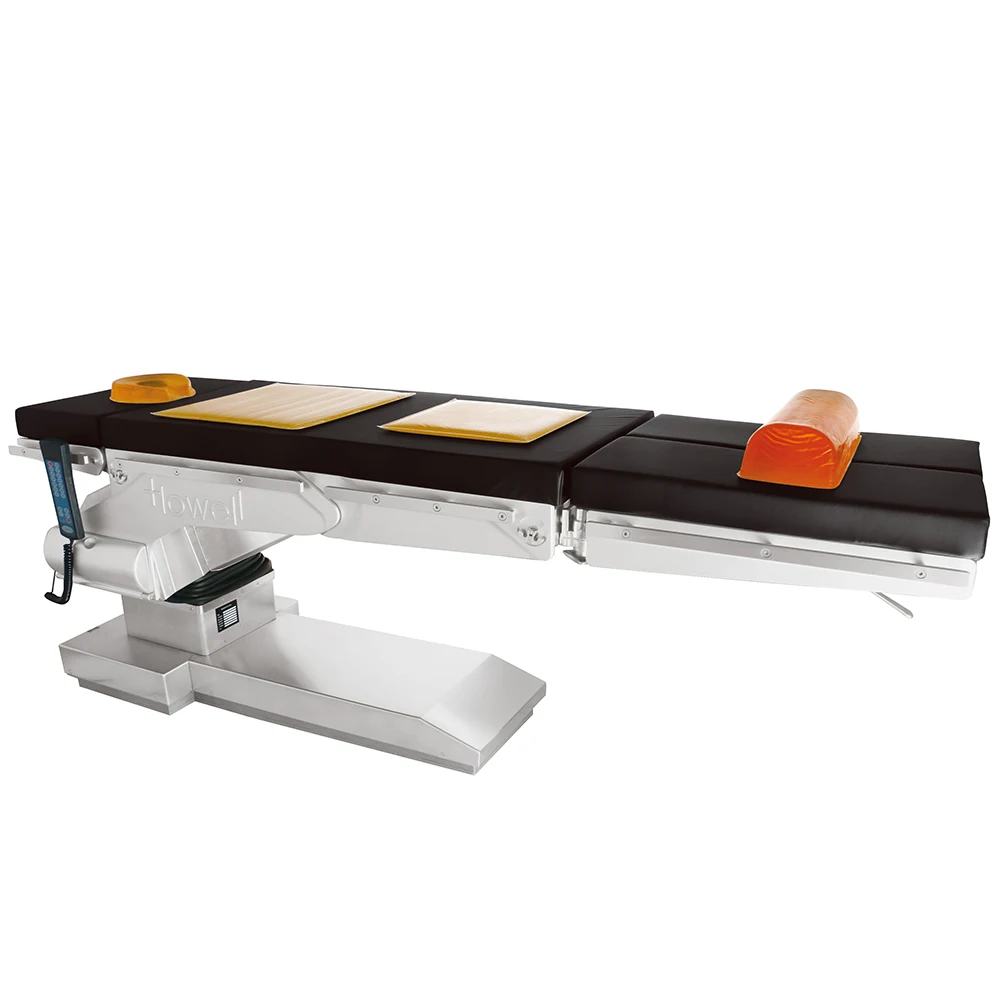

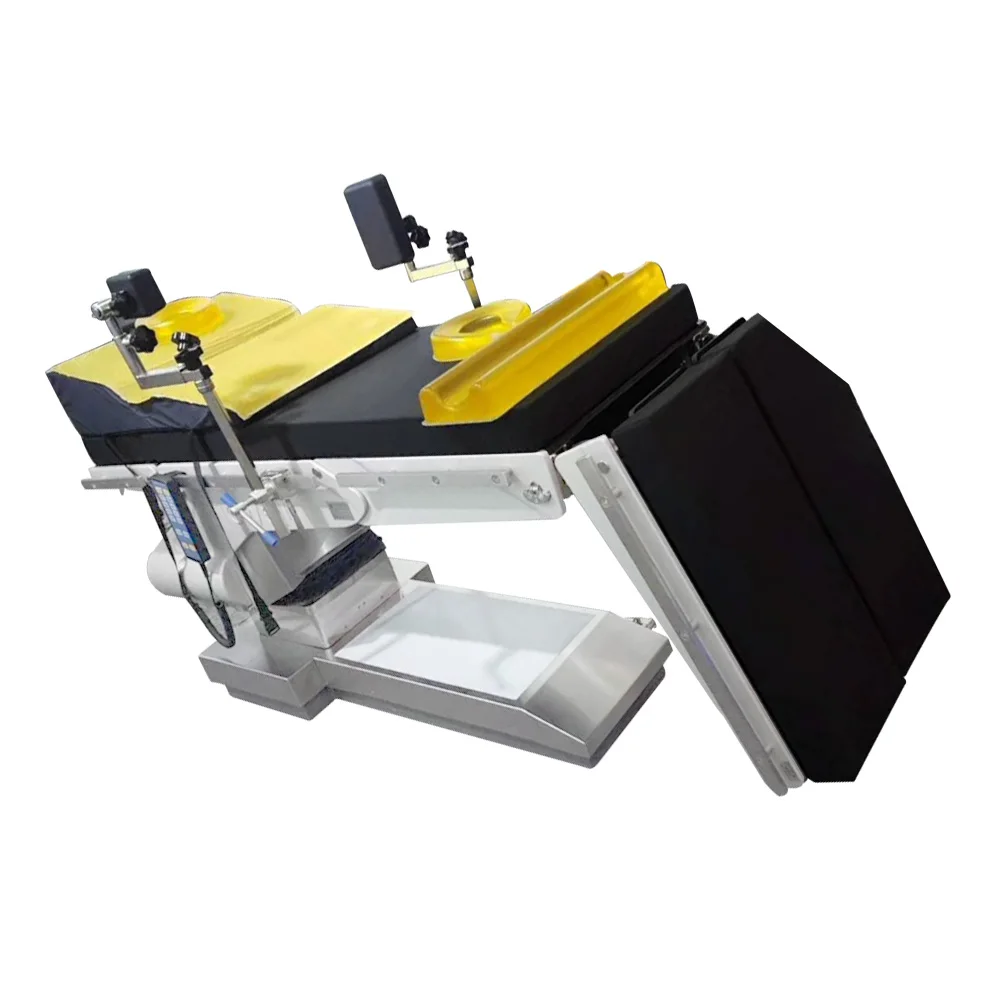

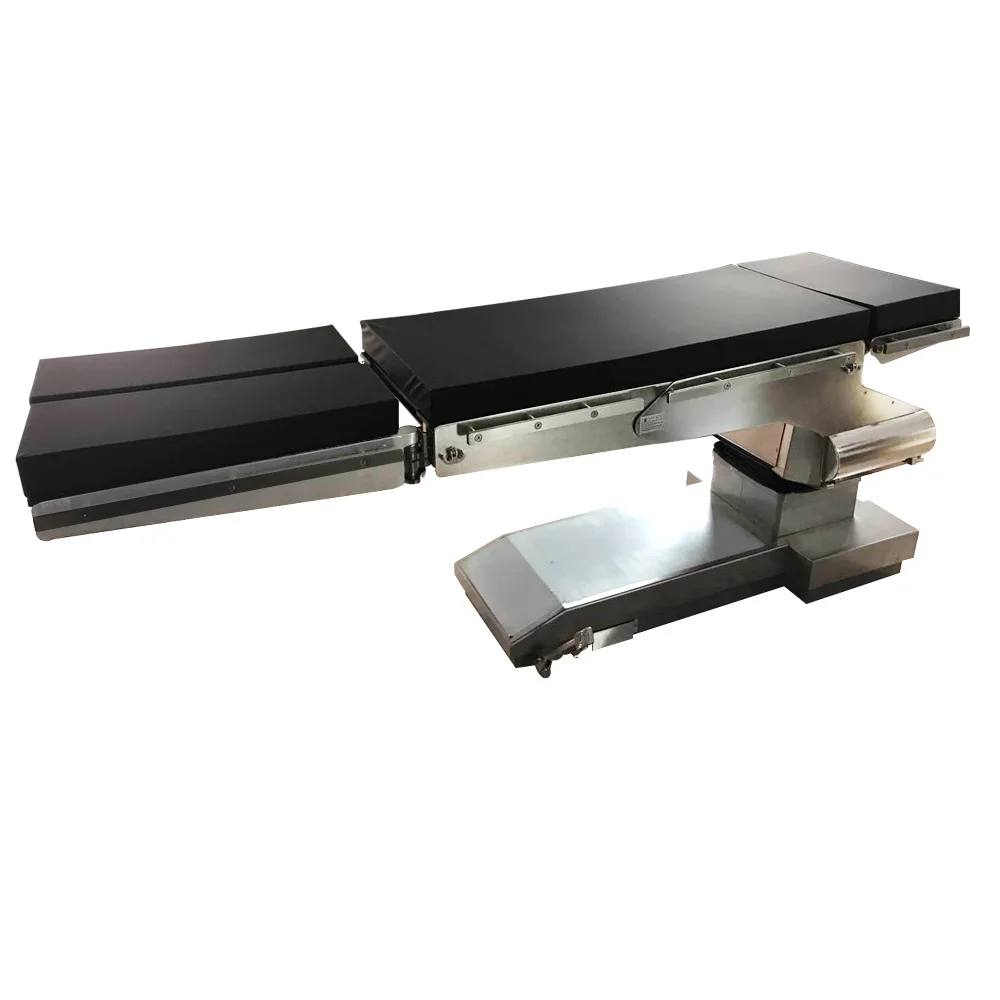

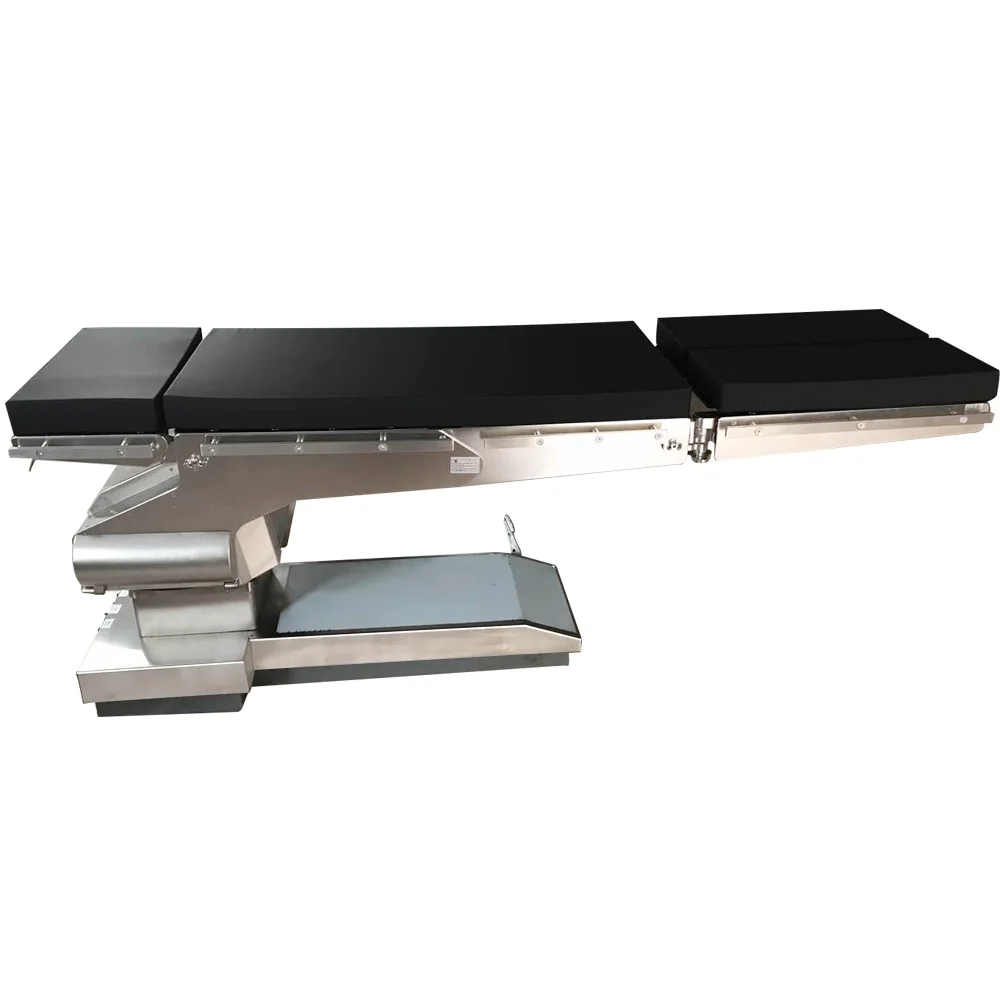

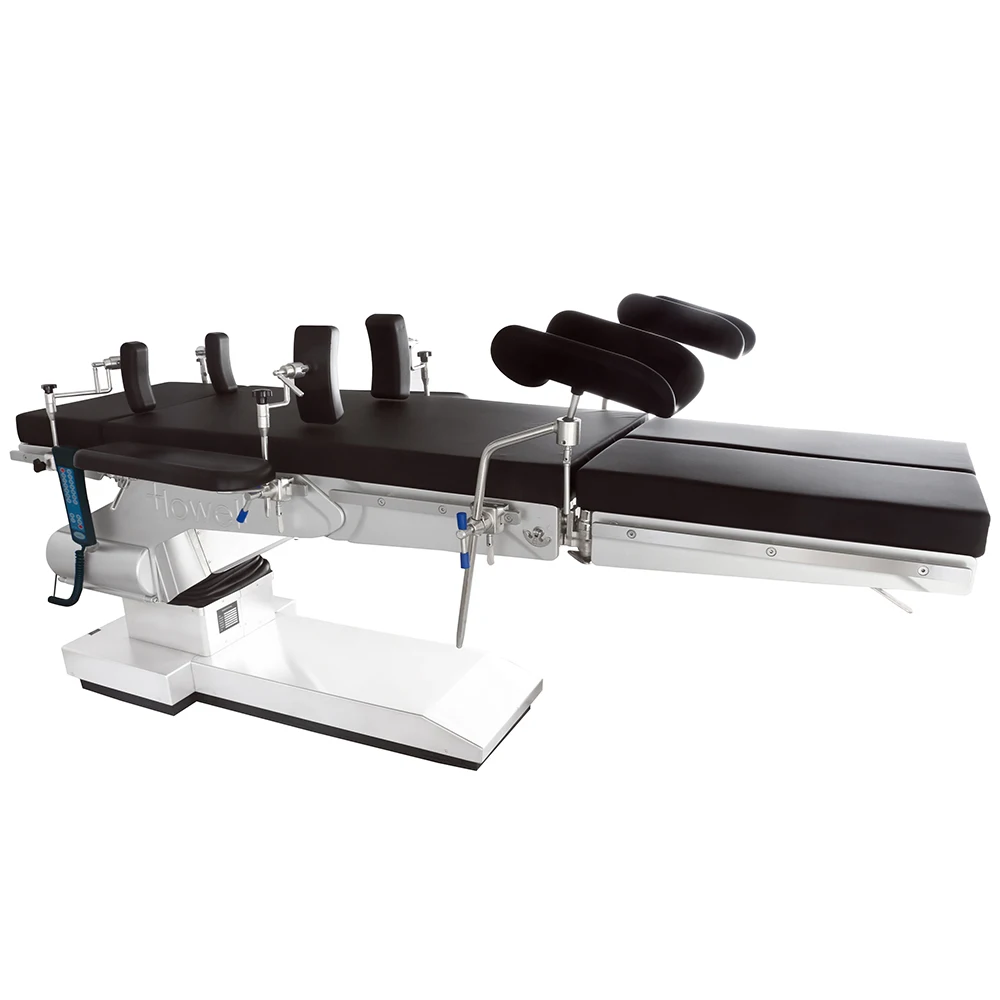

S00 Electro hydraulic End Column Operating Table/X ray bed multi function surgical table

HE-608P-100 Electro-hydraulic End Column Operating Table

•  Metal piece made from #304 stainless steel, anti-rust, easy to clean


•  X-ray applications: mattress and tabletop panels are both X-ray perspective materials


•  Computerized manual controller


•  Brake device under the base: it can lock the table firmly by operating foot pedal


•  Memory foam can release the pressure that caused by long time touch


•  High quality polyurethane mattress, waterproof, seamless, antibacterial, and easy to clean


•  Manual control built-in kidney bridge


•  Memory foam can release the pressure


•  F-03 Orthopedic Traction Frame is optional


•  Head plate and leg plates changeable

Technical specification

•  Power: AC220V,50Hz


•  Auxiliary battery (optional):DC24V,12AH


•  Dimensions (L x W x H): 2000x520x720mm (excluding mattress)


•  Weight: about 300kg

 Technical Parameter

•  Table length: 2000mm


•  Table width:520mm


•  Adjustable range of table height: 720~1020mm(excluding mattress)


•  Inclining forward/backward angle: 35°/35°


•  Inclining leftward/rightward angle: 20°/20°


•  Backboard folding upward/downward angle: 75°/35°


•  Head board folding upward/downward angle: 30°/90° (head board and leg board are detachable and changeable)


•  Leg board folding upward/downward angle: 30°/90°


•  Leg board furcation angle:180°

Control Mode

•  Electric-hydraulic control: tabletop height adjustment, tabletop inclining forward & backward, leftward & rightward, backboard folding upward & downward


•  Mechanical control: pedestal lock & unlock


•  Manual adjusted: head plate & leg plate adjustment
