CE flat plate food automatic blister packing machine
- Category: Blister Packaging Machines >>>
- Supplier: Ruian Antai Pharmaceutical Machinery Co. Ltd.
Share on (1911922118):
Product Overview
Description
ANTAI DPB-350 2.2KW Automatic Small Chocolate Biscuits Snacks Food Blister Packing Machine
Product Description
Item | Unit | Parameter | ||
Cutting speed | times/min | 6-25 | ||
Power:3phases 4wires | 380V/50Hz | |||
Adjustable stroke | mm | 40-200 | ||
Max. forming area | mm×mm | 340×190 | ||
Max. forming depth | mm | AL/PL 26 | ||
Forming upper heat power | kW | 2.5 | ||
Forming lower heat power | kW | 2.5 | ||
Heat-sealing heat power | kW | 3 | ||
Motor Power | kW | 2.2 | ||
Air pump pressure | MPa | 0.5-0.6 | ||
Air pump volume flux | m3/min | ≥0.36 | ||
Packing material (H×W) | Medicine PVC | mm×mm | 0.25-0.40×350 | |
PTP | mm×mm | 0.02×350 | ||
Machine Dimension(L×W×H) | mm×mm×mm | 4000×850×1750 | ||
Weight | kg | 2000 | ||

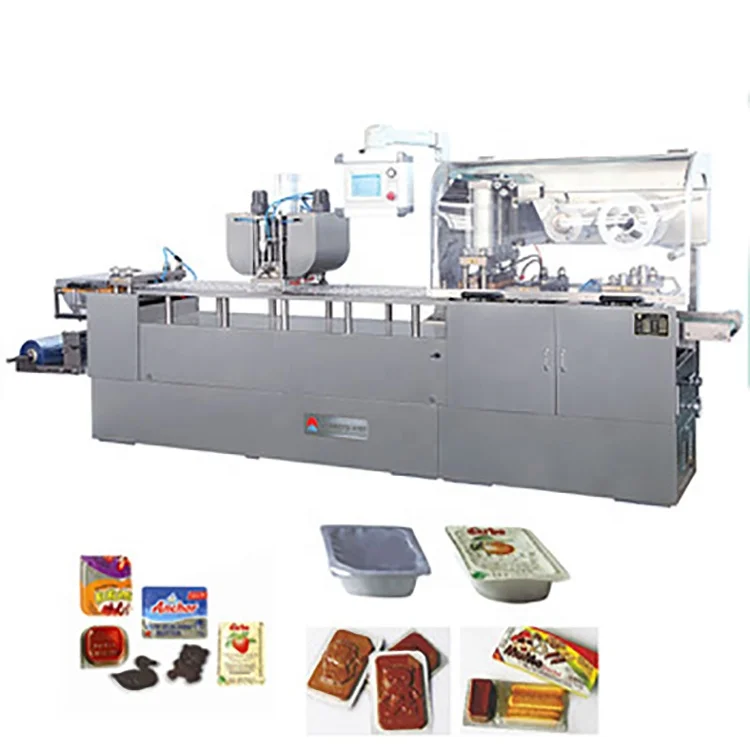

Our machine can be used for food package as below:
Main Features
1.Main drive part adopts Germany imported Siemens motor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life.
2.Human Interface Operate, PLC control, stepless frequency speed regulation.
3.Servo motor dragging, adjustable stroke within 40-200mm.
4.Adopt photocell device, make blister sheet more beautiful.
5.PVC and Alu Foil transportation adopt sensor switch control, motor transport, synchronization accuracy, material convey steady.
6.Adopt separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop.

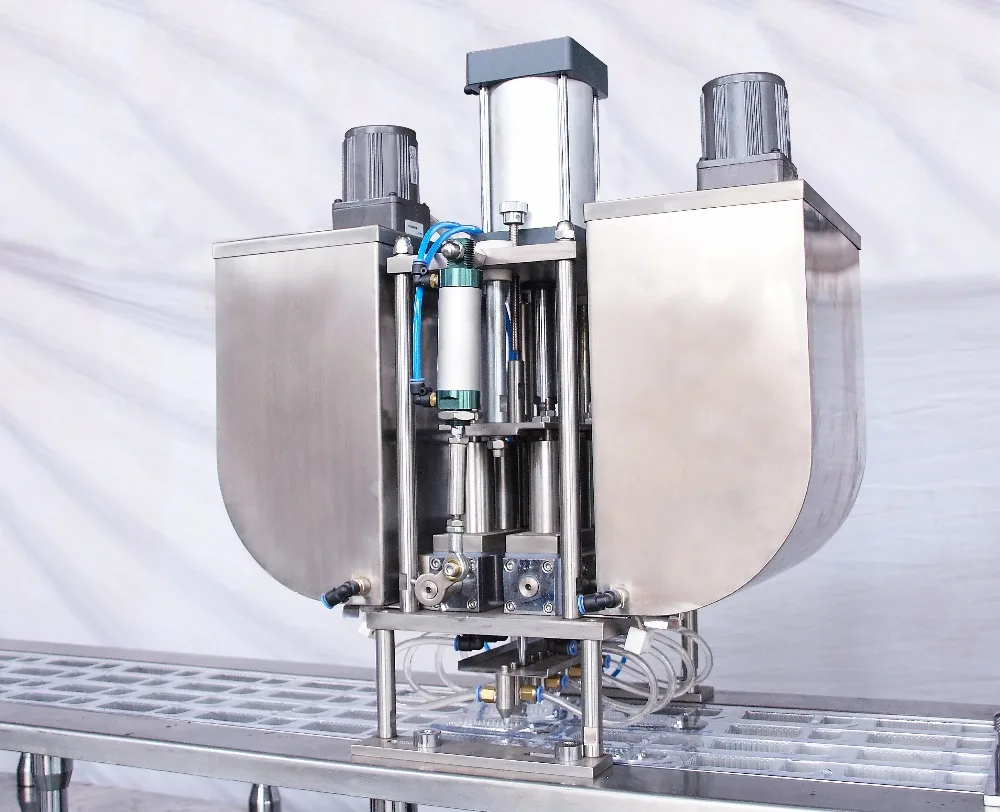

7.Different feeder type as per different products.
Package Material:
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material.
2, Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures:
1. Material transport 2. Preheating 3. Air blow forming 4. filling (manual feeding) 5. heat-sealing
1.Main drive part adopts Germany imported Siemens motor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life.
2.Human Interface Operate, PLC control, stepless frequency speed regulation.
3.Servo motor dragging, adjustable stroke within 40-200mm.
4.Adopt photocell device, make blister sheet more beautiful.
5.PVC and Alu Foil transportation adopt sensor switch control, motor transport, synchronization accuracy, material convey steady.
6.Adopt separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop.
7.Different feeder type as per different products.
Package Material:
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material.
2, Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures:
1. Material transport 2. Preheating 3. Air blow forming 4. filling (manual feeding) 5. heat-sealing
6. perforation and batch number 7. traction 8. punching output 9. waste winding
Detailed Images
Recommend Products
Finished Products
Company Introduction
Ruian Antai Pharmaceutical Machinery Co., Ltd. (Antai) is located in the Chinese Packing Machinery City. Equipped with strong technical capabilities and advanced production equipment, we integrated scientific research, manufacture, and sales service. We develop our different series of packing machines by modern techniques. In September 2000, our company became a member of China Association for Pharmaceutical Equipment. Moreover, we manage our company in accordance with ISO9001:2000 and 5S systems. We also provide pharmacy equipment and foodstuff equipment according to GMP requirements and CE authentication. In 2007, we obtained independent foreign trade rights by The People's Republic of China.With the characteristics of multiple functions, steady
performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for
10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for
10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
FAQ
Q:Are you factory or a trading company.
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works.
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products.
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
