32 inch high brightness open frame lcd monitor with AR glass for outside kiosk/advertising

Share on (1912477107):


Price:

Quantity:


Product Overview

Description


32 inch high brightness open frame lcd monitor with AR glass for outside kiosk/advertising

Product Description



DESCRIPTION

ITD industrial high brightness LCD monitor displays are fully-integrated‚ off-the-shelf units that combine high-bright panels and high-performance different touch technologies, in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. AIS industrial high bright touch screen LCD display monitors deliver enhanced display performance from professional-grade panels, 1,000~2500 nits brightness and high contrast ratio for demanding outdoor applications and environments heavy with ambient light. The high bright touch screen monitor displays are designed for multitude of applications, and excel in high ambient light environments where standard display panels "wash-out" or look dim. These high-performance outdoor industrial monitors withstand wide operating temperature range and provide optimal viewing as lighting conditions change from demands of outdoor kiosks and digital signage applications. ITD full-range selection is provided in screen sizes from 6.5” to 82”.



BENEFITS

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. Supports a wide high-bright range from 1,000 to 1,500 nits brightness

5.The LED backlight enables optimal viewing in all lighting conditions

6. Robust display technologies provide integration and design flexibility

7. All steel construction designed for harsh and industrial environments

8. Open Frame or chassis mount display, easy-to-install

9. Customer service and sales support help with product selection, order management, and warranty status

10.Supports Windows, Linux OS, Android, Mac OS, etc

11. CE, FCC, RoHS, ISO9001:2008 compliance.

12.VGA, DVI,  AV, S-Video, BNC etc multiple inputs/outputs optional

13. Wide operating temperature from -20 to 80 degrees optional and supports 7/24 running



SPECIFICATION

32 inch high brightness open frame lcd monitor with AR glass for outside kiosk/advertising

Panel

Cell Type/Glass Surface

TFT

Aspect Ratio/Size

32” 16:9

Active Area/Pixel Pitch

698.4(H) x 392.85(V)/0.363mm

Native Resolution/Colors

1920 x 1080 /16.7M

Brightness/Contrast

1500nits/1200:1

Response Time

6.5ms

Viewing Angle(Typical)

89/89/89/89

Light Source

LED backlight 50000h lifetime

Input Signals

VGA, DVI,BNC

Operating Temperature

-10~60

Storage Temperature

-20~70

Convenient Features

Backlight adjustment, Plug & Play, OSD Multi-Languages

Power

Internal power supply with universal/Auto-Sensing, AC110~240V

Power Consumption

Operation/Power Saving

Below 138W

Key Control

Power on/off with LED, Menu, Select, Adjustment(Right/Left)

Order Information

32”Chassis Monitor 1500nits with tempered glass/ITD32CMG1HB01

32”Chassis Monitor 1500nits with IR touch/ITD32CMT2HB01

32”Chassis Monitor 1500nits with PCAP touch/ITD32CMT5HB01

32”Chassis Monitor with projected capacitive touch foil/ITD32CMT7HB01

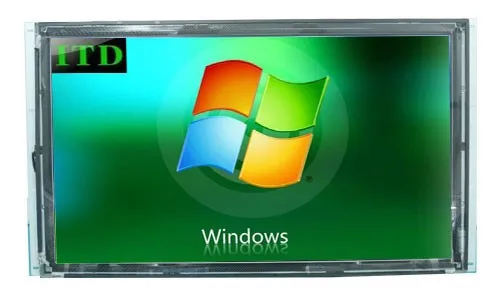

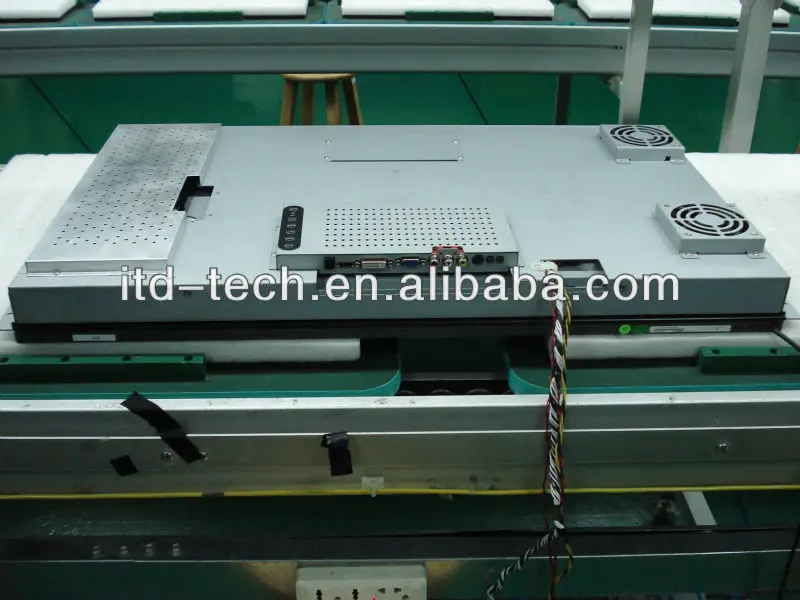

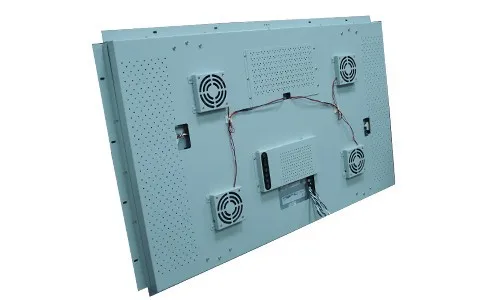

PRODUCTS IMAGES

32 inch high brightness open frame lcd monitor with AR glass for outside kiosk/advertising
