Gaode Hydraulic recycling scrap iron metal baling press
- Category: >>>
- Supplier: Jiangsu Gaode Hydraulic Machinery Co. Ltd.
Share on (1912603978):
Product Overview
Description

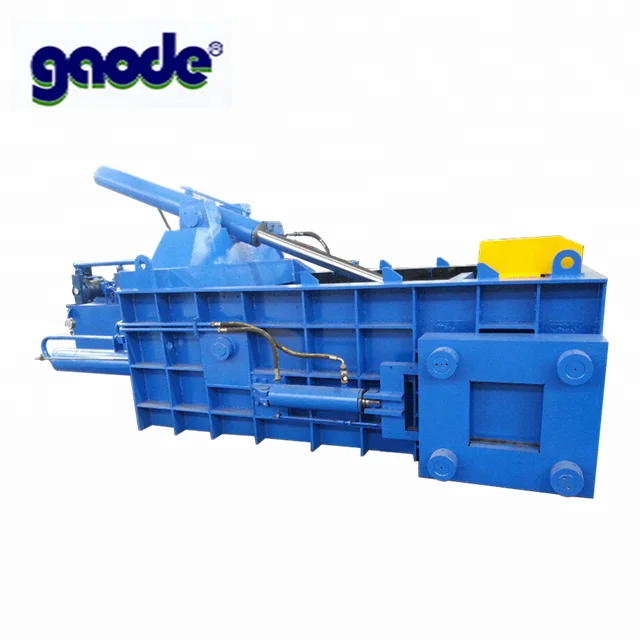

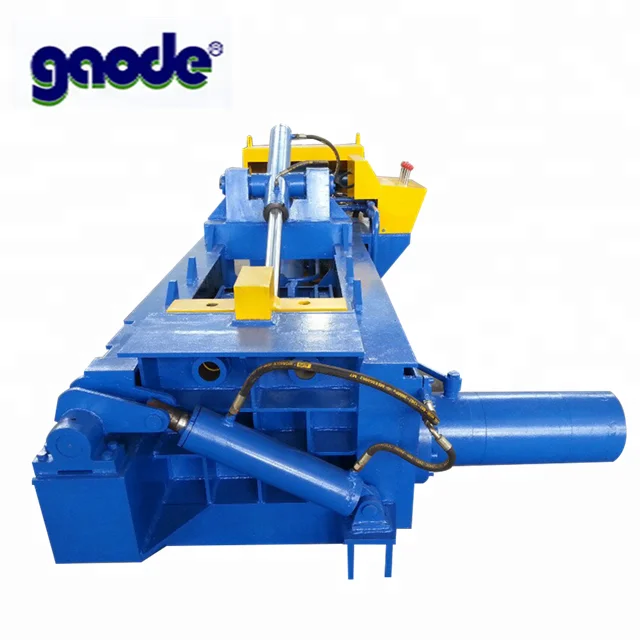

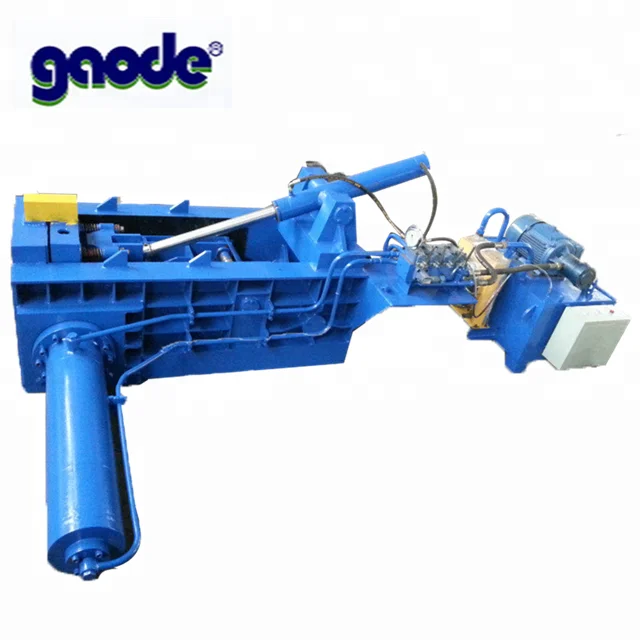

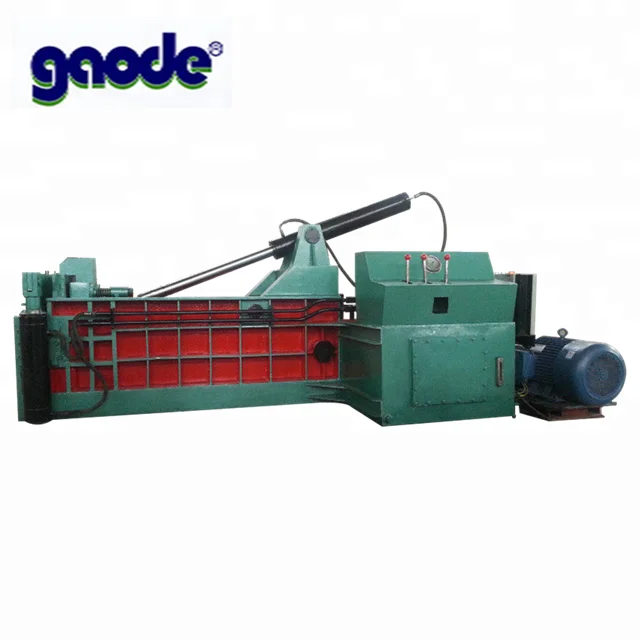

Gaode Hydraulic recycling scrap iron metal baling press
Product Description
Applications
HC81 series of hydraulic metal balers are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features:
1, Hydraulic drive for all machine types, manual valve control or PLC control .
2, Bale-discharging:" turn-out"," push-out "," forward-out" or manual discharging.
3, No footing bolts needed in installation ; diesel engine can be equipped for power.
4, Baling force 10 grades from 63 to 400 tons ; productivity from 4 to 40 tons per shift
( 8 hours )
5, Press box size, bale size & bale shape can be customized
Hydraulic Metal Baler (push-out style):
Model | Force | Press box size (L*W*H) | Bale size (W*H) | Density | Capacity | Cycle time | Power | Discharging |
(KN) | (MM) | (MM) | (KG/M3) | (KG/H) | (S) | (KW) | ||
HC81/T-1250 | 1250 | 1200*700*600 | 300*300 | ≥1800 | 1500-2000 | 80 | 15 | Push-out, manual valve or PLC control
|
HC81/T-1250B | 1250 | 1400*800*700 | (250-450)*300*300 | ≥1800 | 2000-2500 | 85 | 18.5 | |
HC81/T-1600 | 1600 | 1600*1000*800 | (400-600)*350*350 | ≥1800 | 2500-3000 | 150 | 22 | |
(400-600)*400*400 | ||||||||
HC81/T-1600B | 1600 | 1600*1200*800 | (400-600)*350*350 | ≥1800 | 2500-3500 | 160 | 30 | |
(400-600)*400*400 | ||||||||
HC81/T-2000 | 2000 | 1600*1200*800 | (400-700)*400*400 | ≥1800 | 3500-4000 | 160 | 30 or37 | |
HC81/T-2000B | 2000 | 1800*1400*900 | (400-700)*400*400 | ≥1800 | 4000-4500 | 160 | 30 or37 | |
HC81/T-2500 | 2500 | 2000*1400*900 | (400-700)*500*500 | ≥1800 | 4000-5000 | 160 | 44or60 | |
HC81/T-2500B | 2500 | 2000*1750*1000 | (450-800)*600*600 | ≥1800 | 4500-5500 | 160 | 60 | |
HC81/T-3150 | 3150 | 2000*1400*1200 | (450-700)*600*600 | ≥1800 | 4500-6000 | 160 | 60 | |
HC81/T-3150B | 3150 | 2600*1750*1200 | (450-800)*650*650 | ≥1800 | 5000-6500 | 160 | 90 | |
HC81/T-4000 | 4000 | 2600*1750*1200 | (500-1000)*650*650 | ≥1800 | 5500-7000 | 160 | 90 | |
HC81/T-4000B | 4000 | 3000*2000*1200 | (600-1100)*600*700 | ≥1800 | 6000-8500 | 160 | 110 | |
HC81/T-5000 | 5000 | 5000*2000*1200 | (600-1100)*600*700 | ≥1800 | 9000-11500 | 180 | 110 |
Company Information
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes. Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
The Exhibition
Our Certificate
Our Factory
Our Services
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
FAQ
1, Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2, Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3, Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4, Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
5, Q: Can we order one set machine?
A:Yes, you can.
