silent water circulating pump, domestic hot water circulating pump, circulating heat pump

Product Overview

Description

Materials

• Motor wire: copper


• Motor housing:Aluminium


• Rotor can: stainless steel


• Impeller: PP /stainless steel


• Pump body: cast iron


• Shaft: stainless steel

Liquid

• Liquid temperature range: -10- 110°C

Installation

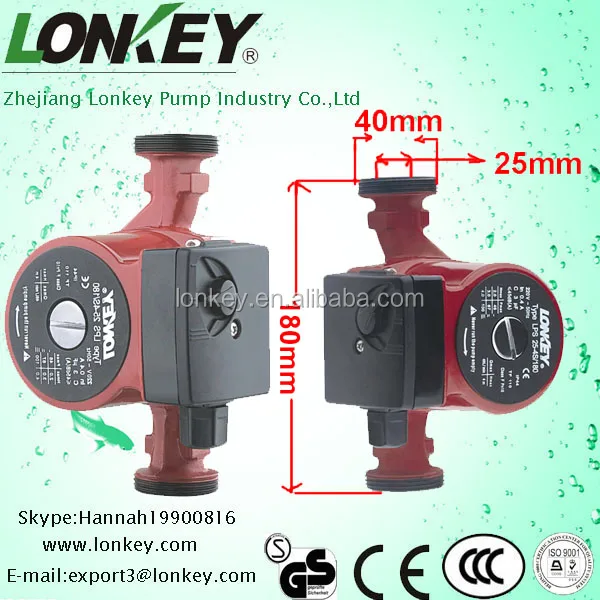

• Size, pipe connection: G1.5",DN25mm


• Port to port length: 180mm


• Max-operating pressure: 10bar


• Pressure stage, pipe connection: PN10

Flow and head

• Max-flow: 46L/min


• Max-head: 4m

Electrical data

• Input power (speed 1): 85W


• Input power (speed 2): 63W


• Input power (speed 3): 40W


• Mains frequency: 50/60Hz


• Rated voltage: 110/220V

Packing

G.W.: 2.8KG

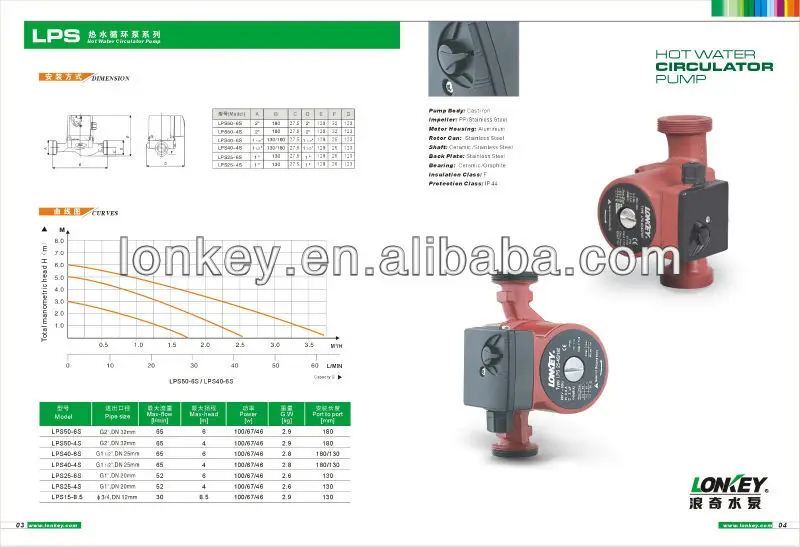

Model	Rated power	Pipe	Qmax	Hmax	G.w	Packing	Port to port	Description
		size	flow			Dimension	space
	[W]	[mm]	[l/min]	[m]	KGS/PCS	[cm]	[mm]	TECHNICAL DATA:
LPS15-8.5Z	100	3/4 DN12mm	30	8.5	3.2	38x26x30.5 (8PCS/CTN)	160	Liquid temp.:-10°C to +100°C
								Operat.pres.: Max.10 bar
								Ambient temp.:40 °C
LPS25-4S	100/67/46	G 1" DN20mm	52	4	2.6	32x29x29.5 (8PCS/CTN)	130	POWER SOURCE:
								VOLTAGE:1~230V
								Frequency:50hz/60Hz
LPS25-6S	100/67/46	G 1" DN20mm	52	6	2.6	32x29x29.5 (8PCS/CTN)	130	CONSTRUCTION MATERIALS:
								Motor wire:Copper
								Pump body : Cast iron
LPS40-4S	100/67/46	G 1.5" DN25mm	65	4	2.8	32x29x29.5 41.5x28x31.3 (8PCS/CTN)	180/130	Impeller:PPO
								Motor house:Aluminium
								Bearing:China
LPS40-6S	100/67/46	G 1.5" DN25mm	65	6	2.8	32x29x29.5 41.5x28x31.3 (8PCS/CTN)	180/130	Degree of protection:IP44
								Insulation class:F
LPS50-4S	100/67/46	G 2" DN32mm	65	4	2.9	41.5x28x31.3 (8PCS/CTN)	180
LPS50-6S	100/67/46	G 2" DN32mm	65	6	2.9	41.5x28x31.3 (8PCS/CTN)	180
LPS25-13Z	260	G 1" DN20mm	60	13	6.3	41.5x28x16.5 (4PCS/CTN)	180



1.	Can I buy one as sample?
A:	Yes, of course. MOQ of solar pump is 1 piece.
2.	Are you a factory or trading company?

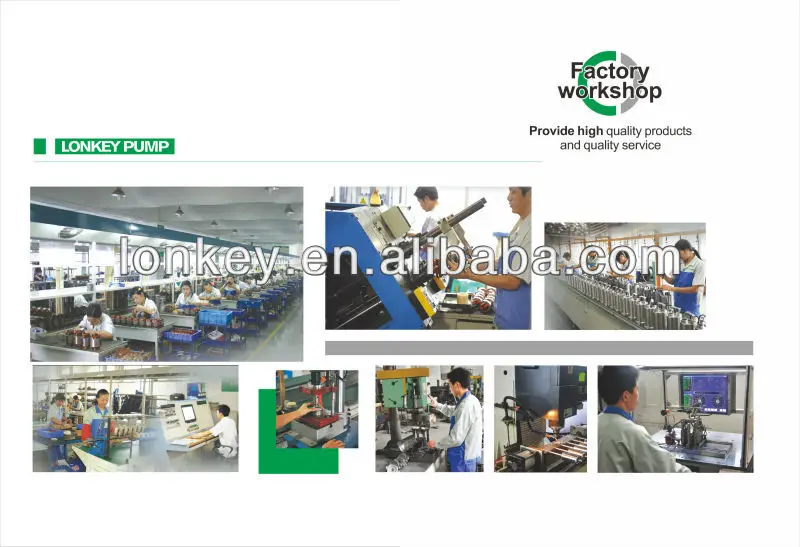

A:	We are the factory which focused on water pump for more than 23 years
3.	Can you make OEM?
A:	Yes, you can put your logo and brand on the box.
