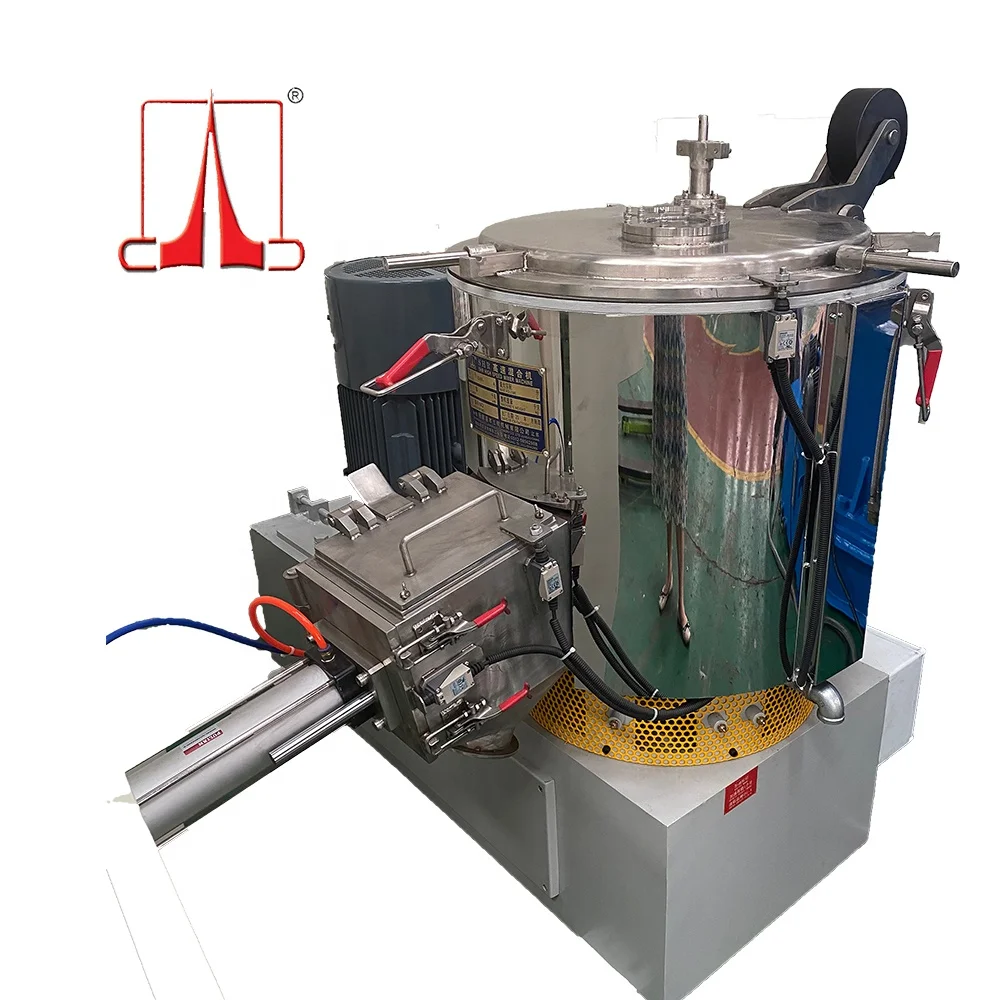

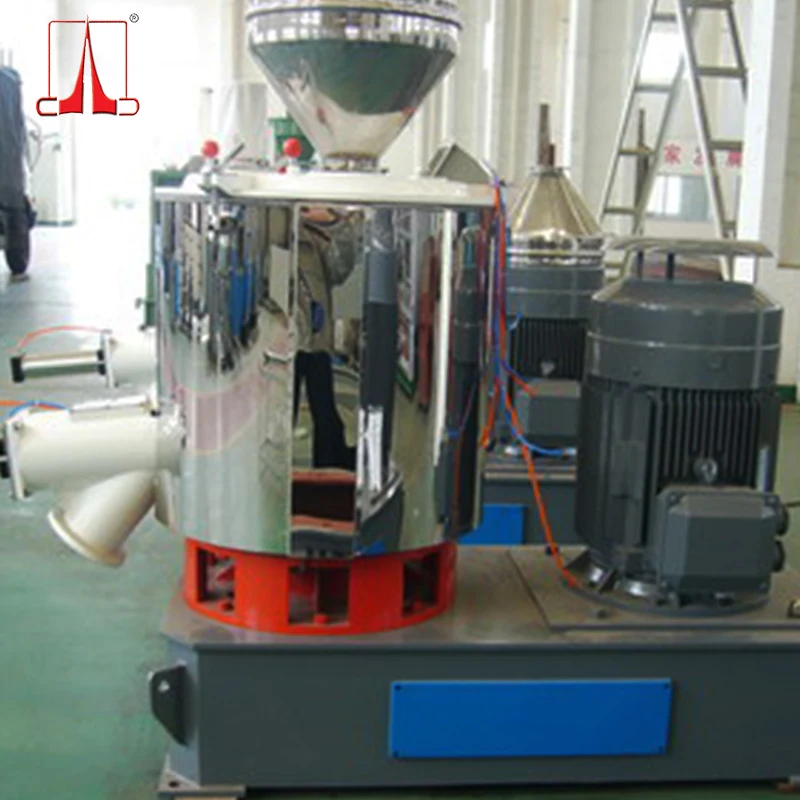

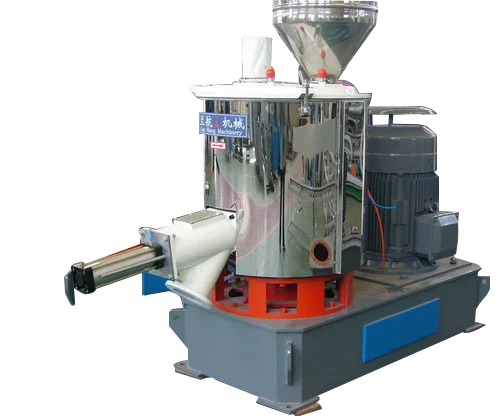

High Speed Plastic Mixer Unit Machine
- Category: >>>
- Supplier: Zhangjiagang Lanhang Machinery Co. Ltd.
Share on (1912729630):
Product Overview
Description
Why Choose Vertical Plastic Mixer Unit Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu, Blue Star, Wacker, Momentive...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Application of Lanhang Brand Vertical Plastic Mixer Unit
SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
Main Parameters of Our Vertical Plastic Mixer Unit
Model | SRL-Z50/100A | SRL-Z100/200A | SRL-Z200/500A | SRL-Z300/600A | SRL-Z500/1000A | SRL-Z800/1600A |
Total Volume (L) | 50/100 | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Working Volume (L) | 37/70 | 75/160 | 150/320 | 225/360 | 375/640 | 560/1100 |
Motor Power (Kw) | 7/11/5.5 | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Paddle Speed (rpm) | 800/1500/220 | 650/1300/180 | 475/950/130 | 475/950/130 | 430/860/60 | 390/500/50 |
Gas Consumption (t/h) | 2 | 3 | 4 | 5 | 6 | 10 |
Heating Method | Electric / Friction | |||||
Cooling Method | Water / Oil | |||||
Discharging Method | Manual / Pneumatic | Pneumatic | ||||
Mixing Time | 6-8 min/pot | |||||
Dimension (m) | 2.4x1.8x2.0 | 2.5x2.0x2.2 | 4.5x2.3x2.4 | 4.5x2.6x3.2 | 4.6x3.0x4.0 | 6.2x4.2x4.5 |
Weight (T) | 2 | 3 | 3.5 | 4.2 | 5.8 | 8 |

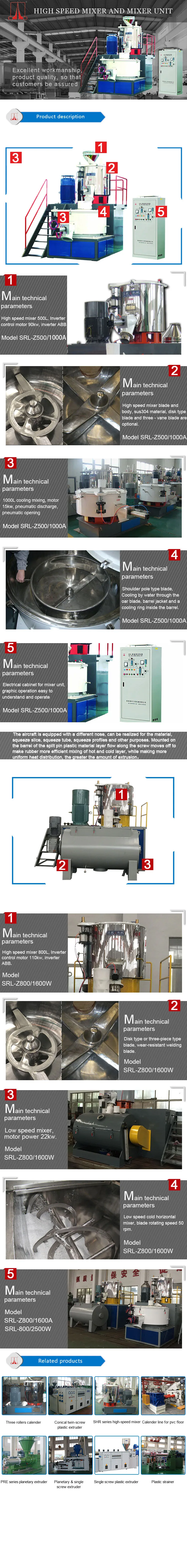

Our Company Show Vertical Plastic Mixer Unit
Packaging & Shipping
Wood Pallet & Film Wrap ( Plastic Mixer Unit )
Our Services
Vertical Plastic Mixer Unit
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
