Automatic X ray Film Processor

Product Overview

Description

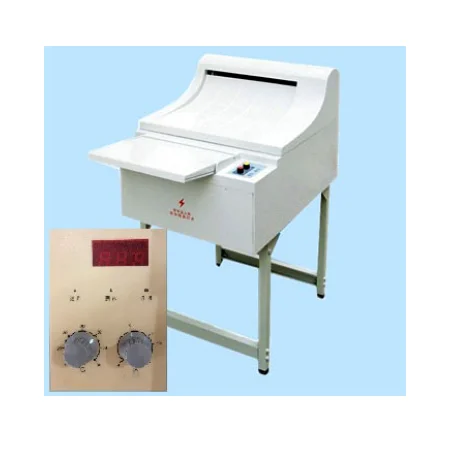

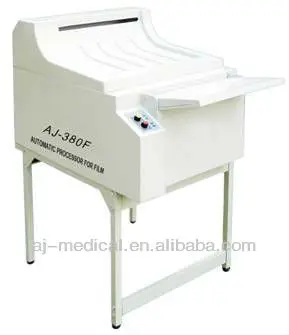

Automatic X-ray Film Processor AJ-380F















Feature

*2.4 inch LCD screen, can display developer, fixer, drying temperature and processor speed

*with Intel chip, it has the function of failure analysis and troubleshooting.

Specifications

1. Film size: *Standard film: single piece(76×152~356×432)(mm)(3”×6”~14”×17”)

2. Max. film width: 14’’, length have no limited.

3. Tank volume: Developer 8.5L, fixer 8.5L, water 8.5L

4. Processor speed: 90s-360s adjustable

5. Develop time: 20s-90s choice

6. Develop temp: 20℃-42℃ adjustable

7. Drying temp: 40℃-60℃ adjustable

8. Developing Capability: 80films/hour (14’’x17’’), 120films/hour(10’’x12’’)

9. Supplement fluid methods: automatic or manual

10. Supplement fluid volume: setting between 20ml-400ml

11. Water wash control: Control by magnetic valve automatically, inflow water while  film in

12. Film in mode: Photoelectric reaction

13. Developing sequence: Developing, fixing, washing, drying

14. Stand by: 24hours

15. Noise: ≤55

16. Size: L*W*H 880x560x1100mm

17. Net Weight:60KGS, Gross Weight:80KGS
