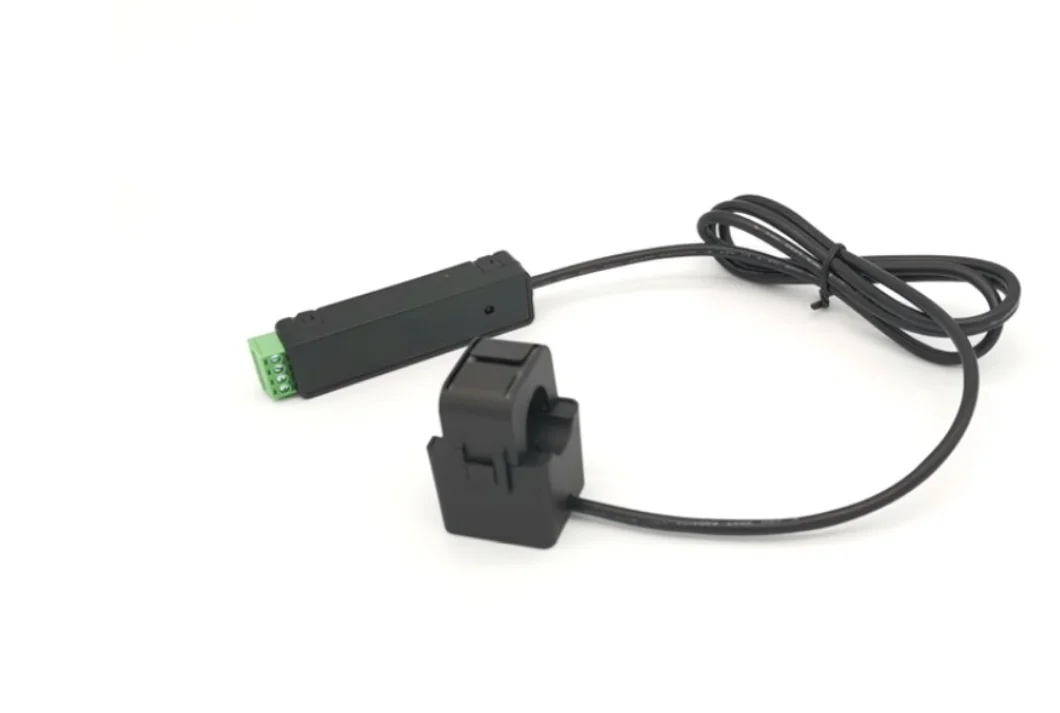

ac current transducer(hall effect transducer) with 4 20mA /0 5V /0 10V output

Product Overview

Description



Split core DC current sensor 0-5V DC ,0-40mA DC secondary

The current transmitter converts the AC current signal into a standard electrical signal, and drives and transmits it in a constant voltage or constant current mode; it has the advantages of high precision, small size, low power consumption, strong anti-interference ability, etc. It is especially suitable for motors and intelligent low voltage Intelligent monitoring system for load current such as power distribution cabinet and PLC automation.

Specifications
Input current: 0 to 80A AC
Output Signal: 0-5V DC,4-20mA DC
Measurement Accuracy: +/- 1%
Linearity: +/- 1%
Temperature drift: <5%
Auxiliary power supply: DC12-24V
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing

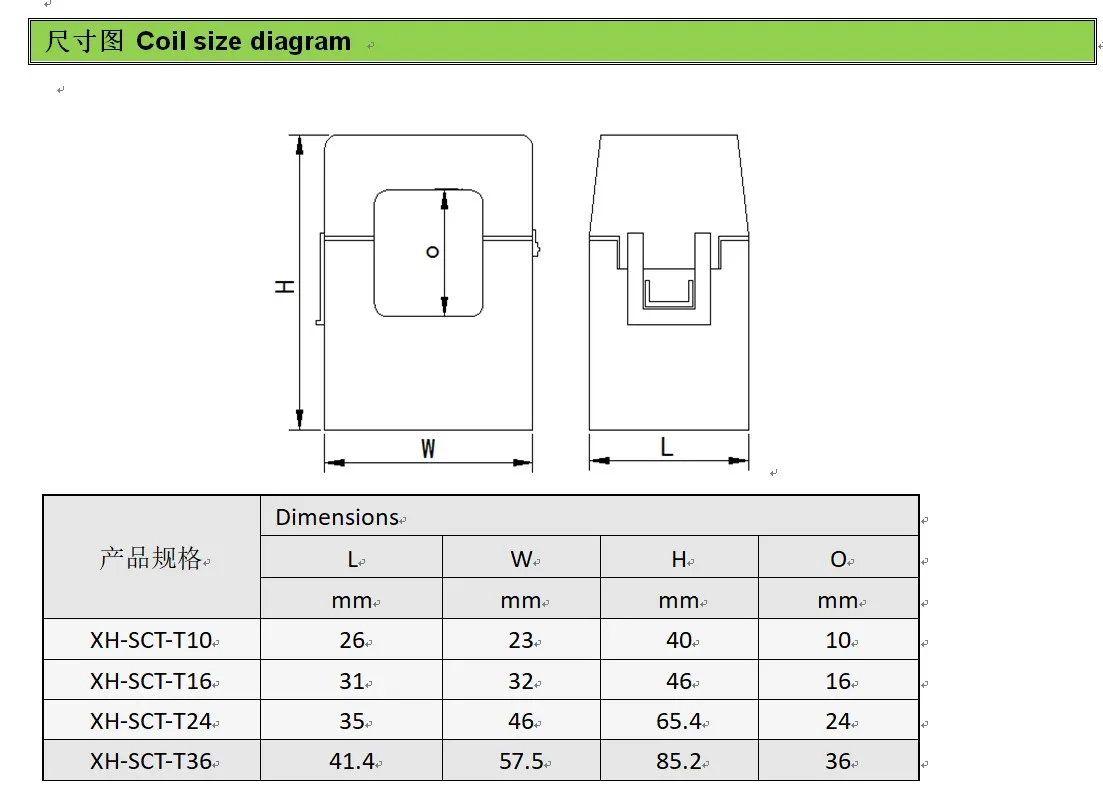

Current range(AC)	SCT10	SCT16		SCT24		SCT36	SCT50	A
	5-80	10-120		10-300		10-500	10- 1000
Measure range	1% - 100%								%
Power frequency	45-65								Hz

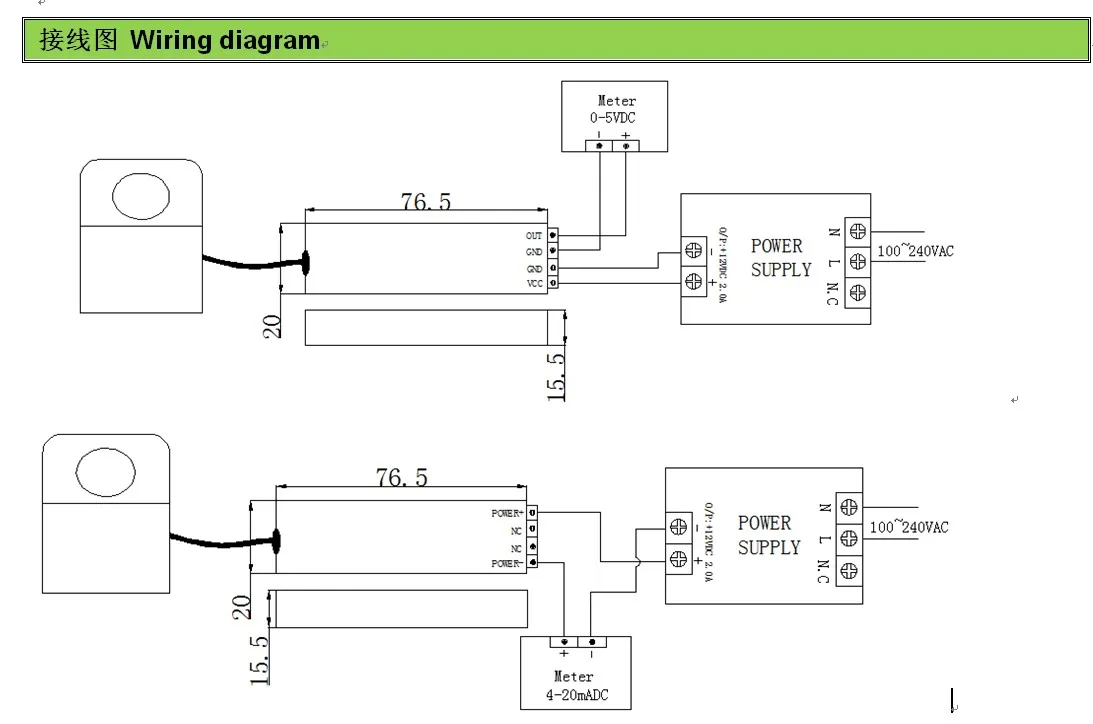

Output	0-5VDC		0-10VDC		4-20mADC				Ω
Load	≥100K		≥100K		≤500
Supply voltage	12/24V								V
Power Consumption	<40								mA
Offset drift	@ -25~+70℃           ≤±1								mV/℃
Accuracy	≤1								%

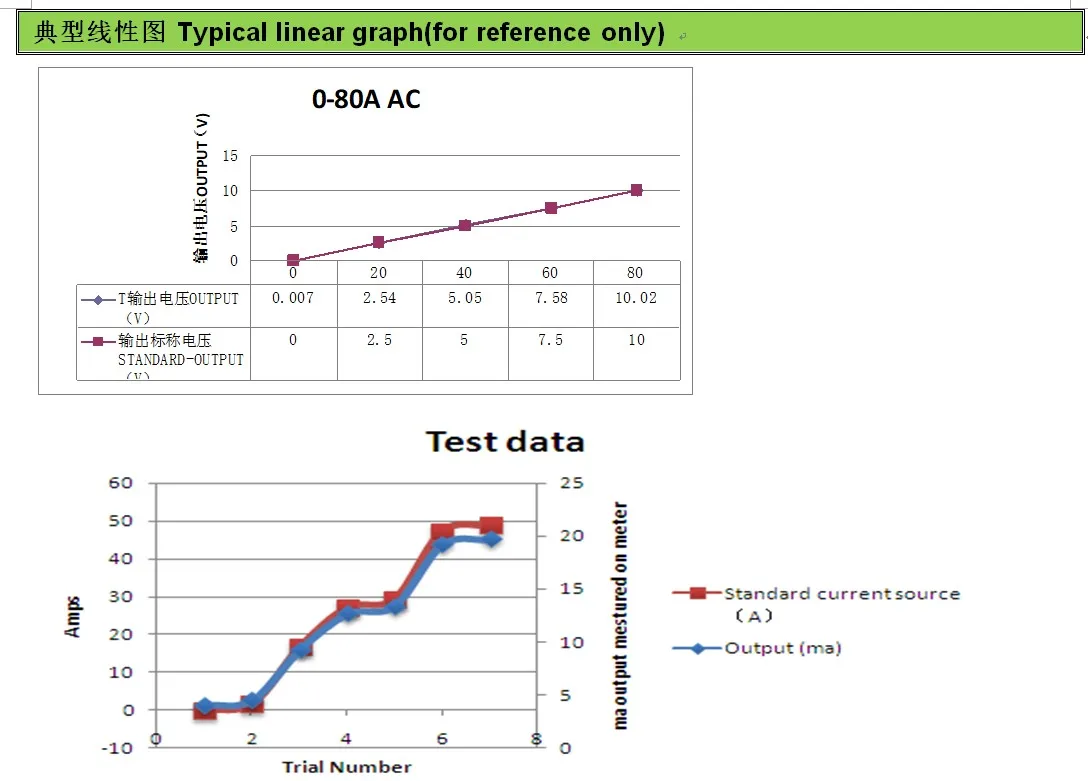

Linearity	≤1								%FS
Response time	≤20								ms
Galvanic isolation	AC,1min                 10								KV
Isolation resistance	@ DC 500V              1000								MΩ
(TA) Operating temperature	-25 to +70								℃
(TS) Storage temperature	-40 to +85								℃

















 Strong items



Certifications

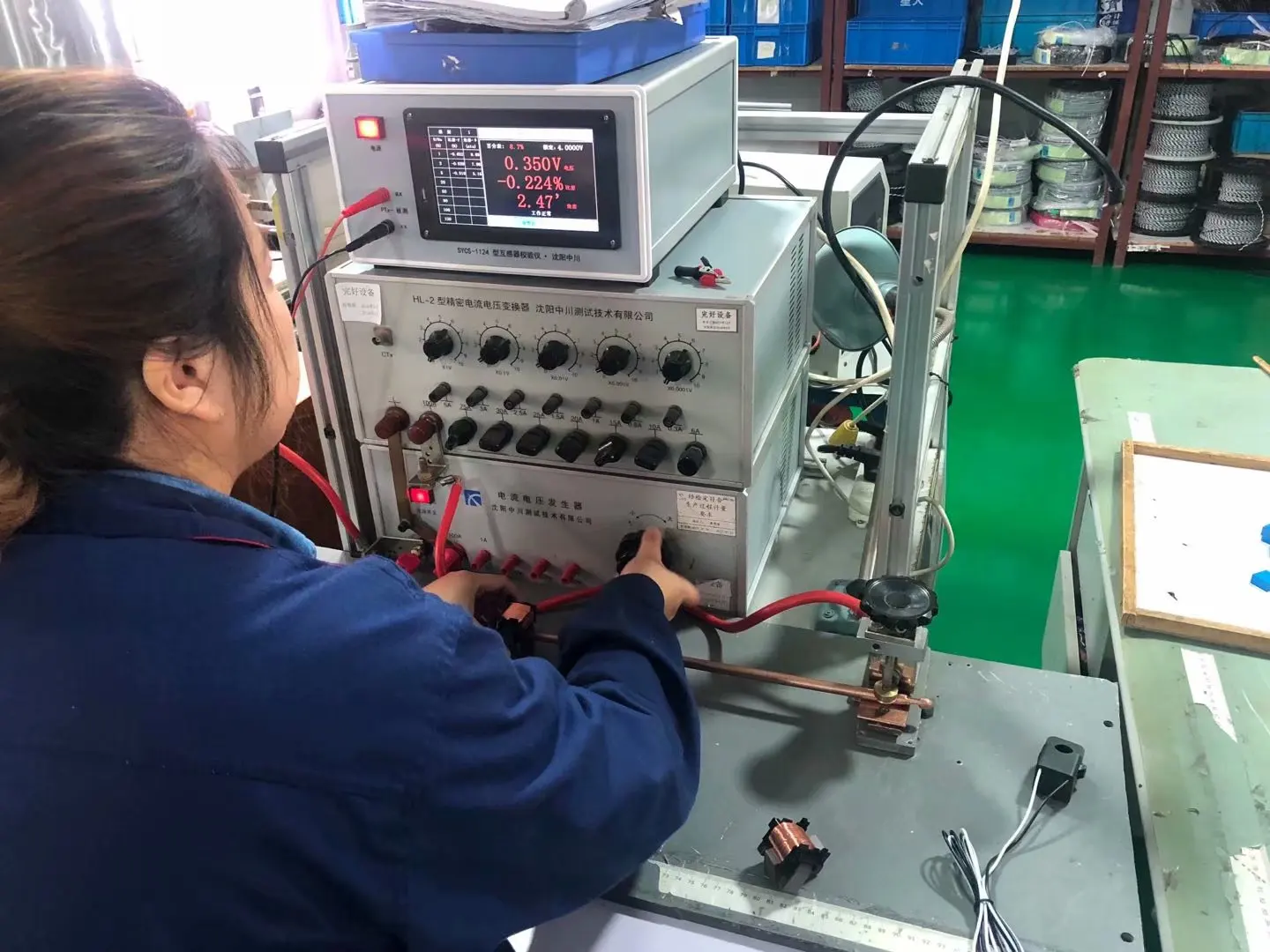

Quality Control
