1P/2P Air conditioning AC contactor,dp air condition contactor /air conditioning magnetic contactor30A 40A 24V

Product Overview

Description

1P/2P AC Air contactors 24V(30A~60A)

Application:

  AC Air contactor is suitable for electric circuit up to the rated voltage of 660V AC 50 Hz or 60Hz,rated current up to 95A  for making,breaking,frequently starting&controlling AC motor.Combined with the auxiliary contact block,time delay&mechnical interlock device etc,it becomes the delay contactor,mechnical interlock contactor,star-delta starter.With the thermal relay,it is combi-ned into the electromagnetic starter.The Contactor is produced according to IEC947-2,VDE0660&BS5452



SPECIFICATIONS:



Insulating Material	Contact block and carrier are high quality electrical-grade thermosettin resin
Temperature Range	-40oF to 150oF
Mechanical Life	Conforms to UL and ARI specifications
Electrical Life	Conforms to UL and ARI specifications
Weight(approximate)	16oZ
Coils Frequency	50/60HZ
Coil Insulation	Class B(130°c); 24 through 208/240 Volts AC
Termination	Pressure connector and Double1/4 Q.C.
Operate	85% of nominal coil voltage 110% maximum sate operate
Duty Cycle	Continuous



Coil rating	1Pole contactors				2 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	18	420	1800	2500	11	237	1000	1600
Maximum pick up voltage	18	88	177	221	18	88	177	221
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-165
Nominal rush Va@50Hz	31	31	31	31	33	33	33	33
Nominal rush Va@60Hz	28	28	28	28	30	30	30	30
Nominal rush Va@50Hz	6	6	6	6	8	8	8	8
Nominal rush Va@60Hz	5	5	5	5	6.5	6.5	6.5	6.5
Maximum coil voltage	30	132	264	300	30	132	132	300





Coil rating	3Pole contactors				4 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	7	180	720	900	6	150	600	750
Maximum pick up voltage	18	88	177	220	18	88	177	220
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	65-185
Nominal rush Va@50Hz	65	65	65	65	62	62	62	62
Nominal rush Va@60Hz	60	60	60	60	59	59	59	59
Nominal rush Va@50Hz	7.5	7.5	7.5	7.5	9	9	9	9
Nominal rush Va@60Hz	6	6	6	6	7	7	6	7
Maximum coil voltage	30	132	264	300	30	132	264	300

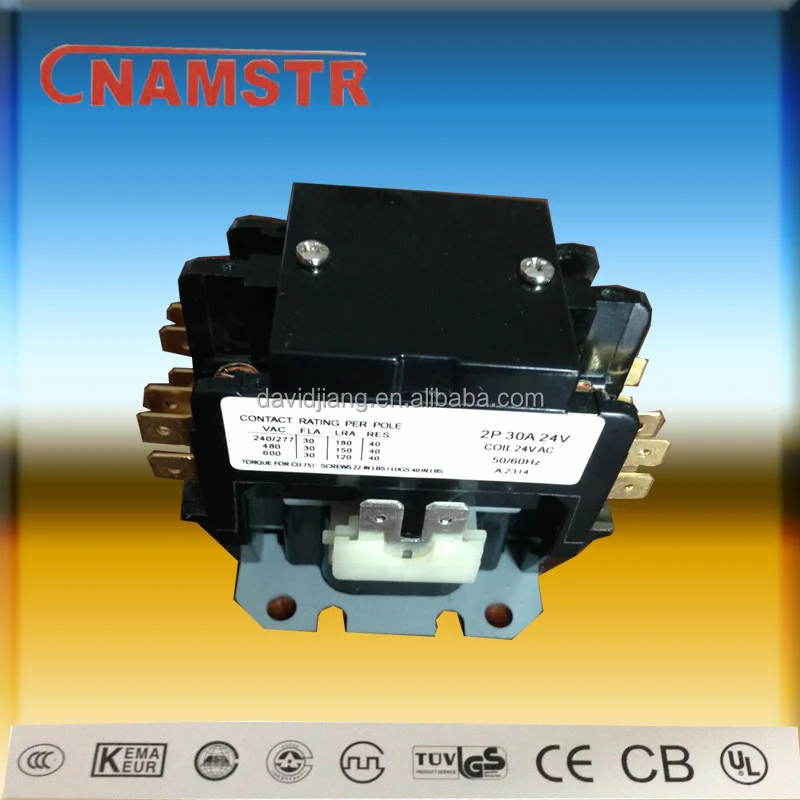

Product photos:





 Certificate :



Sample:

1.Free charge sample: Could provide,freight collect.

2.Samples time: Need 3-15 days to preparing the samples after receiving the payment.

3.Samples payment term: T/T.



Quality Guarantee:

Strictly quality control  before leave factory



Order Guide:

1.Inquiry-Professional quotation.

2.Confirm the price, lead time, packing requirement, payment term etc.

3.sales send the Proforma Invoice with seal.

4.Customer make the payment and send us Bank receipt.

5.Will inform client that we have got the payment, arrange the production & inform the estimated time.

6.After delivery will inform the tracking number and check the status for clients.

7.Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
