Pharmaceutical Vegetable synthetic Gelatin Melting acter Tank For Making soft Capsule And Paintball

Product Overview

Description

Product Description

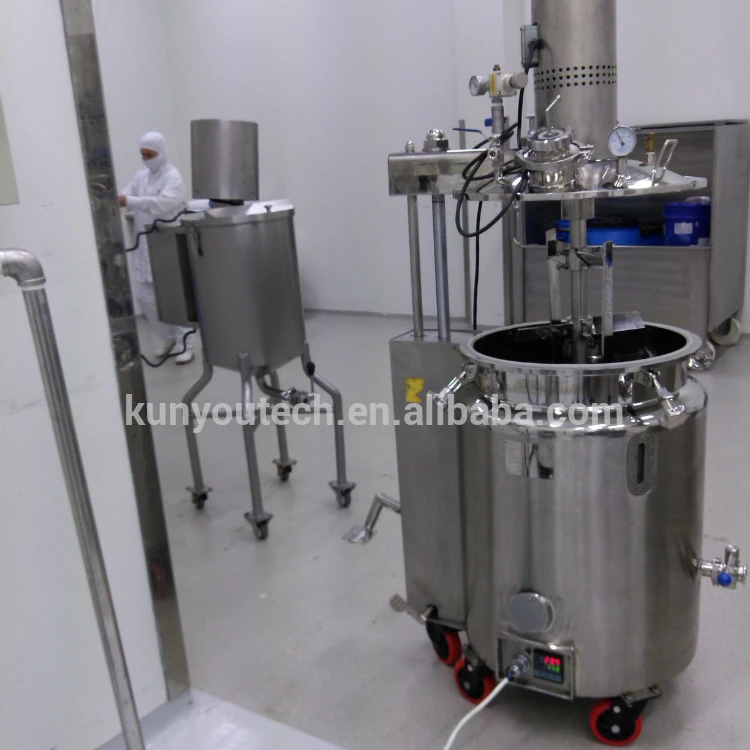

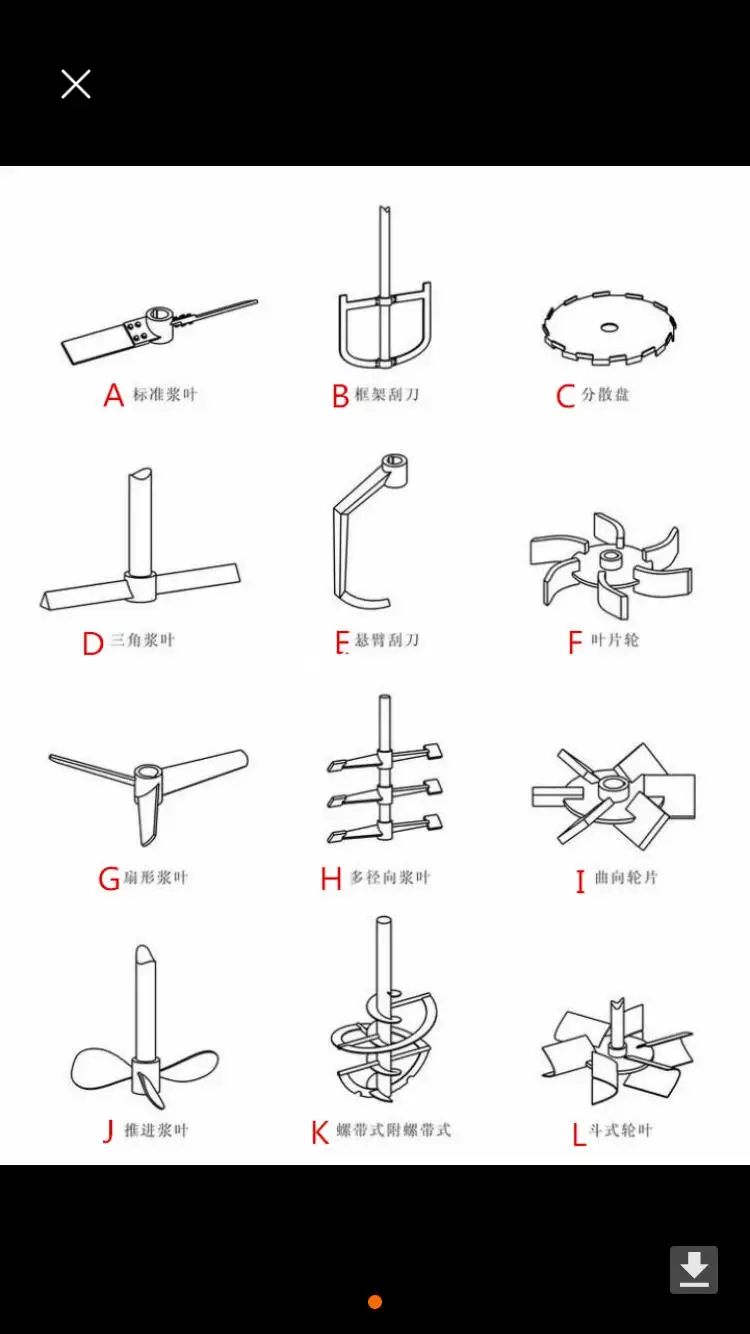

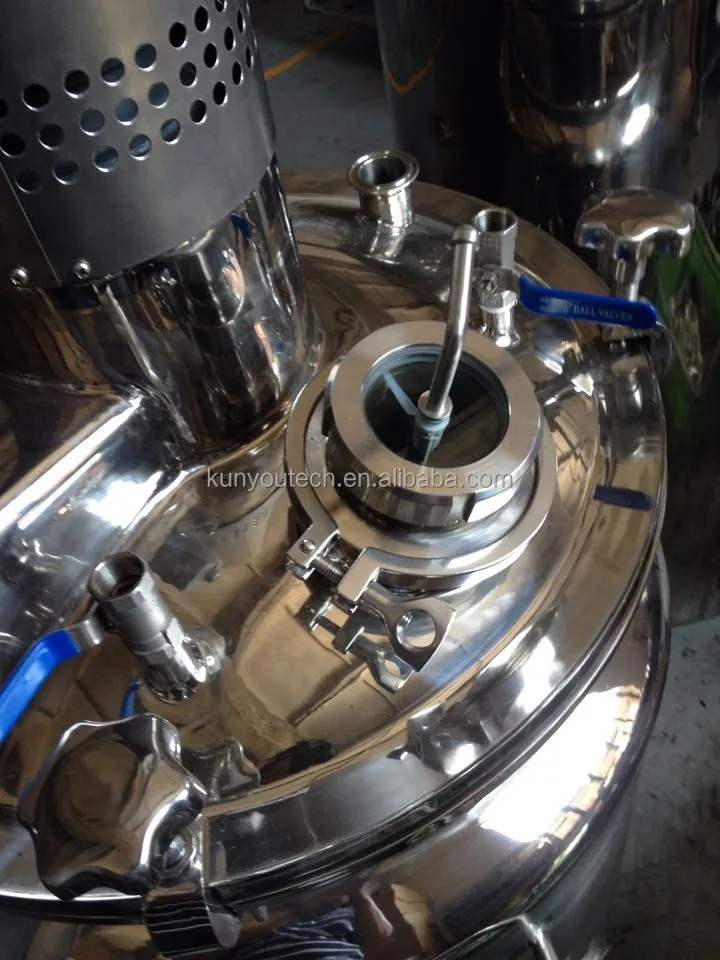

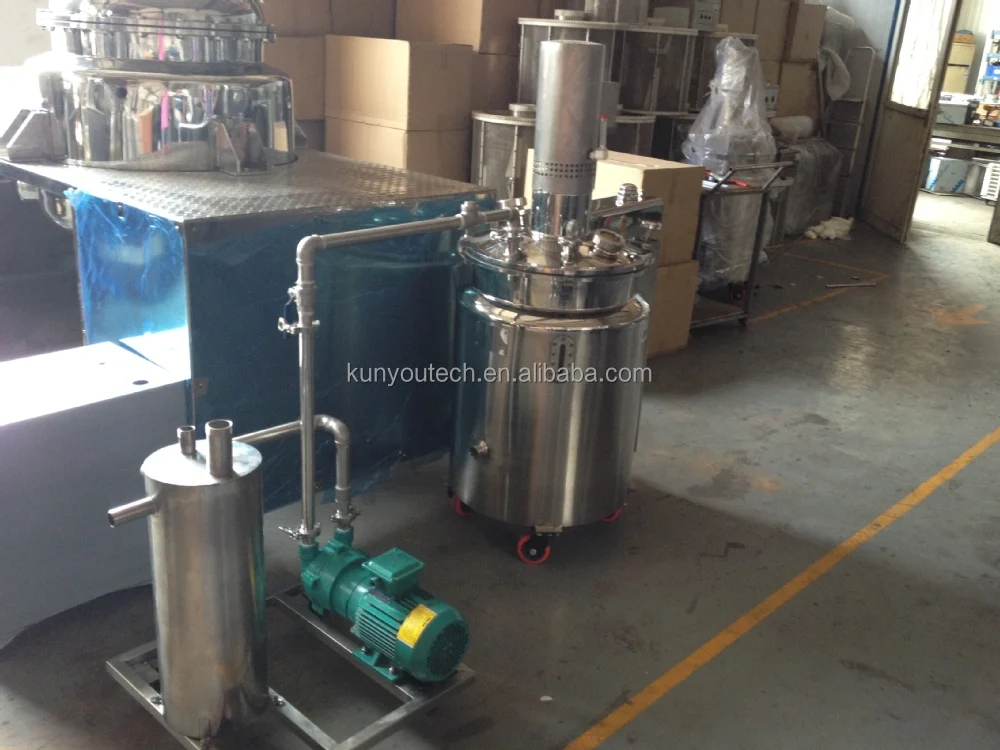

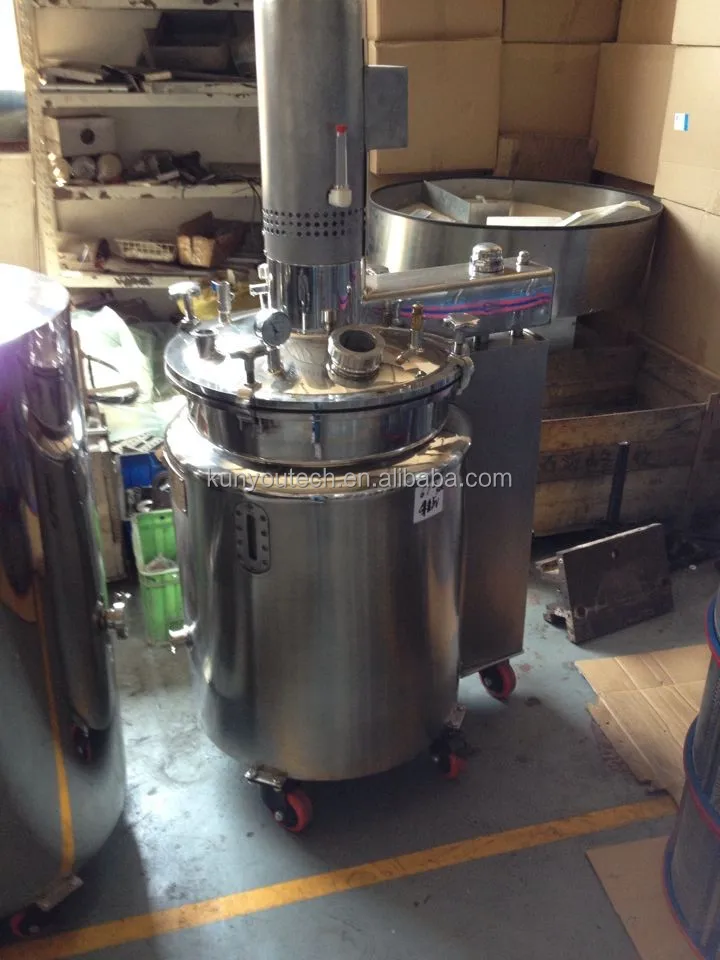

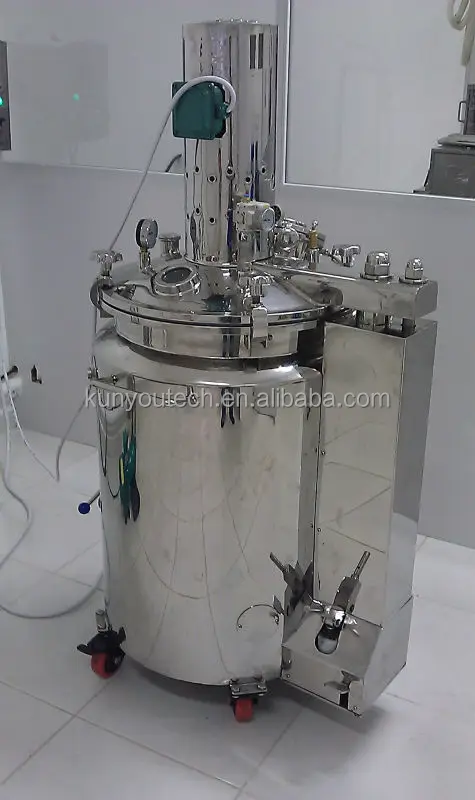

Water bath type gelatin melting tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.





Specification



Model	450L	600L	800L	1000L
Capacity(L)	650	900	1120	1370
Melting gelatin(L)	100-450	150-600	200-800	300-1000
Heating area(M2)	3.2	4	4.8	5.5
Max degree of Vacuum(Mpa)	0.09	0.09	0.09	0.09
Max Temperature(°C)	-100	-100	-100	-100
Motor Power (KW)	4	5.5	7.5	7.5
Stirring speed (r/min)	50	50	50	50
Dimension (mm)	Φ1210X1880	Φ1310X1980	Φ1410X2080	Φ1510X2130
