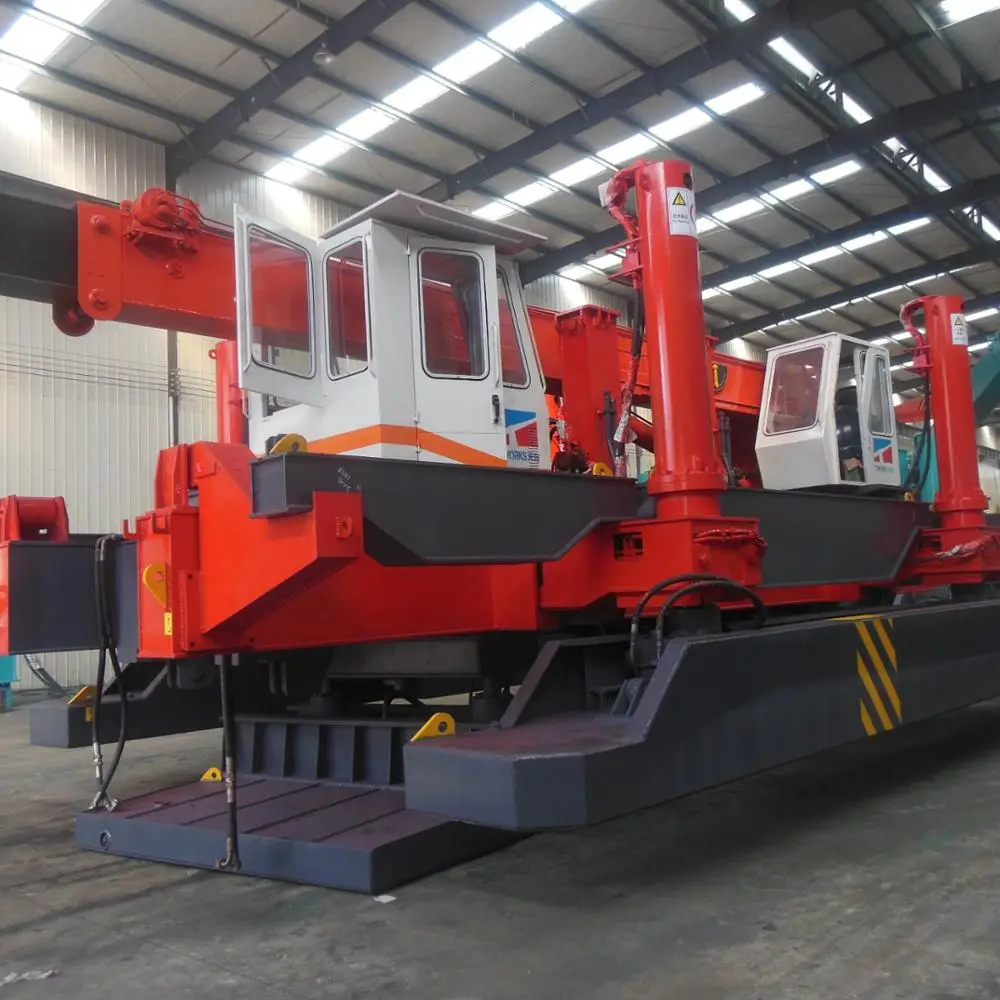

120T Mini Pile Driver ZYC120BS B1 Hydraulic Static Piling Machine For Building Construction

Product Overview

Description

T-WORKS Mini Pile Driver ZYC120BS-B1 Hydraulic Static Piling Machine For Building Construction

1,  Description:Method of Jack-in Piling System
A modern technique by which pre-formed piles (e.g. Prestressed Spun Piles, Precast RC Piles, H-Piles,      Steel Pipe Piles) are hydraulically jacked into the ground as displacement piles.

This mini piling Machine can drive the precast concrete pile from 150mm to 300mm for square pile, 200mm to 300mm for round pile. It also can push the tube, triangle pile, H-pile, etc by changing its jaws inside of the clamping box.



2,  Applications:

• Clay, soft soil, sand layer, etc.


• Noise regulated urban area.


• Vibration regulated areas



3,  Specifications:



paramete / type/model		ZYC120
Rated piling pressure(KN)		1000
(m/min) Piling speed	Fast	6.3
	Low	3.0
Piling stroke(m)		1.6
Pace(m)	Longitudinal	1.5
	Horizontal	0.4
Angle range(°)		15
Rise stroke (m)		1.45
(mm) Square pile	Max	350
(mm) Circle pile	Max	350
Side piling space(mm)		400
Corner piling space(mm)		800
Lifting weight(t)		5.0
Lifting pile's lengh(m)		9.0
Power(KW)	Piling	37
	Lifting	11
Main dimension(m)	Work length	6.7
	Work width	4.2
	Transport height	2.7
Total weight(T)≥		120







Delivery Information:
Port:	Any port of China
MOQ:	1 Unit	Capacity:	300 Unit / Month
Delivery days:	25-30 days after the receipt of L/C
Packing details:	Container packaging or Nude package
Payment terms:	L/C   D/A   D/P   T/T   ..





Our Advantages:
Our promise to the clients:	1. Rapid response to your enquiry in 12 working hours;
	2. Installation and adjustment of the machine on site;
	3.Training the operator and maintabce poeple;
	4. Regular inspection of the machine;
	5. Branch overseas offer quick response within 24 hours upon customer's instruction.





4. More pictures of Hydraylic static pile driver machine:
