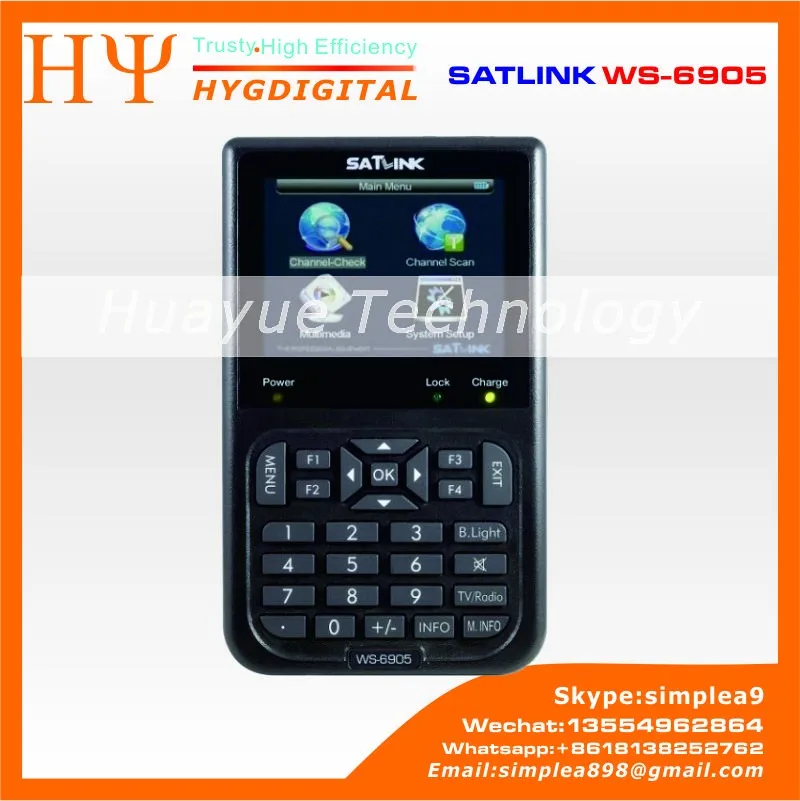

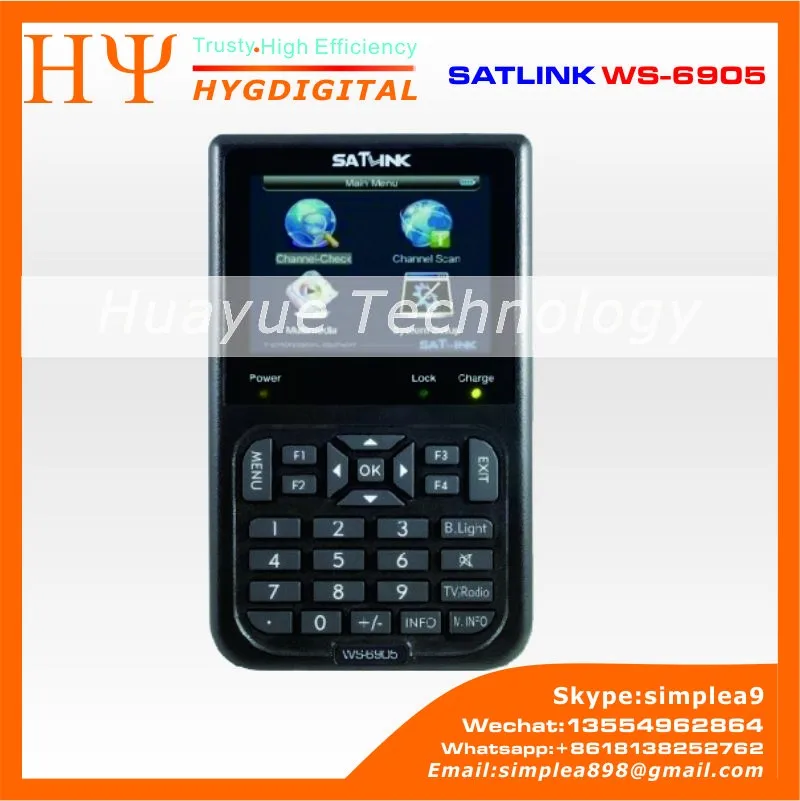

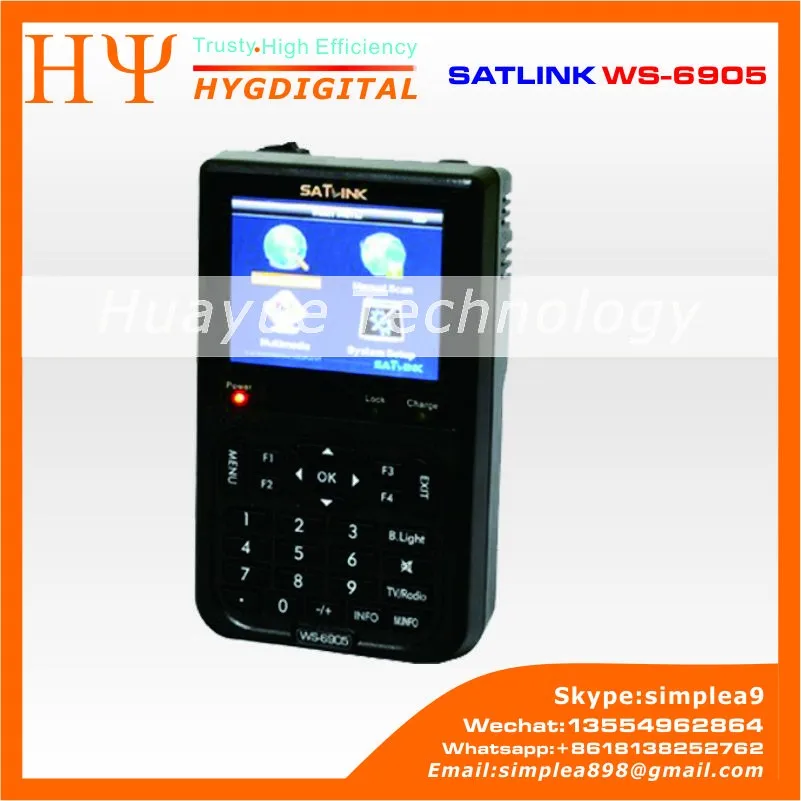

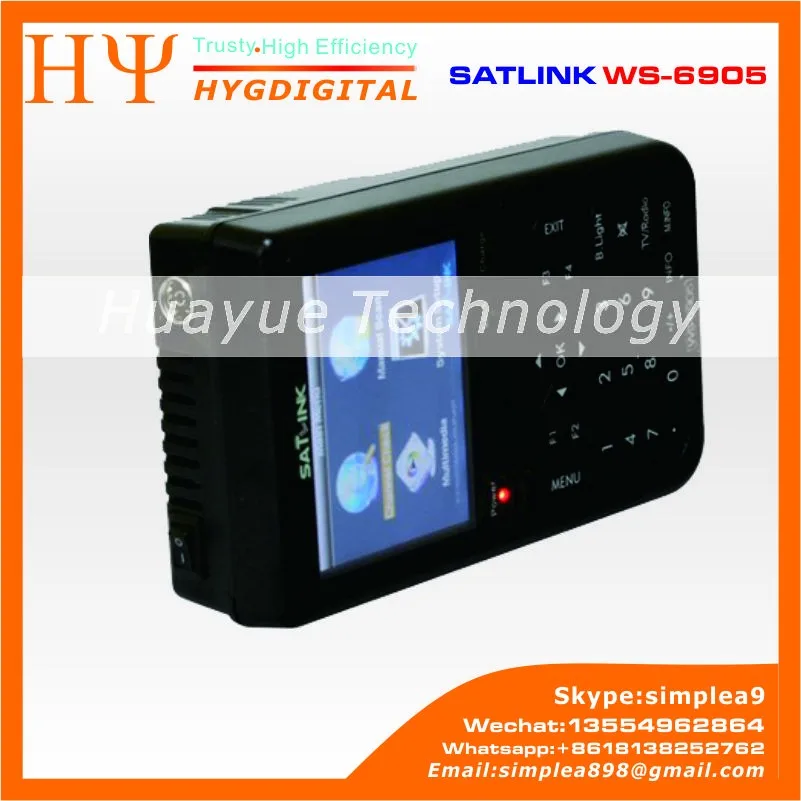

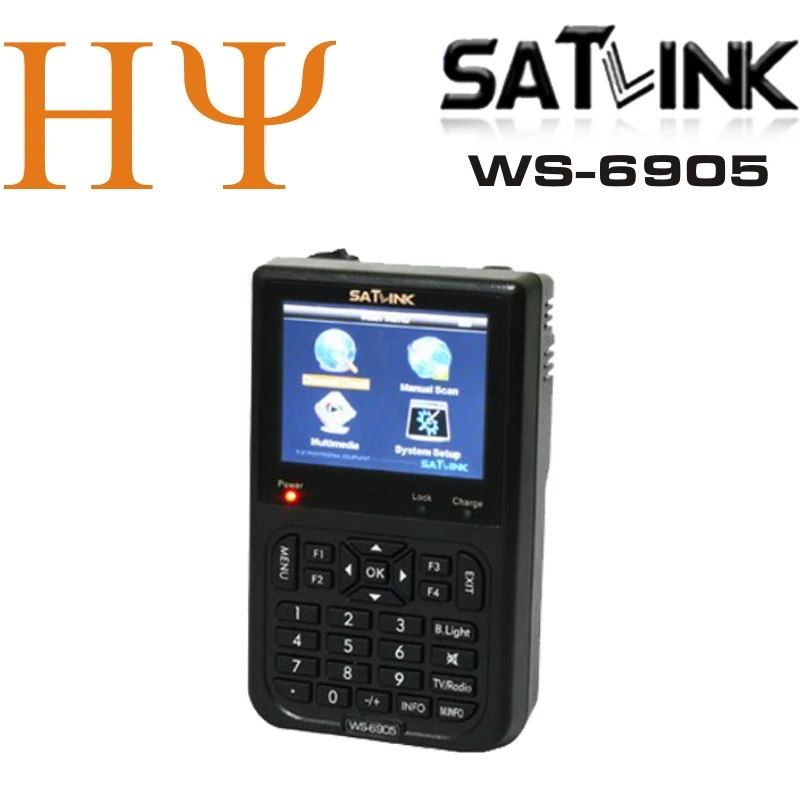

Satlink WS-6905 Digital Terrestrial Signal Finder(DVB-T)
- Original Model

Sat-Link WS-6905 Terrestrial Digital Aerial Meter Specifications:

Features Include:

Frequency range: 46MHz - 870 MHz

Level range: 40dBuV - 110dBuV

Level measurement accuracy: 2dB

Digital Meter for Signal Strength

Sound When Lock Signal

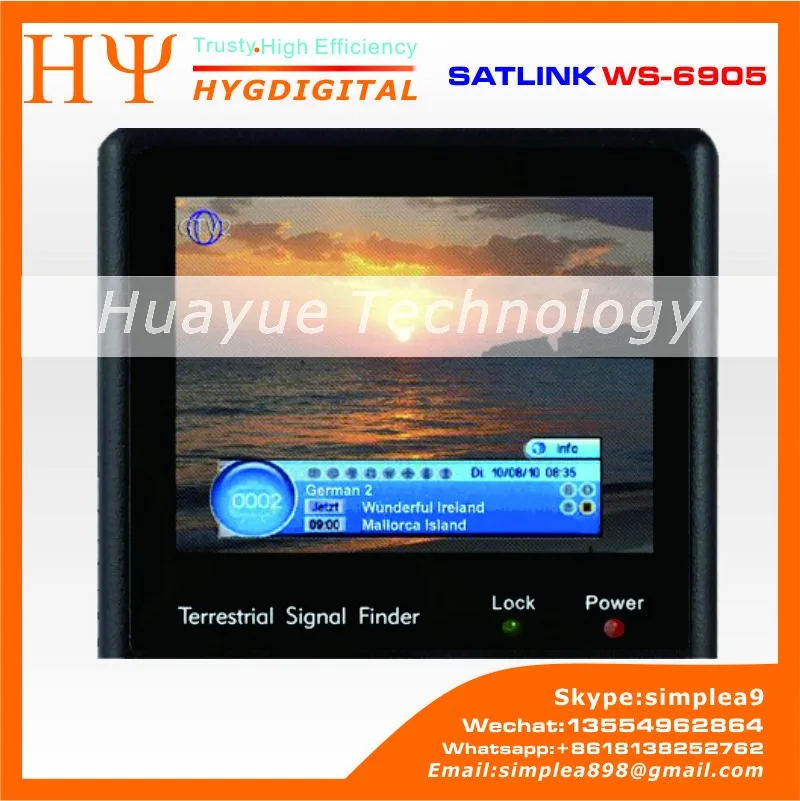

3.5 Inch High definition TFT LCD Screen which Can Play Channels

Auto Search

USB port for software upgrades

Fast Charge LI-ION Battery, Can Last 5 Hours

Easy to carry, size only 9.5cm X 15.5cm X 4.5cm

Technical Details:

Tuner Connector IEC-Type, IEC 169-2, Female

Frequency Range 74MHz to 230MHz (VHF)

470MHz to 862MHz (UHF)

Signal Level 40dBuV - 110dBuV

Demodulation COFDM

Mode 2K, 8K

FEC mode 1/2, 2/3, 3/4, 5/6 & 7/8

Channel Bandwidth 6MHz/7MHz/8 MHz


MPEG Transport Stream A/V Decoding Transport Stream MPEG-2 ISO/IEC 13818


Profile Level MPEG2 MP@ML

Input Rate 15 Mbit/s Max

Video Resolution 720 x 576(PAL), 720 x 480(NTSC),

Audio Decoding MPEG/MusiCam LayerI&II

Memory SDRAM 16Mbyte

FLASH 8Mbyte

Serial data interface Connector USB type

Power supply Li-oN Battery 1950 mA

Supply voltage 12.6Volt

Charger AC 90-240V

Physical Specification Size 9.5x15.5x4.5 (cm) Weight(Net) 0.5 Kg

Items Included:

Sat-Link DVB-T Meter WS6905 With Battery

Neck Strap

Carrying case

12VDC Power Charger

Two Pin 12VAC Mains Power Charger

Video And Audio Adaptor Leads

Technical Specification:

1) We have professional research team. All products are designed buy ourself, so we are experiened in any doubts you have on the product.

2) As a manufacturer, we have our own factory, so we definitely have price advantage on our models!

3) All products are 100% tested working before sent to you.

4) We have professional sales team, so please do not hesitate to contact us if you have any question!

FAQ

Q1: What's your warranty policy?

A1: For all the products, we have one-year warranty. All of our goods are 100% tested working and perfect before sent to you. In case there are unexpected damages during delivery, please do check before you sign for the package.

If you have broken boxes,you can collect them together and send them back to us by post/mail,we will try to repair them for you firstly,if can not repair,we will send you the new motherboard to you to change it.

Q2: What's your minimum order quantity?

A2: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.

Q3: What package do you use for the products?

A3: Usually we have professional retail package for the products. Customized package are also available based on certain MOQ.

Q4: Will your product work in my country?

A4: All of our products are compatible to the international standards, please be subject to the type of network in your country (the band).

Q5: Can I print my own brand logo on your product?

A5: OEM orders are highly welcome. Please write us the details of your logo color, logo position, user manual and box design (if you have) before you send us inquiry. In this way we can offer you most accurate answer at the first time.

Q6: What's your charger standard? Are they available in my country?

A6: Usually we have EU plug, US plug, UK plug and AU plug. Please wirte us your charger standard before you send the inquiry.

Q7: Do you have technical instructions if I buy your product?

A7: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help. We will also send you update software regularly if you need.

Q8: What payment terms do you have?

A8: For small orders, we usually prefer Paypal and Western Union; for the item that are in stock,we accept 100% bank transfer,will send out the goods ASAP received your payment;

for items that are not in stock, we charge 30% deposit and will ship goods out before the 70% balance are received.

Q9:Can i watch all of the channel programs?

A9:This is the satellite receiver/android tv box/DVB-C TV BOX,only can watch the free air program,if you want to watch the not free programs,you must buy an account from your local service.

Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?

A10: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
