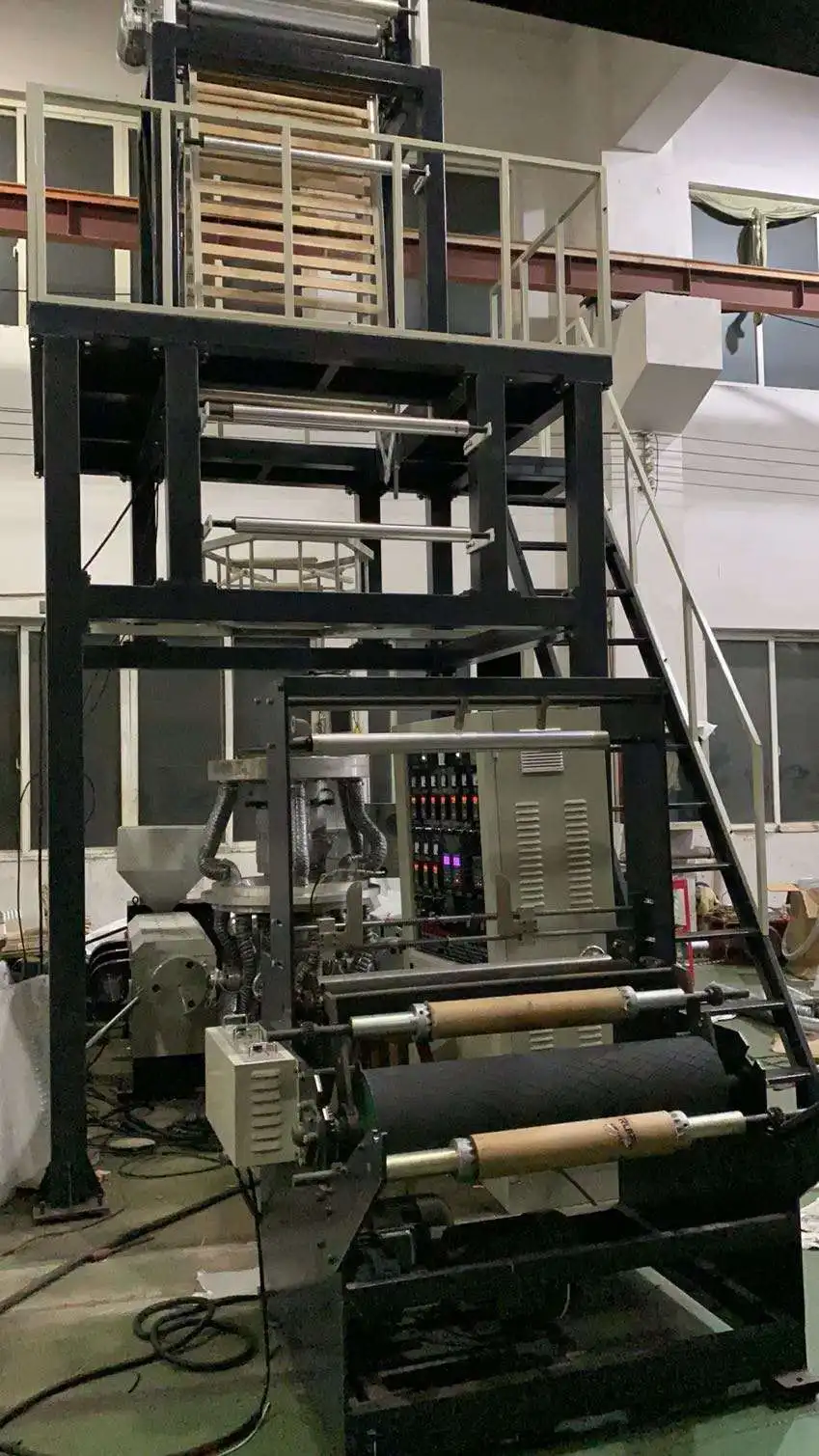

Ruian Ruipai Ruiplas Brand LDPE Biodegradable Co Extrusion Nylon ABA HDPE 3 Layer blowing film machine
- Category: >>>
- Supplier: Ruian Ruipai Machinery Co. Ltd.
Share on (1917558744):
Product Overview
Description
Product Description
Specification
Specification | ||
Model | RP-ABA600 | |
Suitable material | HDPE ,LDPE | |
Reduced diameter of film(mm) | 100-600mm | |
Single-face Thickness of film(mm) | HDPE:0.006-0.08mm LDPE:0.01-0.1mm | |
Max. extrusion capacity | 100kg/h | |
Outline diameter(L×W×H)(mm) | 6000×5500×5500 | |
Weight(T) | 4T | |
Extruder-A | ||
Diameter of screw | 45MM | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3zone | |
Cooling fan | 250w×2 | |
Filter changer heating zone | 1 zone | |
Filter changer material | NO.45 Aluminum | |
Main power | 11kw | |
Gearbox | 133, oil pump, water cooling type | |
Extruder-B | ||
Diameter of screw | 45MM | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3zone | |
Cooling fan | 250w×2 | |
Filter changer heating zone | 1 zone | |
Filter changer material | NO.45 Aluminum | |
Main power | 11kw | |
Gearbox | 133, oil pump, water cooling type | |

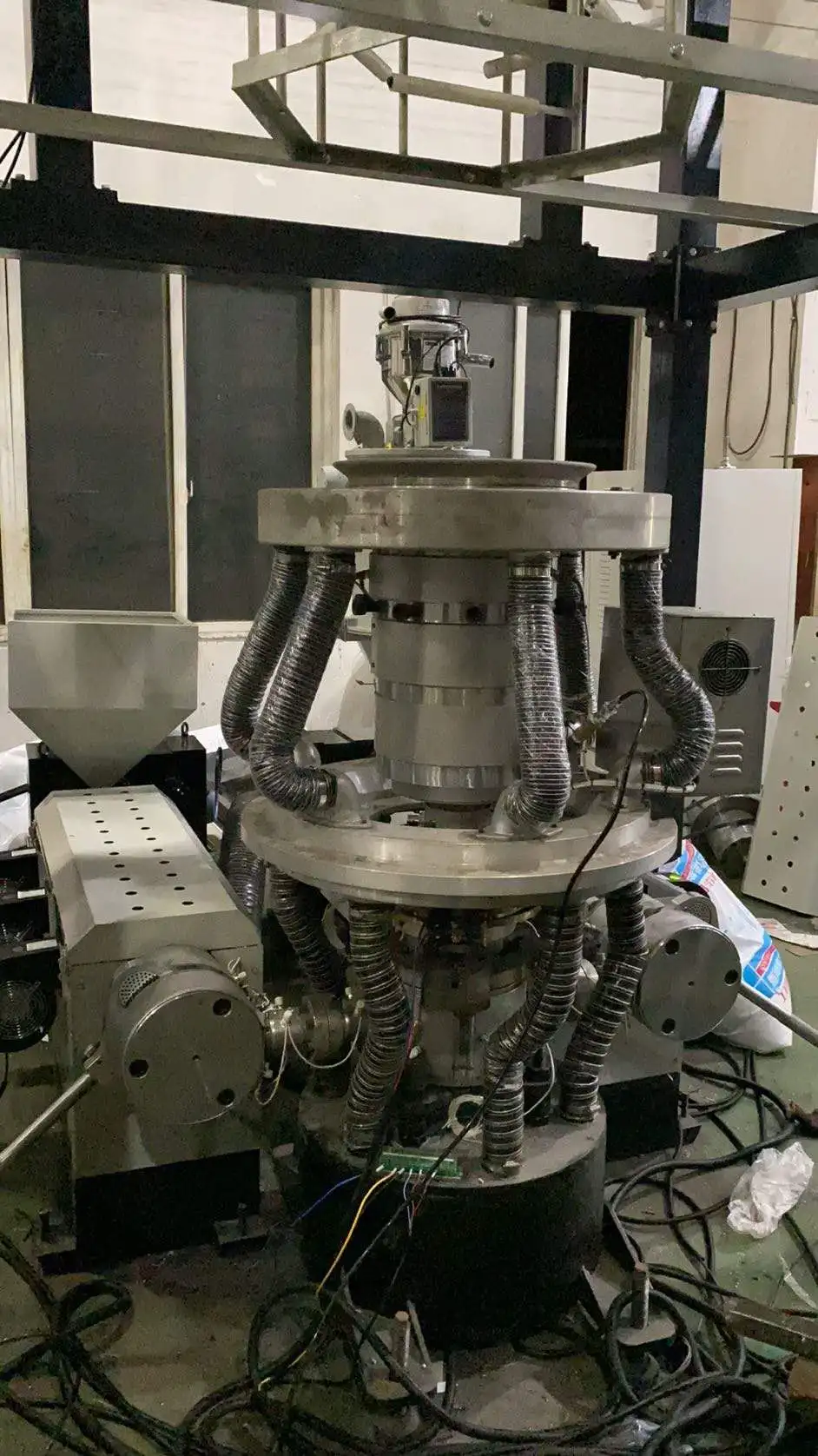

Die head | ||
Die size | HD:Φ60, fixed die | |
Die head material | NO.40 steel | |
Die temperature control | 3×2 | |
Air ring | 1 set , double vent air ring | |
Heating Power(kw) | 30 | |
Air blower | 3 kw | |
Take up | ||
Take up roller width | 165×700mm | |
Effective width | 700mm | |
Take up speed | 10-100m/min | |
Take up motor | 1.5kw | |
Take up control system | Pneumatic | |
Winder | ||
Winder type | single winder changer | |
Winding motor | 1.5kw | |
Winding speed | 100m/min | |
Company Profile

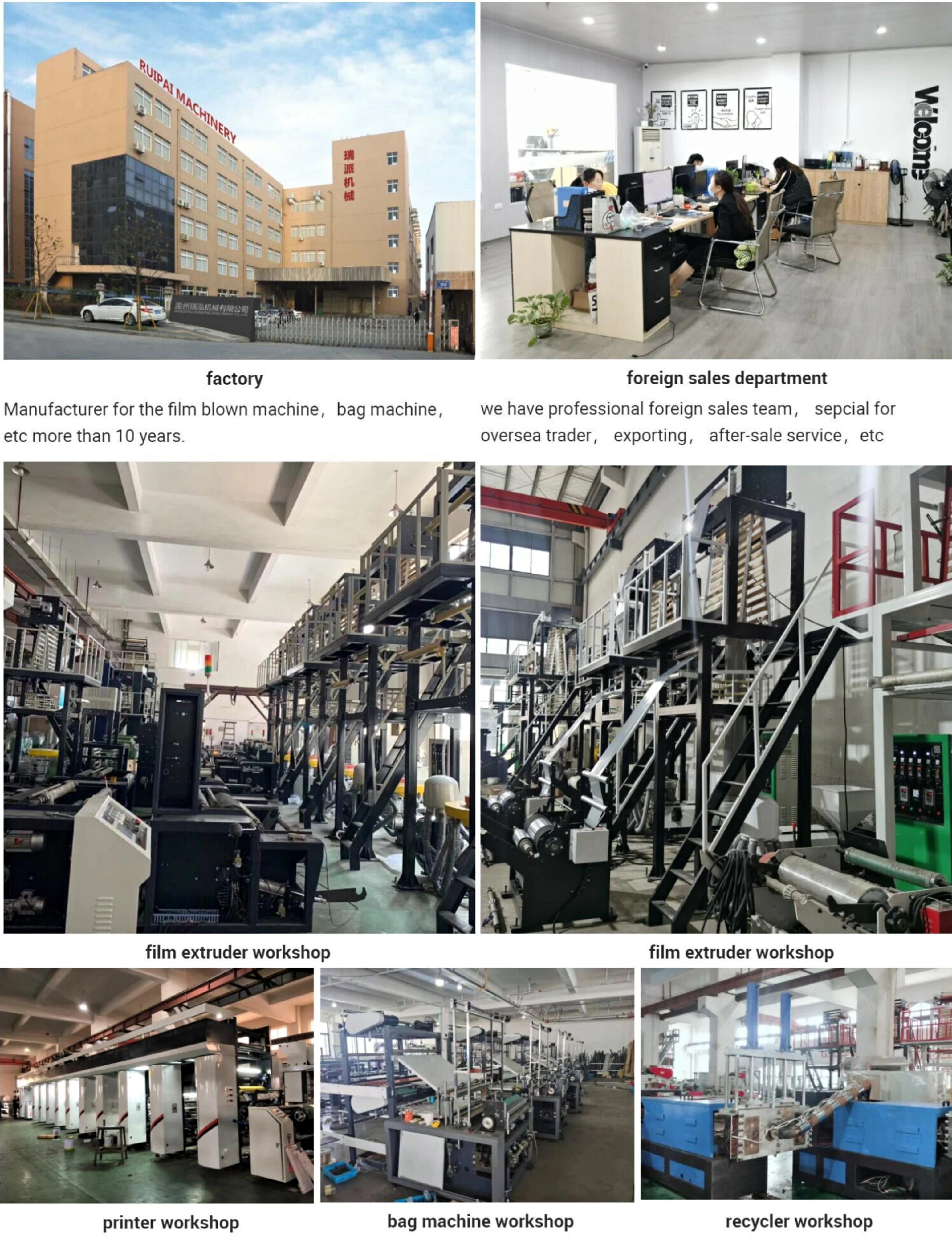

Factory view
we are the manufacturer for the film machine, bag making machine, recycling machine, etc
Foreign sales department
We have profession oversea sale team, special for trading, after-sale service.

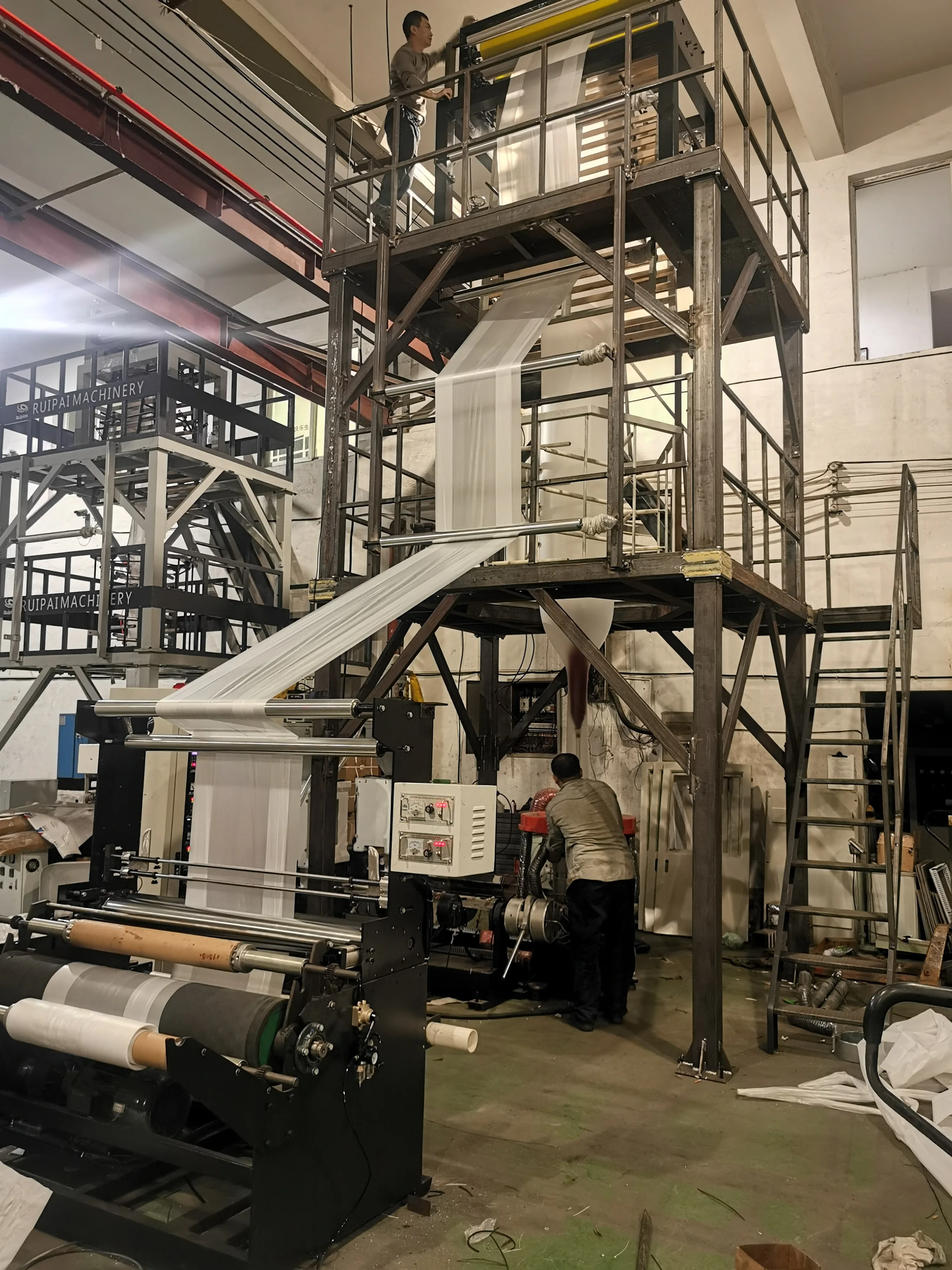

Film extruder workshop
Bag maker workshop
Printer workshop
pelletizer workshop
Exhibition
Why Choose Us
Our Service
